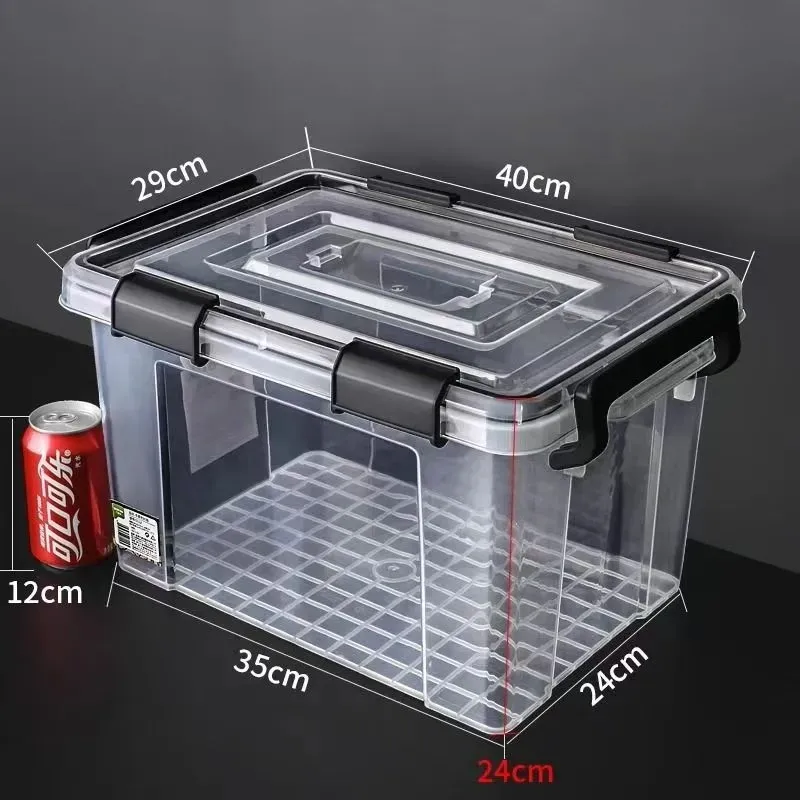

5-spool dry box central shaft version/two usage orientations: vertical and horizontal/20L storage box DIY with molecular sieve for single-digit humidity/no AMS
Print Profile(1)
Description

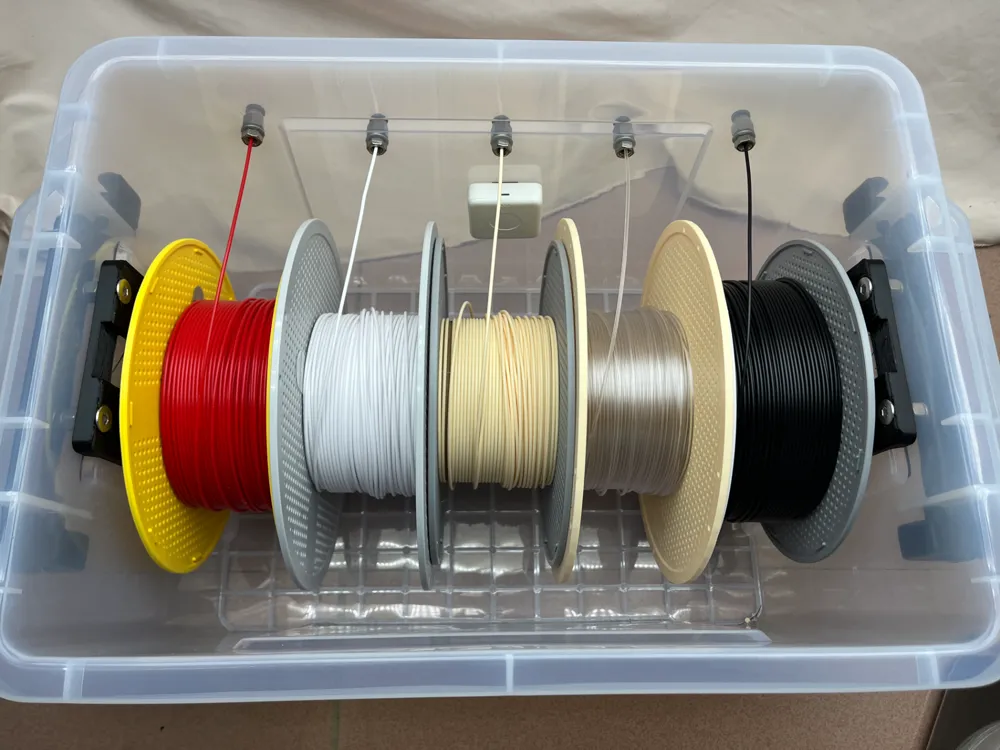

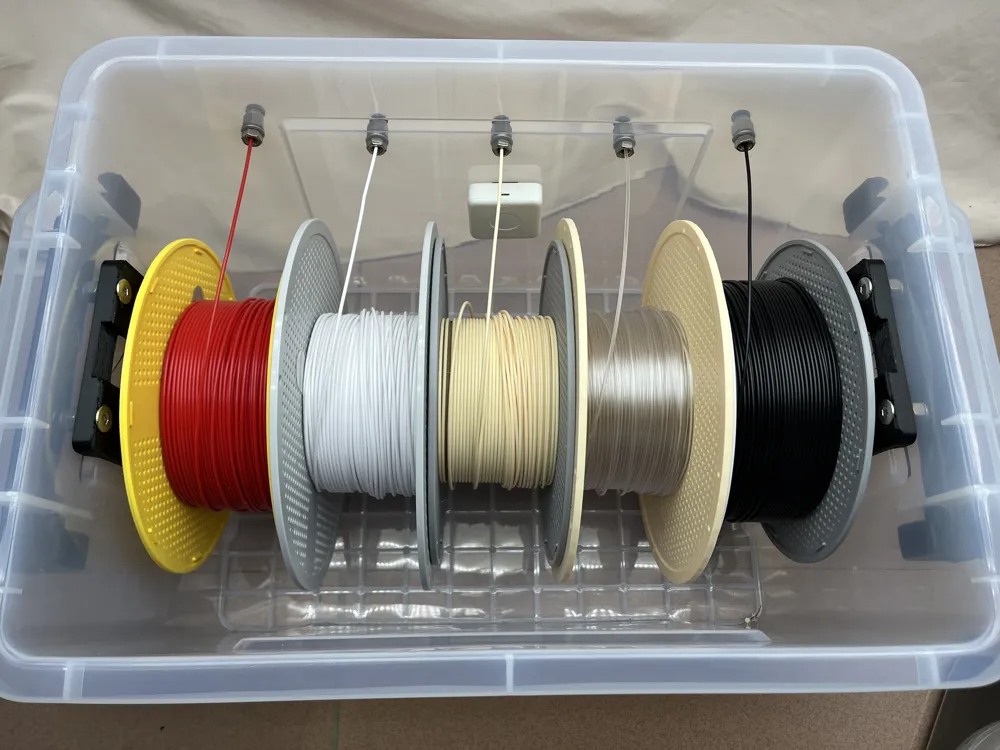

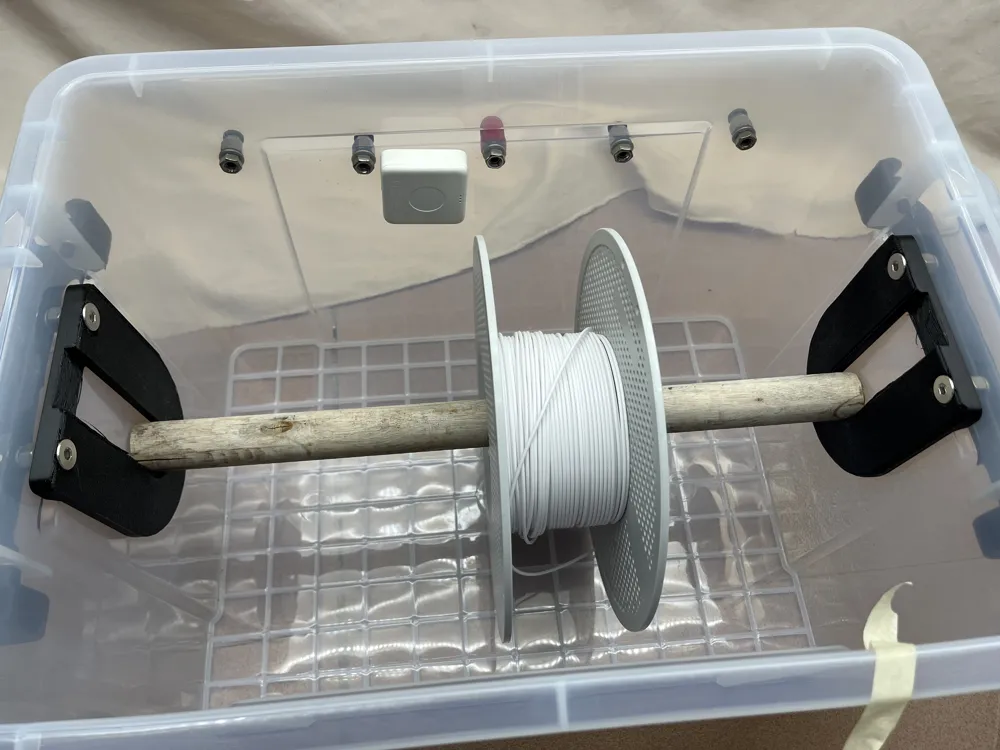

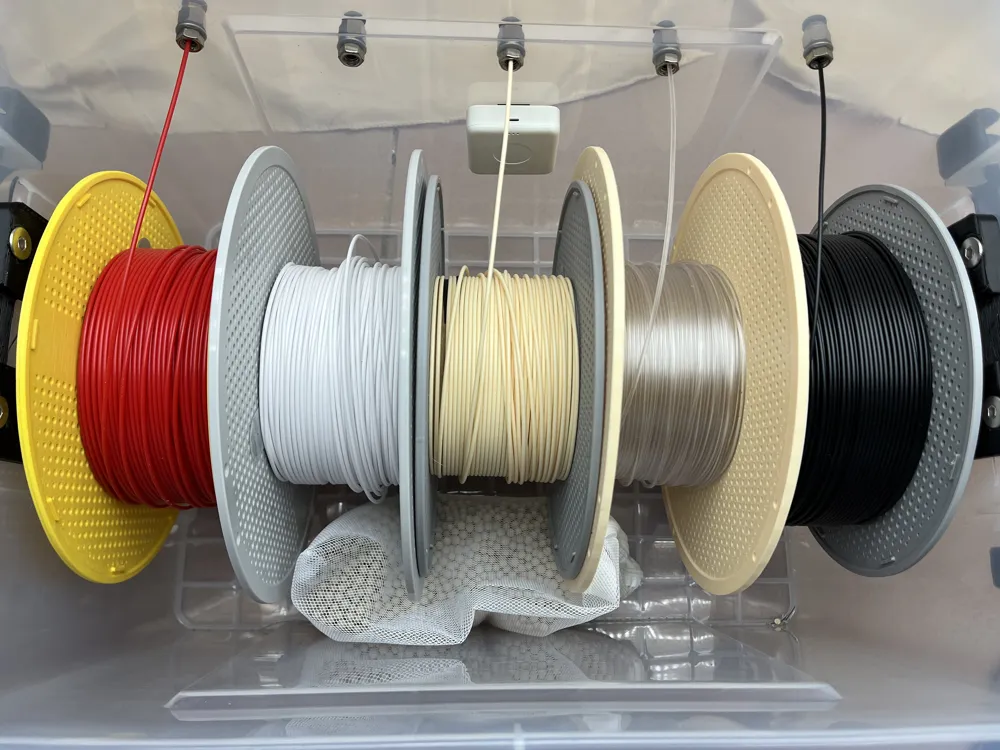

5-slot dry box with central axle version, holds 5 official Bambu Lab filament spools, to change filament just retract a little and manually feed other spools, reduces opening the dry box, if you mainly use one color, you can even put 5 rolls of the same filament

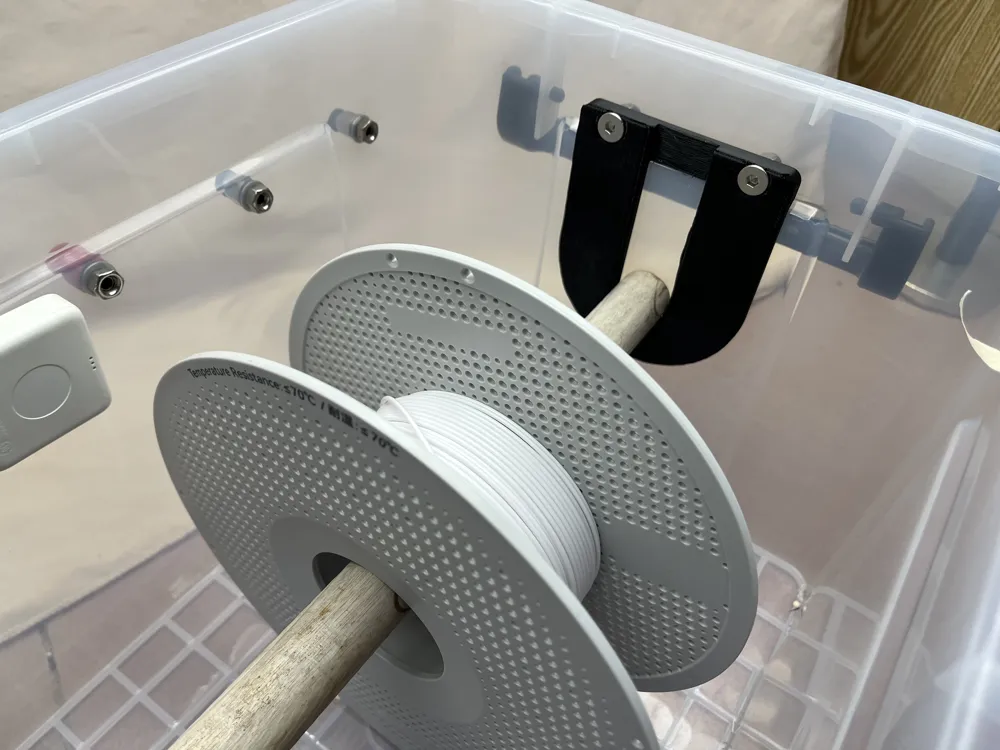

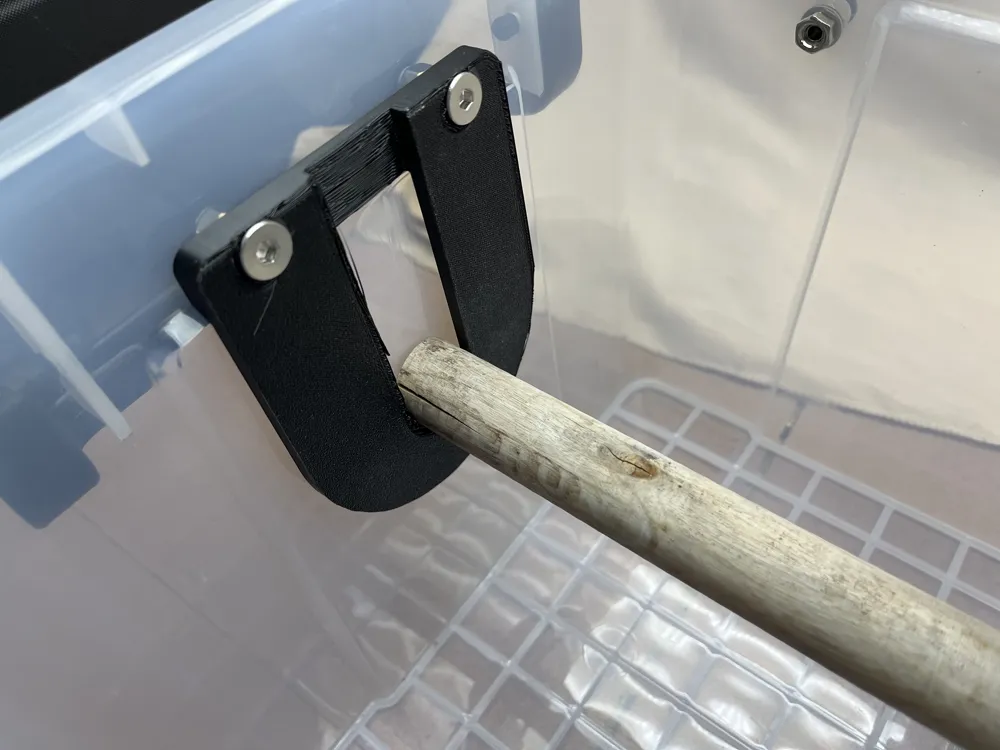

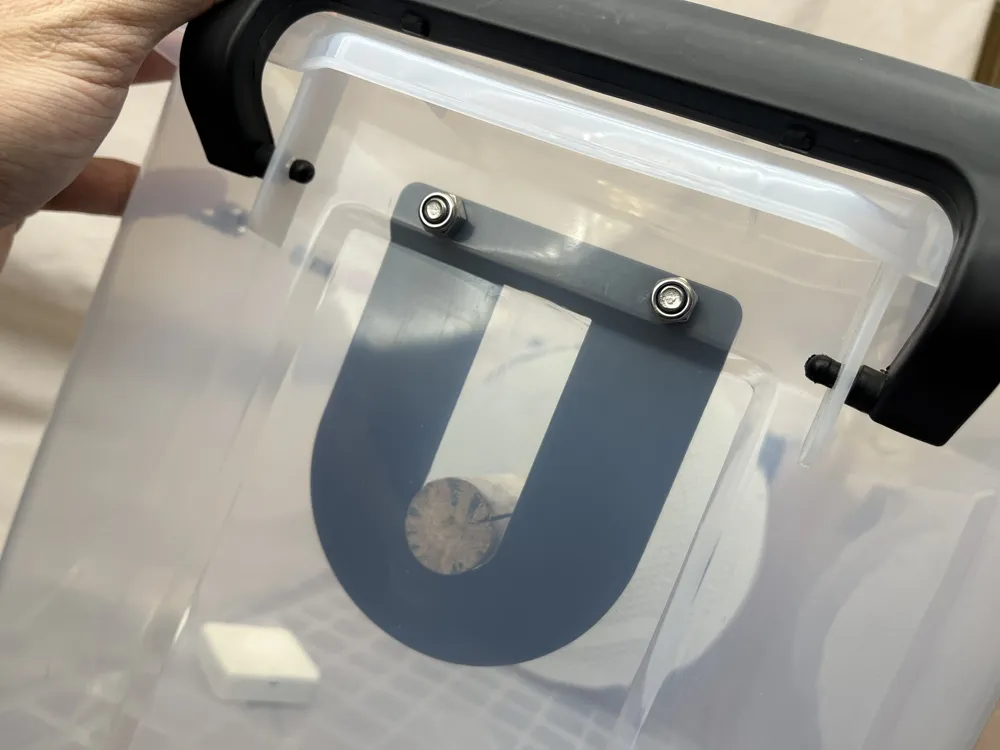

You need to prepare additional materials: a stick with a maximum diameter of 25mm and a length of 350mm, a water pipe, or a steel pipe (a 3D printed version can also be used), 4 M6*20 countersunk screws and lock nuts. The skirt of the central axle is to prevent the model from collapsing; just remove it with a knife

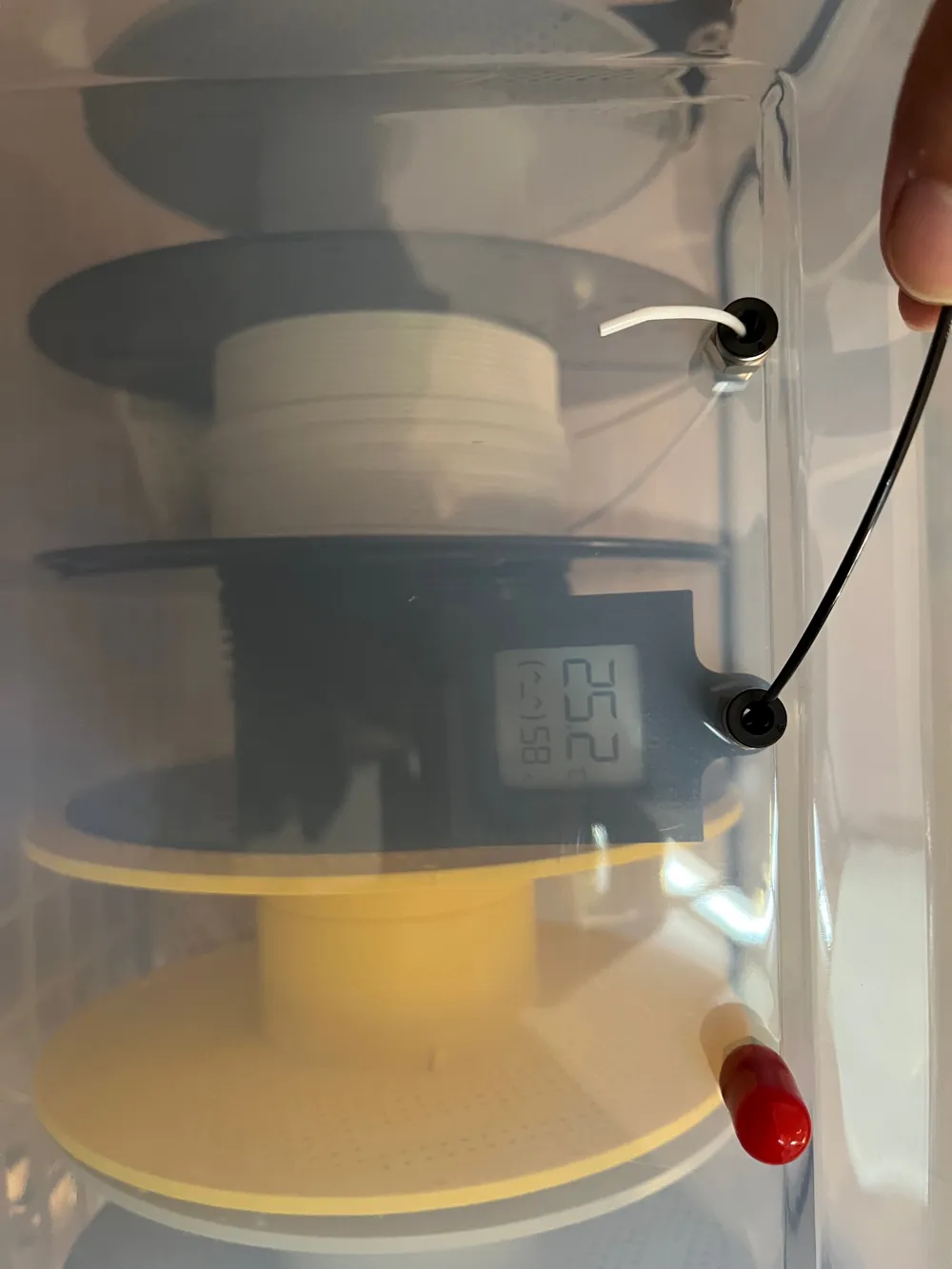

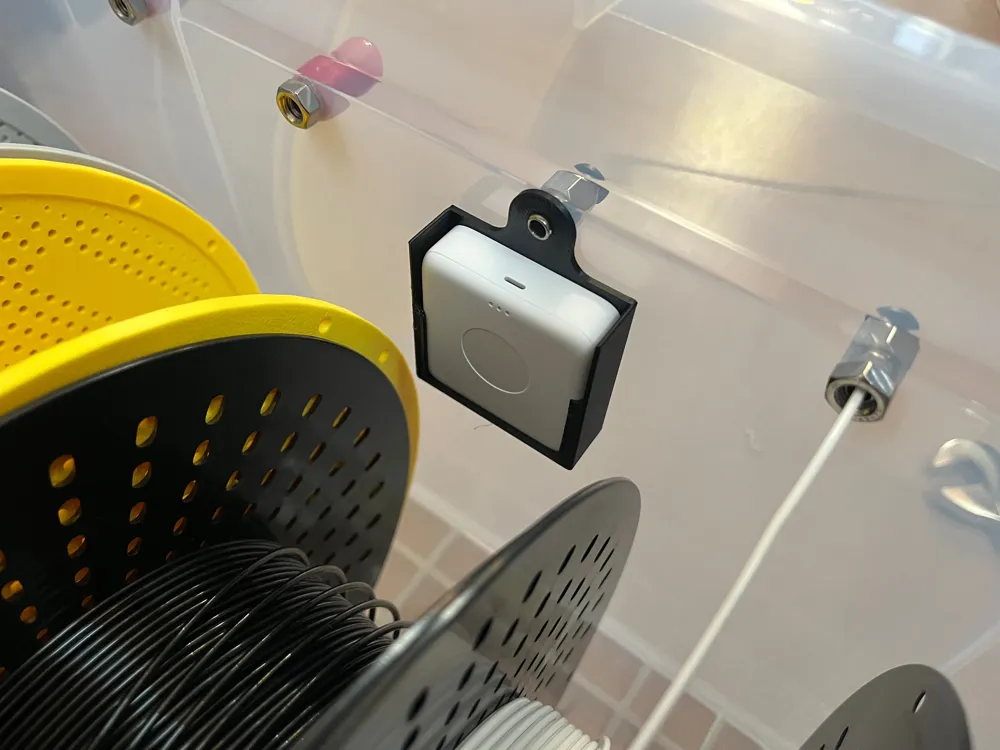

The air tube connector opening is 5.5mm, no nuts are needed, and a Xiaomi temperature and humidity sensor 2 can also be installed

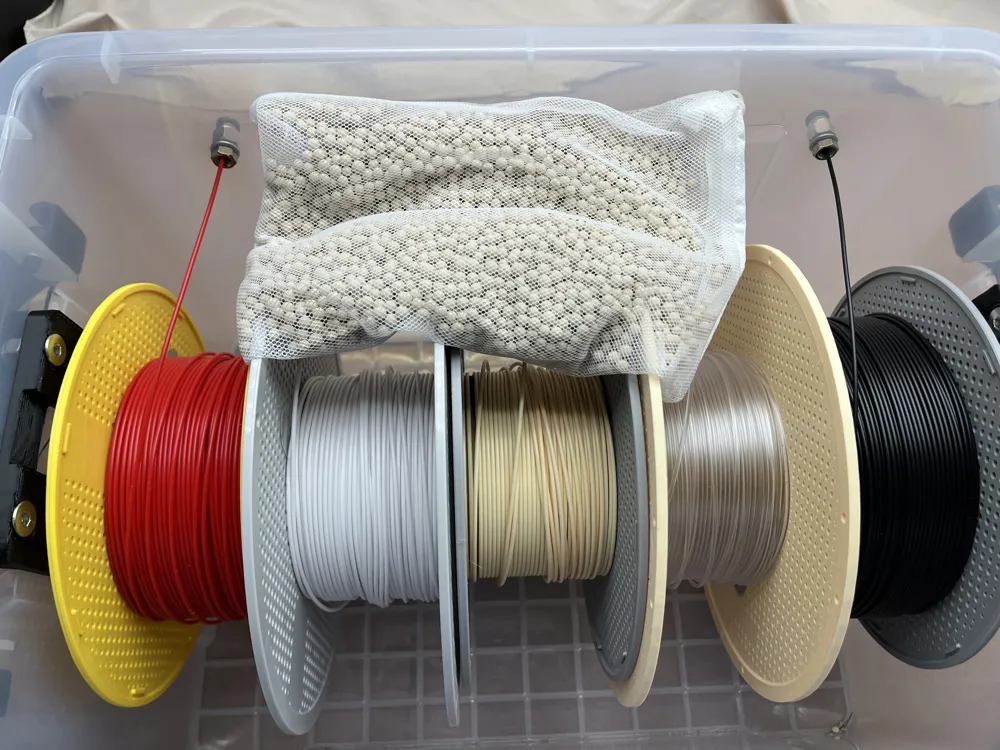

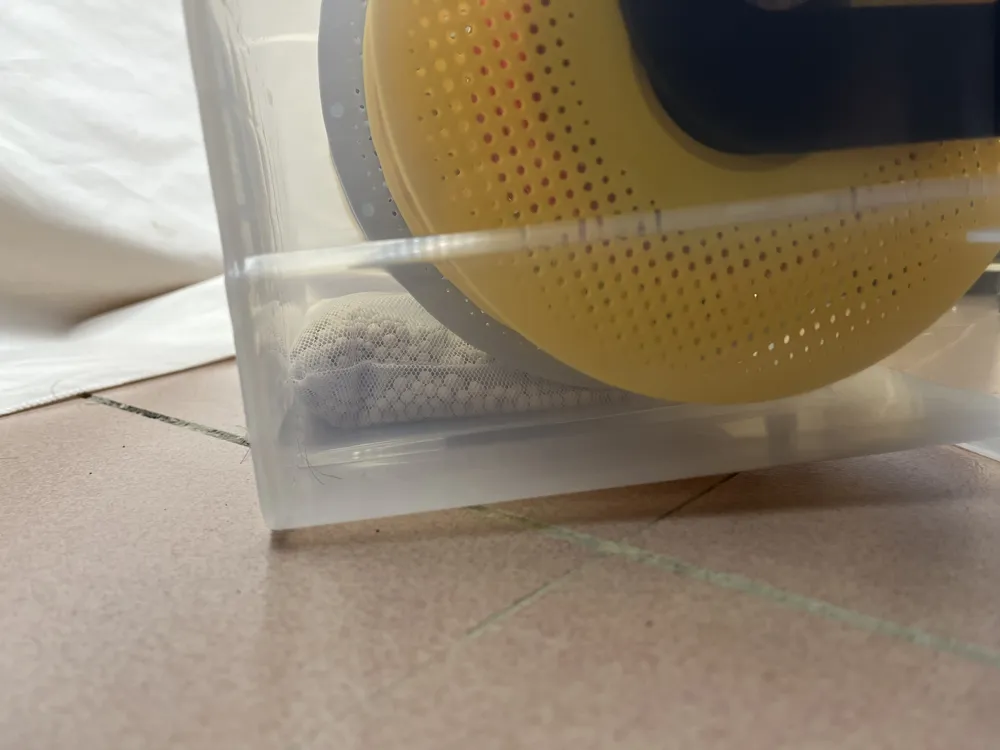

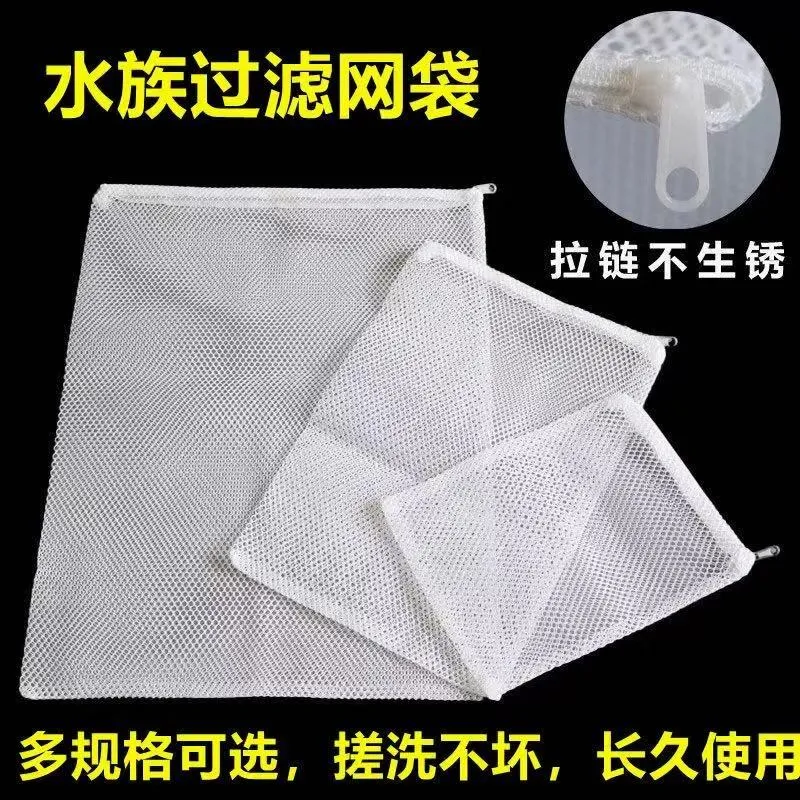

Drying: uses molecular sieves with mesh bags (see image above), buying several mesh bags costs less than one yuan each on average, with free shipping

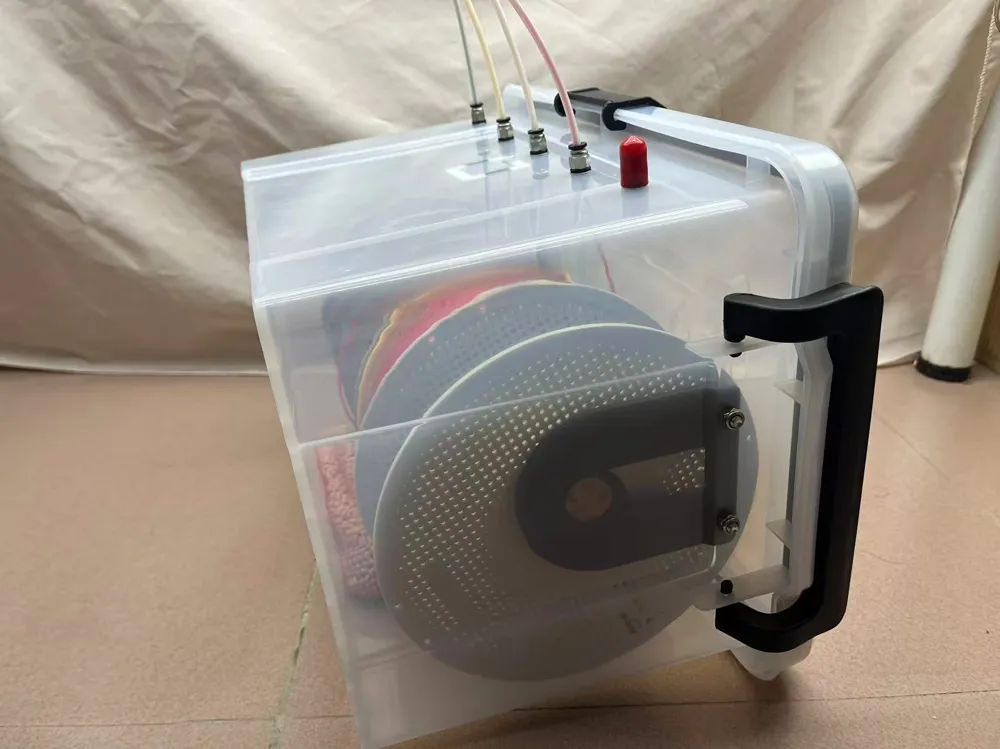

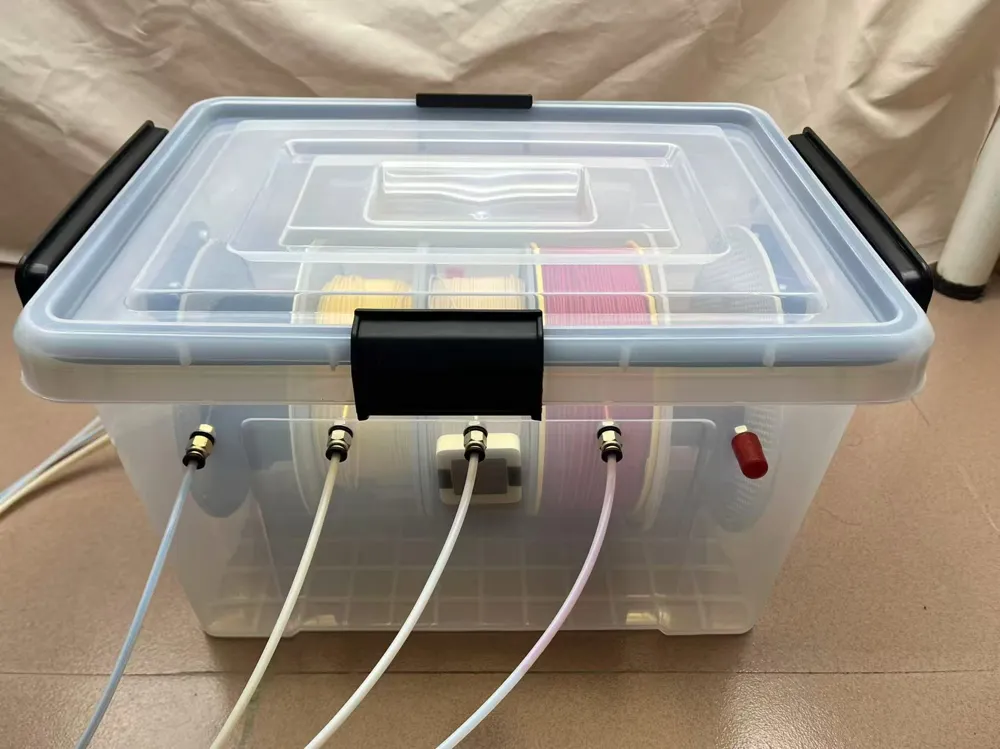

Depending on the positional relationship between your machine and the filament box, it can be placed upright or on its side, compared to other versions without a central axle, this one allows for smoother side filament output
A detailed video has been uploaded to bilibili; if interested, you can go to bilibili and search for the same name
Boost Me (for free)
If it's useful to you, please leave a boost for me
