Description

I'm currently playing death stranding on my PC and came up with the idea of recreating the „Odradek“ scanner as a desk light so I'd like to present you the "Desk Stranding" lamp (thanks to reddit user u/Typh_R who came up with the name).
This is one of my biggest projects so far with a total of 37 parts needed (30 individual parts).
I only used screenshots to recreate the original look as close as possible with keeping the printability in mind.
I ended up with 4 different .3mf's, divided into their color style.
All parts won't require any supports and you also won't need an MMU for this project, all color changes are layer based.
There is a bit of assembly required, you'll find everything that's needed below!

You can also use this as a cosplay prop if you are using batteries or a powerbank as the power source, there is still some space inside the main body for small power sources.

Note: Two lights are flipped in some pictures, the final version has got the correct original look!

Features:

Fully FDM compatible with no supports needed
On/off switch
Invisible wiring (wire channels through the hinges)
All lights are fully adjustable

Hardware needed:

0.25mm² wires (About 2 meters red and black)
Switch (21x15mm [punch hole is 13x20], standard size, like this)
Soldering tools
LED Strips
1x LED Diode Blue
Power Source
10x M3x4 Screw
15x M3x12 Screw
5x M3x20 Screw
21x M3 Nut
5x M4x20 Screw
5x M4 Nut

Installation guide:

Click here for a detailed instruction manual (pdf file).

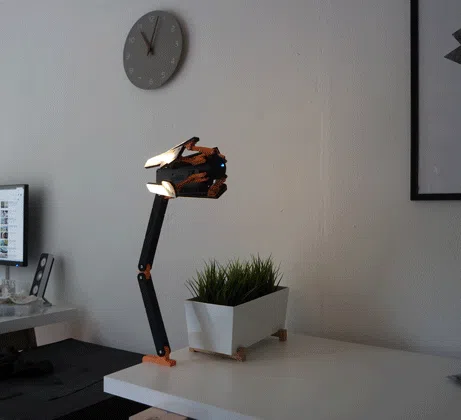

As bonus, here is a little stop motion animation from the lamp in action:

Print instructions

All parts are optimized for FDM printing.
Please use a 0.4mm nozzle (or smaller).
I advise to use the .3mf (or gcode) files, as all parts are already aligned and ready to print. However, I’ve provided all .stl files as well!
Print in PETG for better durability
