Robot Vacuum Toy – Roborock S7

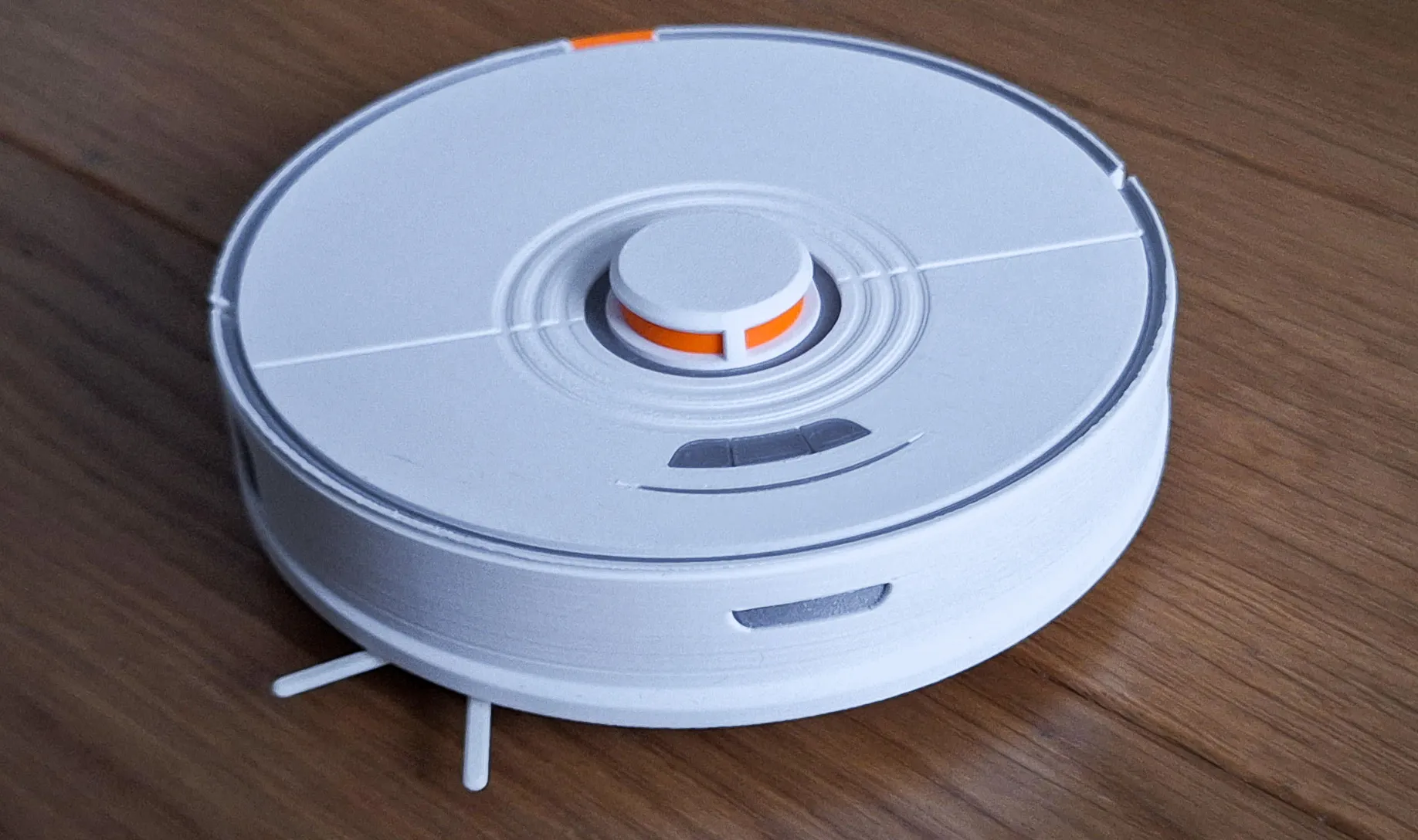

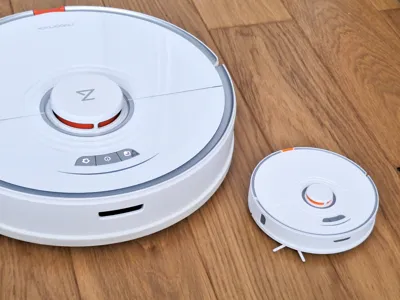

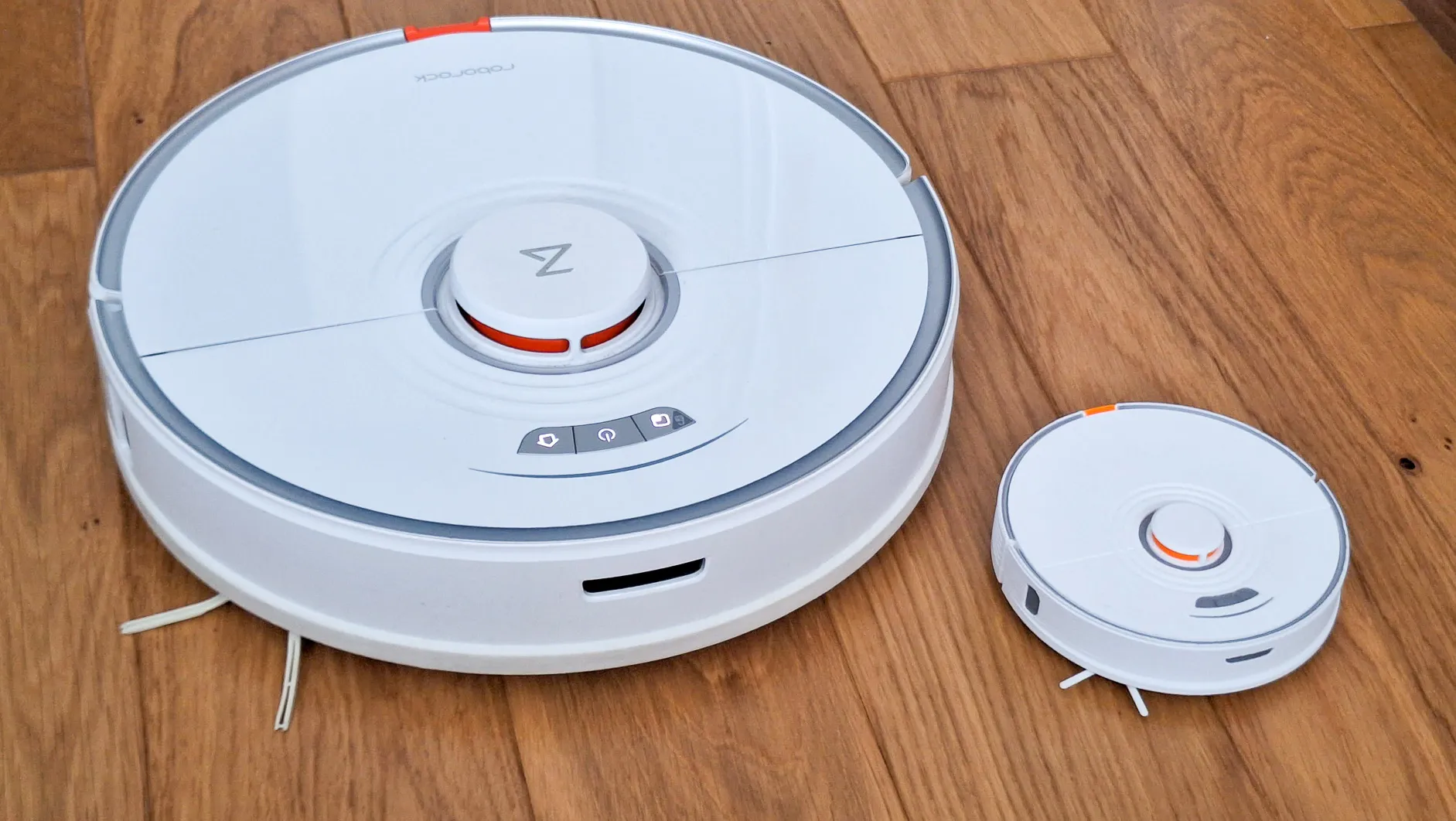

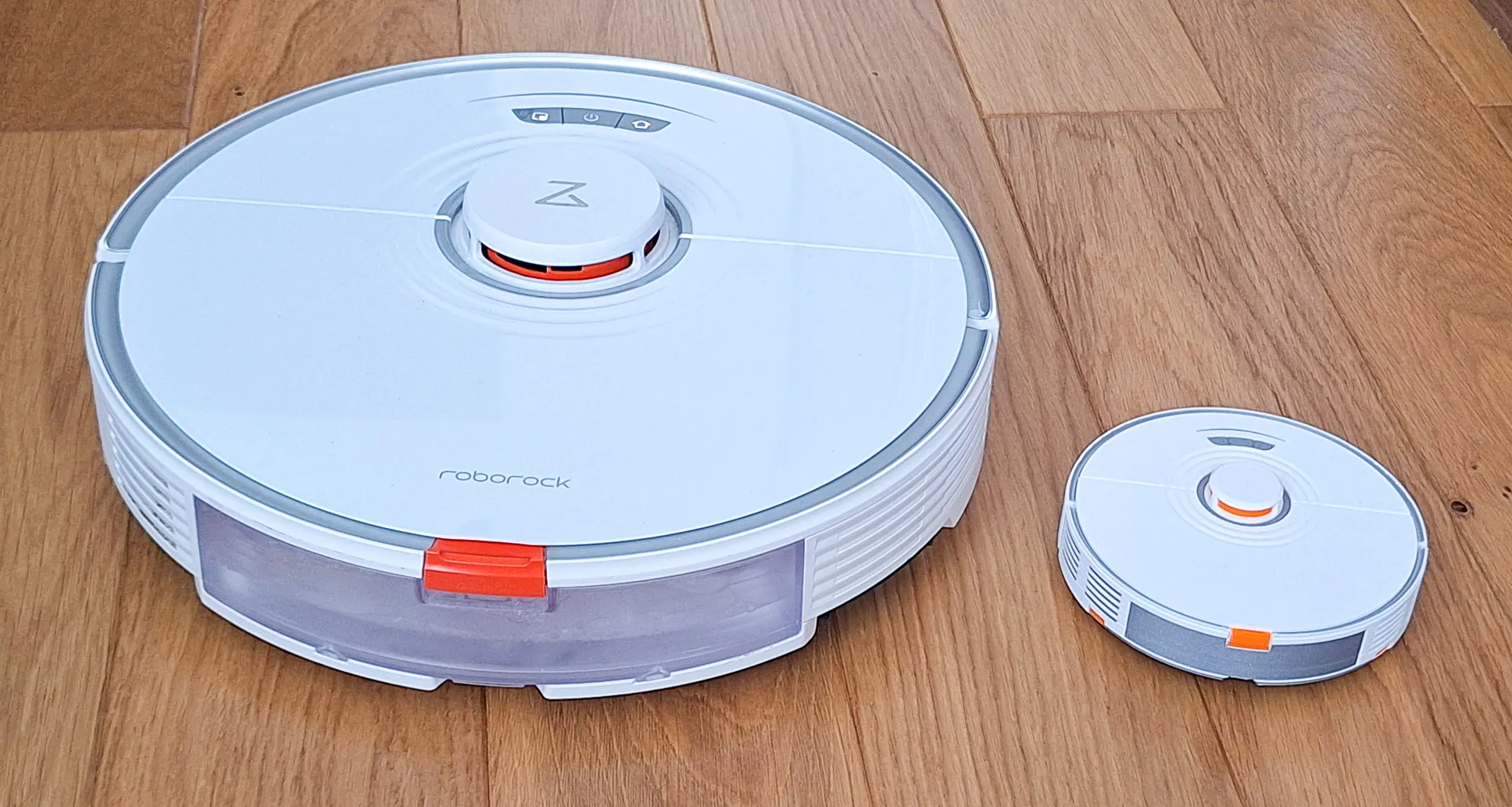

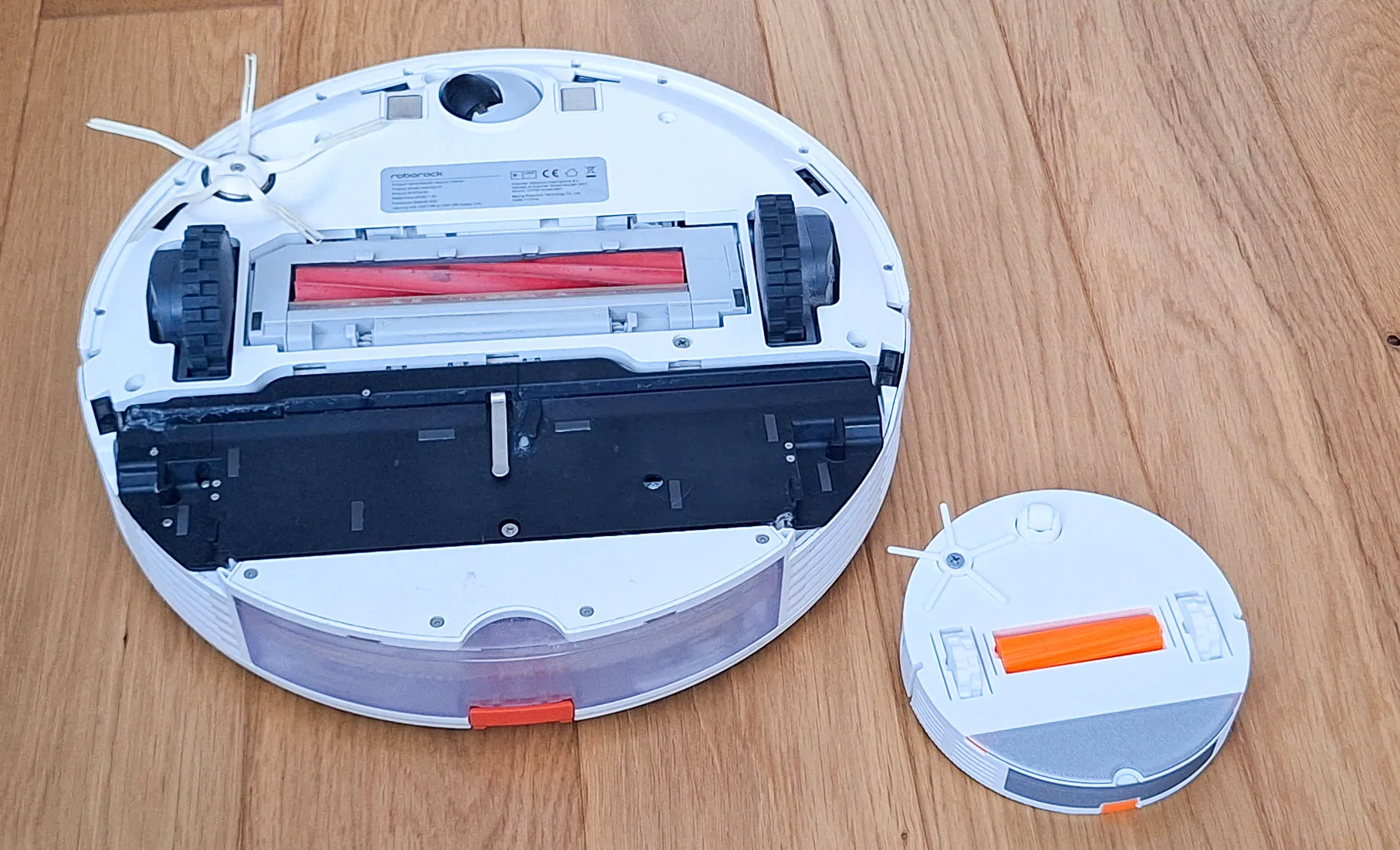

Hello, this is a toy robot vacuum cleaner that was inspired by the Roborock S7.

The wheels can be printed from flexible material - they are in a separate printing profile. For assembly you need 1 piece of size M3x8 to M3x12 screw and one size M4x8 to M4x16.

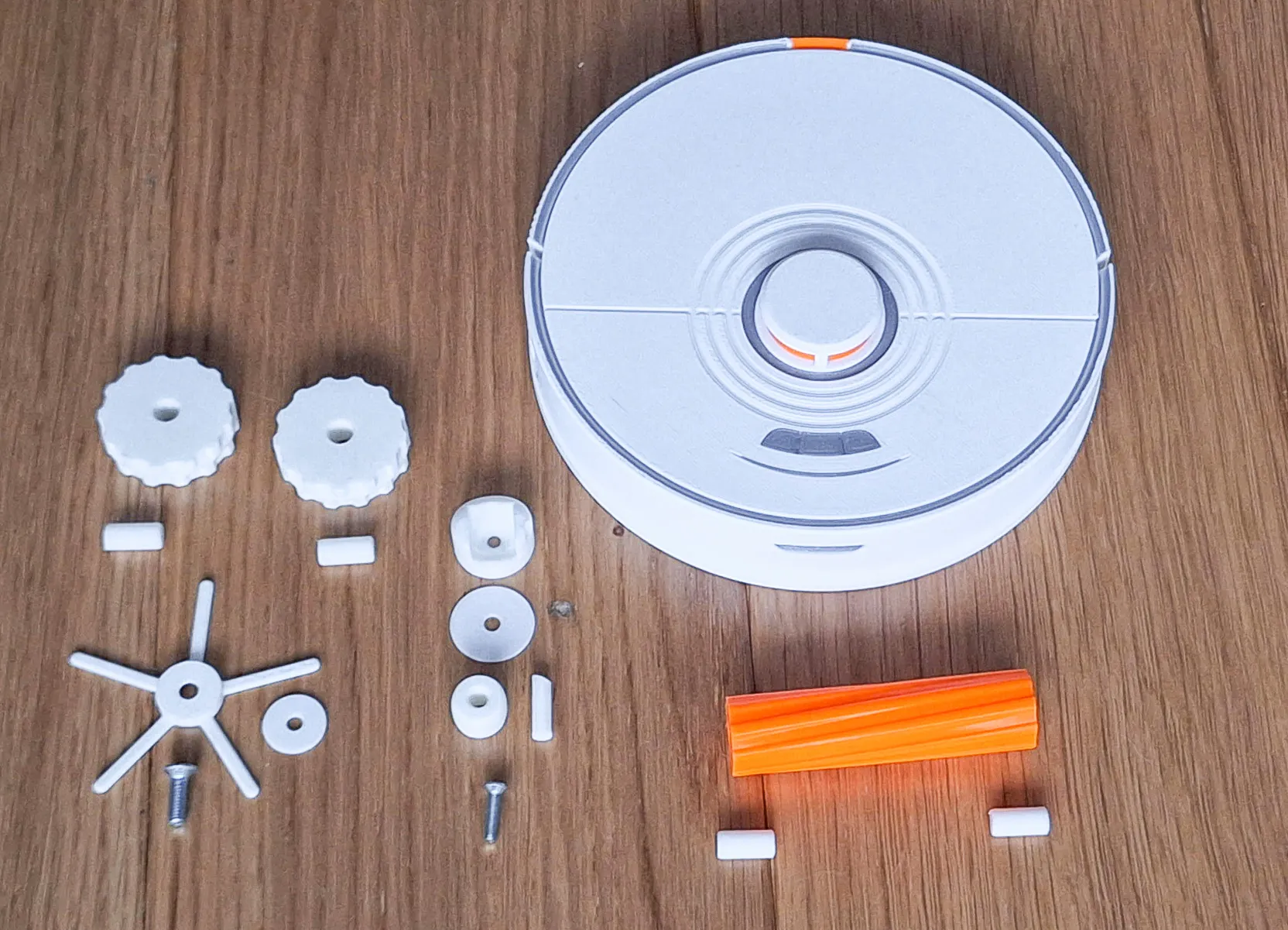

List of printed parts:

Assembly instructions:

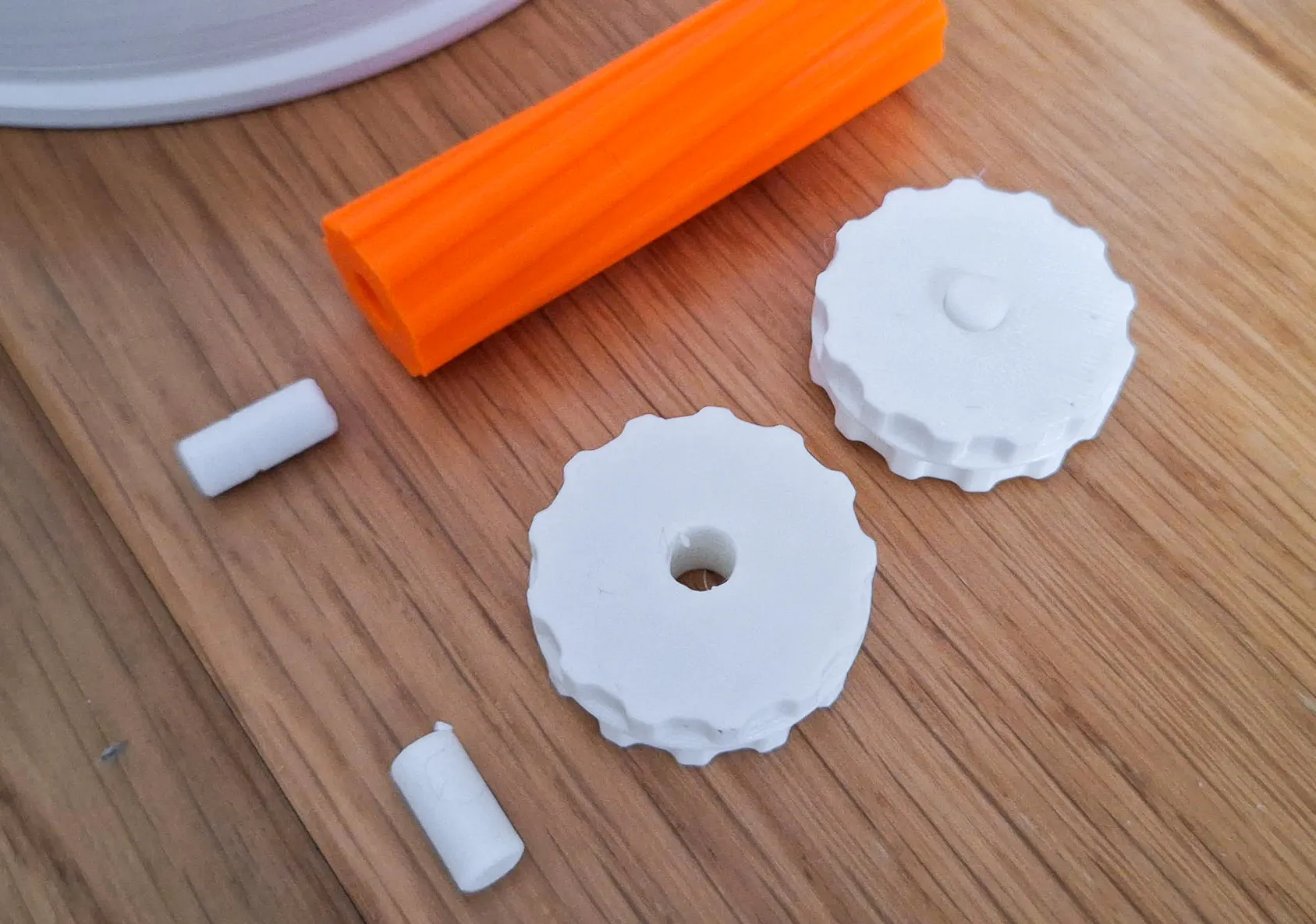

1. Insert the axles into the main wheels and brushes. The axles are the same

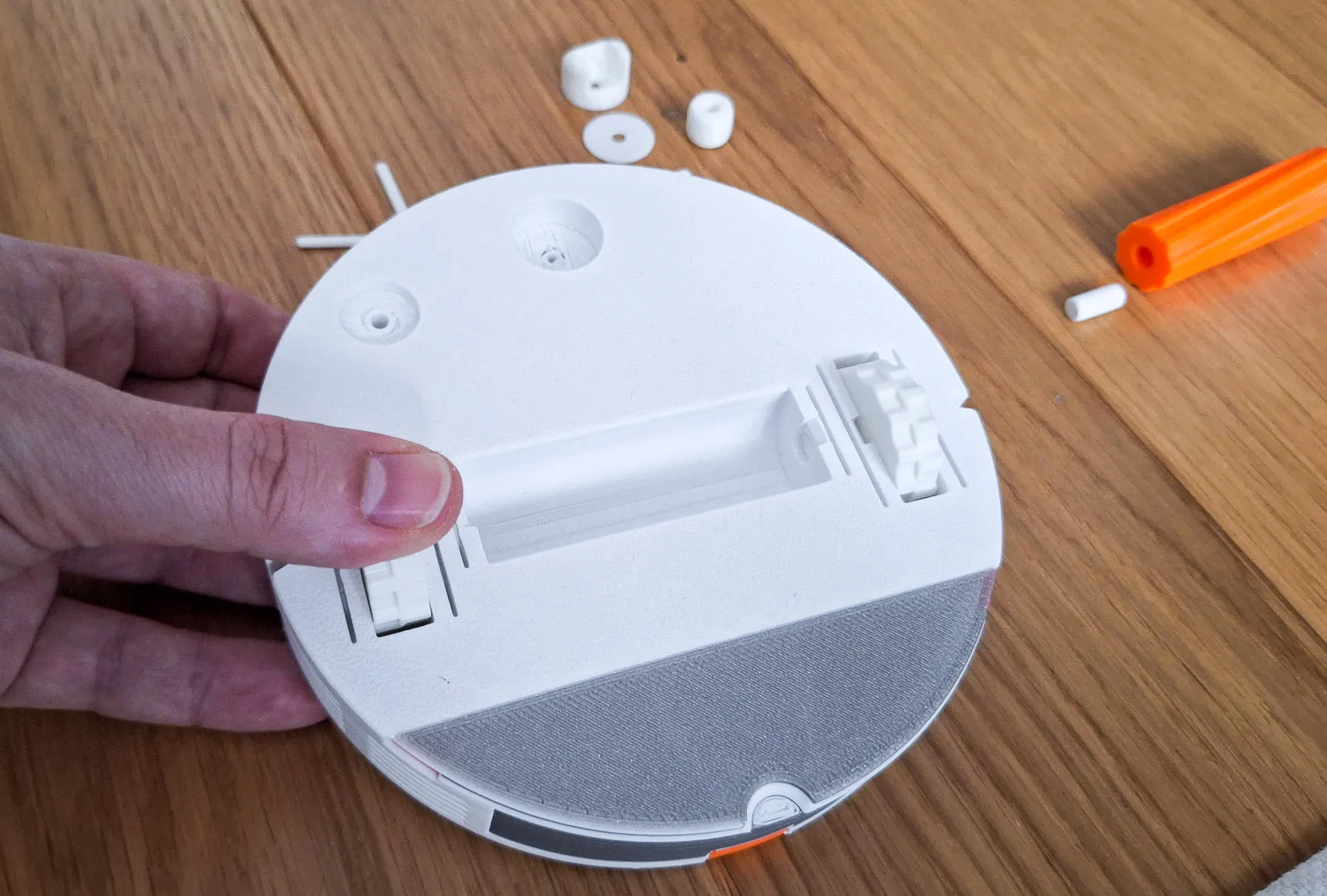

2. Insert the main wheels and the main brush into the body of the vacuum cleaner by pressing harder

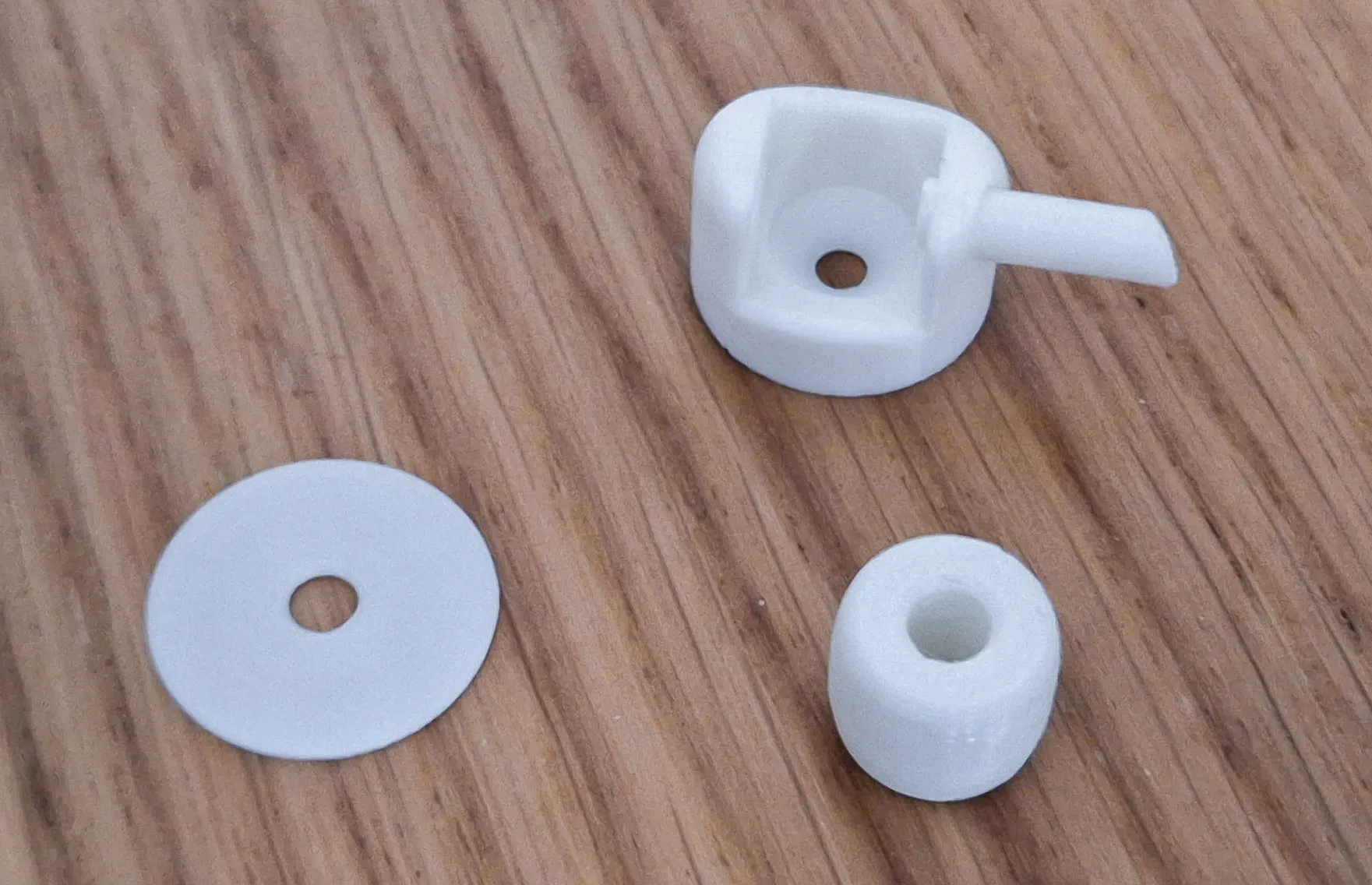

3. Prepare the small axle into the front wheel body. Insert the axle only a little, do not insert the TPU wheel now!

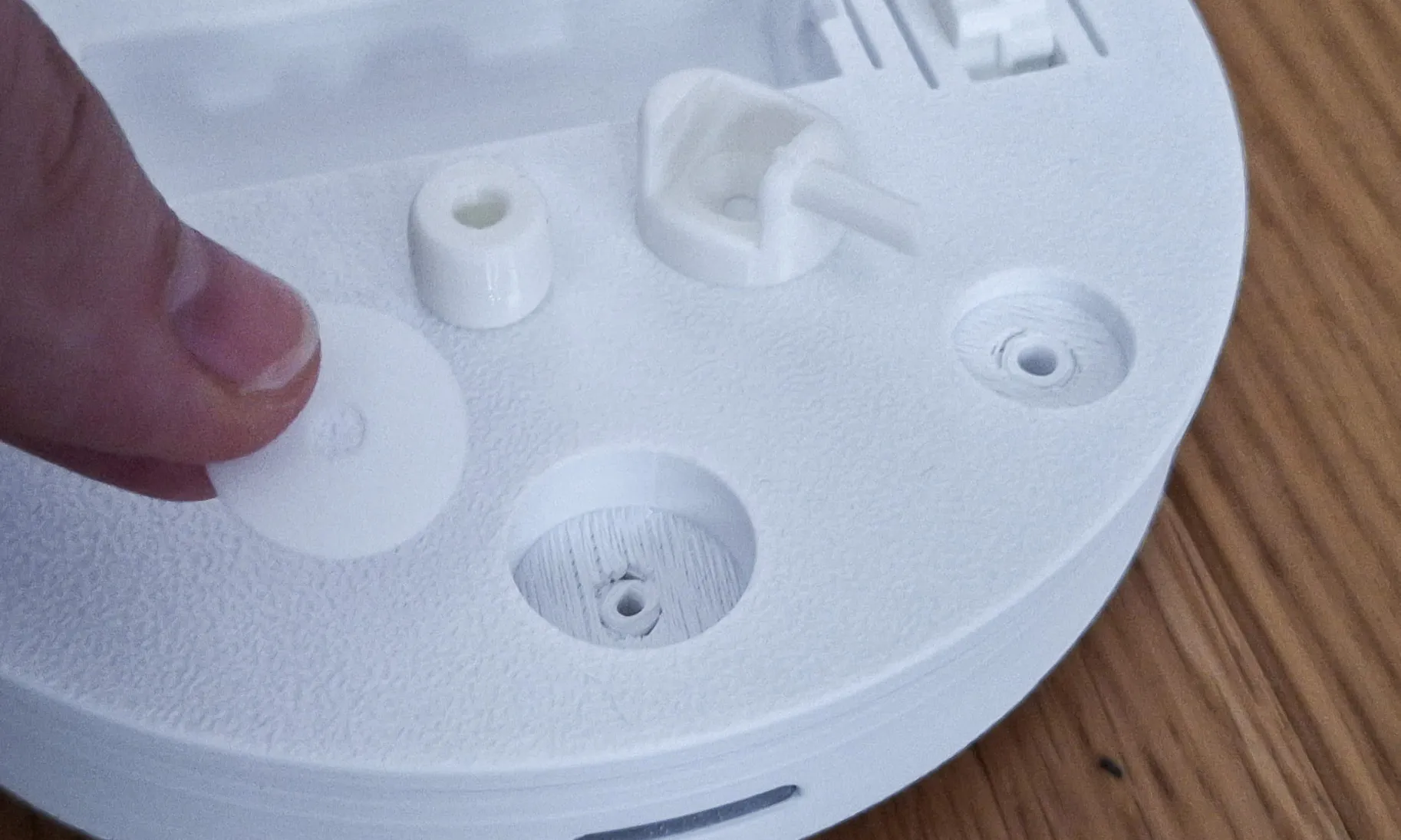

4. Insert the washer into the hole on the front wheel.

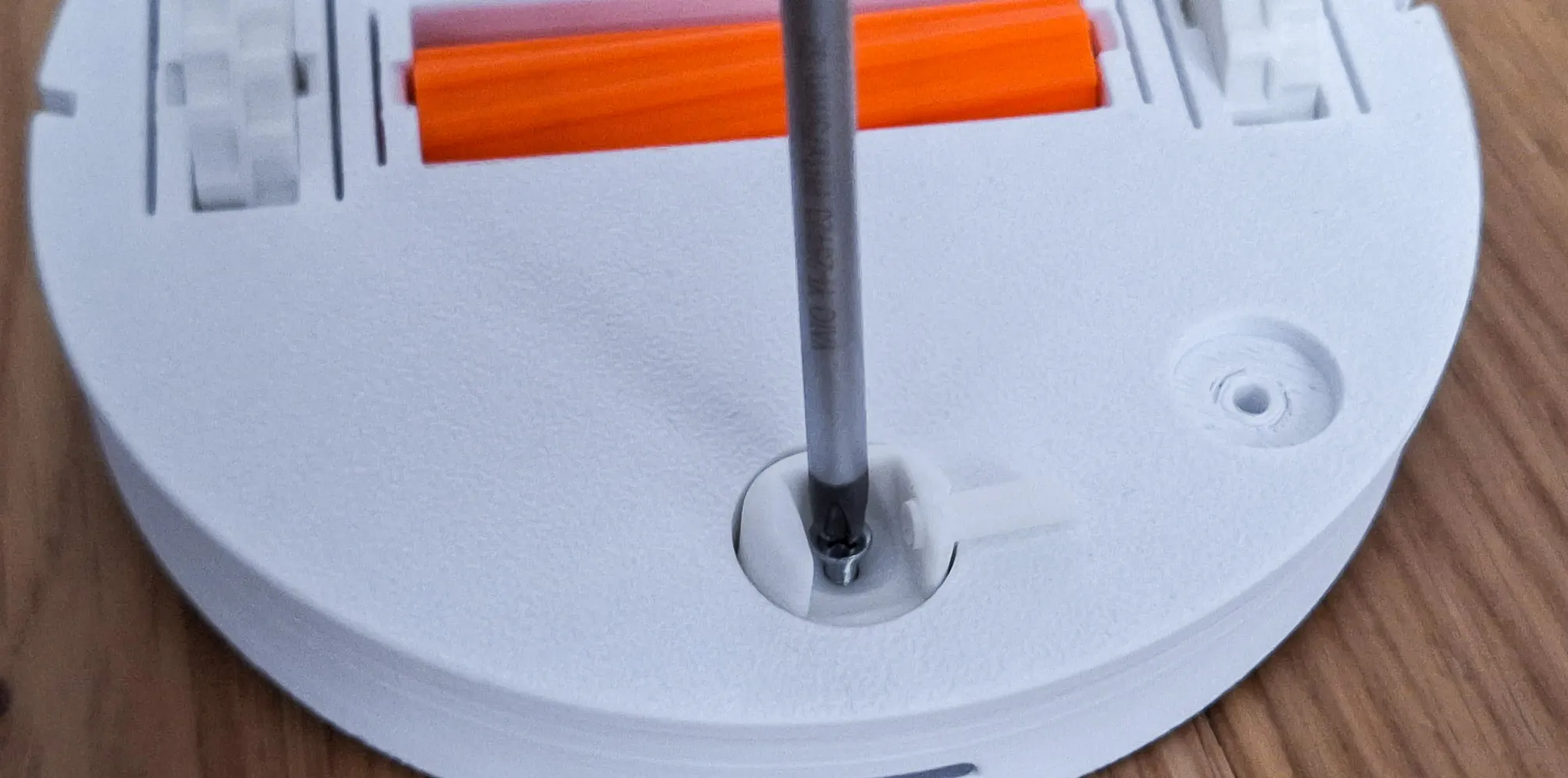

5. Attach the wheel using the screw now. Do not tighten completely. The wheel must be able to turn.

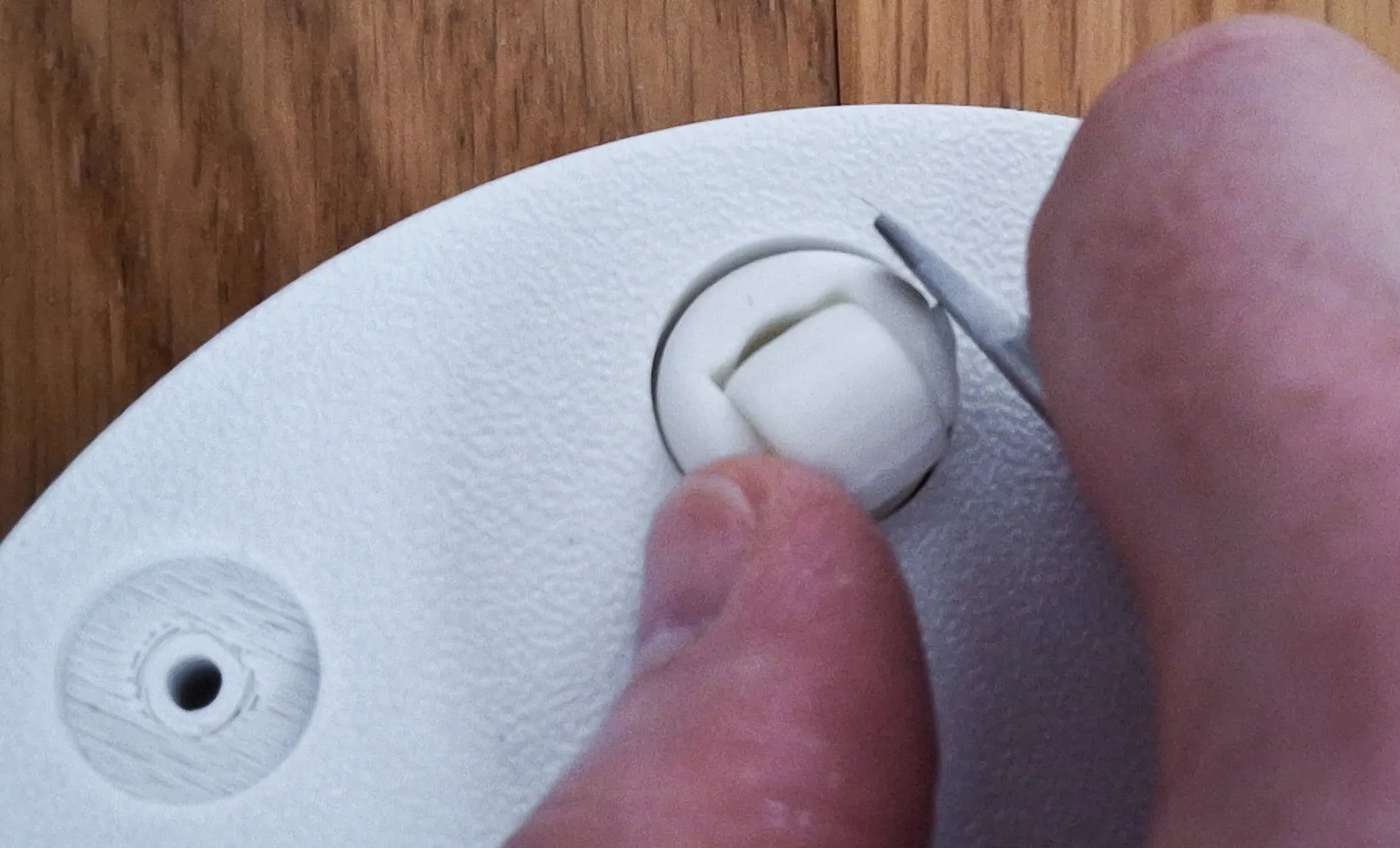

6. Insert the TPU wheel. The axle will be very difficult to insert. Use a flat tool such as a screwdriver to help you.

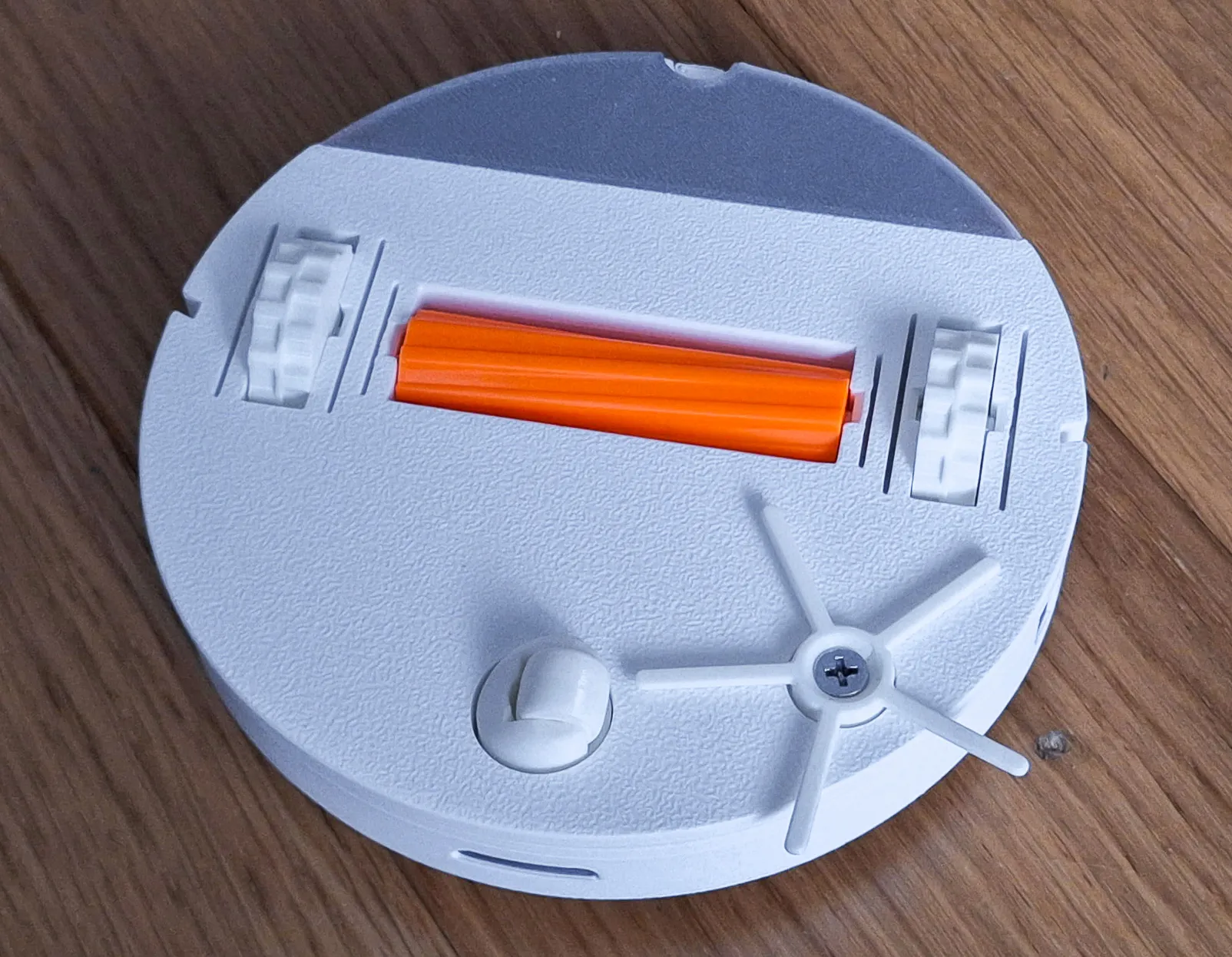

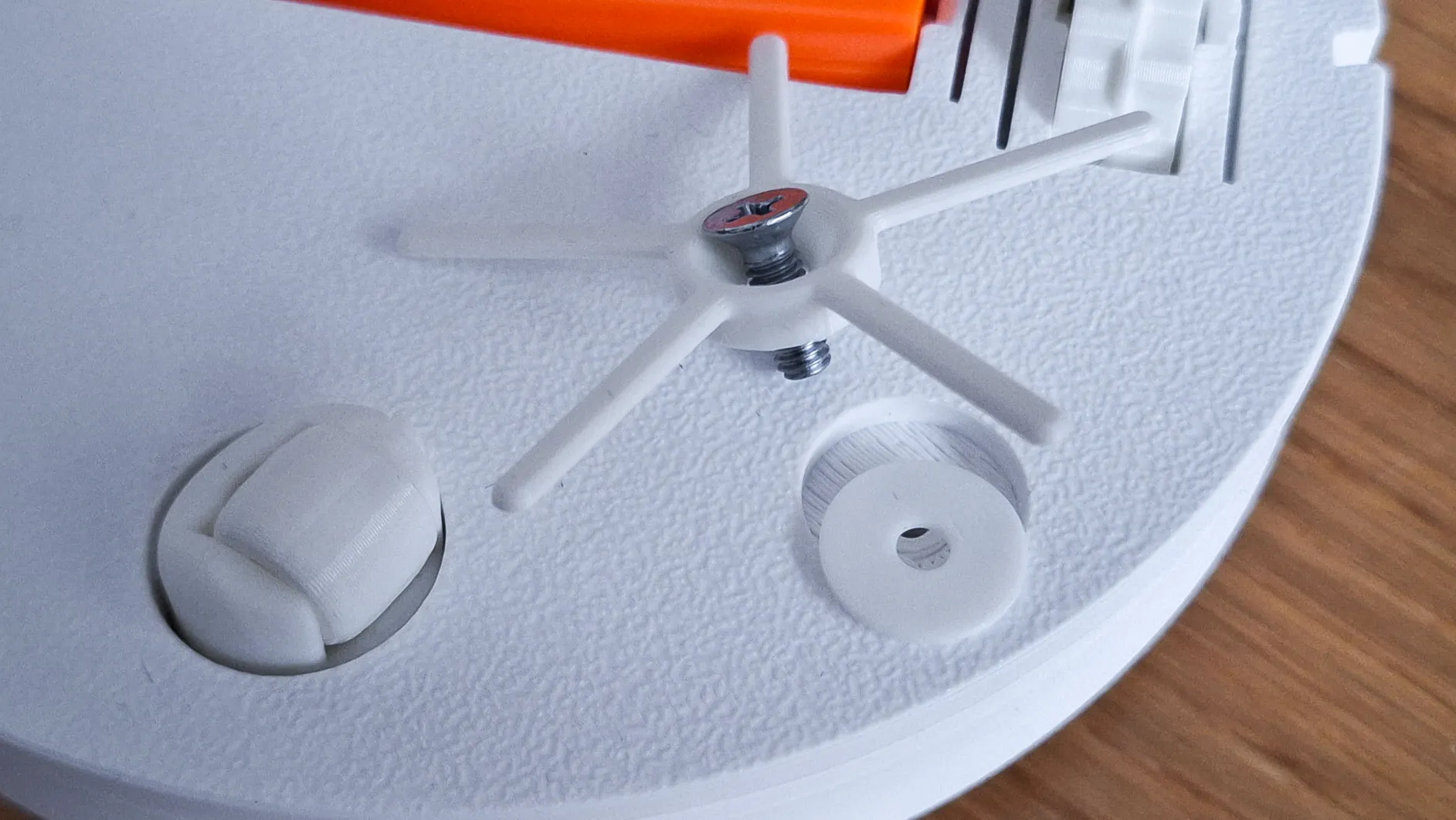

7. Insert the washer and screw the side brush into place. Tighten the screw so that the brush can rotate freely.

8. Done :-)
