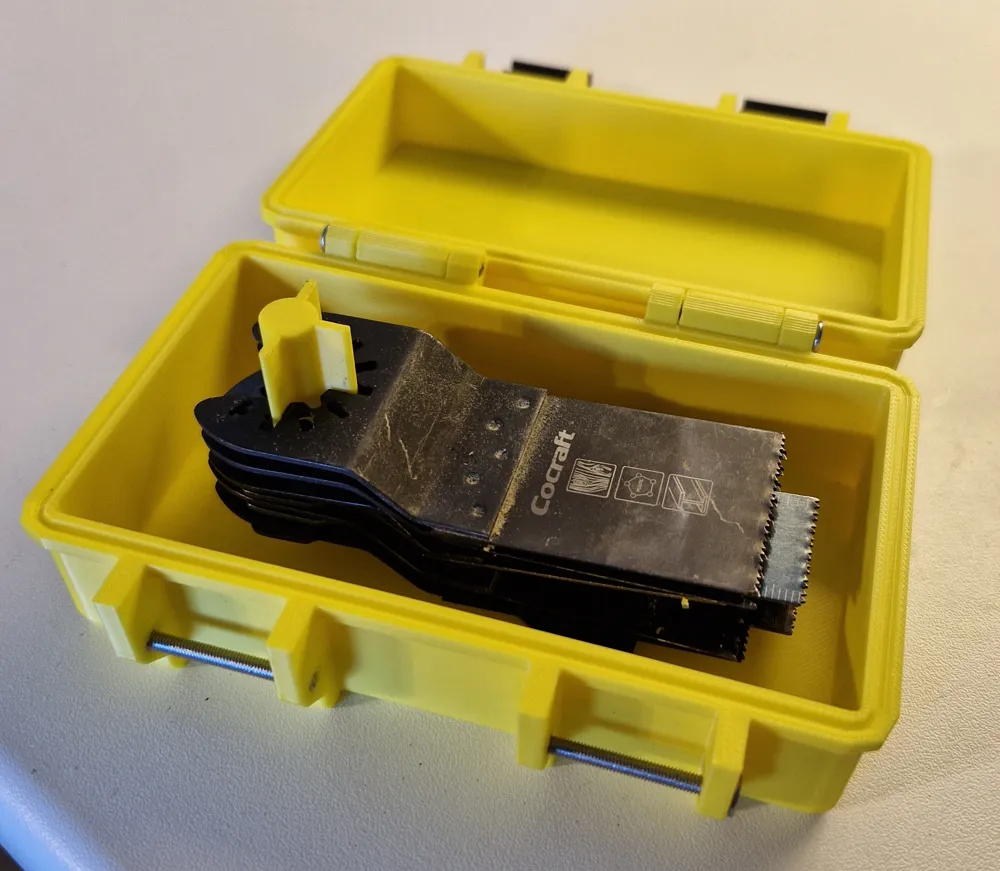

I wanted a decent case for some oscillating blades.

Other designs used 20mm screws and I only had 30mm M3 screws available.



You need 6x M3 30mm machine screws.



I used this excellent parametric design to create the box itself.

https://makerworld.com/en/models/788747-super-customizable-rugged-box-in-openscad#profileId-998975



Then some simple shapes in Bambu Studio to hold the blades in place.

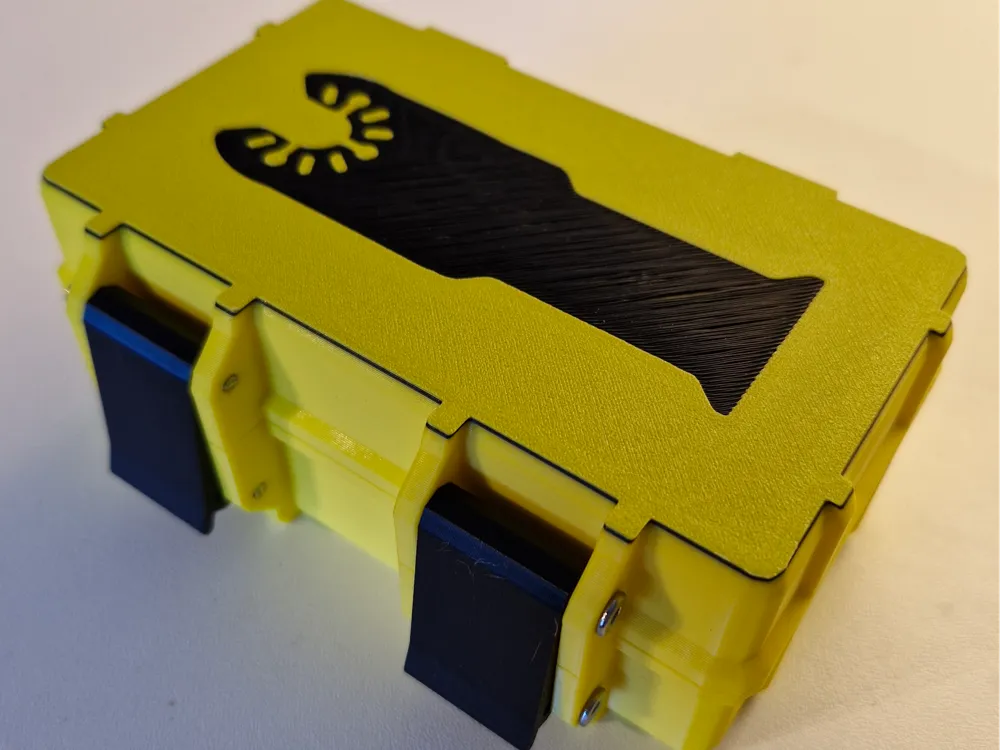

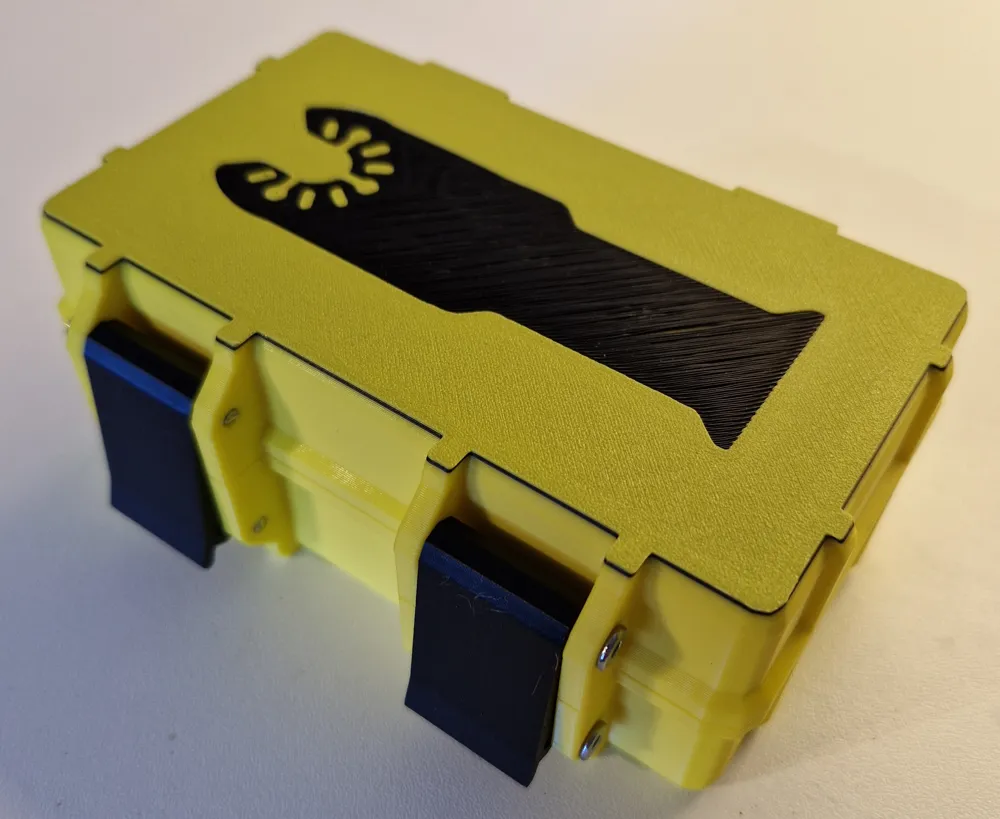

The blade emblem is added as a negative part.



I've printed this without AMS.

When printing the top part, stop the print at layer 3. Switch filament.

Stop again at layer 6 and switch back to the first filament.
