LIGHT small tiny whoop fpv drone frame prop guards

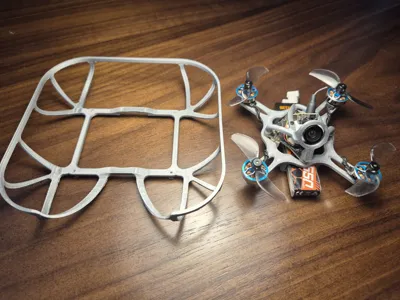

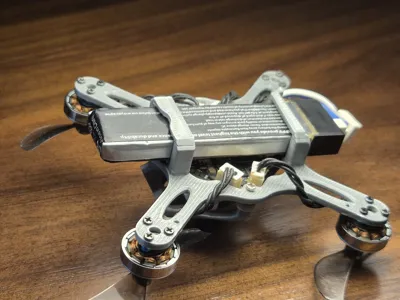

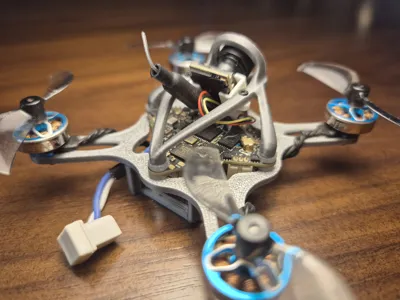

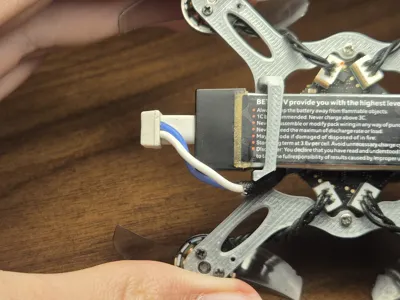

This is a very light combination of a frame, a canopy for the camera and attachable prop guards!

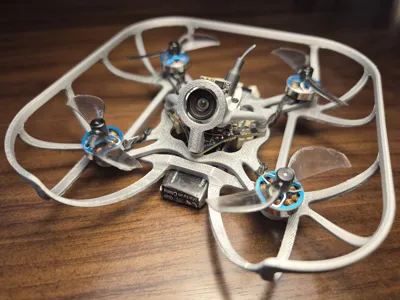

You can fly ultra light, or attach the propeller guards with only 4 screws

I made and tested over 15 versions and this is up to now the best one!

I made it for my betafpv meteor 75 pro. For this model it fits perfectly! But I am sure it will also fit for similar models!

I printed it with PLA, but you can use stronger filament, just keep in mind that no metter which filament you use if you keep crashing harder and harder the propeller guards are not indestructible, so like all other propeller guards at some point they will break.

Nonetheless I made them as sturdy as I can! I already crashed hard a few times and they are still in perfect condition!

If you are thinking of using other filaments here some advice:

• Use a horizontal stiff filament (for ex. PLA CF) for the main frame of the drone, so it doesn't flex too much.
• Use a filament with good layer adhesion for the prop guards and the canopy, so the thin parts don't break.

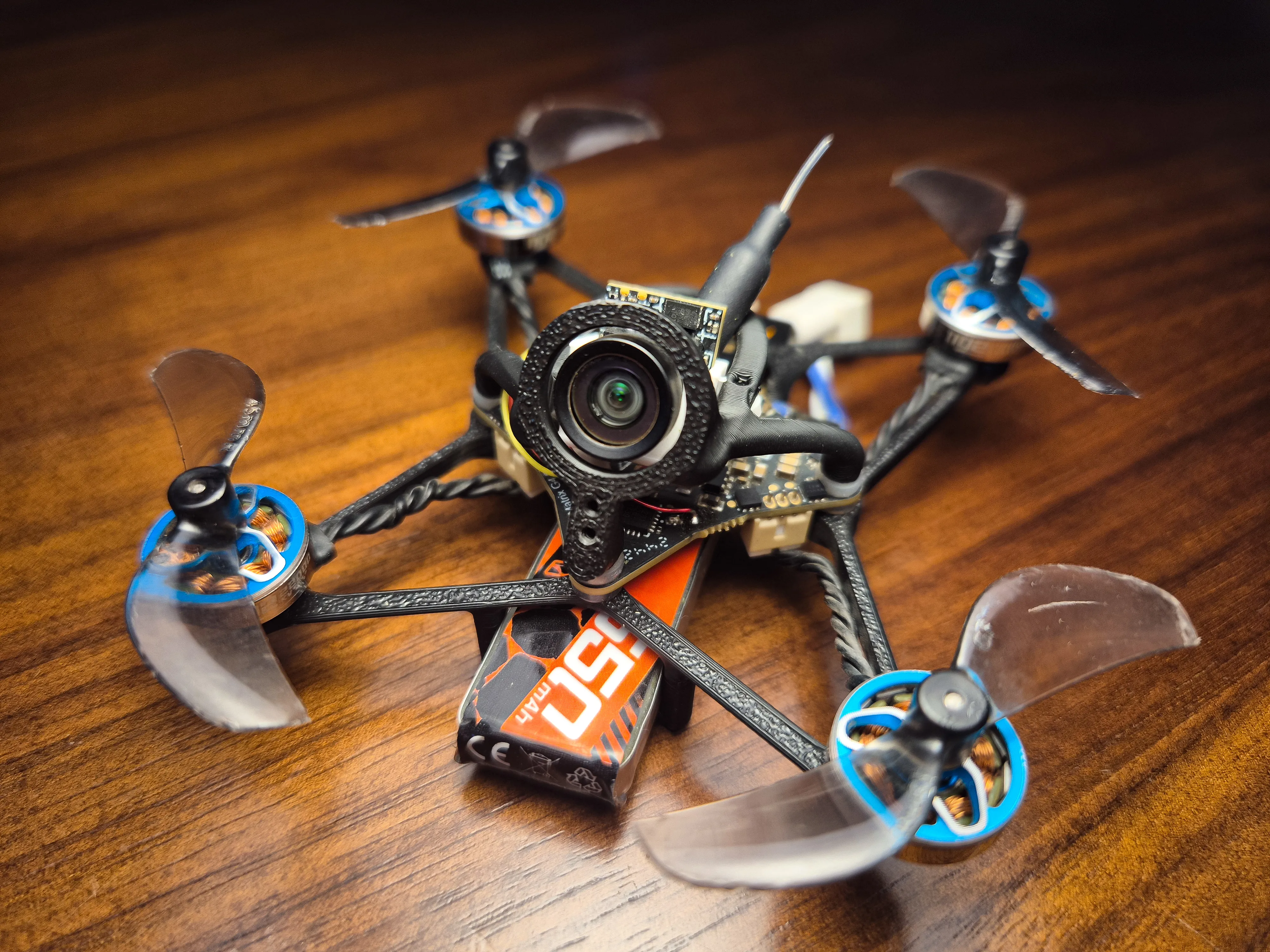

HERE is a newer version: https://makerworld.com/de/models/1590953
