Geesun 4S 850mAh LiPo Battery Protector
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
44 min
1 plate
Open in Bambu Studio
Boost
17
33
1
0
59
28
Released
Description
Content has been automatically translated.

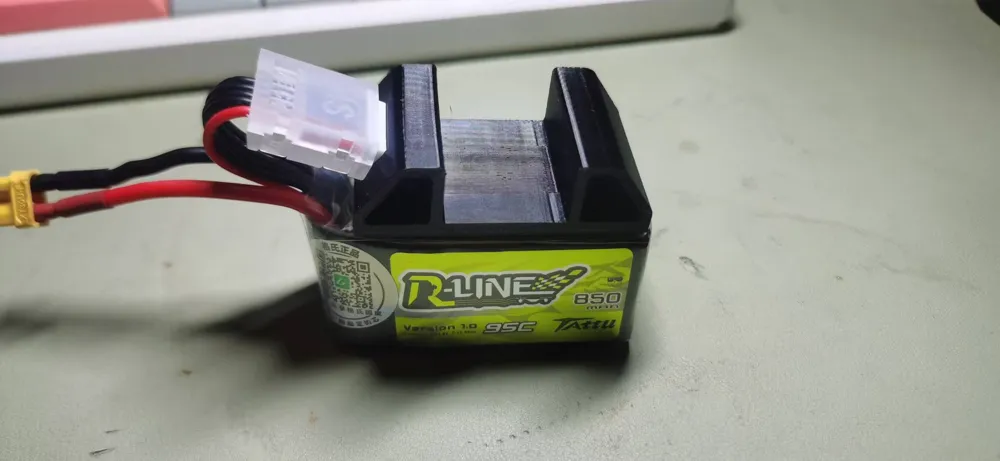

FPV battery protector for use with Speedybee 25.
The battery is a Geesun 4S 850mAh battery, other batteries should also work, just pay attention to the size.
Protector dimensions: Length 50mm, Width 28mm, Height 15mm.
The length of the protector and the length of the battery are not consistent, this is mainly because some space needs to be reserved to avoid the wires being bent too severely when the 5P connector is fixed.

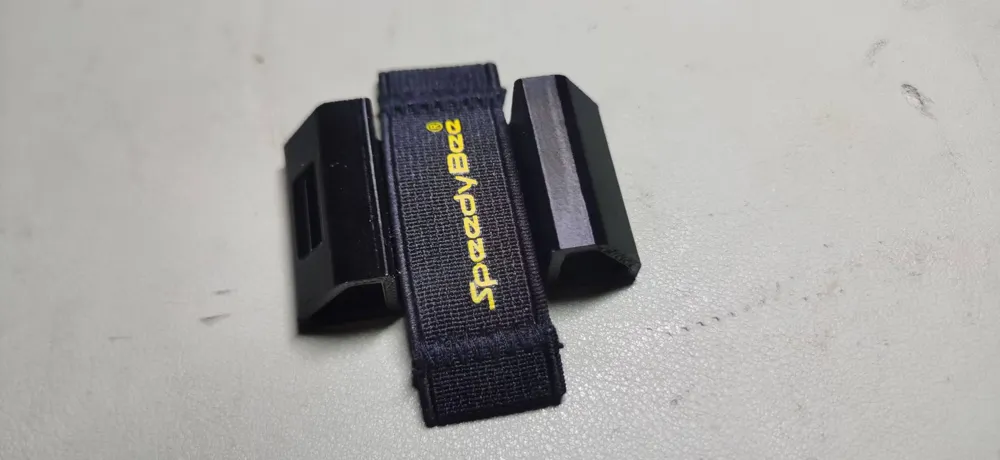

The width of the middle strap is 21mm, and the tail opening is 13mm*5mm to fix the 5P connector.
The total weight is about 7.8g.
