Dual FootSwitch per Ampli e pedalboard
Print Profile(1)
Description

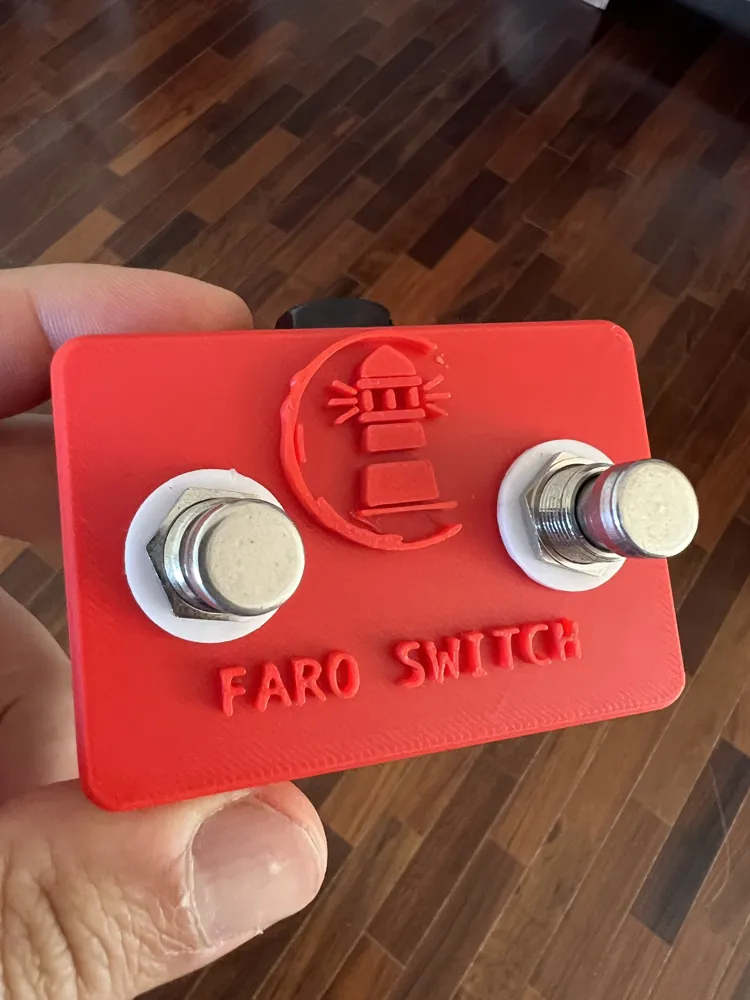

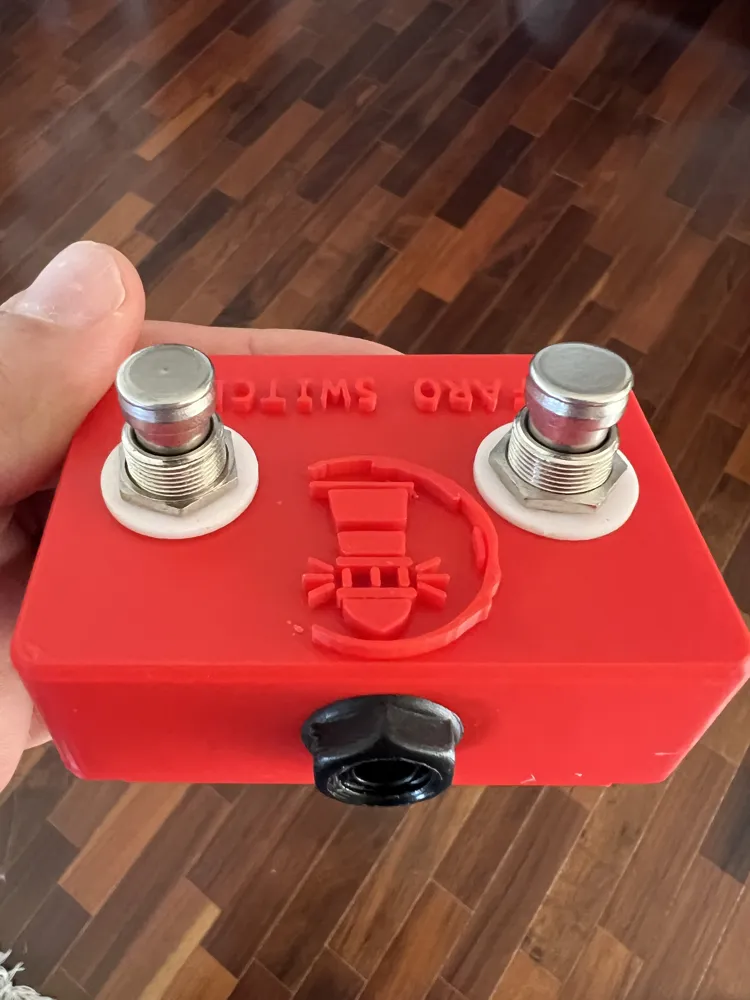

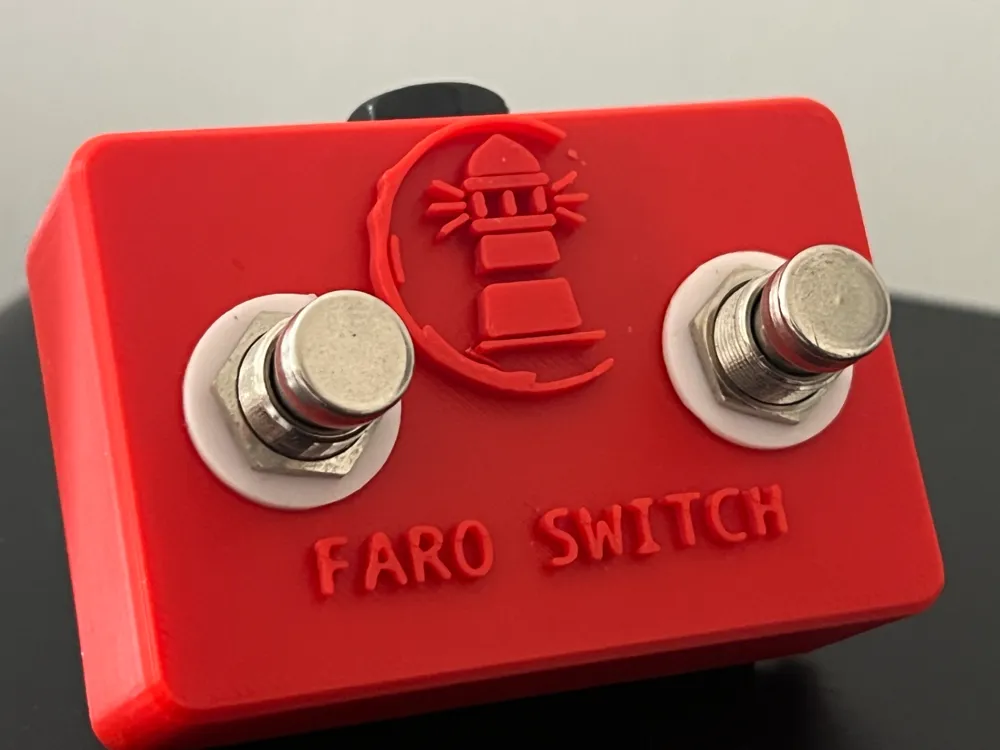

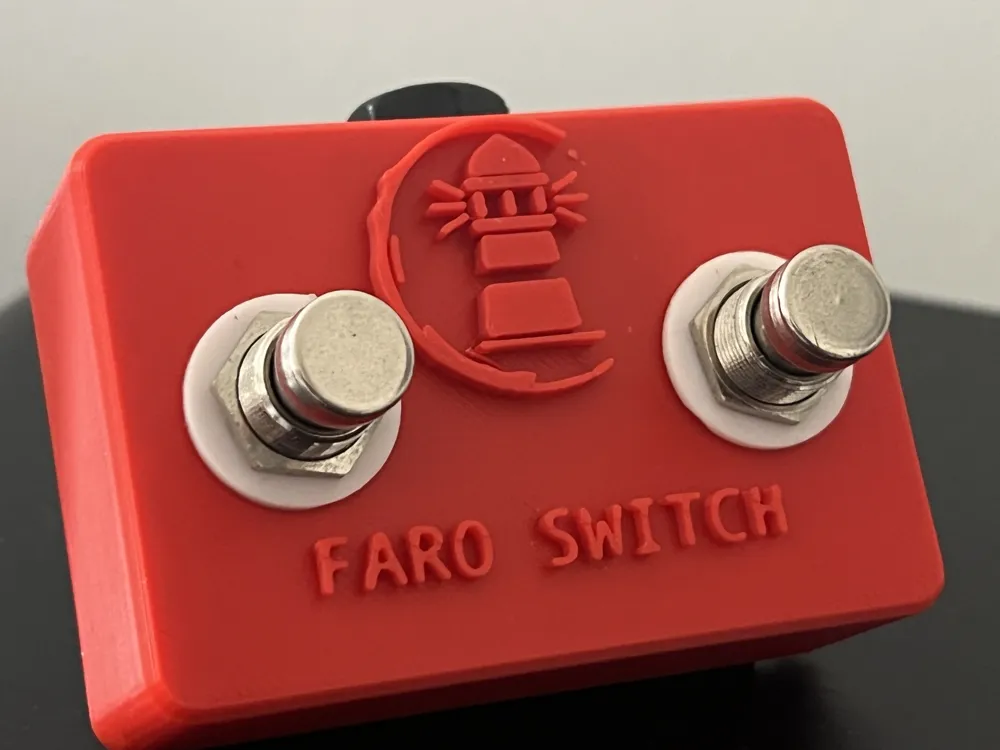

“Faro switch” a dual footswitch designed for minimal footprint. It allows for switching amplifier channels or banks for digital multi-effects units such as Tonex, Headrush, Fractal, etc. No power supply needed! 🎛️🔉🎚️🎸
I have also attached a wiring diagram and below are the components you will need:
1 female jack: https://amzn.to/4jYiLAm
2 footswitches: https://amzn.to/4k5w7La
1 stereo jack cable for connection: https://amzn.to/3RQ78zu
Enabling supports is recommended for optimal printing, even with PLA the result is very good and the product is already very robust, for sun exposure PETG is recommended.

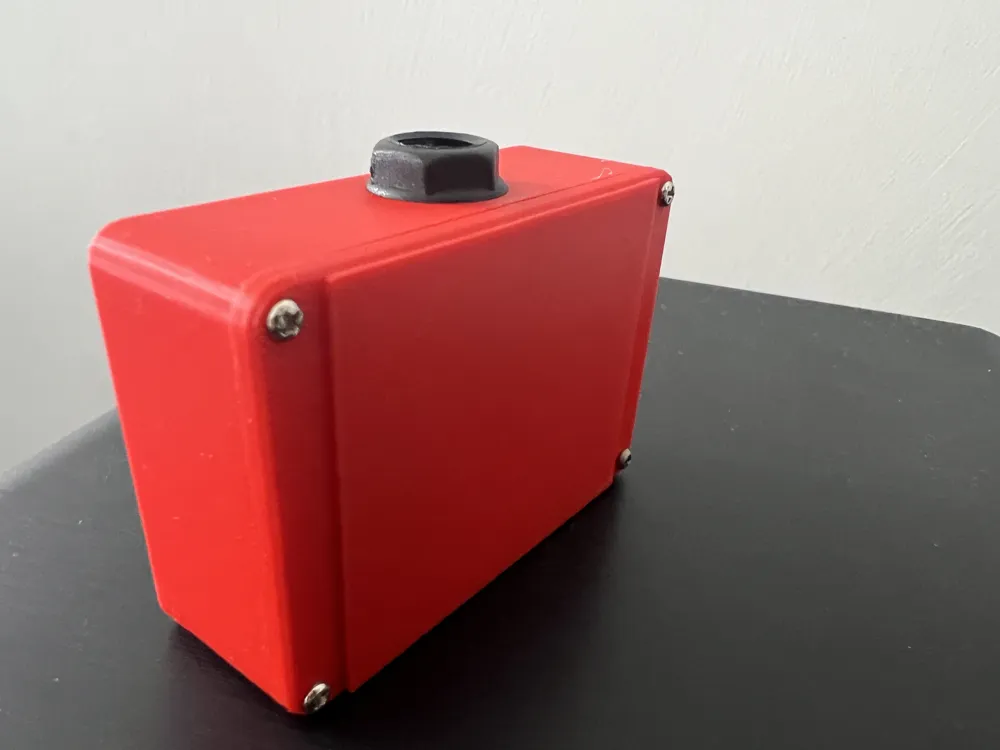

To close the lid you will need 4 M1 screws. I used very small self-tapping screws.
You can find a video of the finished project on my YT channel Lenotedelfaro, featuring my 3D printed pedalboard
