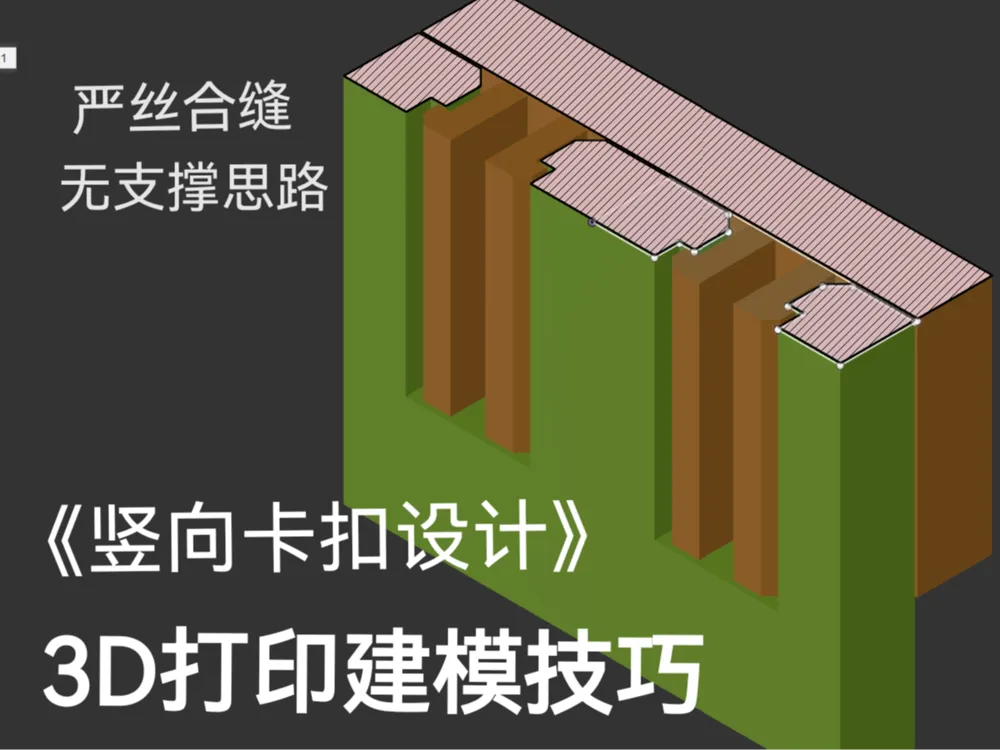

Vertical Snap-Fit Design Modeling Techniques - 3D Printing Modeling Ideas
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
23 min
1 plate
Open in Bambu Studio
Boost
2
6
0
0
5
1
Released
Description
Content has been automatically translated.
Boost Me (for free)
More modeling tips to come☺

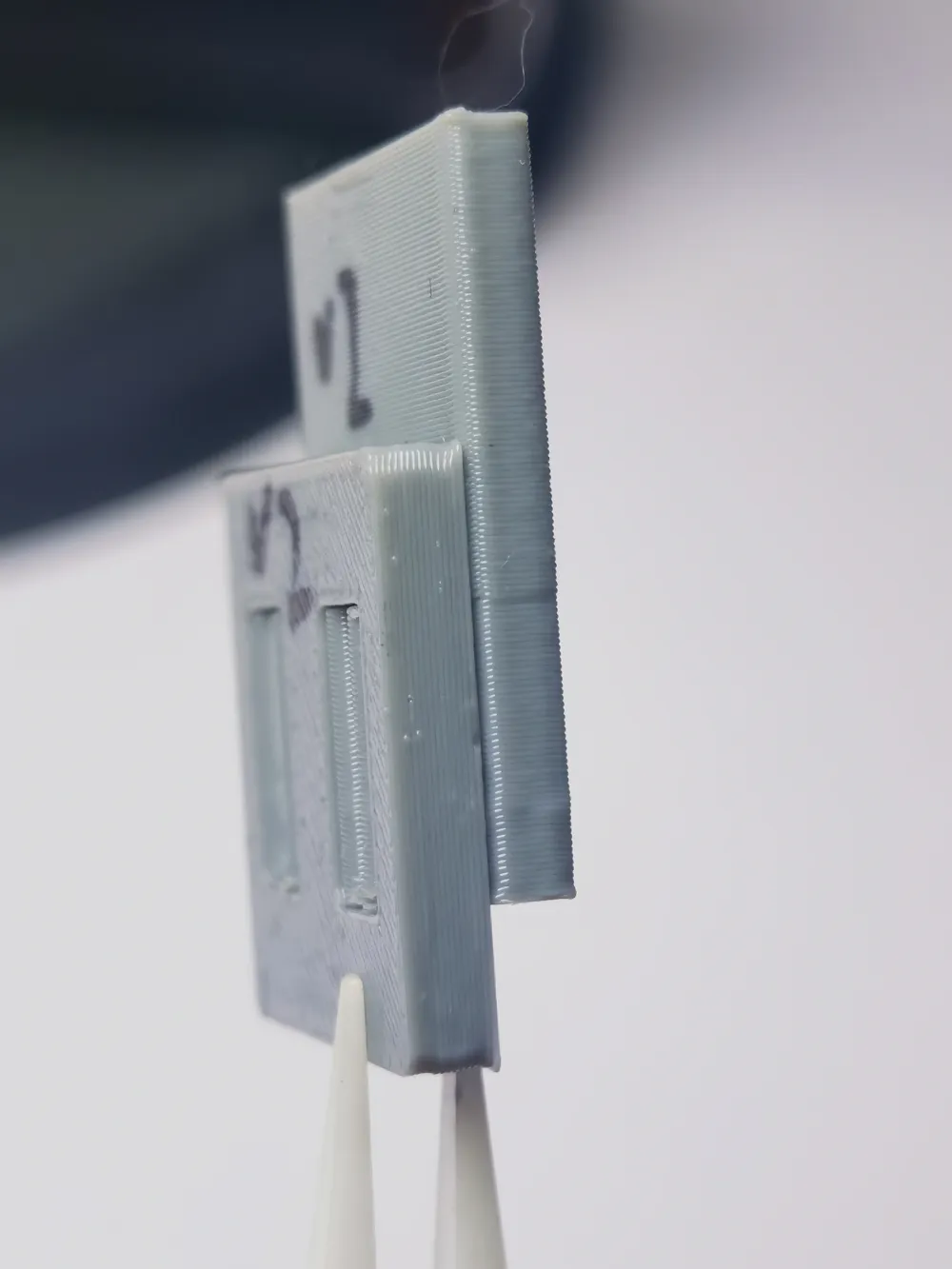

Sharing this design concept with everyone
- For textured PEI plate printing, please increase the part gap by 0.1-0.2mm
- Snap-fit lengths of 5mm or more are necessary for sufficient strength
- Refer to the snap-fit design on small toys, suitable for smaller parts
- This snap-fit requires no supports, easy to print

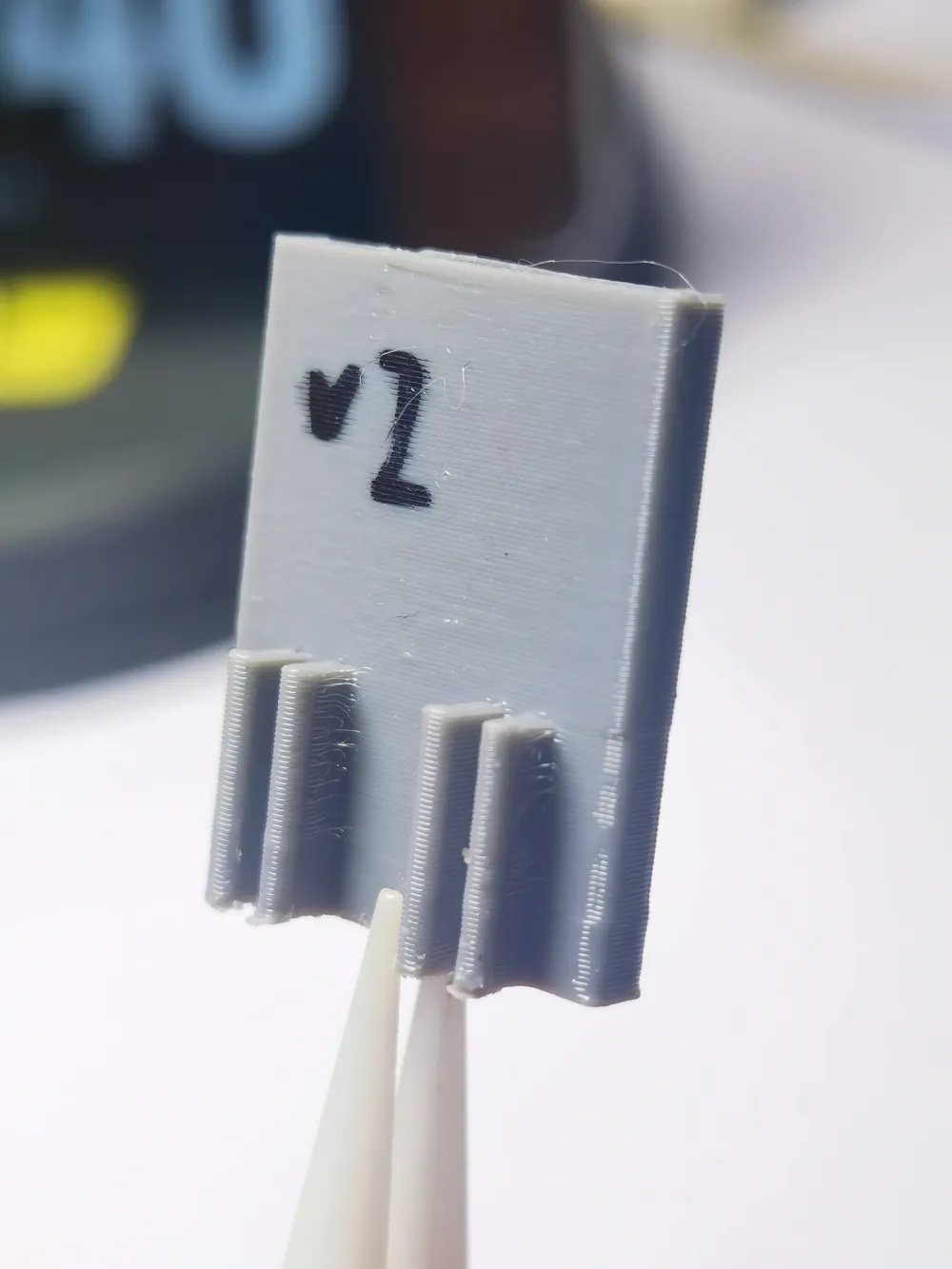

Print the male snap-fit with the base adhering to the build plate, vertically oriented, utilizing its inherent properties to prevent breakage

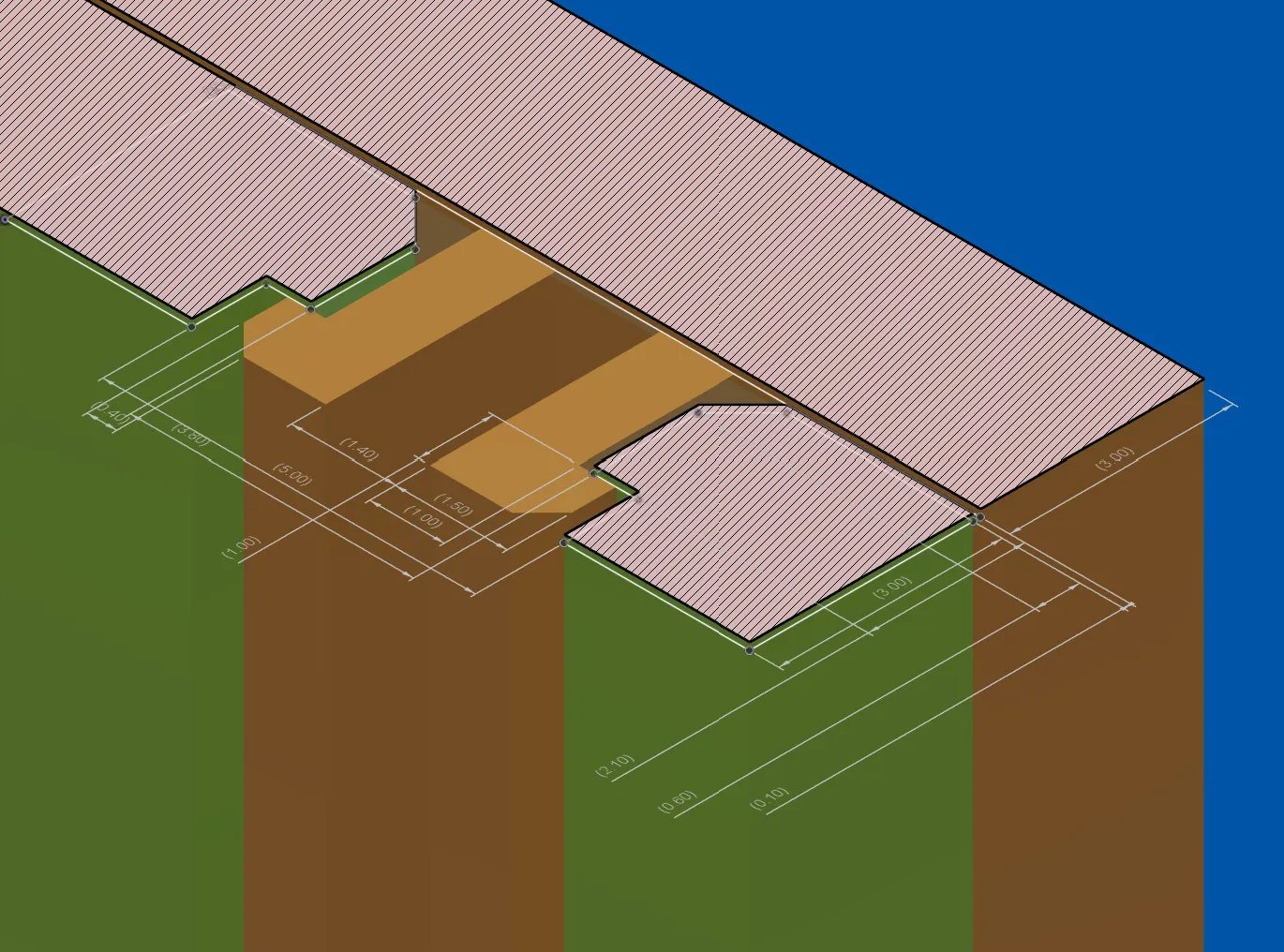

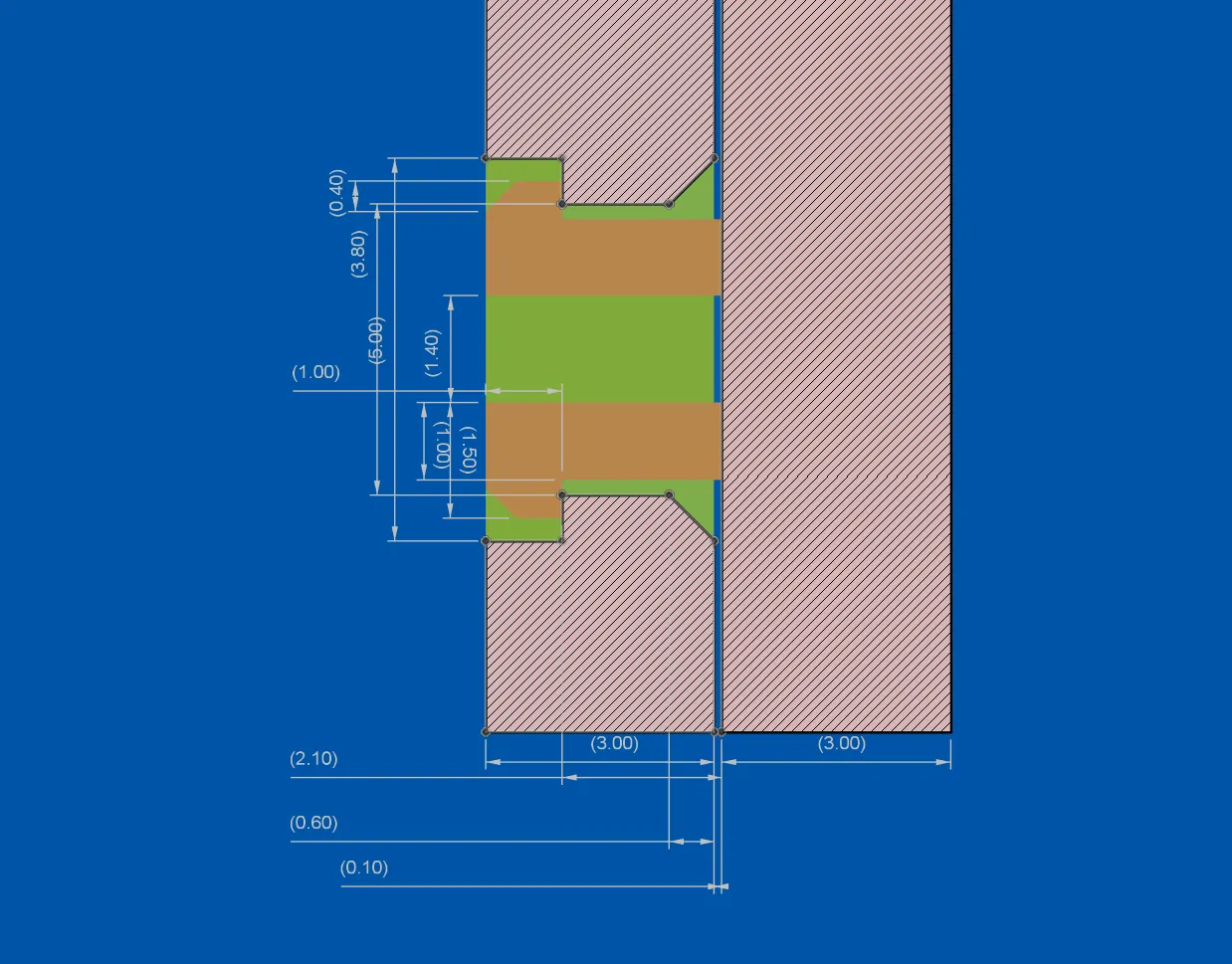

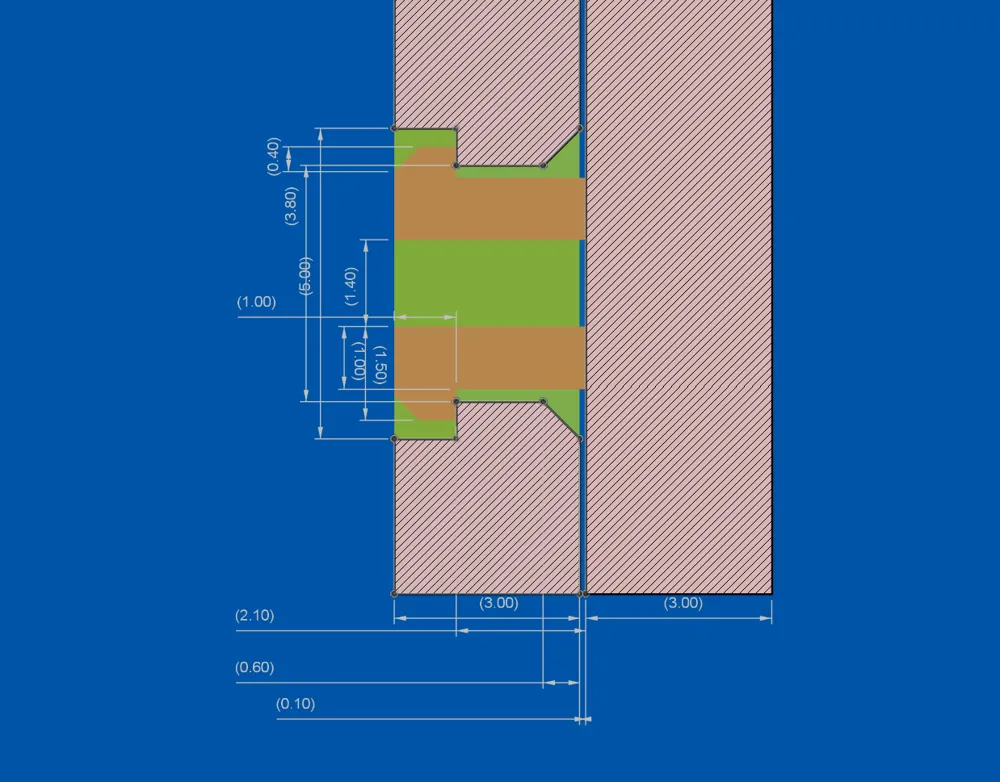

The following are the design dimensions, for reference
