SK150C Adjustable Power Supply -- Modular Enclosure
Print Profile(1)
Description
A design philosophy of "print once, upgrade perpetually," ideal for makers who frequently modify their equipment.
Highlights:

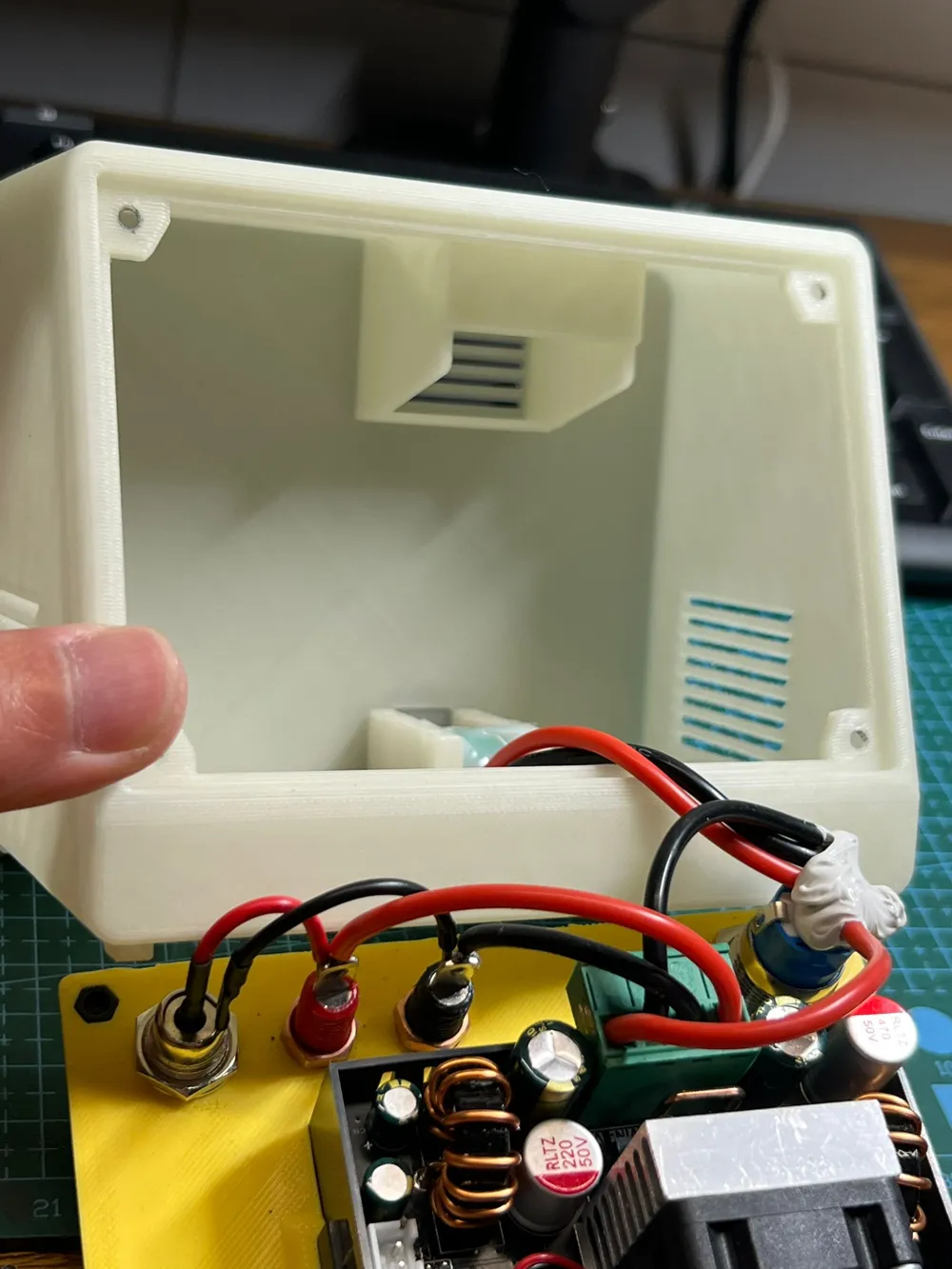

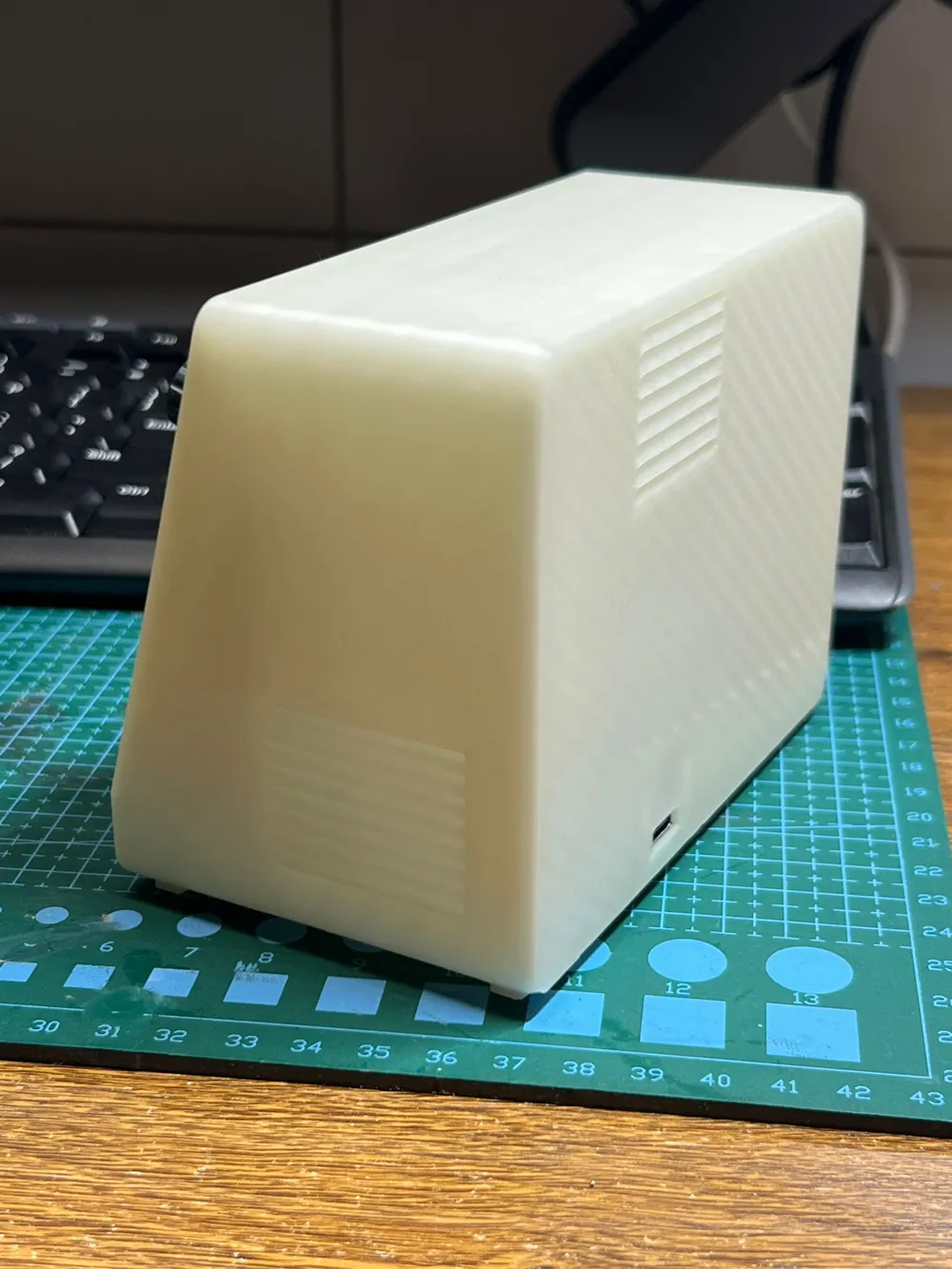

Airflow System: Employs a side-in, rear-out airflow design. In conjunction with angled deflectors, this prevents dust accumulation in the upper openings while maximizing heat dissipation.Elevated Feet: Prevents uneven placement and is also 3D-printable.

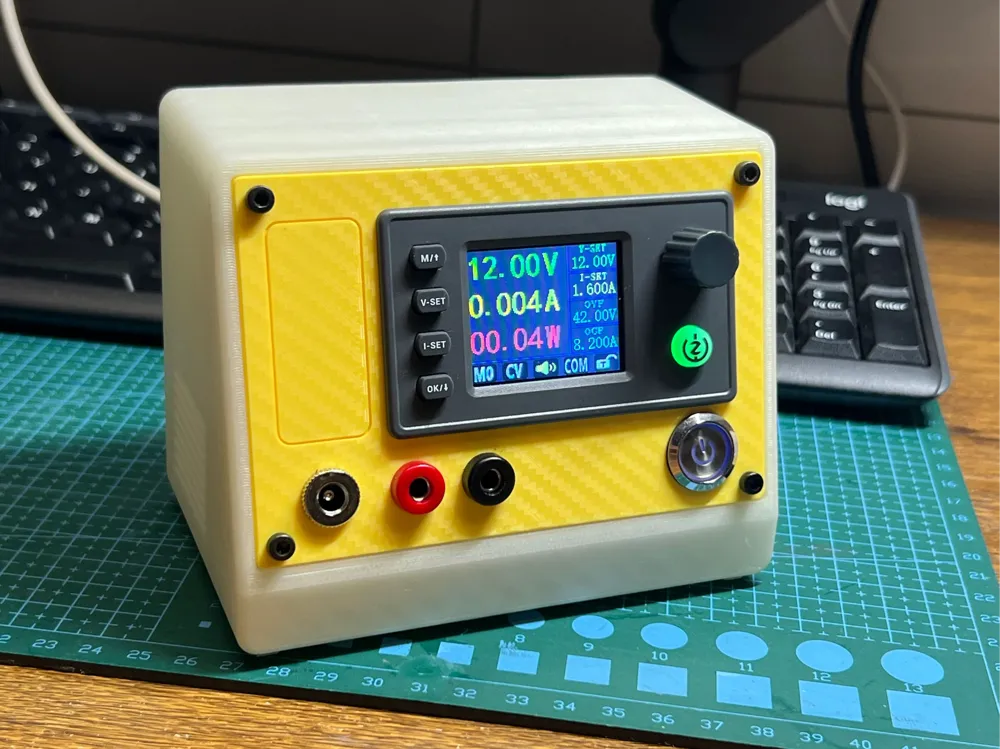

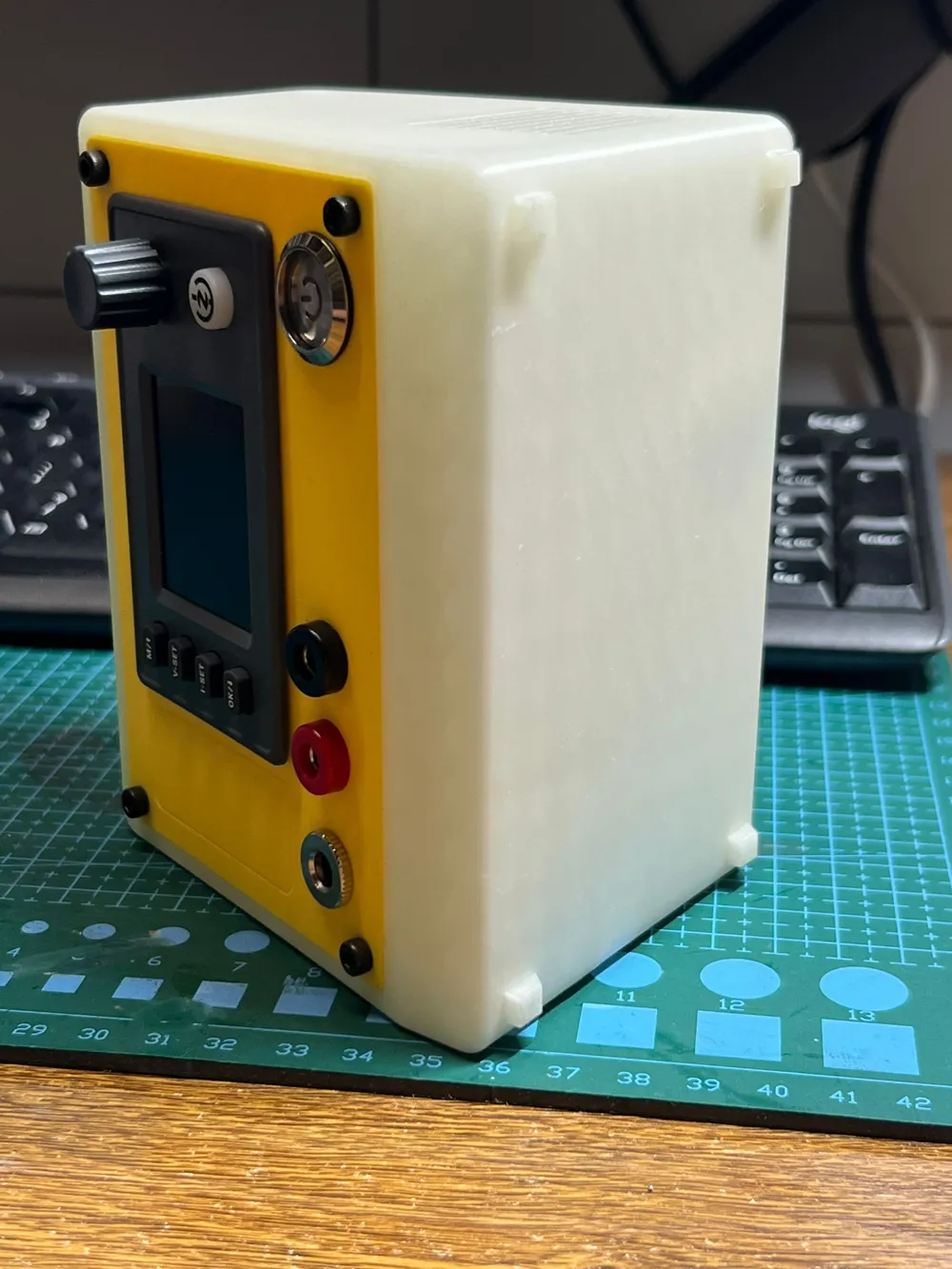

Modular Panel: The removable front panel requires only four M3 screws (M3*10 countersunk screws shown; other M3 screws are also suitable). Upgrading other connectors does not require reprinting the entire enclosure.Print-Friendly Design: The unibody structure requires only a few small supports; most overhanging sections feature a 45° self-supporting angle.
