75mm drone frame
Print Profile(1)
Description
穿越机机架，底板为一体板，建议使用2mm碳板进行切割，侧板使用1-1.5mm碳板，既能保证强度也可以减轻重量，
配件：
底板2mm
顶板1-1.5mm
螺丝：
m2*6
m2*4
铝柱：
m2*14mm
如果选择打印机架，建议使用PLA CF 或者 PETG CF等强度更高的耗材进行打印，墙：3层，100%填充

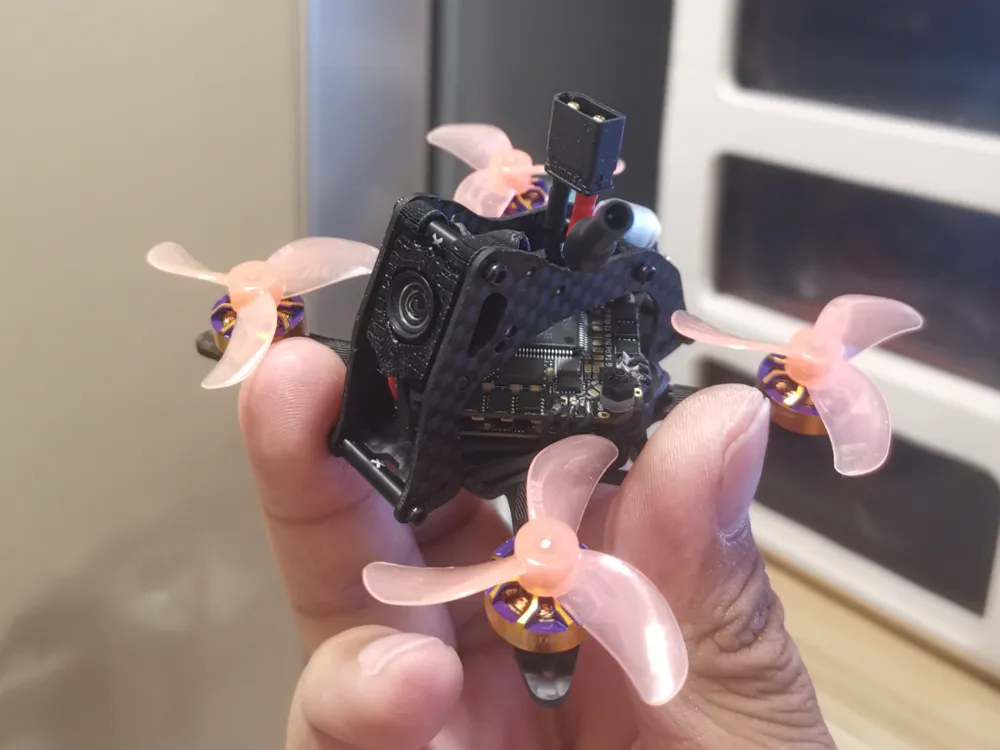

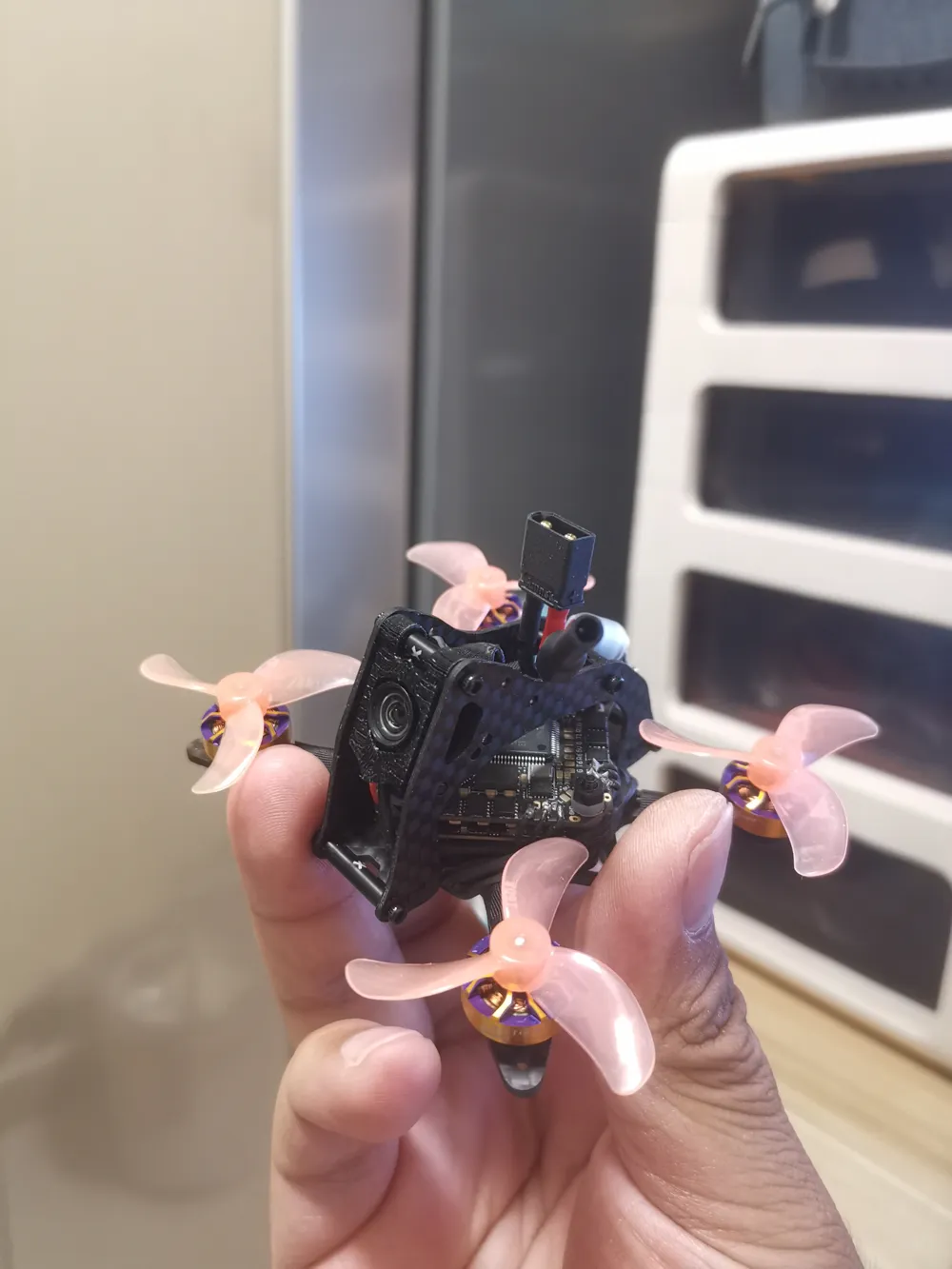

The frame of the drone has an integrated bottom plate. It is recommended to use 2mm carbon plate for cutting, and 1-1.5mm carbon plate for the side plate, which can ensure strength and reduce weight.
Accessories:
2mm bottom plate
1-1.5mm top plate
Screws:
m2*6
m2*4
Aluminum column:
m2*14mm

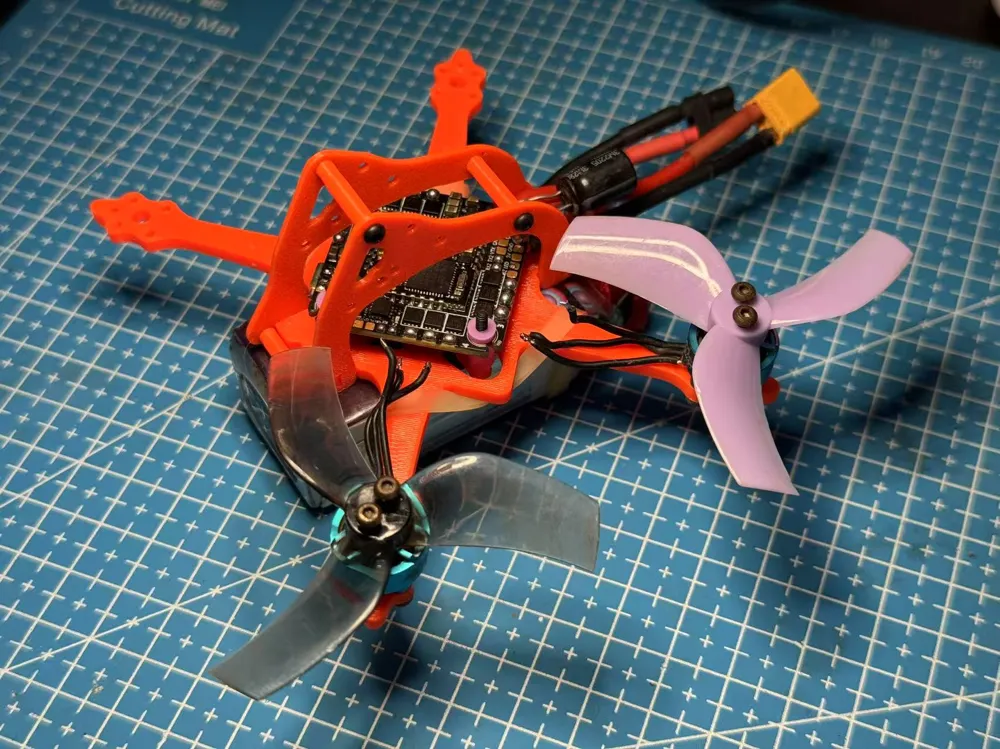

If you choose a printer frame, it is recommended to use PLA CF or PETG CF and other higher strength consumables for printing. Wall: 3 layers, 100% filling
