Engraver Thin Material Pressure Plate 125MM Spindle Version
Remixed by
IP Report
Print Profile(1)
0.2mm layer height, 2, 4 walls, 50% infill
Designer
12.8 h
2 plates
Open in Bambu Studio
Boost
1
0
0
0
0
0
Released
Description
Content has been automatically translated.

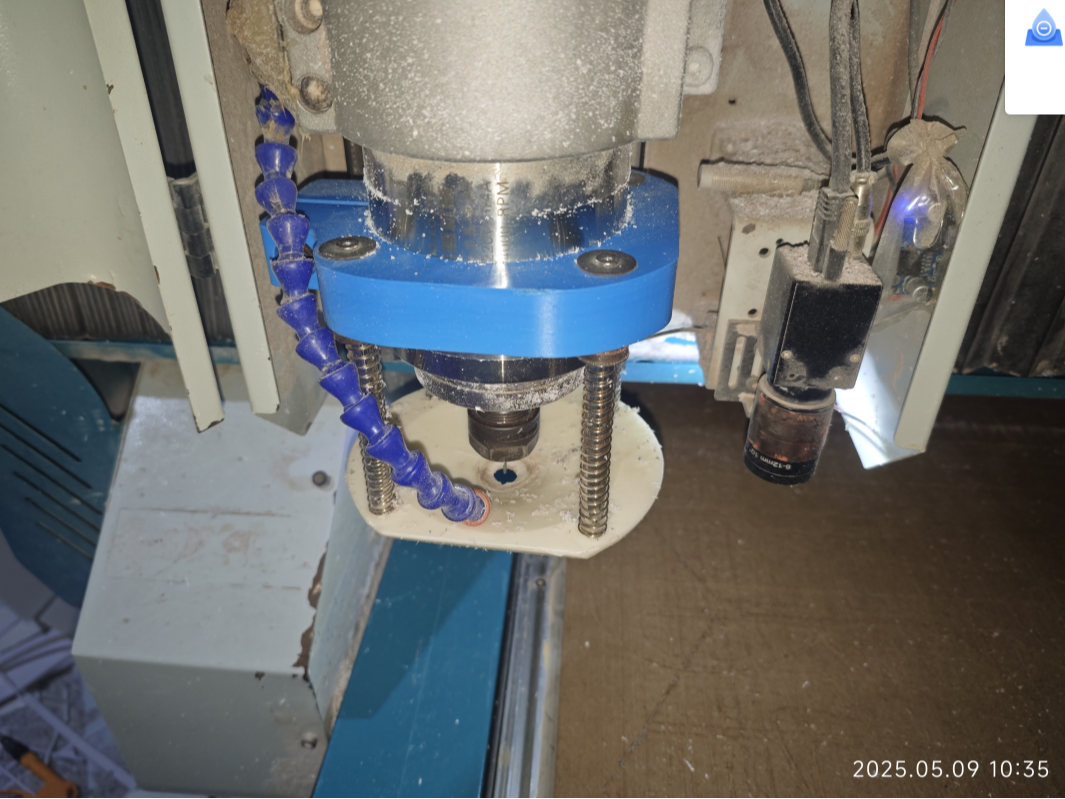

Engraver Thin Material Pressure Plate
Referencing the structure of an aircraft wing carbon fiber coating machine
Makes cutting thin acrylic sheets easier
Model 10X150mm (M5 on both ends) (other lengths can be substituted);
Linear bearings 2-hole LMH10UU dimensions 10*19*29 [inner diameter * outer diameter * length]
Spring, wire diameter 1.0, length 100, inner diameter 10MM or more
(If the length is insufficient, just lengthen it, or use a shorter guide column)
8 M4*20 screws (for fixing linear bearings)
8 M5*10 screws (for fixing guide shafts)
1 M8*50 screw (for clamping the spindle)
1 M8 nut (for clamping the spindle)
ABS or ASA printing is recommended for high temperature resistance.
STEP assembly files are uploaded above.
