📇 Pocket Business Card Dispenser – Elegant, Portable and with NFC
Driven by the need to carry my business cards in an organized and protected way, I designed this compact and pocket-sized dispenser, perfect for any networking occasion!
✅ Key Features
- Compatibility: designed for standard business cards of 85x55 mm.
- Practical and rounded design: no sharp edges, perfect to carry in your pocket without discomfort.
- Easy opening: the slot on the lid allows you to extract one card at a time with a simple finger gesture.
- Modular system: the dispenser is completely dismountable for easy refilling.
🔄 Available Versions
To meet every need and level of customization, I have created four versions of the model:
- 📦 With GAME OVER text and NFC
- 📦 With GAME OVER text, without NFC
- 📦 Without text, with NFC
- 📦 Without text, without NFC
You can print your favorite version, even without AMS!
💾 Integrated NFC Function
In some versions, I have included a dedicated slot for an NFC chip. You can upload your digital business card or link to portfolio/social media, making the dispenser useful even when you run out of paper cards.

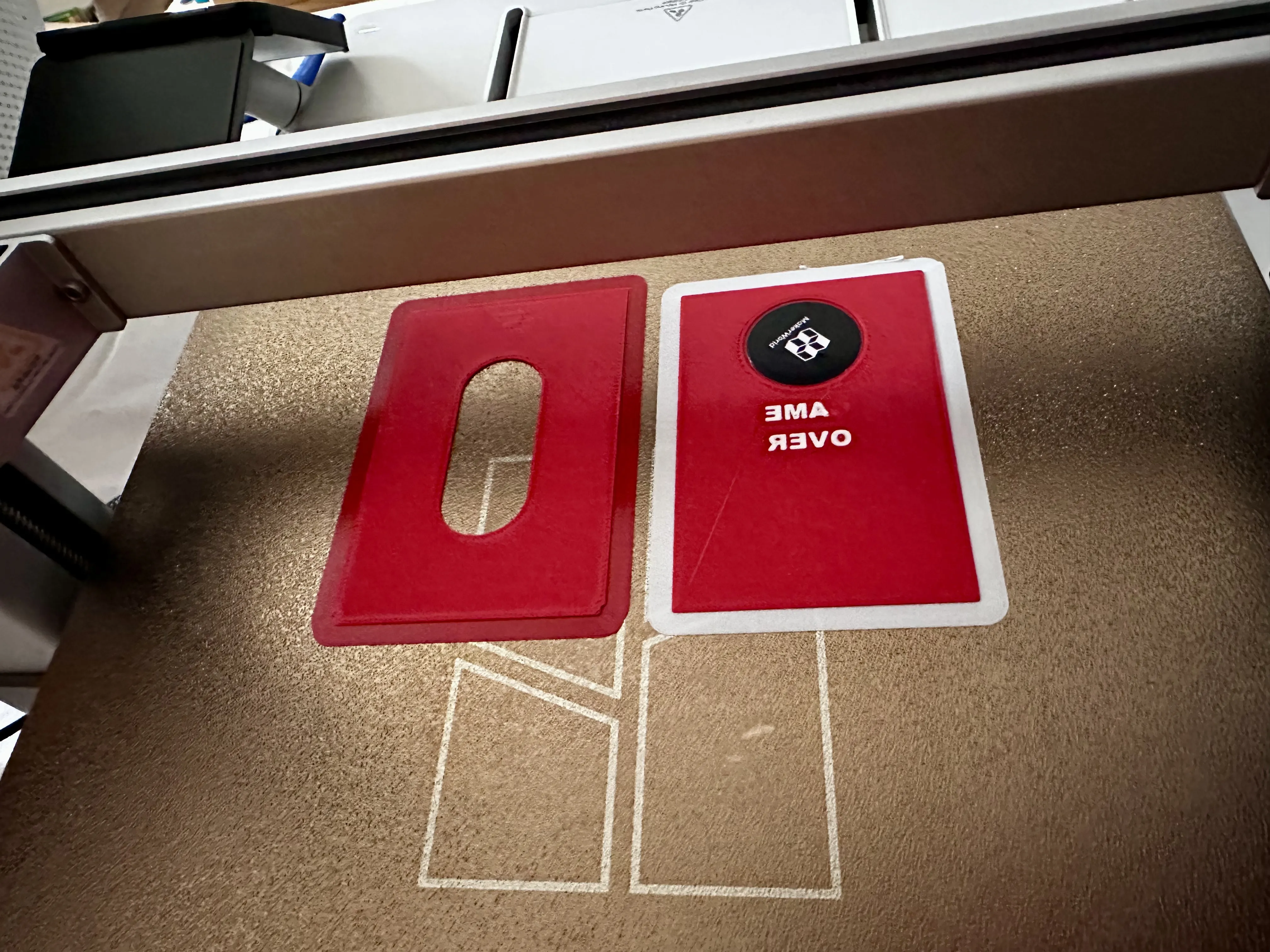

🛠️ I have set an automatic print pause shortly before the cover layer to manually insert the chip, as shown in the picture.
🖨️ Printing Tips
- Recommended material: PLA for everyday use. If you intend to use it outdoors, consider PETG (but be careful with tolerances! I can help you and create a new model optimized for PETG)
- Supports: Not necessary
- Infill: 15%
- Layer height: 0.12 mm
- Printing time: approximately 2 hours

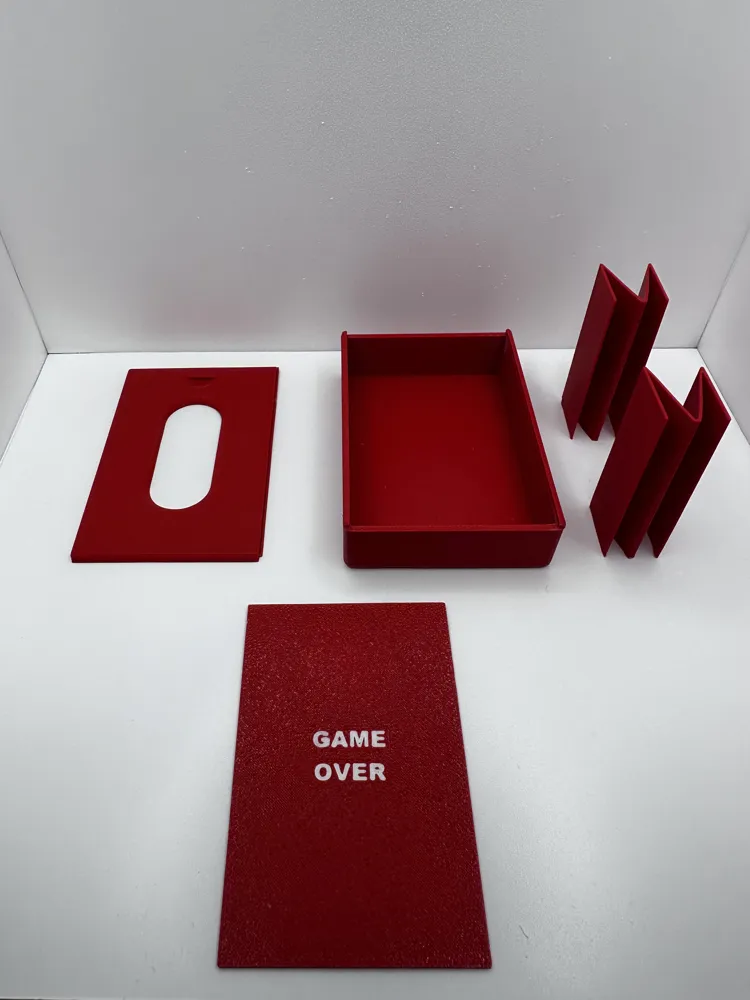

🧩 Easy Assembly
- Insert and glue the two springs into the base.
- Glue the business card holder on top, paying attention to the orientation of the text.
- Place the cards in the compartment and insert the lid, sliding it until it closes.
- For optimal gluing, keep the components pressed for a few hours using the cards themselves as spacers.
💬 Customizations
Do you have business cards of different sizes? Let me know in the comments: I can create a custom version for you!
