Magnetic Label Letters
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.5 h
2 plates
Open in Bambu Studio
Boost
31
87
8
1
124
19
Released
Description

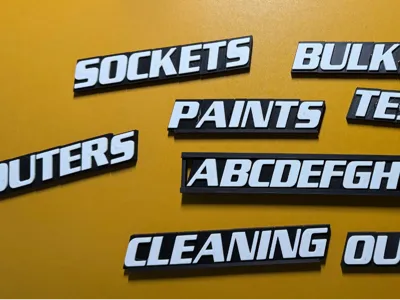

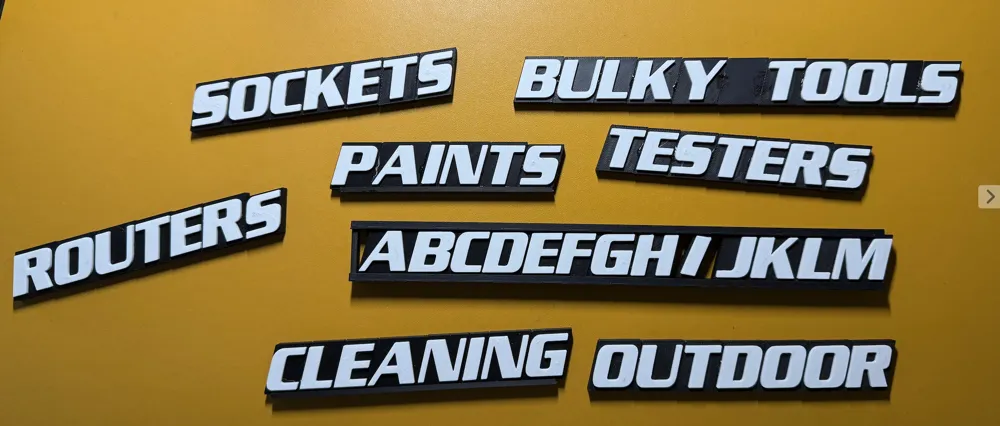

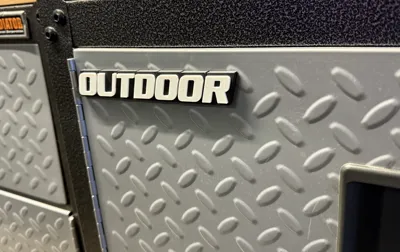

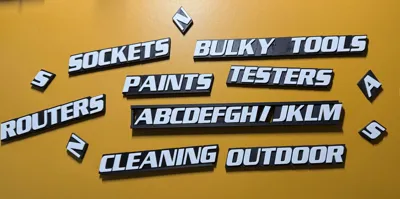

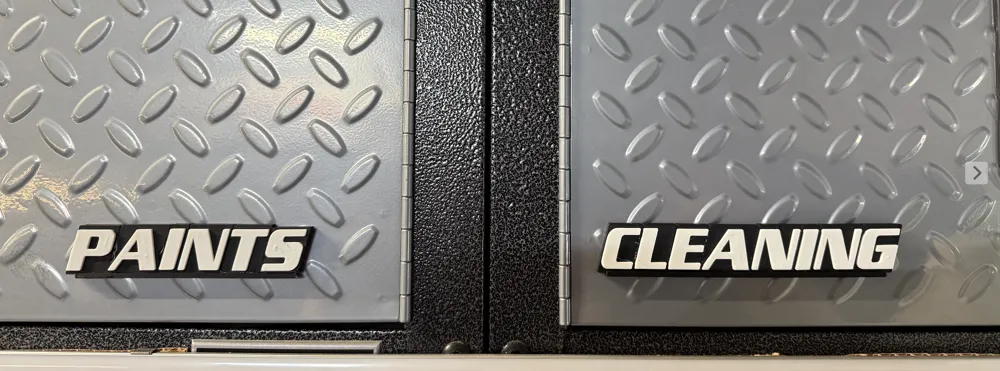

There are a few good magnetic toolbox label/sign models online, but none included all the labels I needed. So, I decided to design my own set of magnetic letters from scratch! Now, I can print any label I want.
Features:
- Includes upper and lower case letters
- Letters can be glued together with CA (super glue).
- Includes 3 sizes of blank spacers

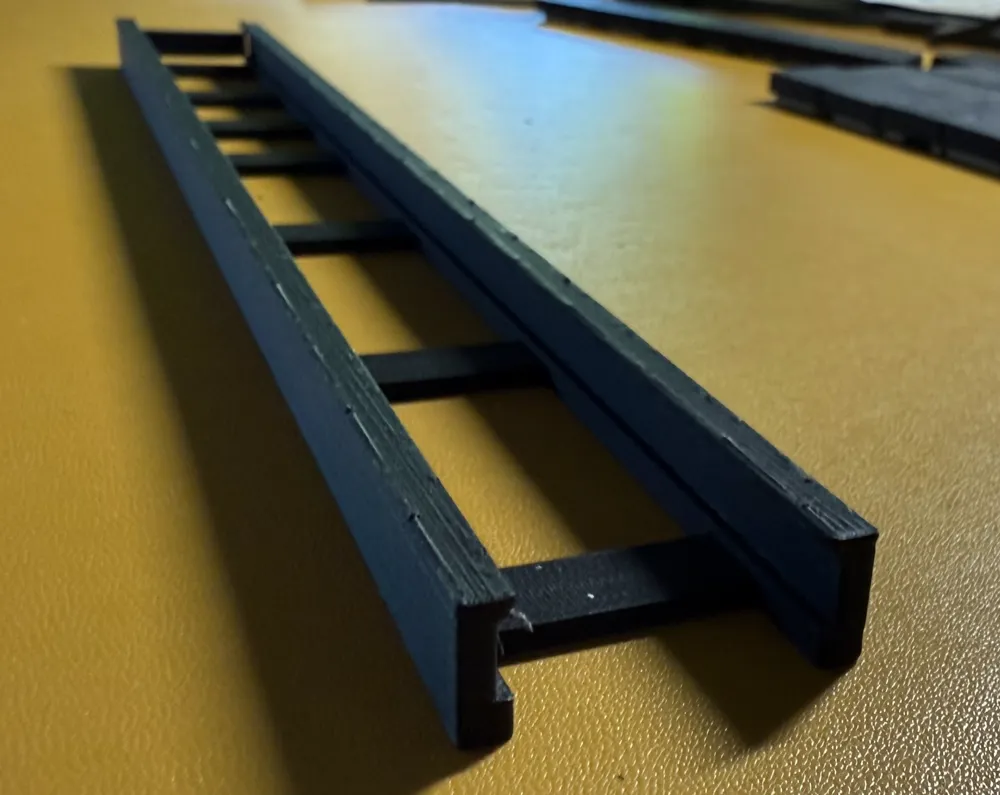

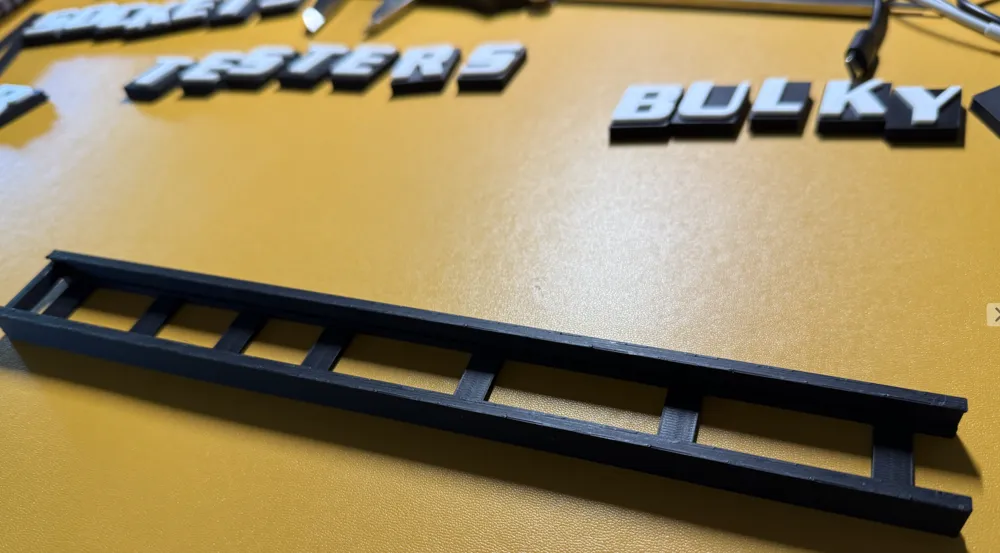

- Includes a gluing jig to keep letters perfectly aligned during assembly.

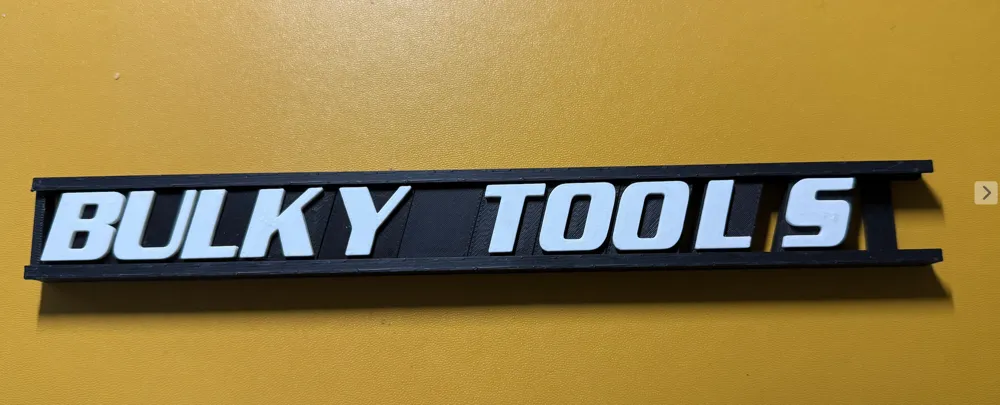

- Includes an optional top/bottom rail that can be glued to your label/sign (resize as needed)
- Each letter has space for a magnet but you could probably get by with only putting magnets in every other letter of your label
Printing Tip:
Be sure to add a “pause” at Layer 16 to insert the 8x3mm magnets before continuing.
