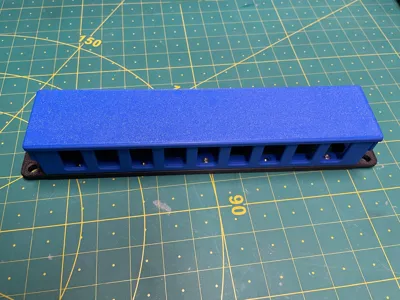

10-inch racks cable duct with cover
Print Profile(1)
Description

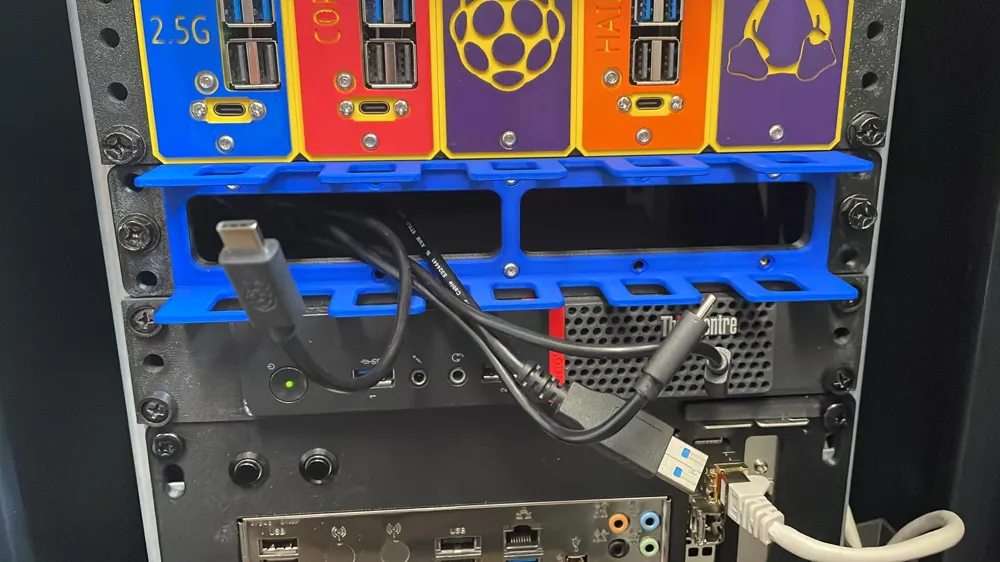

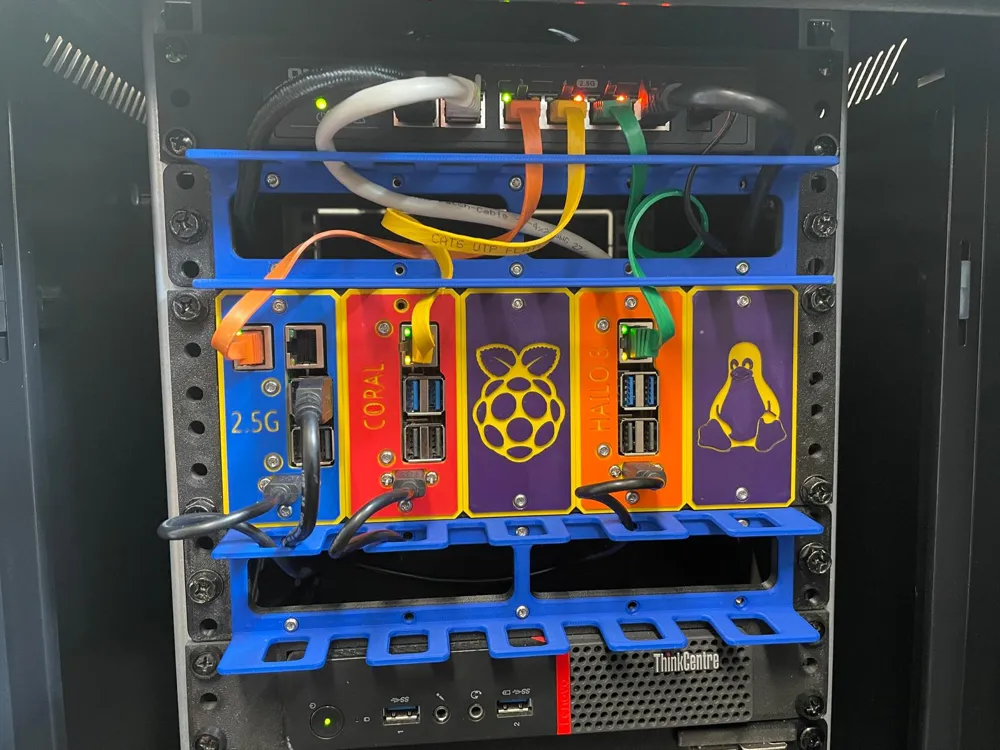

Cable duct for 10-inch racks.

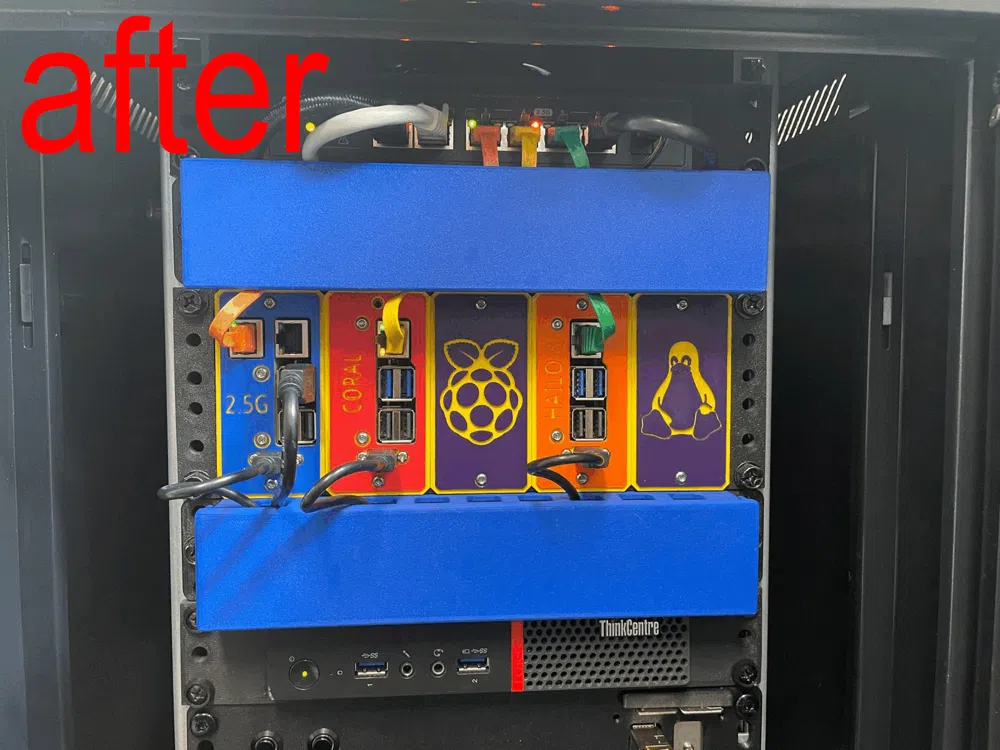

This allows for clean horizontal cable routing.
There are two versions of the front panel:
with holes: allows cables to be routed through the back.
no holes: cables must be routed through the sides.

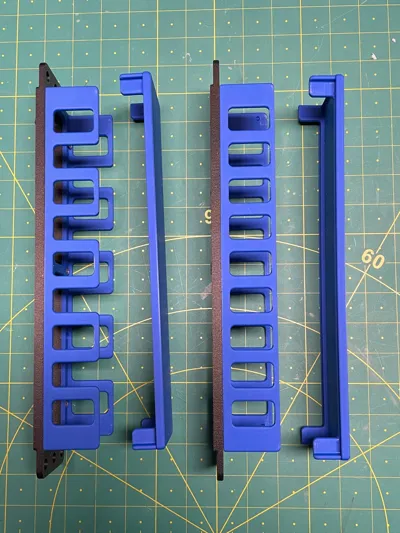

There are four versions of the cable duct:
Low fully closed
Low with 50% open cable outlets
High fully closed
High with 50% open cable outlets

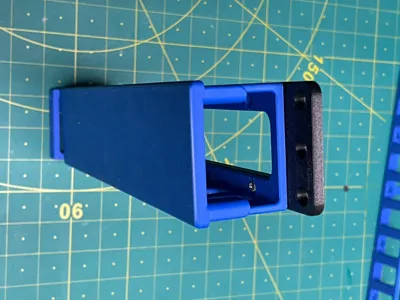

In the high version, the cross-section of the cable duct is larger.

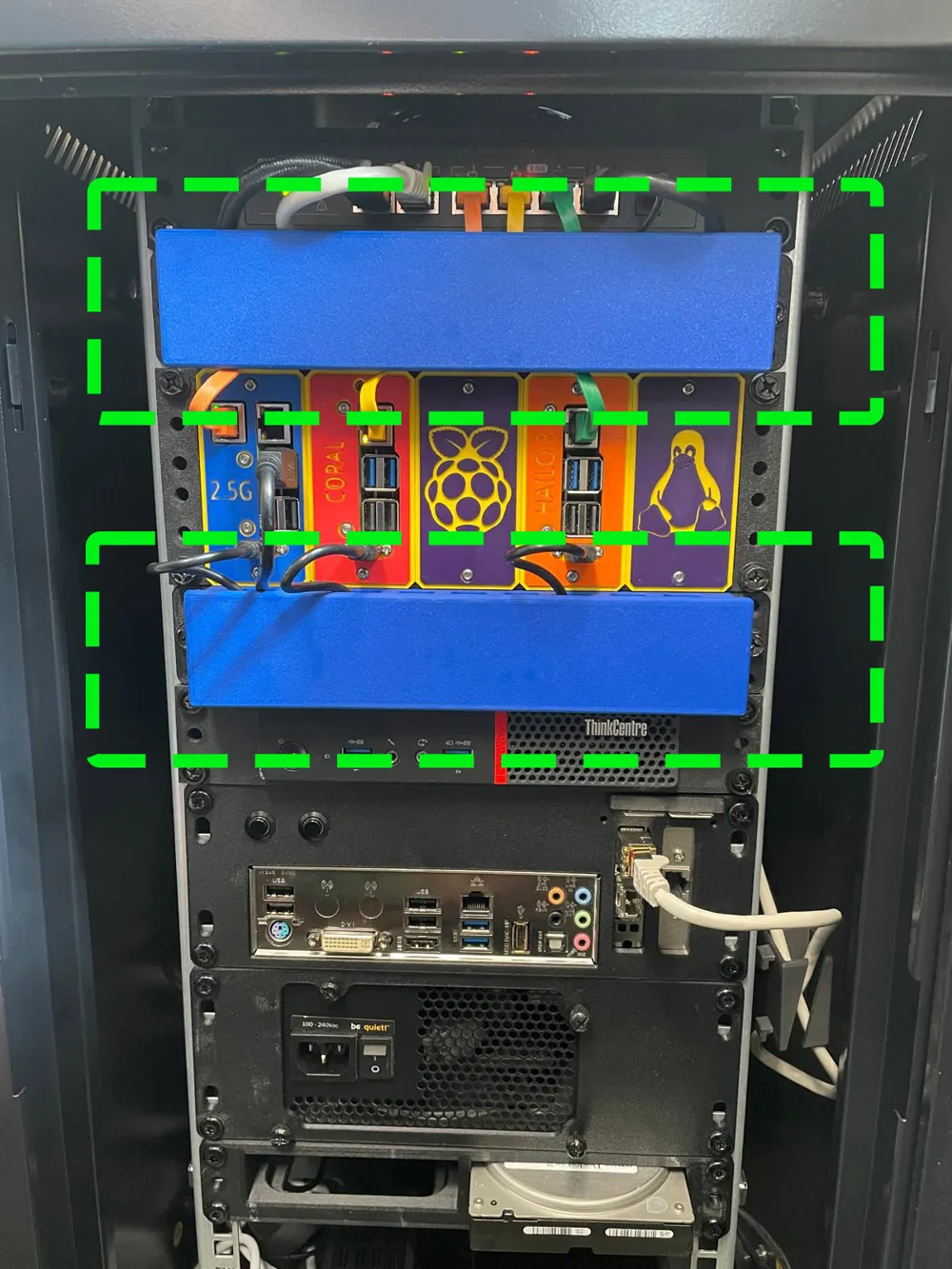

The cover fits all cable ducts.

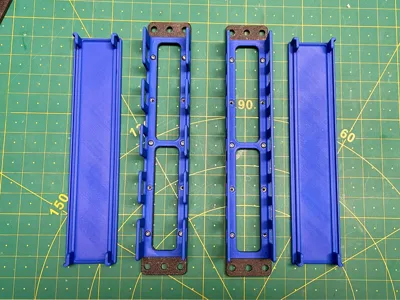

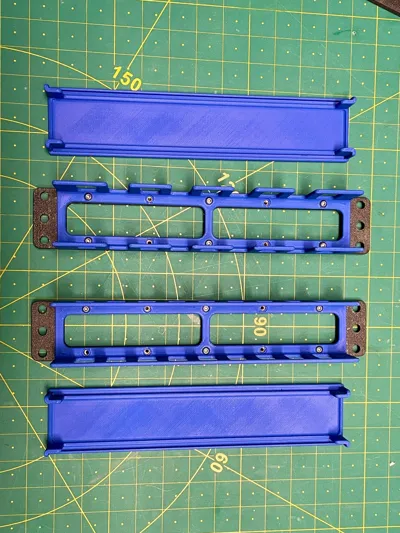

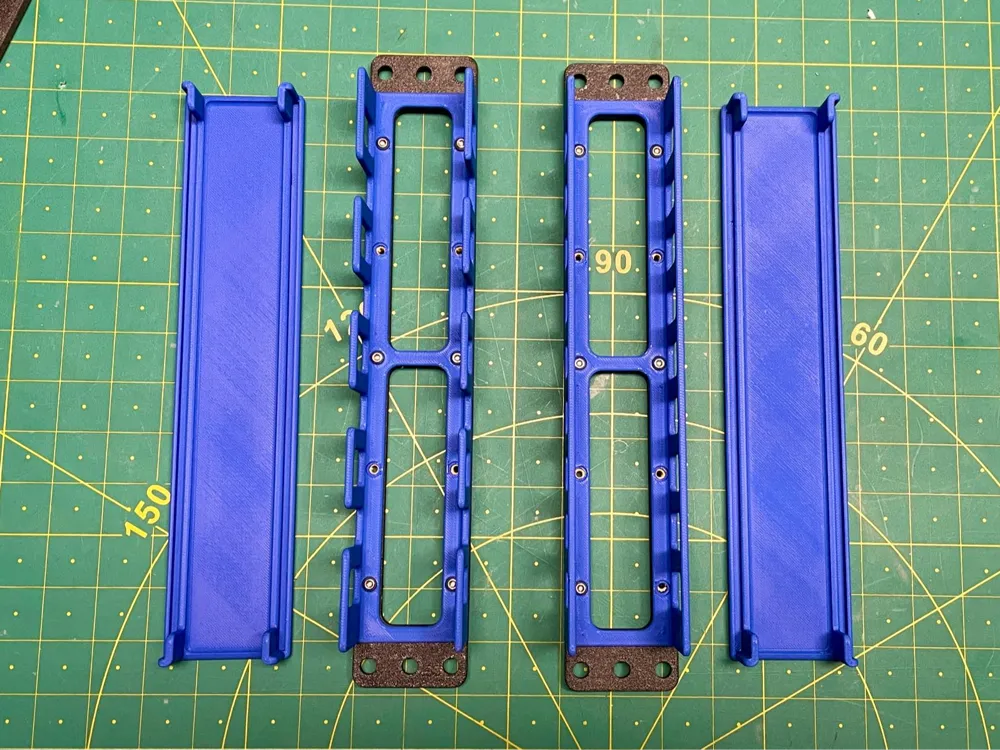

To mount the hooks, you will need:
10 x M3 threaded inserts like these ==> M3 threaded inserts
10 x M3x8mm screws
I printed it with PETG-CF and PLA. Both work well.
