Triad Axis 3D Coordinate System XYZ

Triad Axis 3D Coordinate System XYZ

The model offers a clear and accurate representation of a reference frame in three-dimensional space.

This three-axis 3D backhoe model is the perfect tool as a reference for: 3D modeling, use in mathematical activities, algebra classes, study of vectors, forces, Newton's laws, vector product, rotations, reference system change, ..., graphics, computer graphics, mechanical system modeling, …

Model composition and feautures

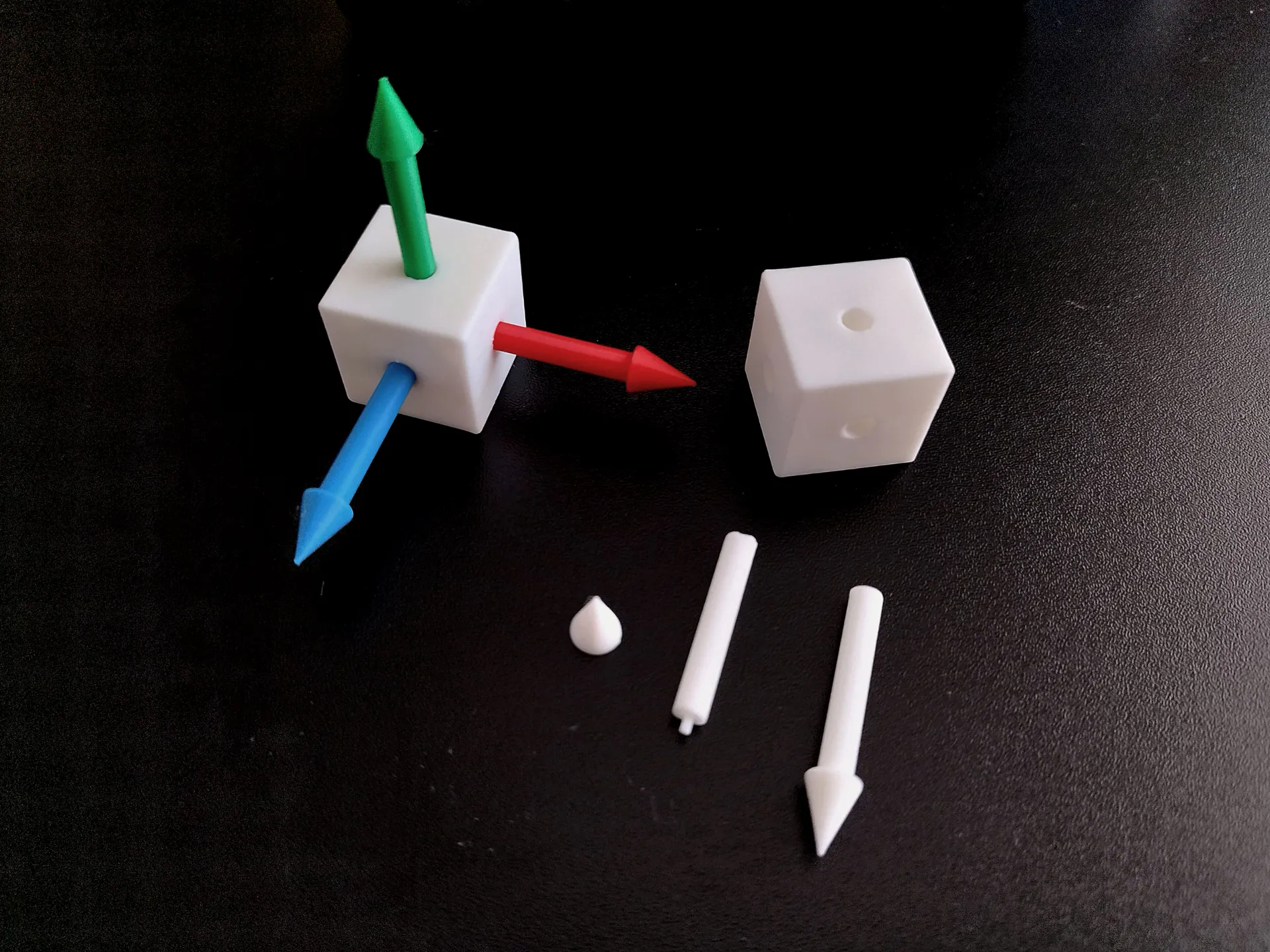

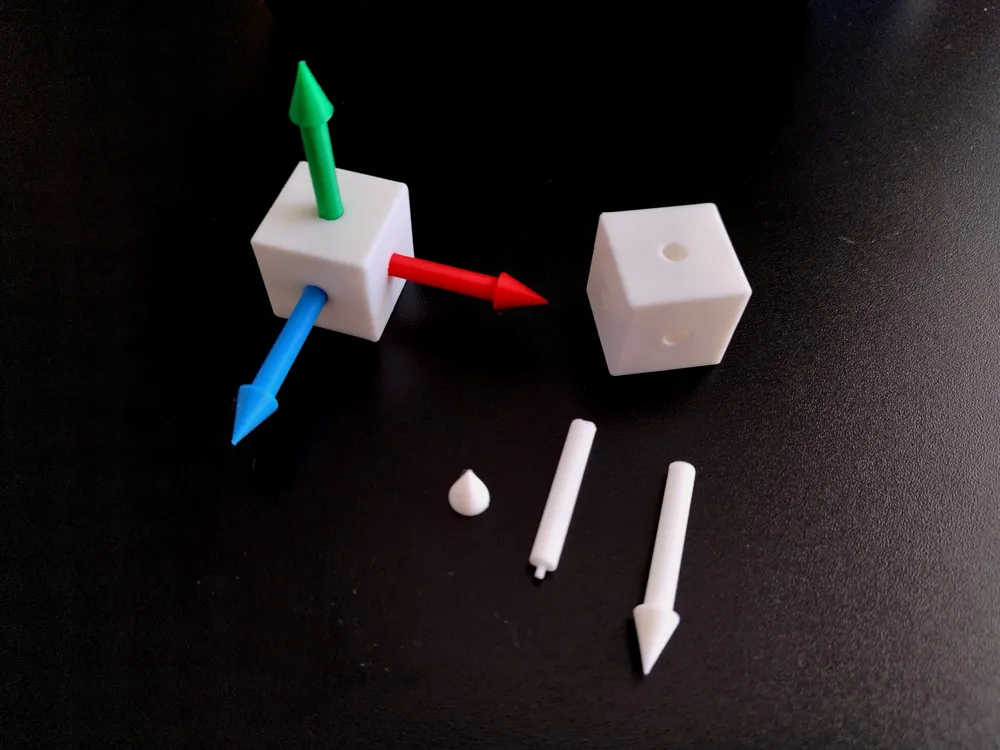

• 1 cubic body designed with four precision holes to easily insert arrows representing the X , Y and Z. Z axis can be positioned either above or below the cube.
• 3 arrows each representing the direction of one of the primary axes (X, Y, Z) and their corresponding positive directions consisting of 3 axis + 3 arrowhead (In separate parts for better and easier 3D printing)
• All files are as STL file, 3 separated files.
• Included 3mf file (generated in Bambu Studio)
• NO AMS NEEDED
• NO SUPPORT

•

Assembly

Glue the arrowhead to the top of the axis and insert the axes into the holes on the body as needed.

Printing tips and Recommendations

For enhanced clarity and to match standard CAD representations, it’s recommended to print the axes in three distinct colors: Red for the X-axis, Green for the Y-axis, and Blue for the Z-axis. These colors are commonly used in CAD tools and 3D visualization software, helping to visually differentiate the axes and improving the overall understanding of the coordinate system.

Applications

• Educational Tool: This model is perfect for teaching vector mathematics, algebra, and 3D geometry. It helps students better understand complex concepts like vector products, cross products, rotations, and reference system transformations.
• Mechanical and Engineering Simulations: It is also highly useful in the fields of mechanical engineering and robotics for simulating and understanding three-dimensional movements, including pitch, roll, and yaw. It offers a visual framework for explaining spatial rotations and the relationship between multiple axes.
• CAD & 3D Modelling: Ideal for 3D modelers and CAD professionals, the model provides a clear reference for visualizing coordinate systems, making it easier to comprehend and implement spatial transformations in designs and simulations.
• Graphics and Visualization: Whether for computer graphics, animation, or digital visualizations, this model helps provide a tangible reference to ensure accurate spatial orientation in digital environments.

⚠️Disclaimers and Warnings

Be careful, the model contains sharp parts and small parts that can detach and cause serious problems. Be sure to correctly glue the parts and remove the arrows if not used. Always use with adult supervision. The author assumes no responsibility of any kind.

3D printing settings

3D printing settings

• Layers: 0,1 mm layers (Even less, to get almost non-visible layers and better quality in the result)
• Plate: smooth
• Material: PLA, ABS, etc
• Ironing: not required

ℹ️For other settings see the print profile as each part has optimized and different settings.
I suggest using the settings included in the included print profile created by me.

The model shown in the pictures was printed with white PLA, Bambulab P1S printer, smooth PLA cool plate

⚠️NOTE: Print at reduced speed to achieve a better result. Depending on the print settings, parts can be less well executed. If your printer has an auxiliary fan blowing on the side plate turn it off for straighter, non-defective arrows.

If you download this model, let me know in the comments why you chose it and what you used it for!

If you liked this model or found it useful, please consider to leave a Comment, a Like, a Boost and rate the print profile ⭐!

If you have any questions, suggestions or requests regarding my designs, please leave a comment!

Your feedback is very important to me! Thank you so much ❤️!
