Bambu 4in1 Adapter Bracket (AMS Buffer)
IP Report
Print Profile(1)

0.2mm layer, 4 walls, 15% infill
Designer
34 min
1 plate
Open in Bambu Studio
Boost
23
41
12
3
47
26
Released
Description

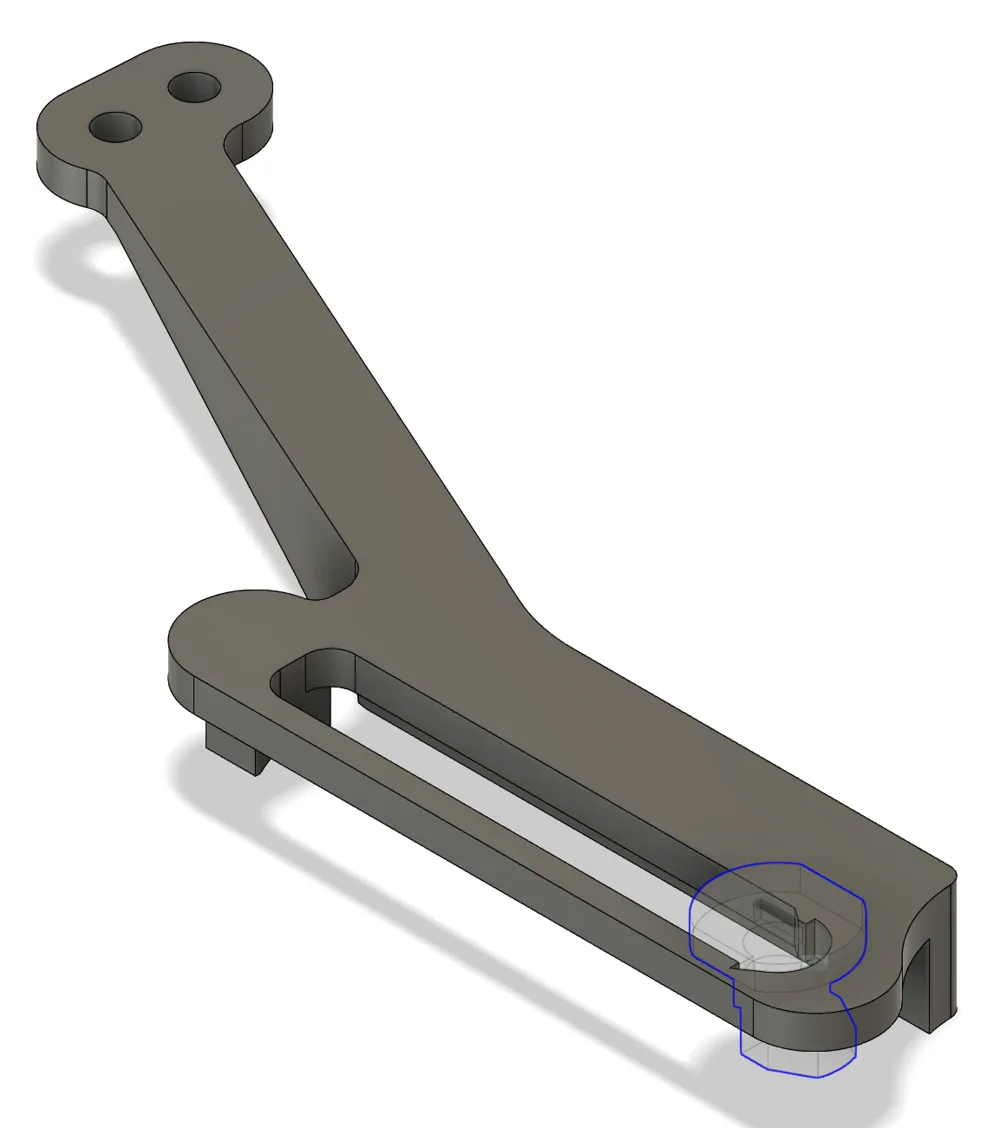

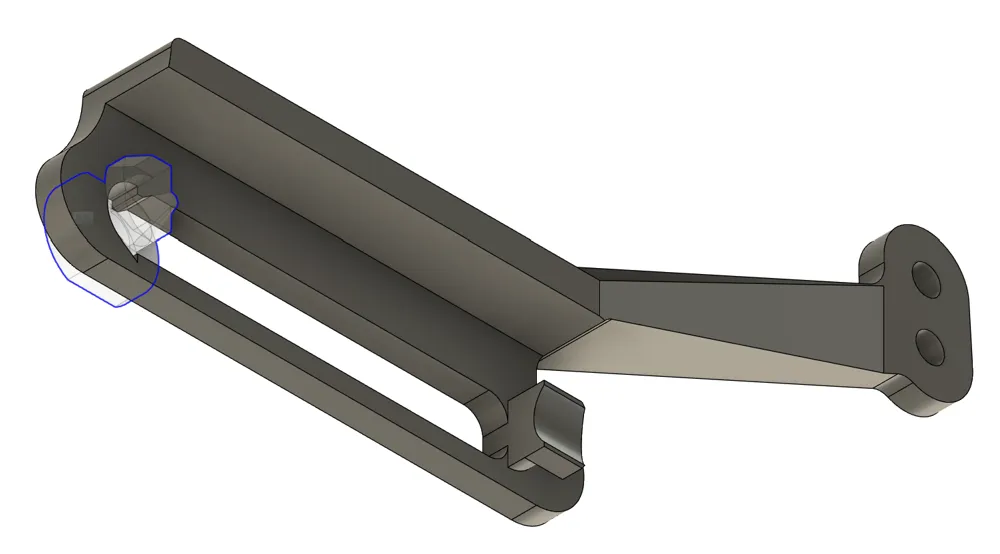

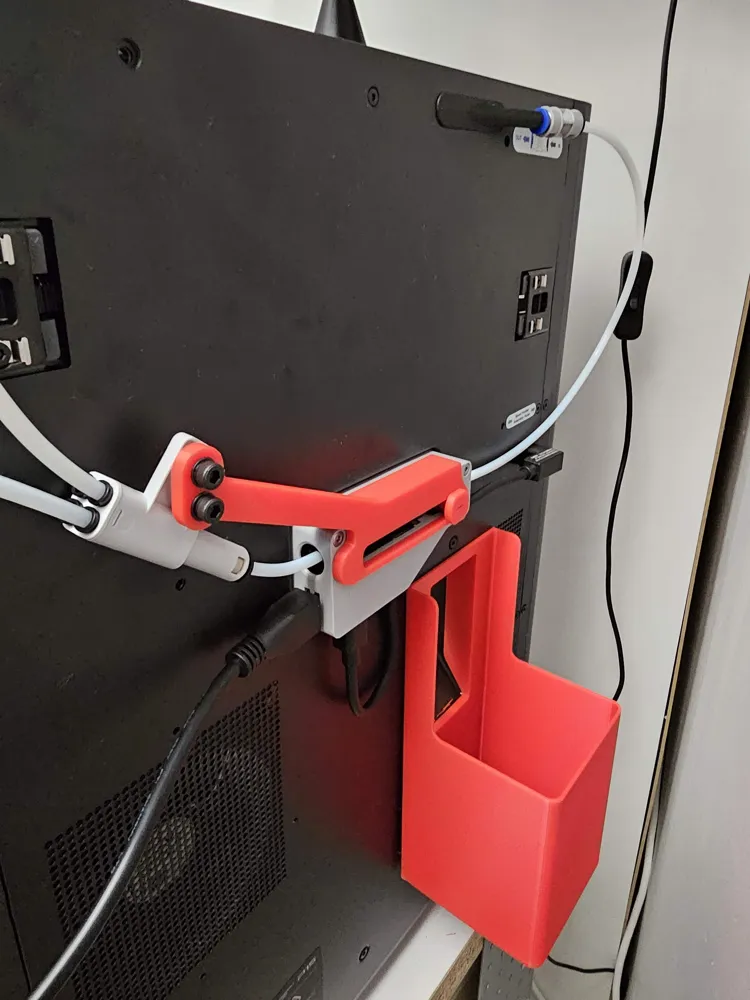

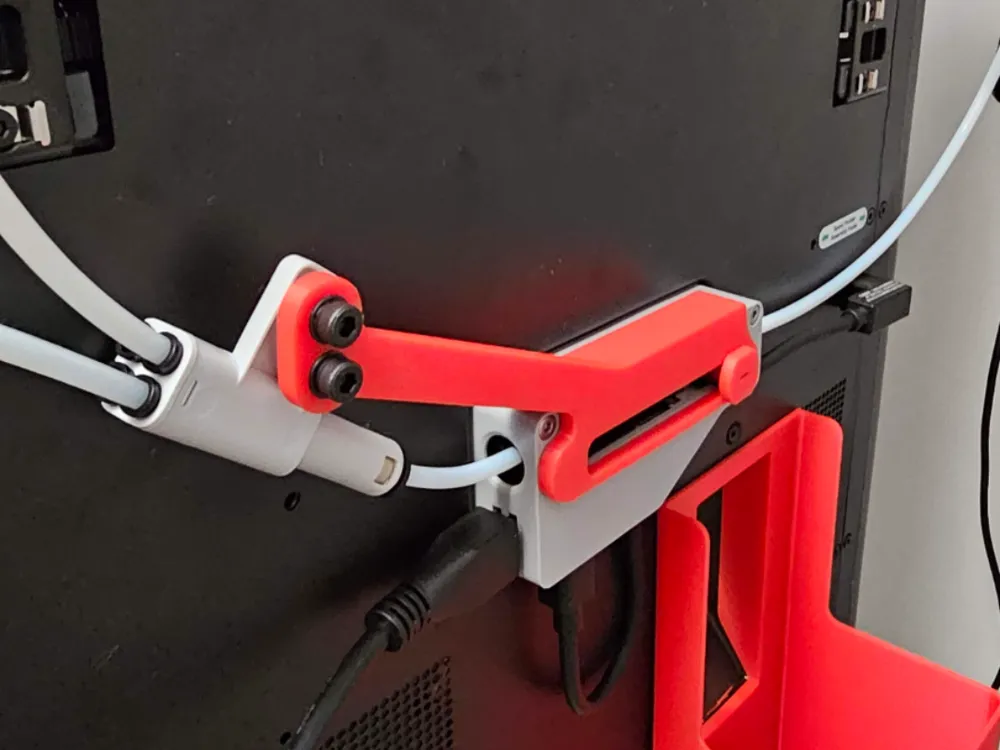

This is a bracket that allows the use of the Bambu 4-in-1 Adapter with the AMS Buffer, making it easier to use external filament and avoiding the need to detach/reattach PTFE tubes. To mount the adapter onto the bracket arm, you will need 2 x M4x12mm screws and a 58mm piece of PTFE tube between the 4-in-1 Adapter and the AMS Buffer module. No other accessories are required, nor modifications to the original parts. The bracket attaches securely to the AMS Buffer with a locking pin (rotate counterclockwise about 90 degrees until you hear a small click).
