LM2596 Case Switch Potentiometer for BentoBox
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
50 min
1 plate
Open in Bambu Studio
Boost
41
106
2
1
60
22
Released
Description

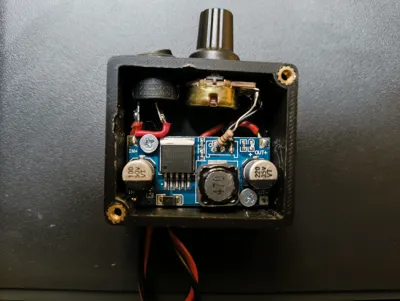

This is a case for a LM2596 Buck Converter. It features a 16mm on/off switch and a 2k WH148 potentiometer for voltage adjustment.

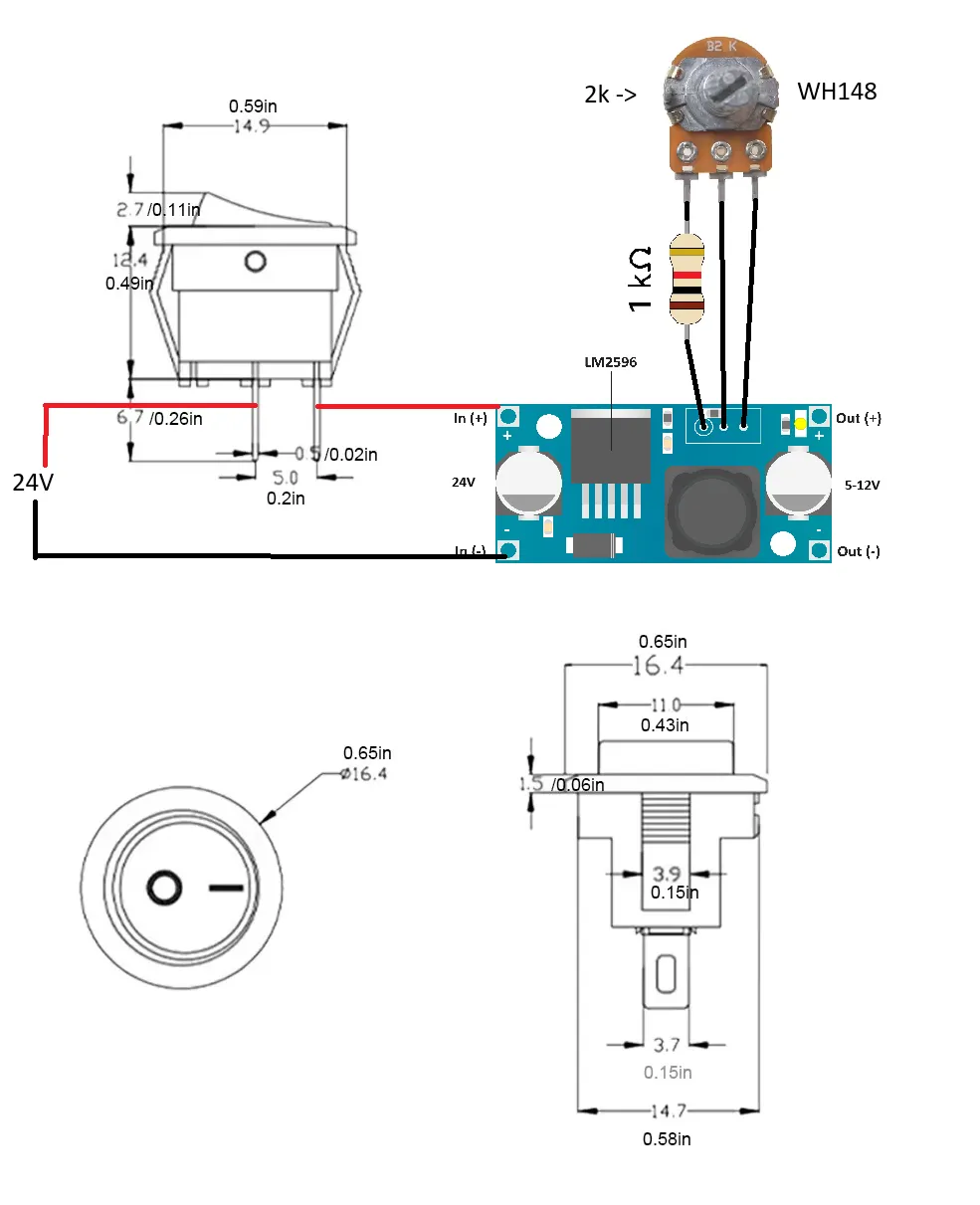

I use it to power my Bentobox off a 24V power supply. If you wire it like in the provided schematic with a 1k resistor and a 2k potentiometer, the output voltage can be adjusted between 5-12V.
You will also need 4x M3 threaded inserts and 4x M3x10mm screws.

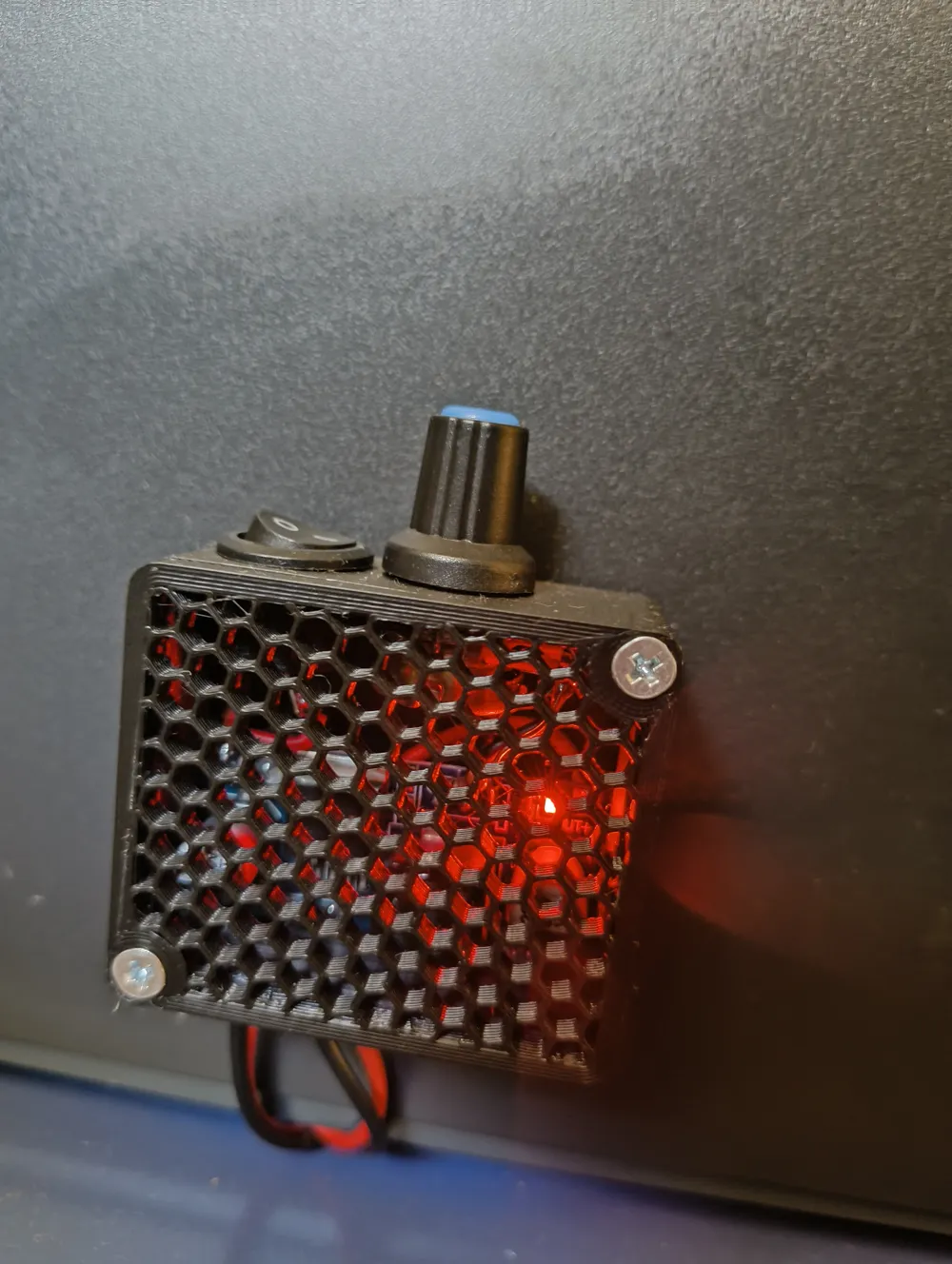

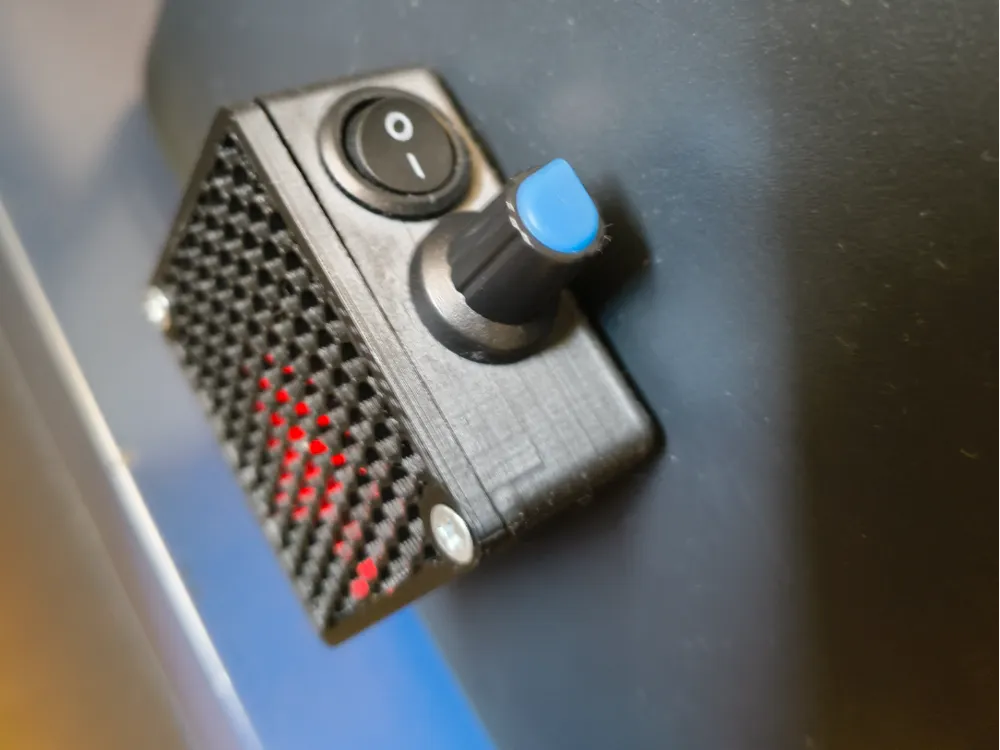

The lid is printed with the honeycomb infill visible, to allow air circulation. I printed it in Bambu PETG and put it on the side of my printer with some double sided tape.
I also included a step file and fusion360, so you can easily modify it for your needs.
