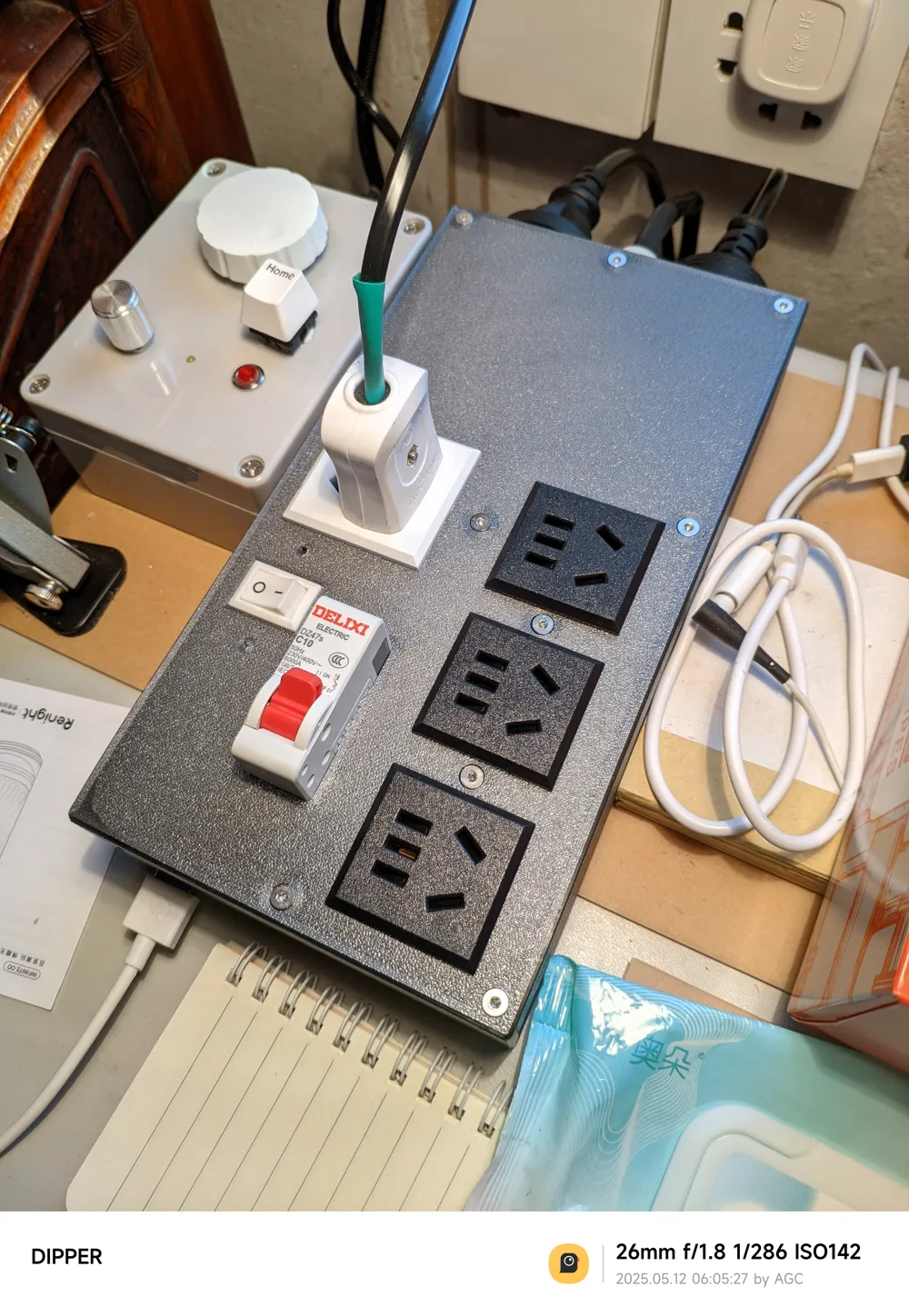

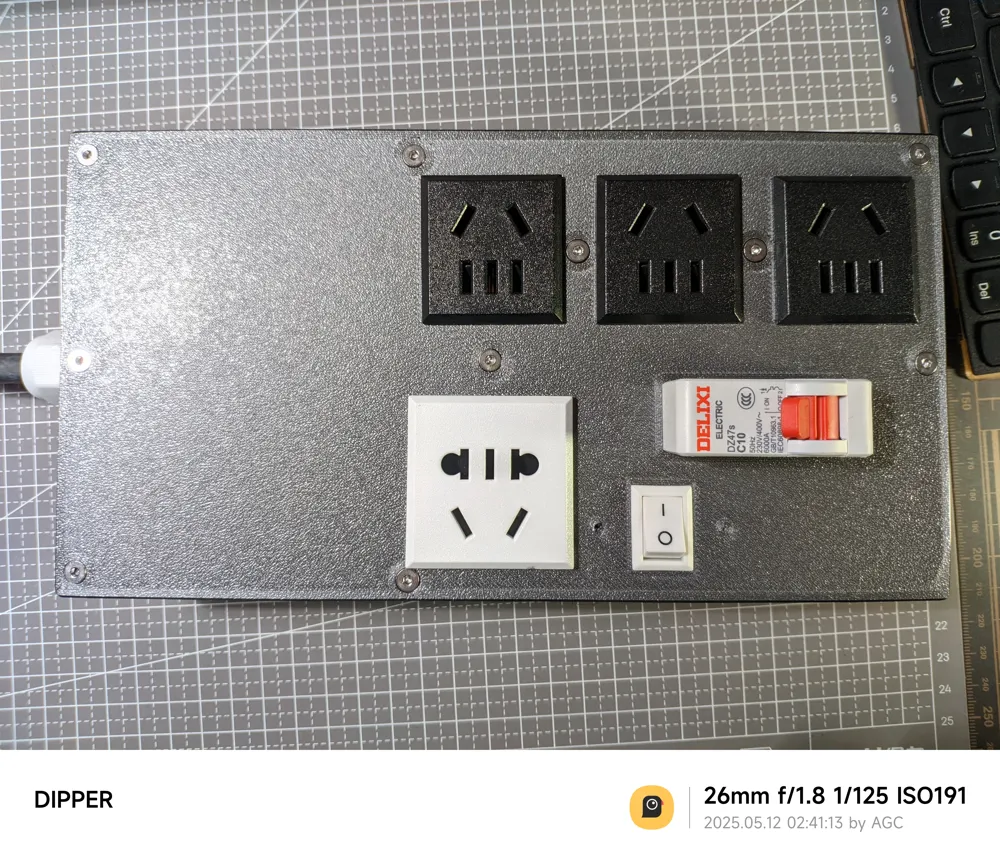

Power Strip with Circuit Breaker
Print Profile(1)
Description

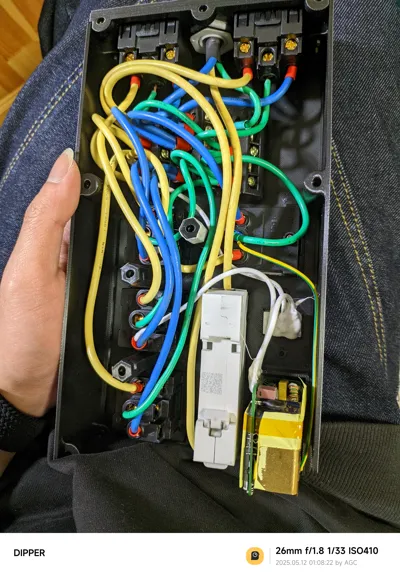

Superior craftsmanship and materials surpass most commercially available power strips. Flame-retardant ABS printing is recommended, along with wiring of 1.5mm² (15AWG) or thicker.
Required: M3 nuts
M3 x 14 countersunk screws
M3 x 6 countersunk screws
One 3-prong 10A plug

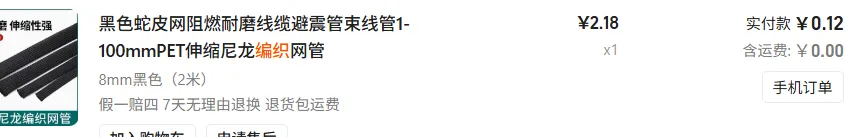

8mm braided sleeving

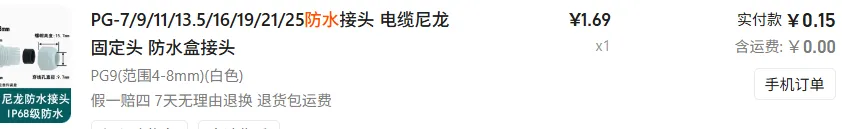

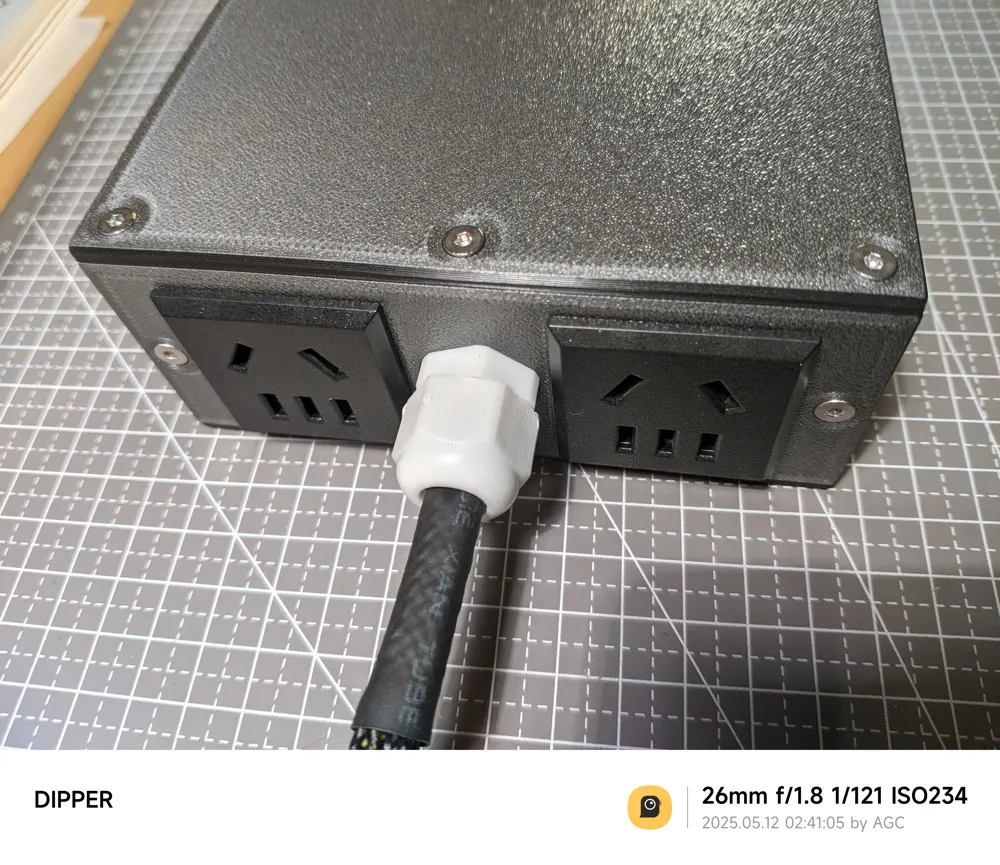

PG9 waterproof connector

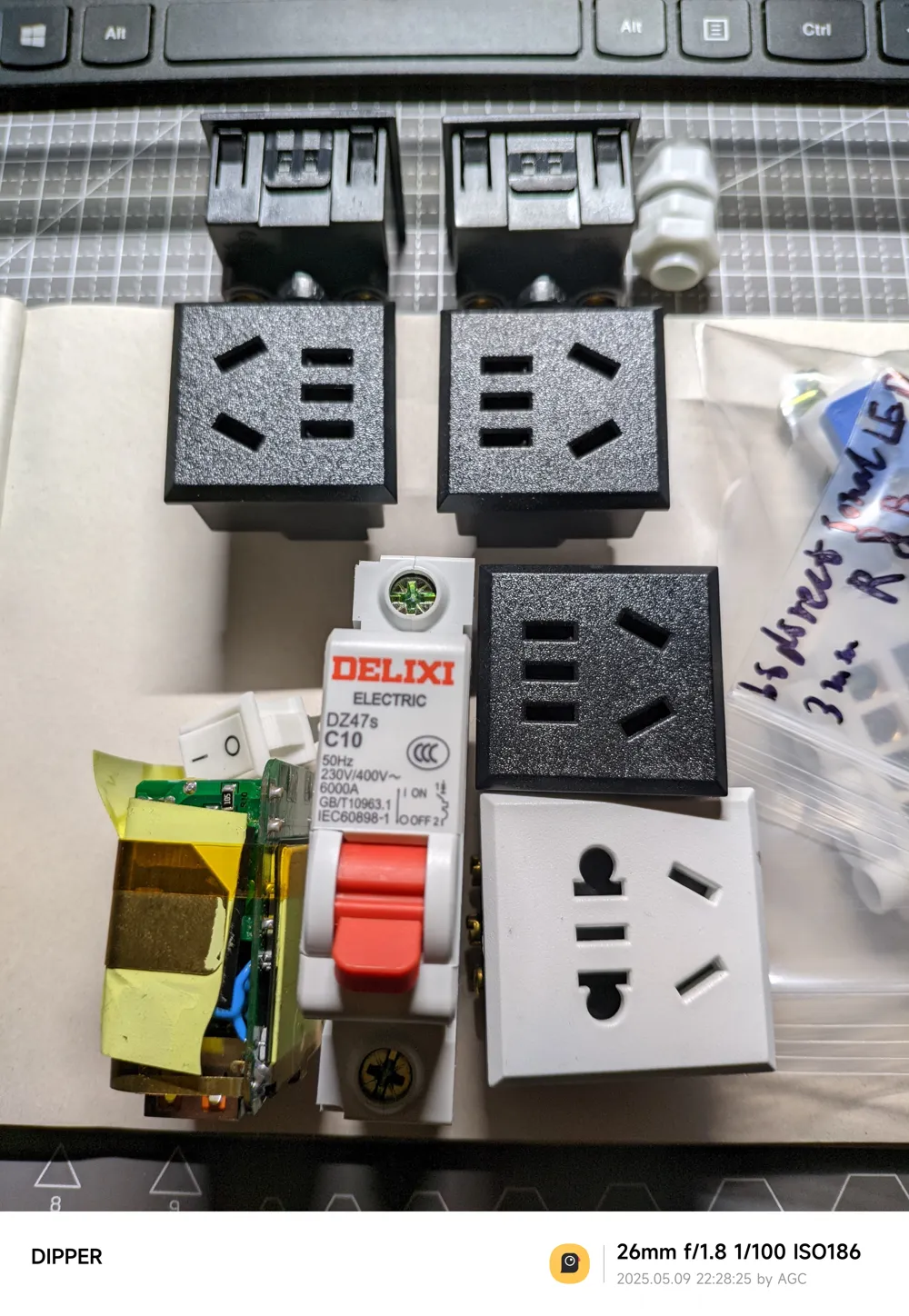

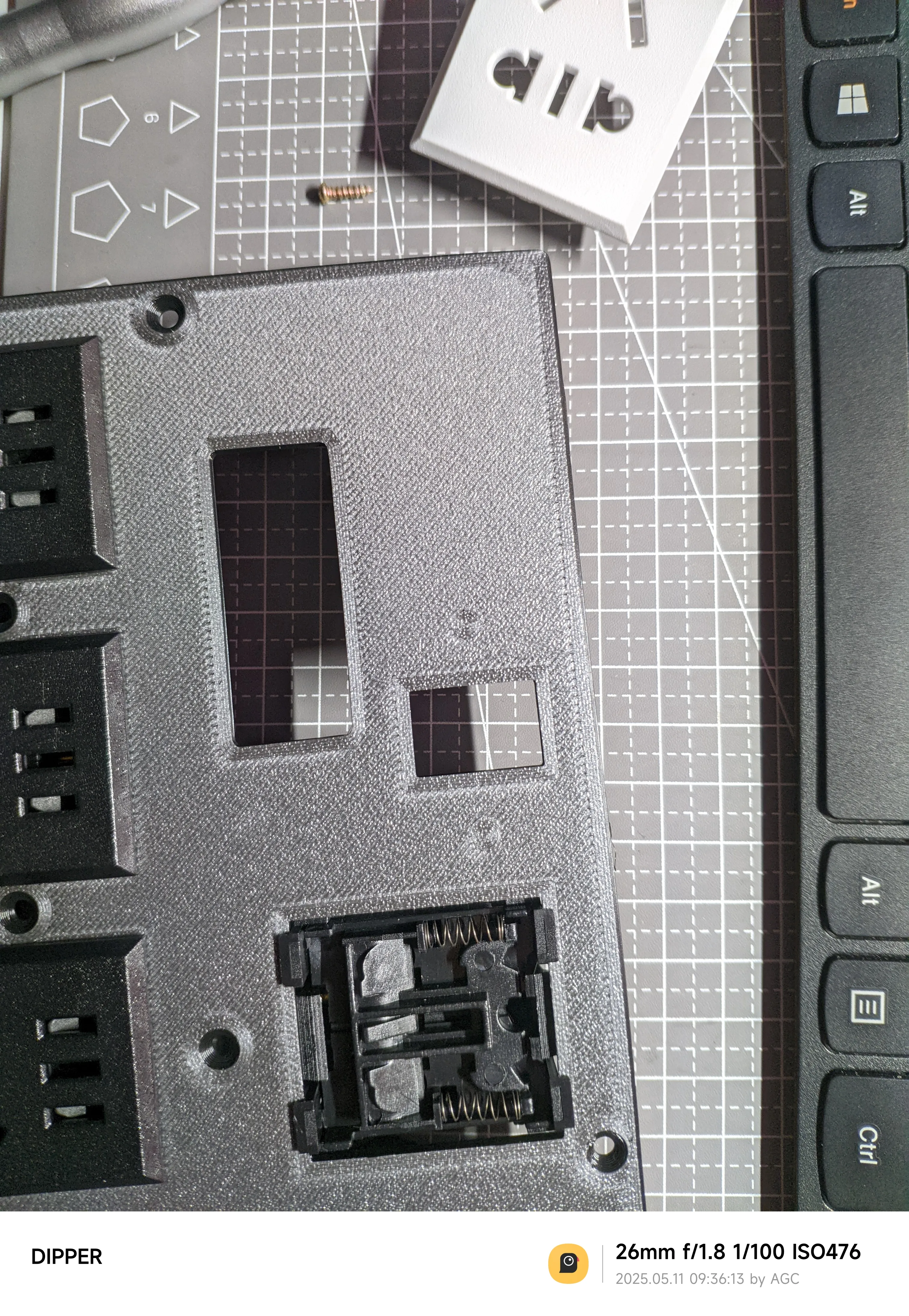

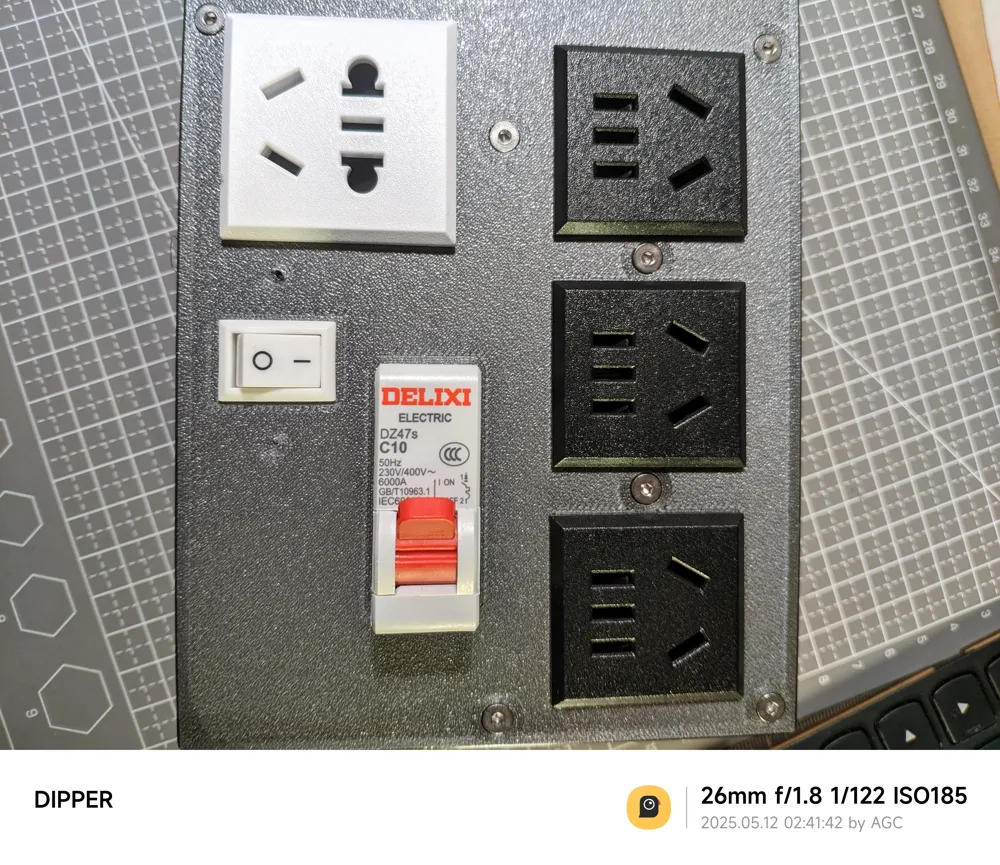

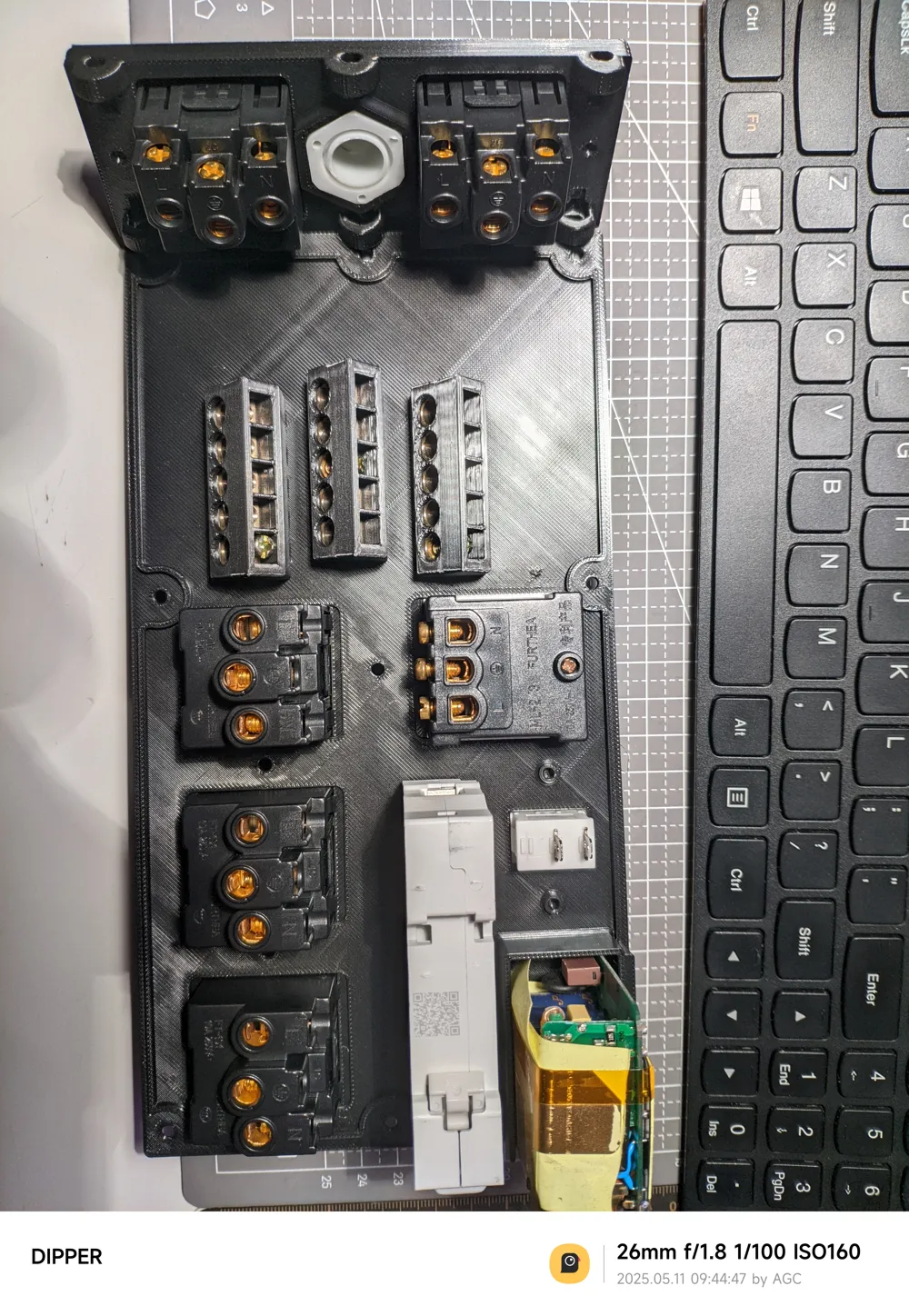

Five FT-101 embedded sockets
One ML-2/3 embedded socket (remove the cover plate before installation, refit after the base is secured)

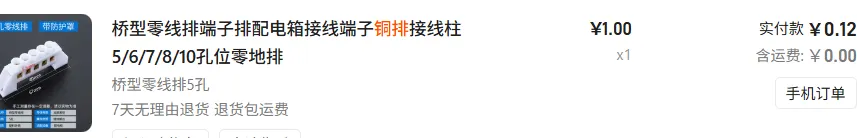

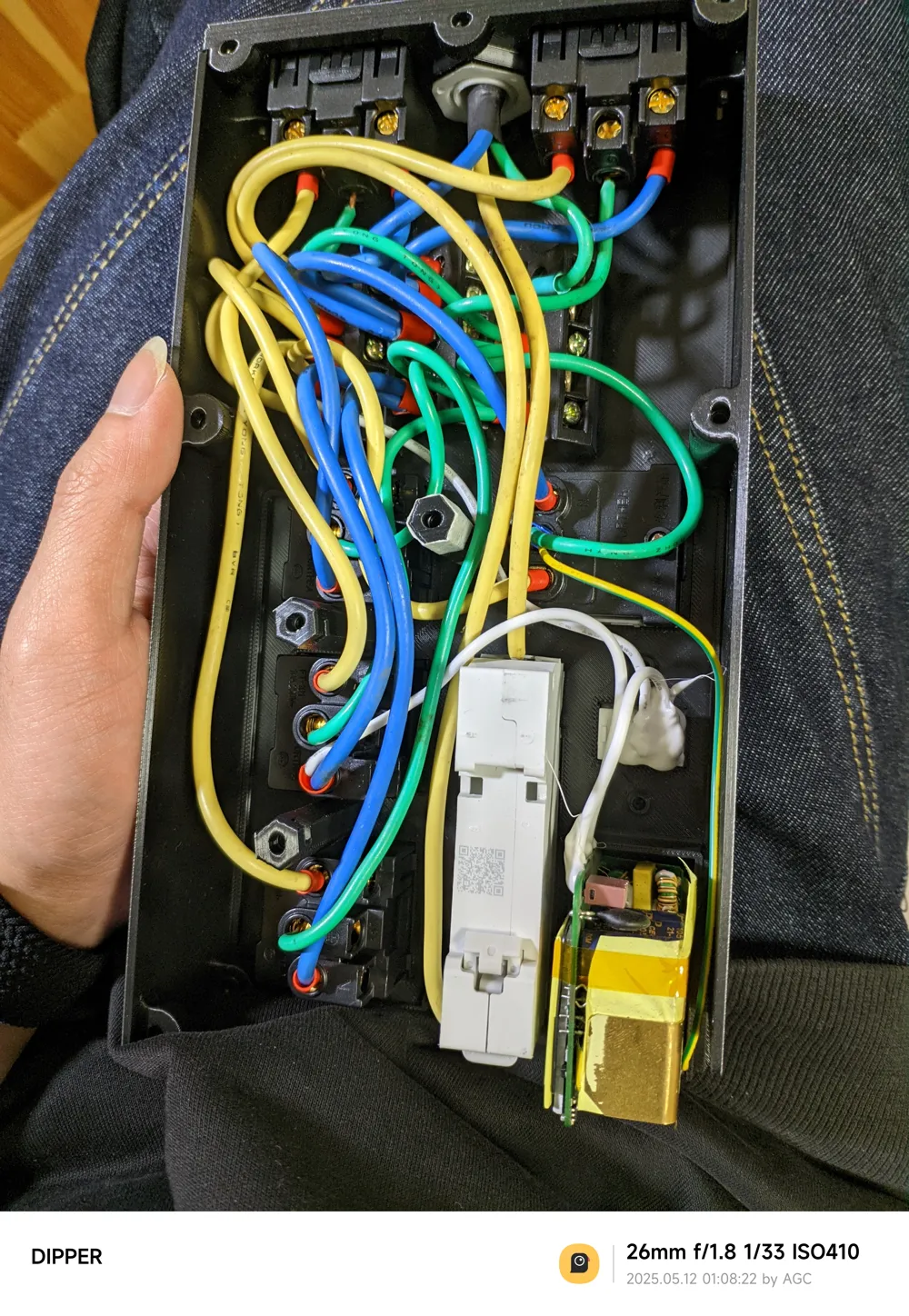

Three 6x9 5-hole copper busbars
One KCD1 rocker switch

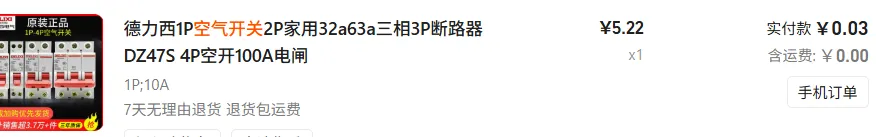

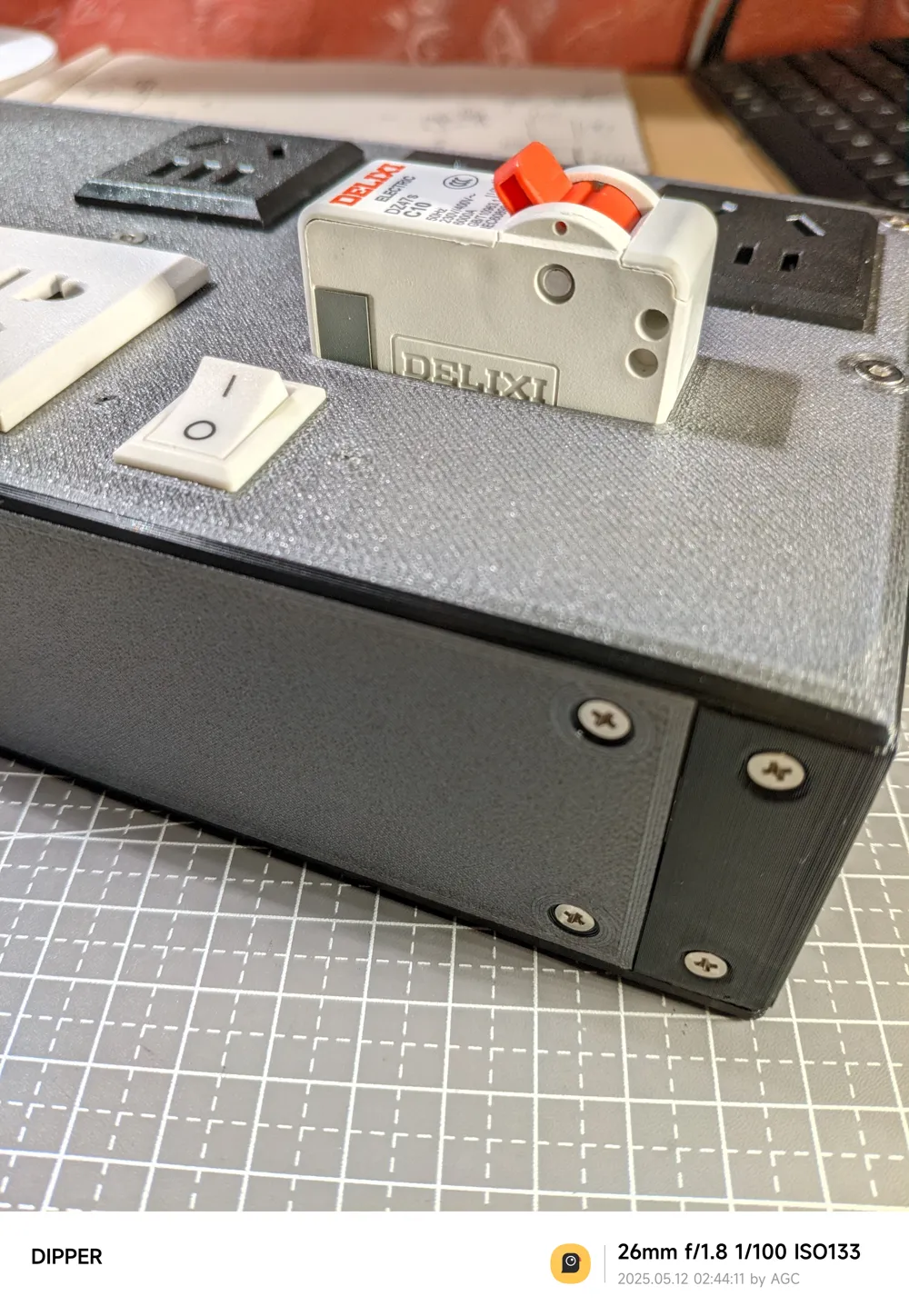

One 1P 10A circuit breaker

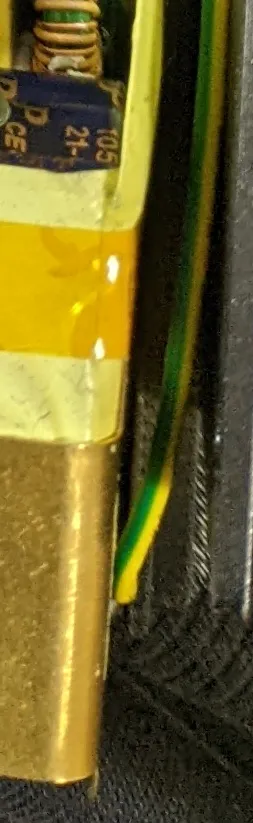

One charging plate (grounding the copper shell during installation is recommended)

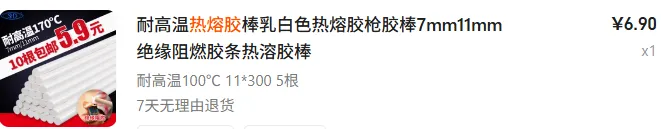

High-temperature hot melt adhesive (for shielding and reinforcing wire terminals and screws)

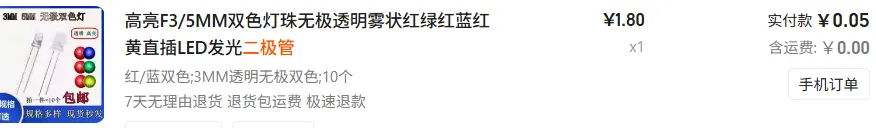

Stepless LED (optional)
240k current-limiting resistor (optional)
Heat shrink tubing (optional)
Wire terminals (optional). If not using wire terminals, soldering the wire ends is recommended.
