Description

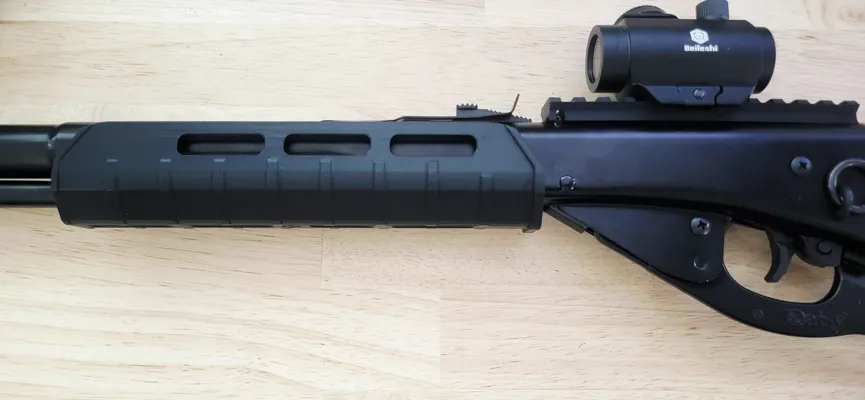

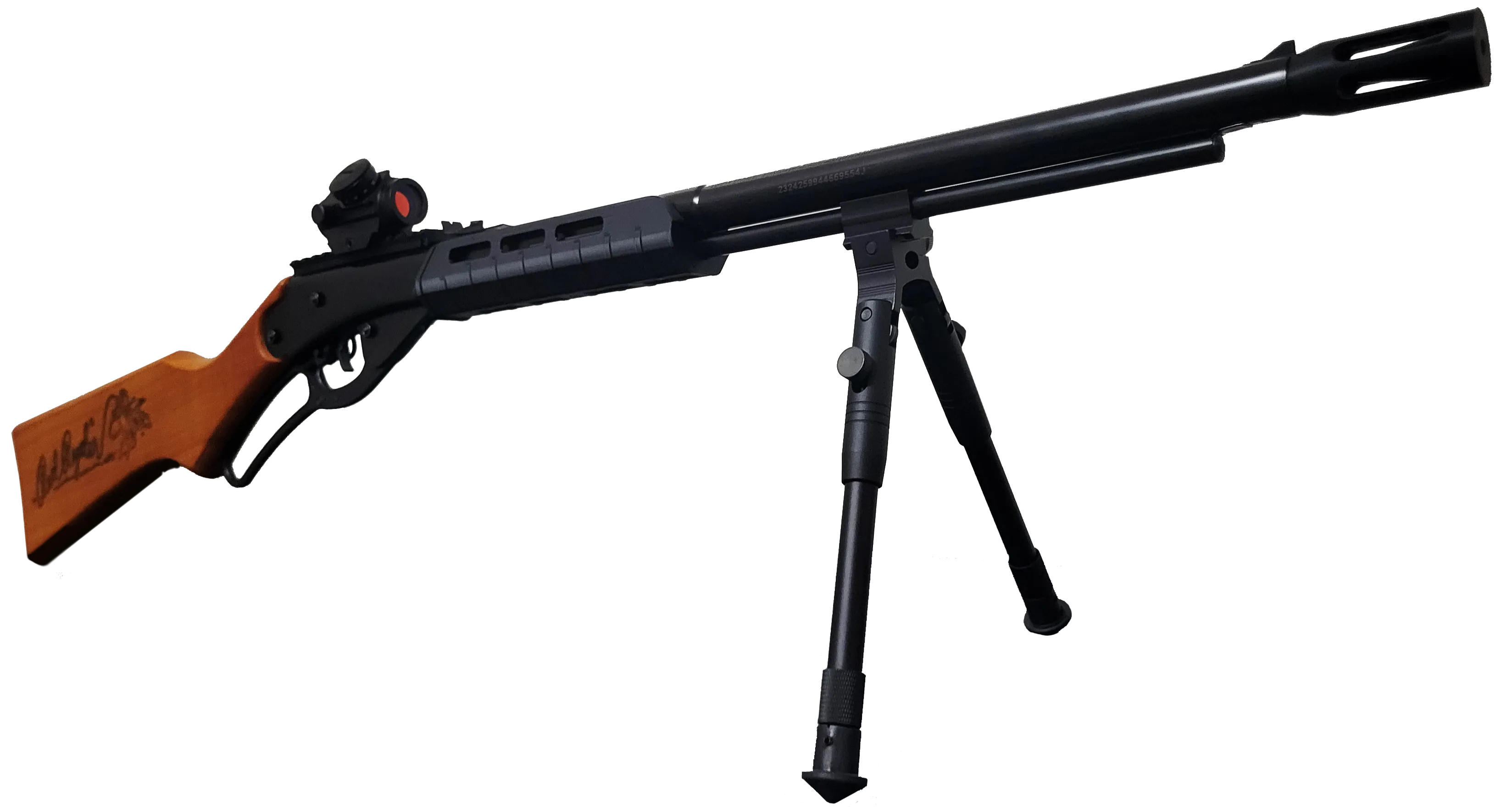

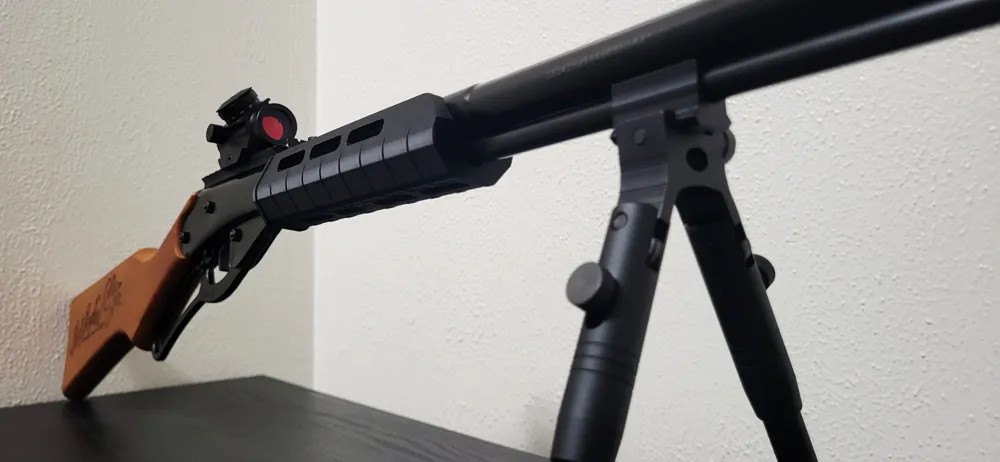

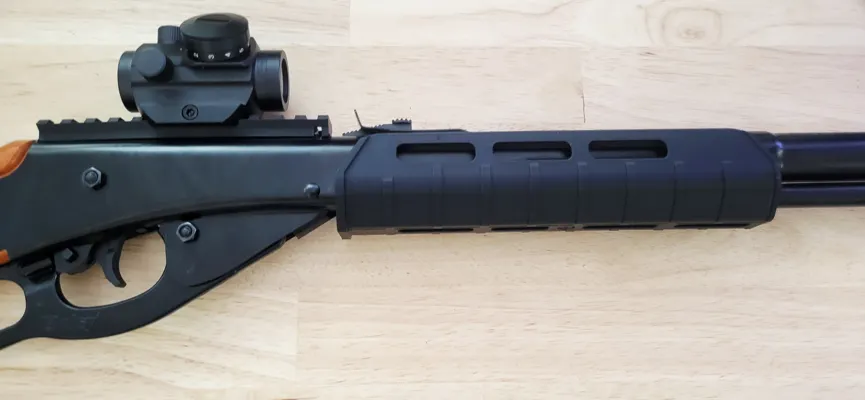

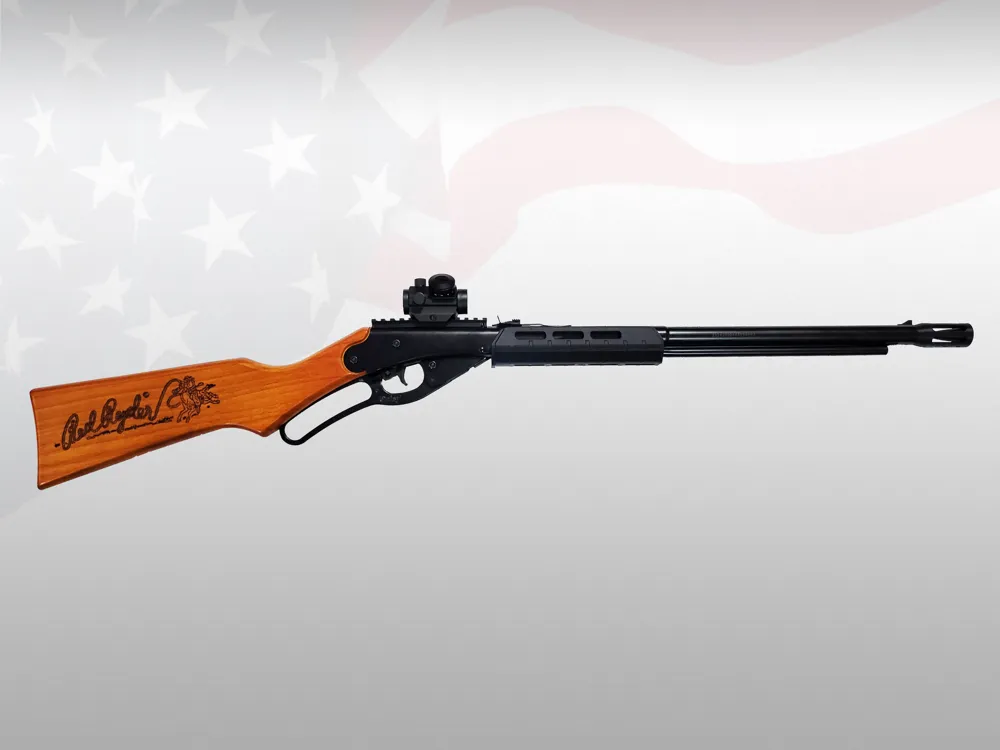

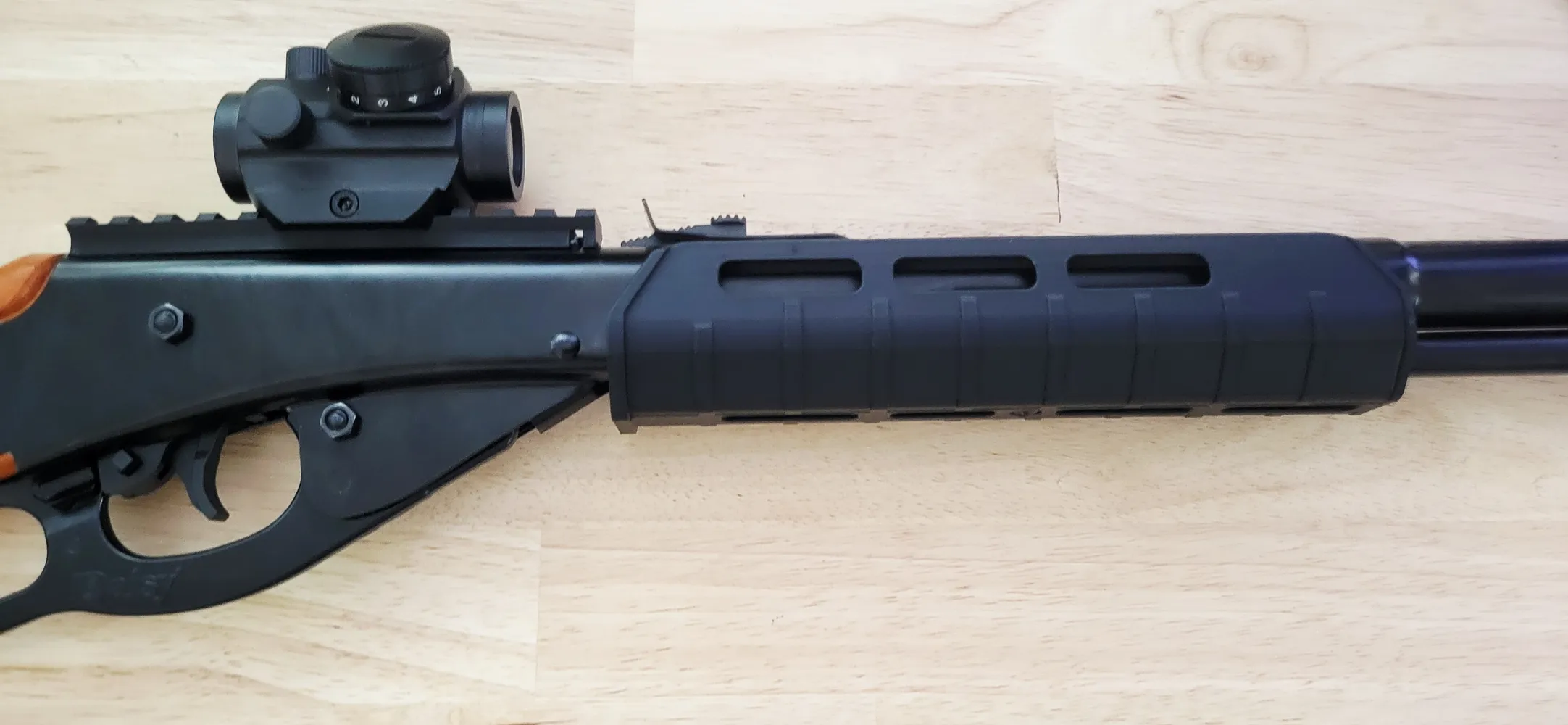

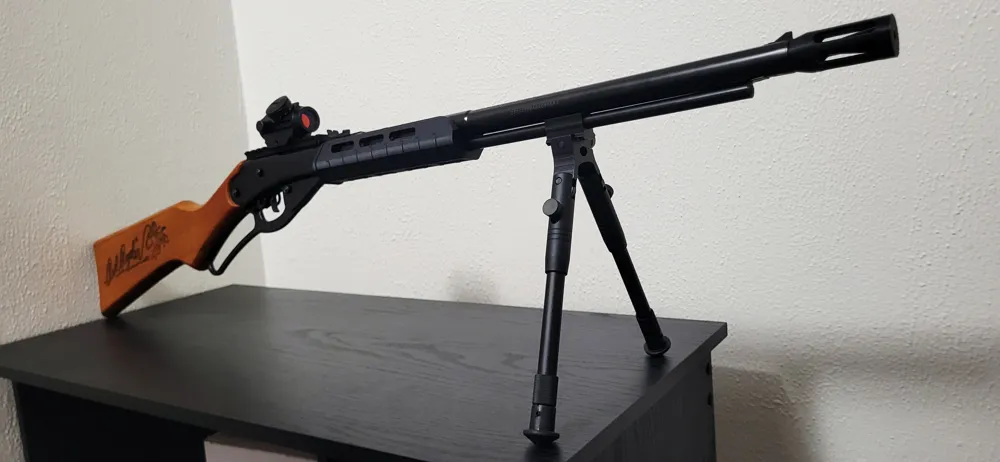

This is a M-LOK handguard for the Daisy Red Ryder air rifle. It is similar in length to the original handguard.
Features:
- M-LOK slots along the sides and bottom for mounting accessories.
- 7.25 inches of length, with an ergonomic grip area and room to customize.
Designed to install with no permanent modifications to your rifle.
I printed my own prototypes in PLA+ and they have held up very well.
Installation Instructions
⚠️ Safety First ⚠️
Before starting any modification:
- Make sure the airgun is unloaded
- Engage the safety
Step 1: Remove the Original Handguard
- If your handguard has a metal collar, slide it forward toward the muzzle and off the barrel.
- Next, remove the Phillips screw from the bottom of the stock handguard.
The original handguard should slide off easily with no resistance.
Step 2: Install the New Handguard
- Position the new handguard on the rifle—it should snap into place and feel snug.
- Reinsert the Phillips screw through the bottom of the handguard to secure it.
The handguard should also fit an Umarex Marlin BB rifle, I do not have one to test fitment.
Complete the kit with my Air Stripper Muzzle Brake and Picatinny Top Rail.
Follow me for more Daisy airgun mods — I have some exciting designs on the way!
