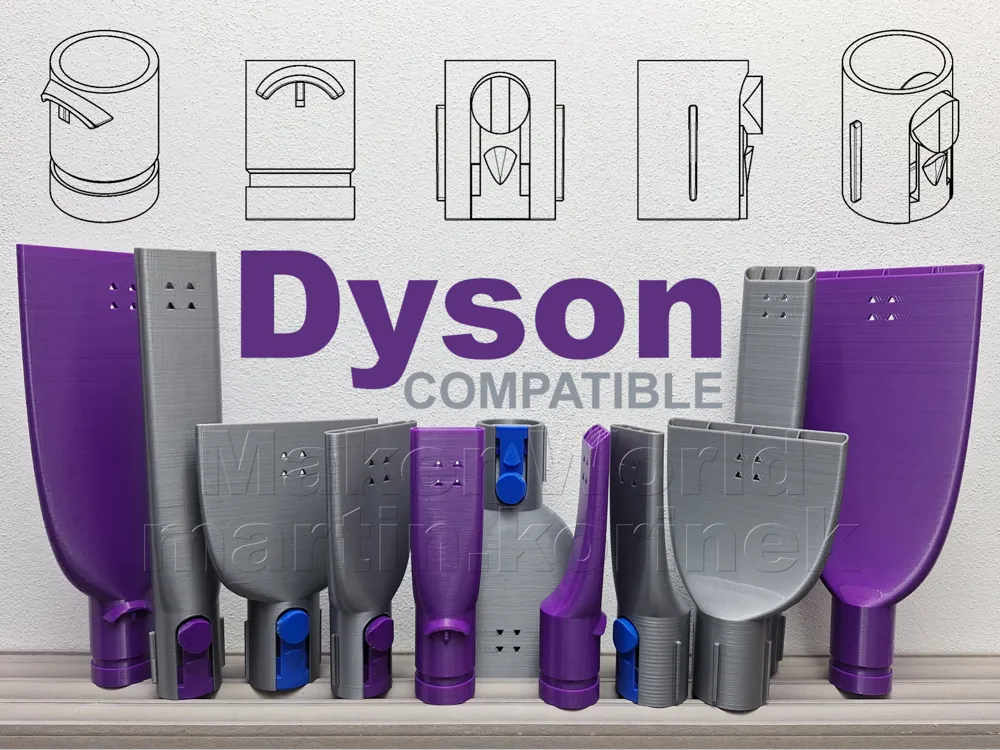

Dyson Compatible Nozzle

I am excited to present my latest version of Dyson compatible nozzles, perfect for tackling those extra-narrow spaces. Whether they fit your machine or not, please leave a comment. I will either extend my compatibility list or with your help create a version that fits your machine. Do not forget to check out my Vacuum collection.

Printing

• Each print profile contains multiple build plates, with one nozzle per build plate and a final build plate with all of them, so you can print only one nozzle if you wish, or you can print all of them at once.
• The smallest nozzles are only about 30 grams of filament.
• You can print them with PLA, PETG, ASA, etc. Bambu Studio's Generic filament profiles work without any problems.
• Make sure that Support is enabled (as it is in all of my print profiles).
• 0.6mm print nozzle can speed up prints. Dedicated print profiles are available.
• Using a 0.8mm print nozzle is not recommended. It will cost you more time and filament compared to a 0.6mm nozzle since my models have a 1.2mm wall thickness.
• Connectors [B] and [C]: Superglue the small latch to the main nozzle body.

Dimensions

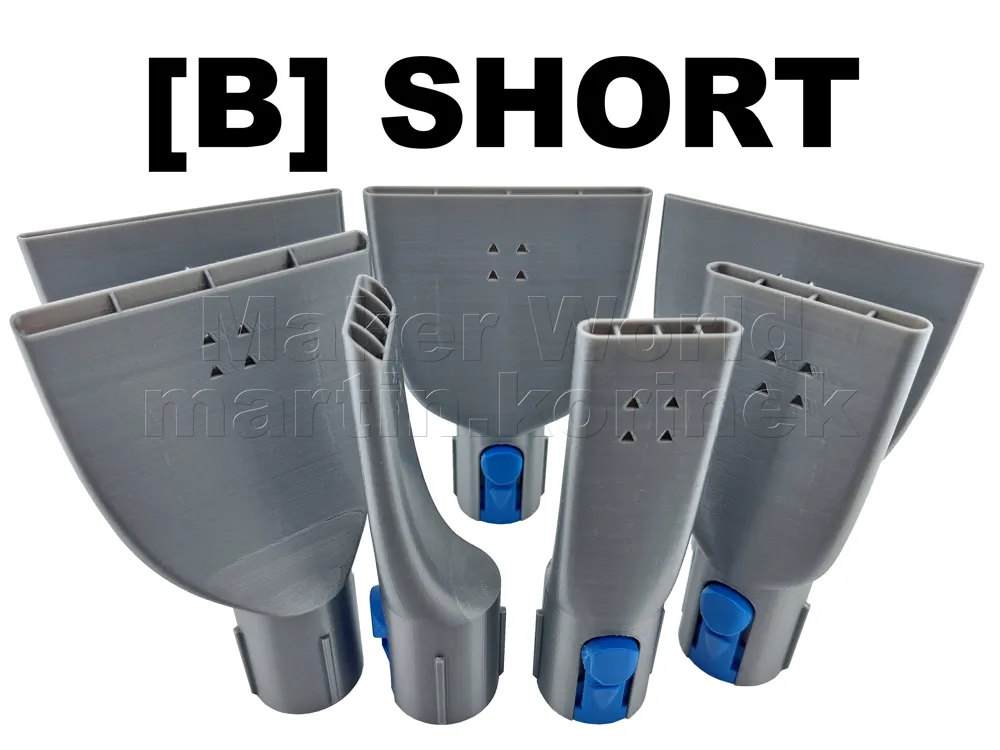

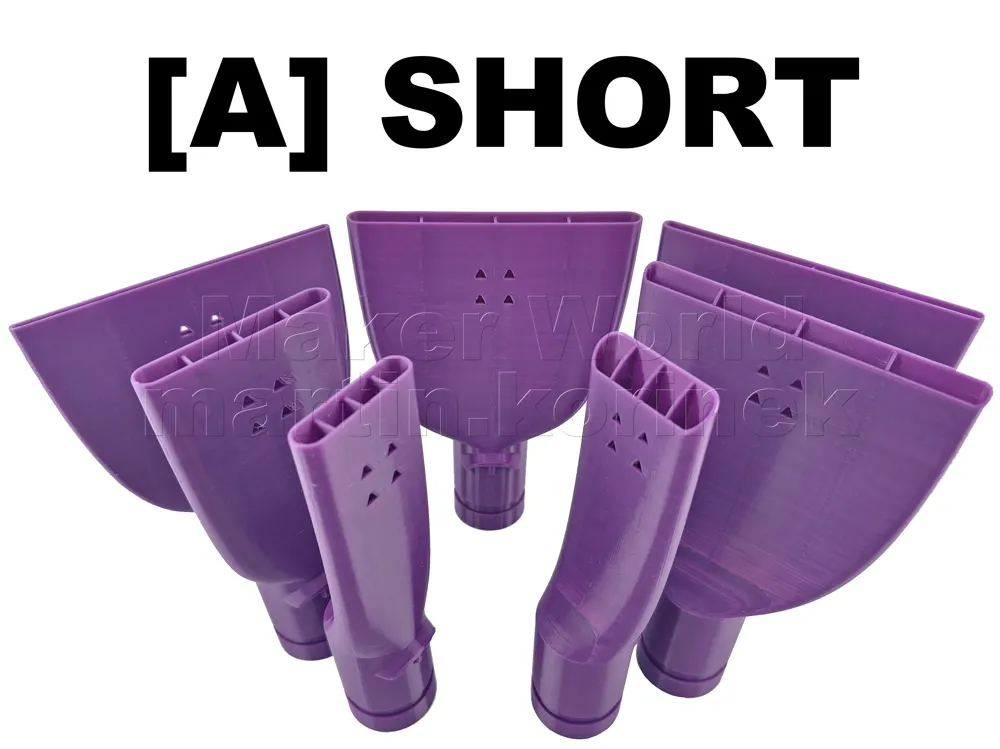

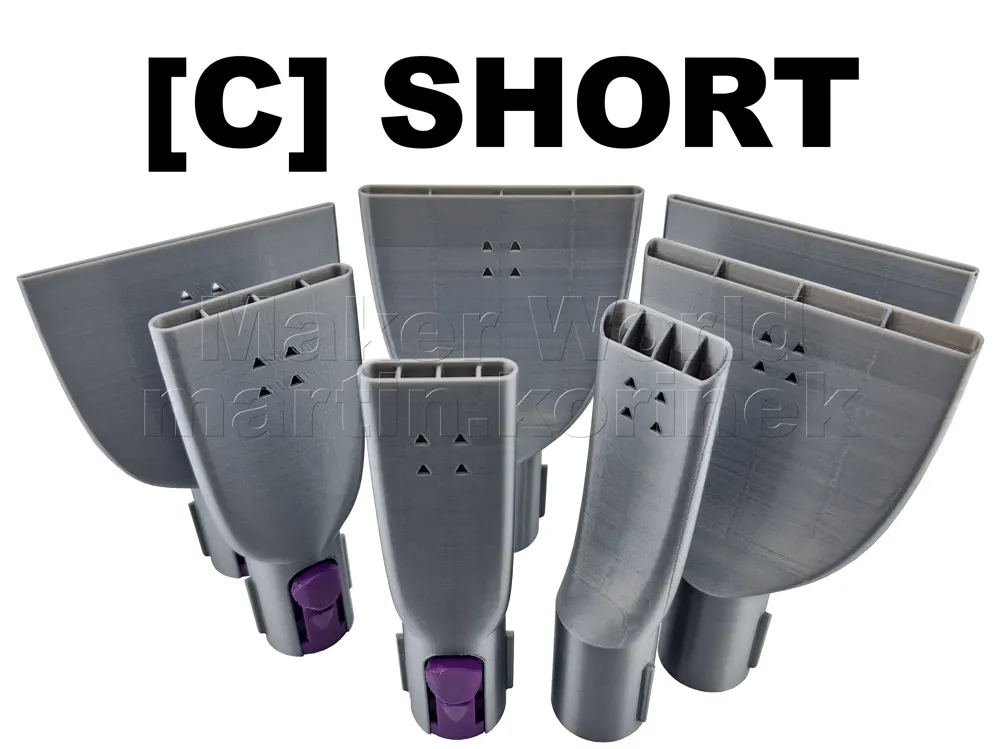

• SHORT nozzles are 150 mm in length (approximately 5.9 inches).

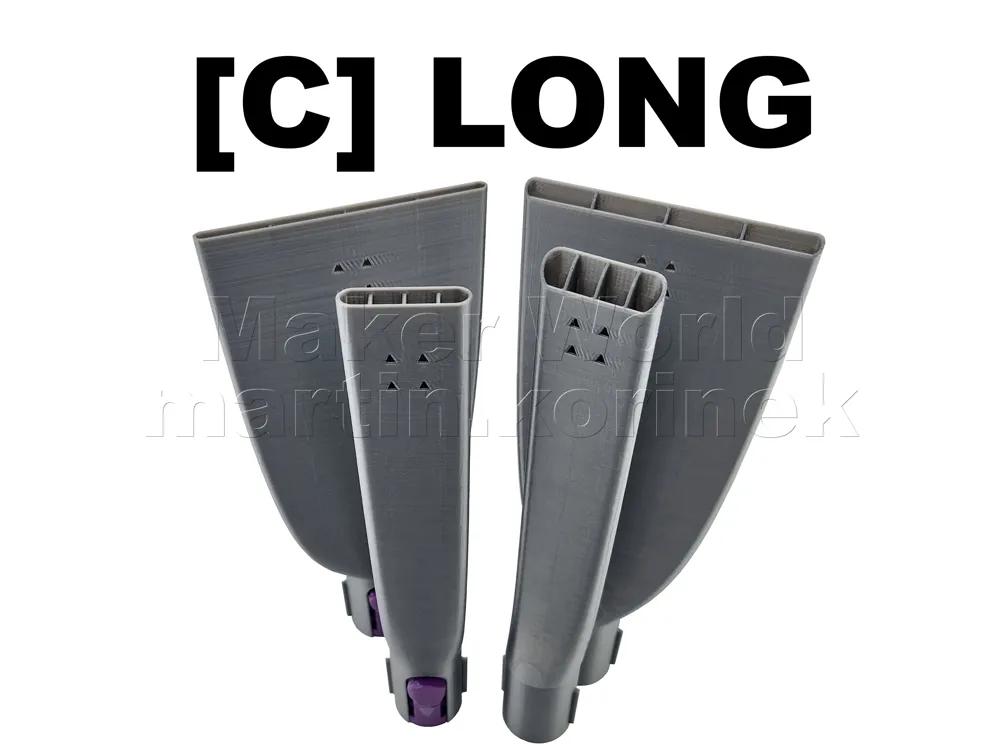

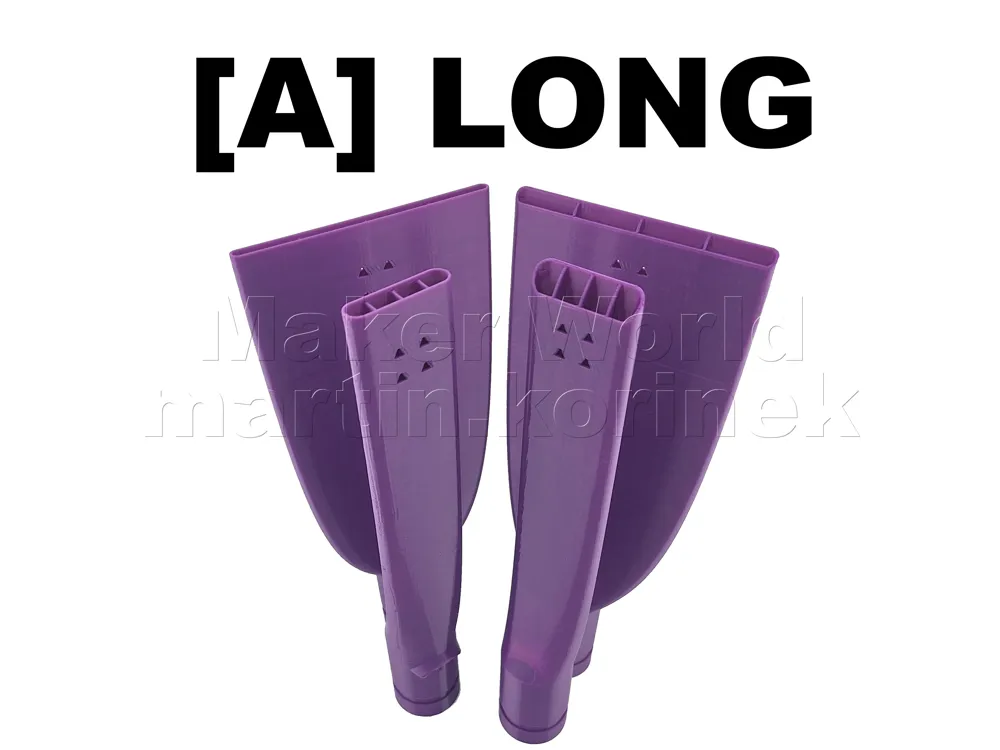

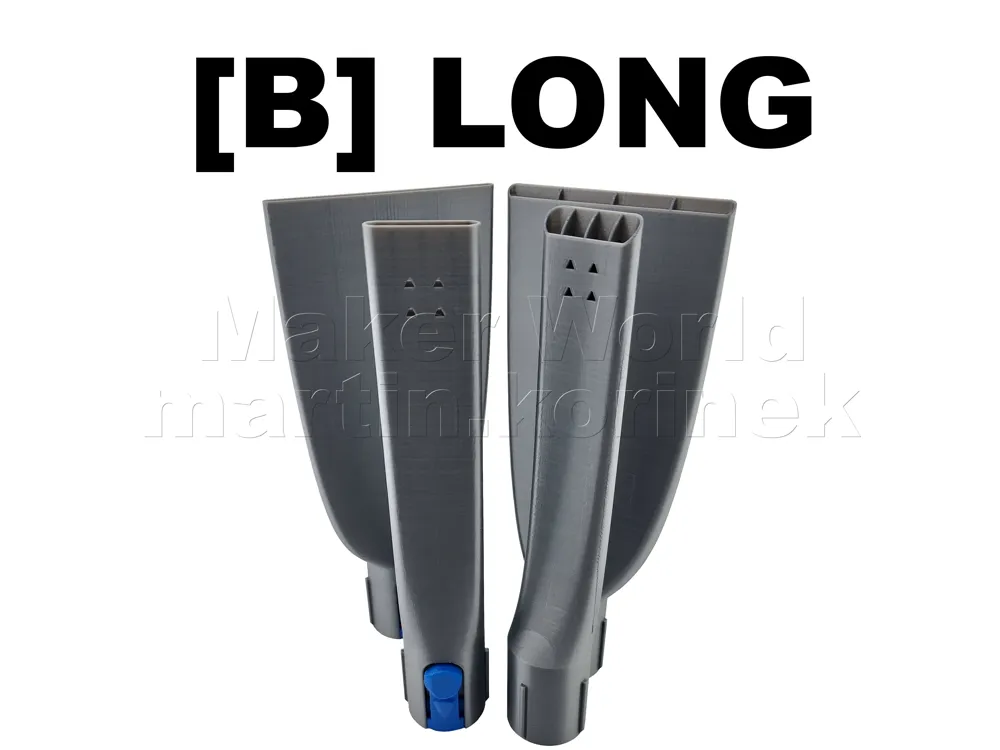

• LONG nozzles are 240 mm in length (approximately 9.4 inches).
• BEVELED nozzles have a 45-degree beveled tip.
• Available nozzle tip dimensions:
  • 40x10 mm (approximately 1.6 x 0.39 inches)
  • 60x10 mm (approximately 2.4 x 0.39 inches)
  • 100x4 mm (approximately 3.9 x 0.16 inches)
  • 100x6 mm (approximately 3.9 x 0.24 inches)
  • 100x10 mm (approximately 3.9 x 0.39 inches)

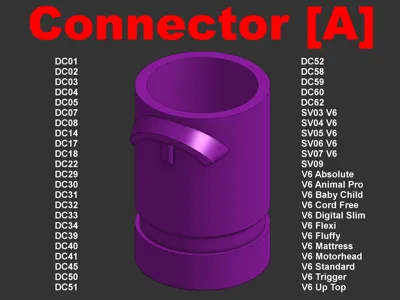

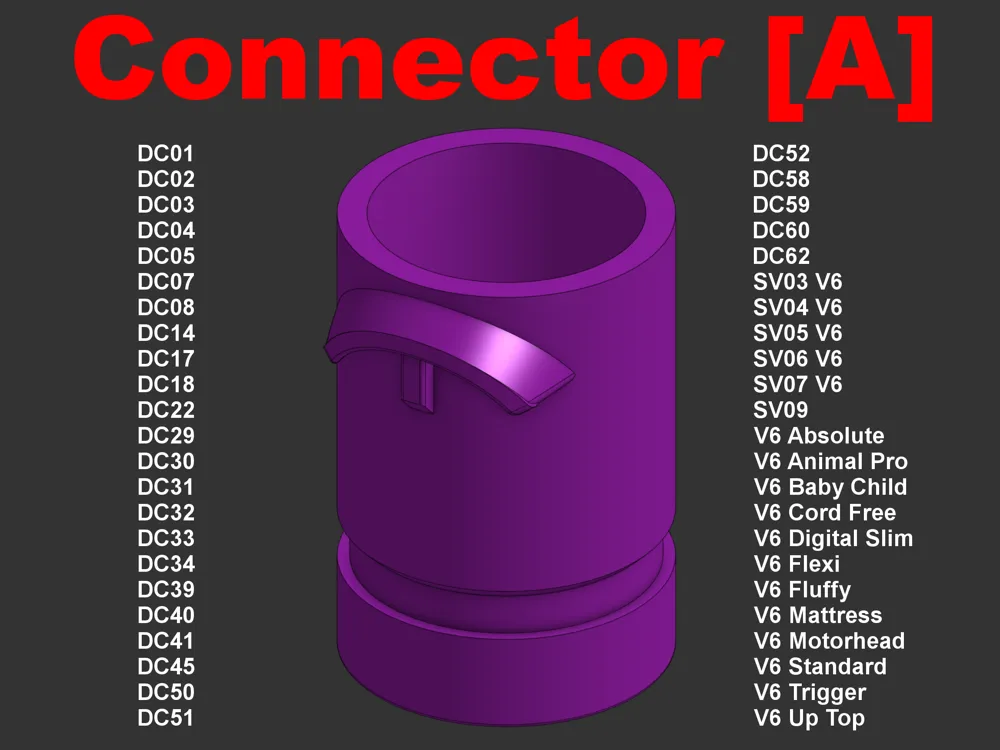

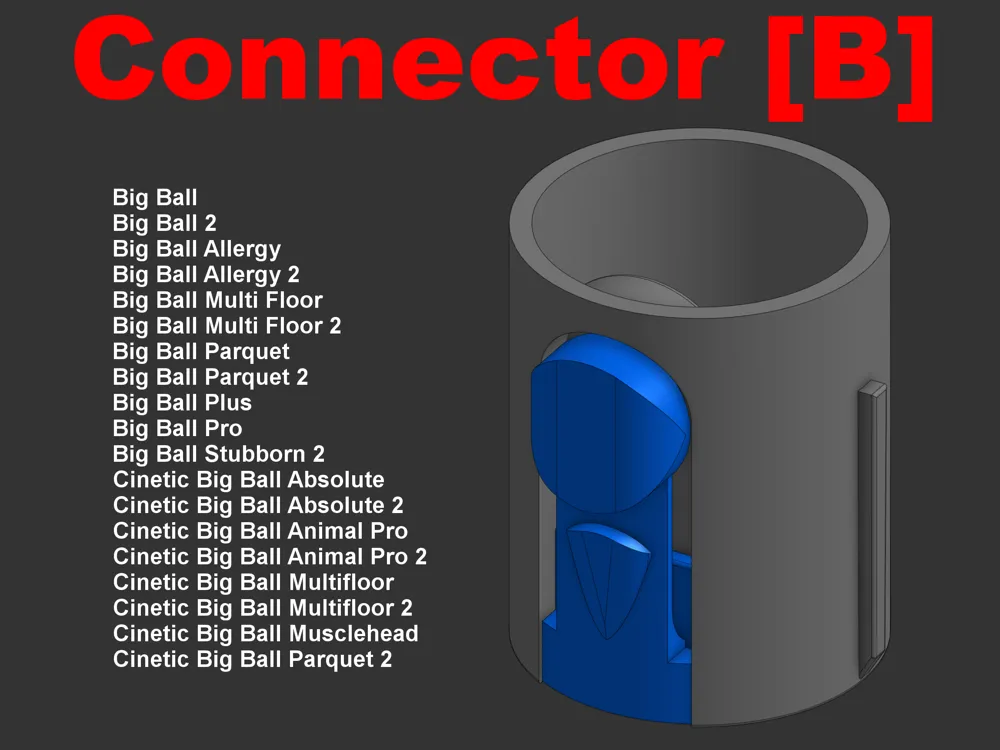

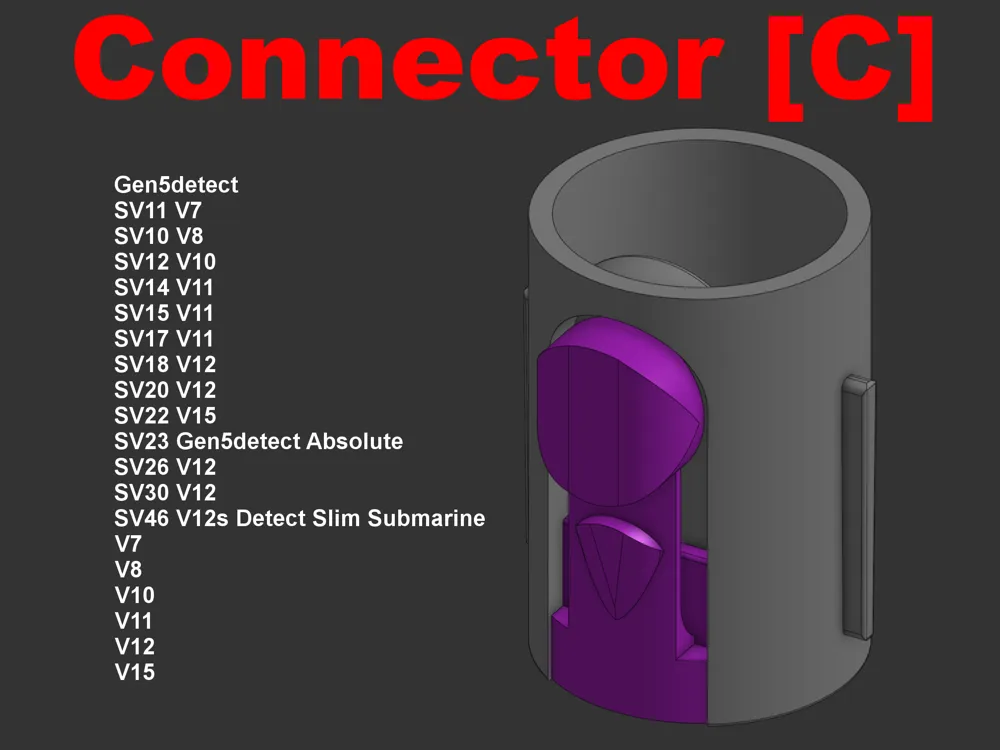

Nozzle connector compatibility
