Rear Brake Caliper Winding Tool (Mazda 3 Tested)

Print Profile(1)

All
A1 mini
H2D
X1 Carbon
A1
X1E
X1
P1P
P1S
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 8 walls, 50% infill
0.16mm layer, 8 walls, 50% infill
Designer
46 min
1 plate
4.5(2)

Open in Bambu Studio
Boost
34
71
2
2
31
17
Released

Description

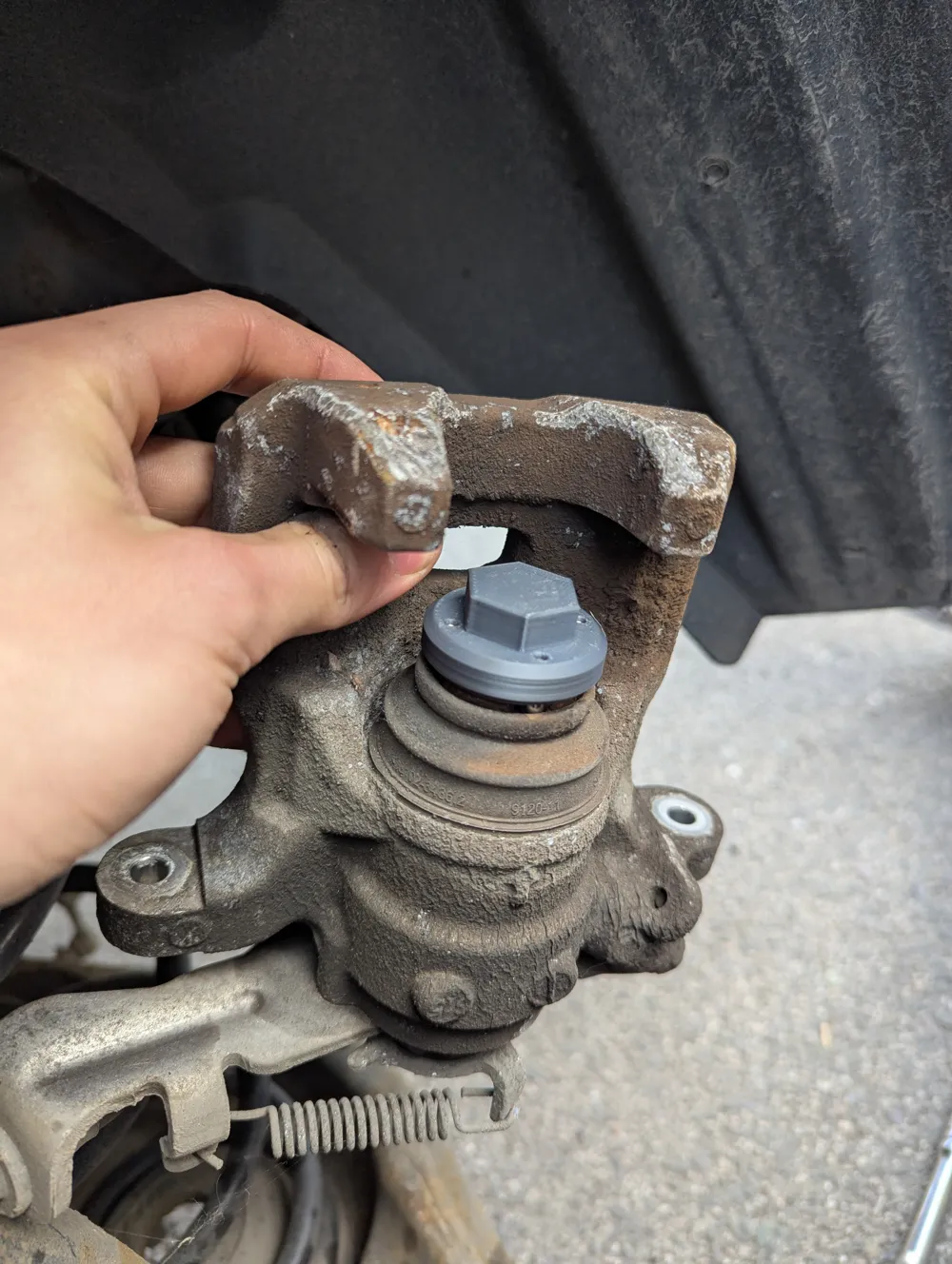

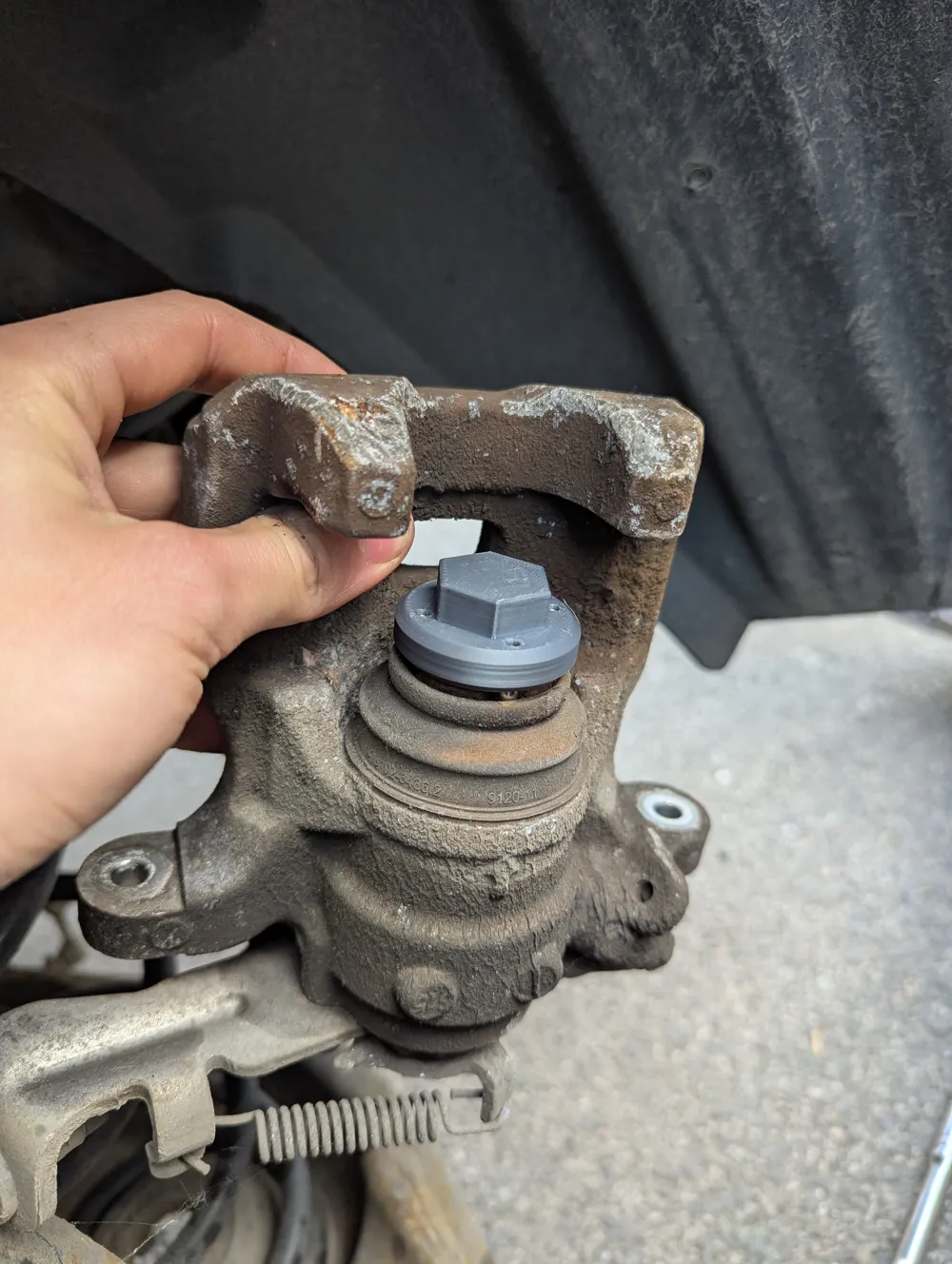

Quick tool to unwind rear calipers on a 2015 Mazda 3

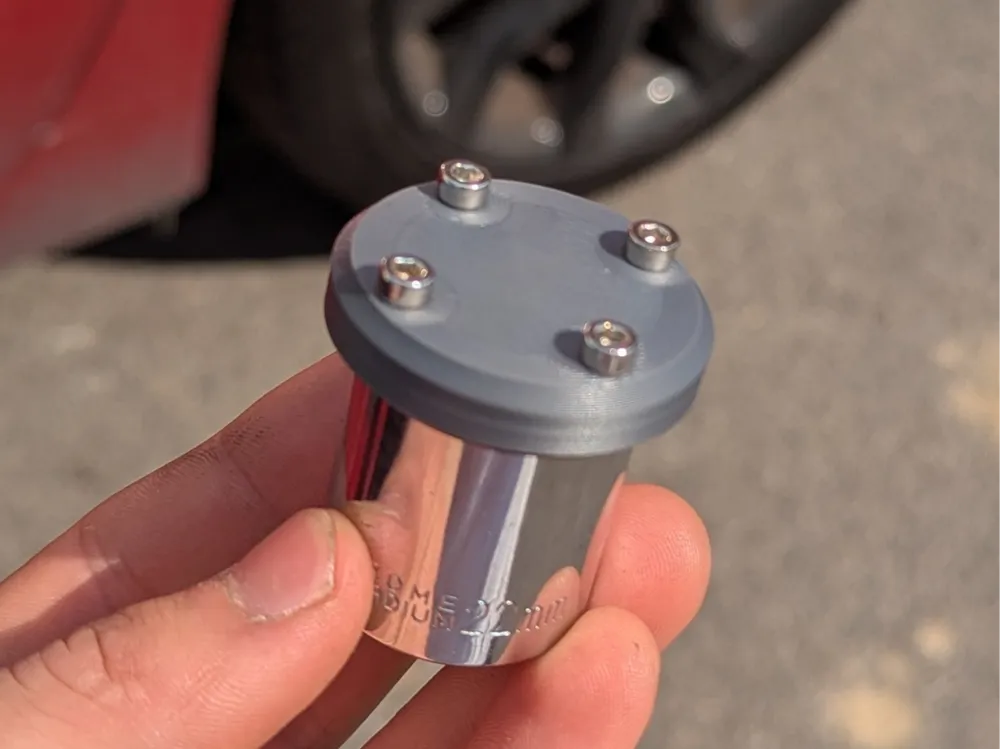

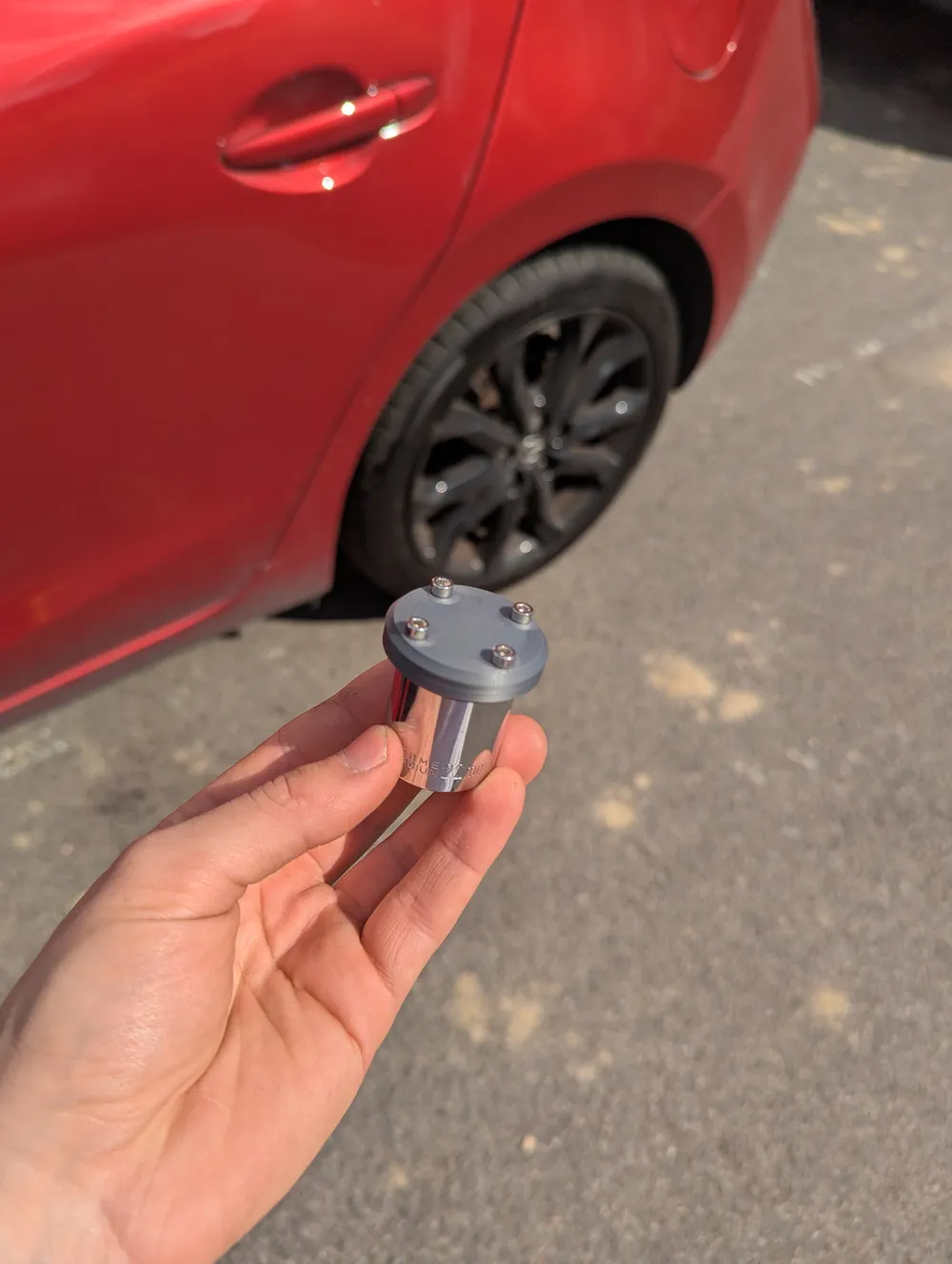

Allows you to use a 22mm socket and push/wind the piston back.

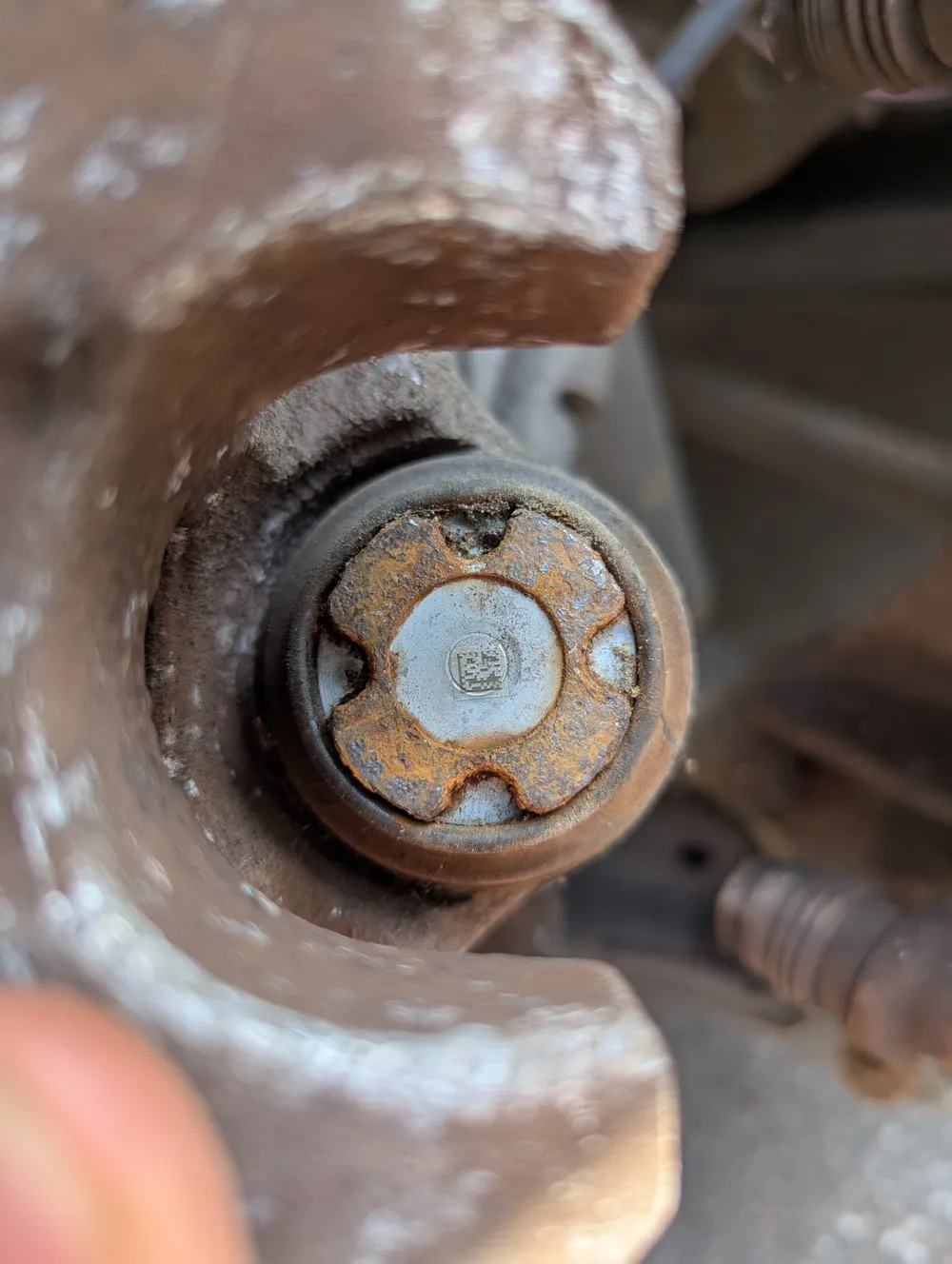

The distance between the holes is 28.5mm, so this may work on similar brake calipers



Assemble using 4x M3 Cap Head screws.
