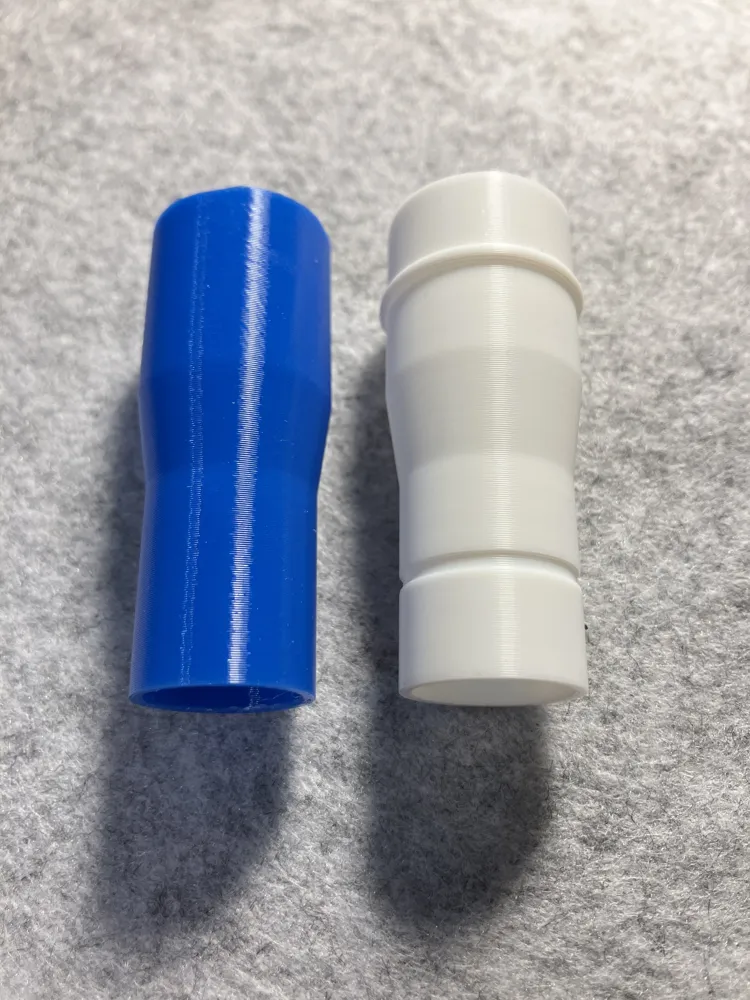

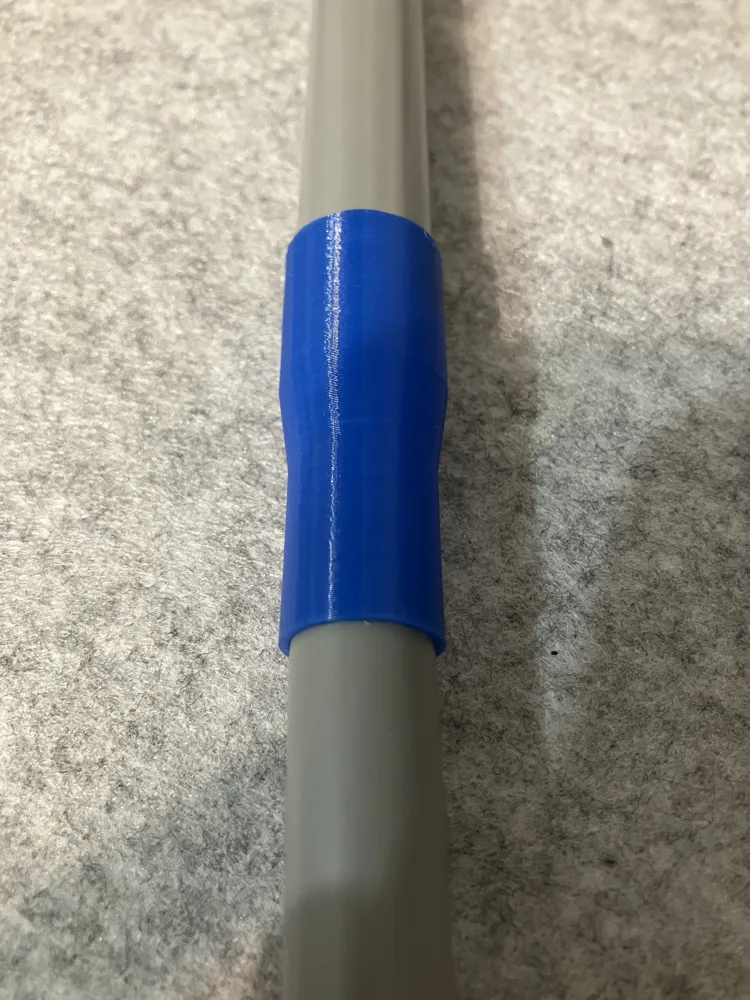

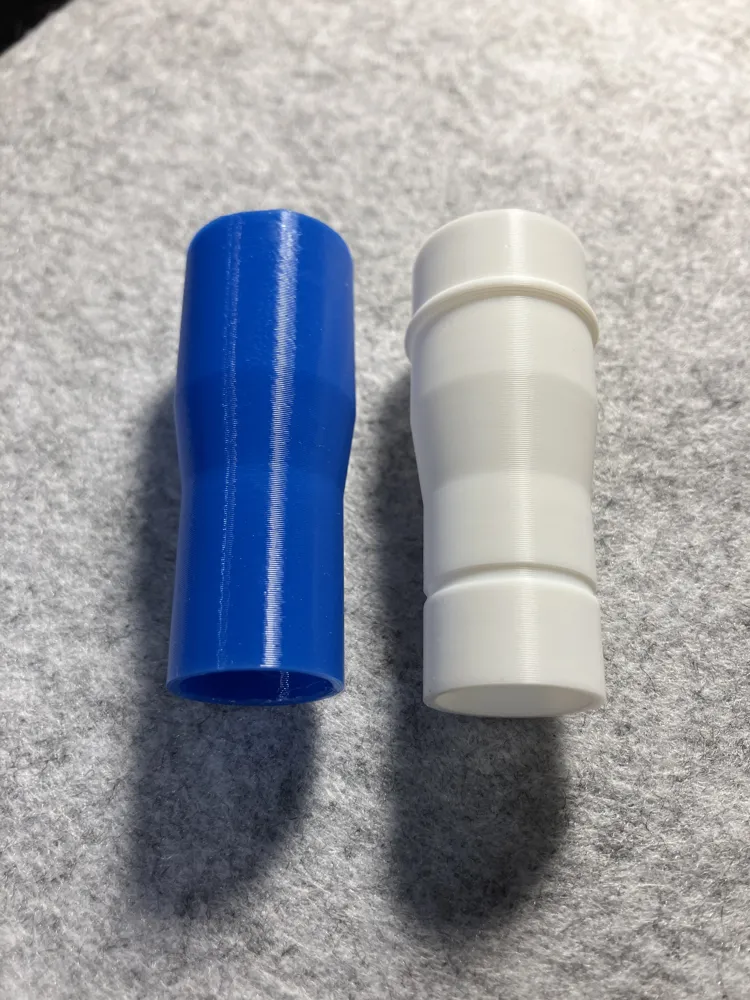

Customizable Pipe connector, adapter with gasket or gasket socket.
With this model you can connect two pipes. If you need it, you can put a gasket or an O-ring on the outside or inside of the connector. The position of these is also adjustable. If you don't need it, just choose it. The only limit to the use of this model is your imagination.
You can set the folowing parameters:
Bottom parameters:
bottom_inner_diameter
bottom_inner_thickness
bottom_height
Bottom gasket parameters:
bottom_gasket_z_pos
bottom_gasket_dia
Maximum bottom_gasket_dia/2 if use mill parameter
bottom_gasket_milling
bottom_gasket_type [out, no, mill]
bottom_gasket_position [external, internal]
Top parameters:
top_inner_diameter = 14.5;
top_inner_thickness = 2;
top_height = 20;
Top gasket parameters:
top_gasket_z_pos
top_gasket_dia
Maximum bottom_gasket_dia/2 if use mill parameter
top_gasket_milling
top_gasket_type [out, no, mill]
top_gasket_position [external, internal]
// Modell basic parameters minimum bottom height + top height + other distance:
full_height
Circle resolution:
fn (recommend 128)
Use a very clean plate because the adhesion will not be adequate and I recommend using a plate with good adhesion such as textured PEI or PEI plate.
My modells: my modells.
My Customizable modells: click
