Hexa Kumiko Lantern

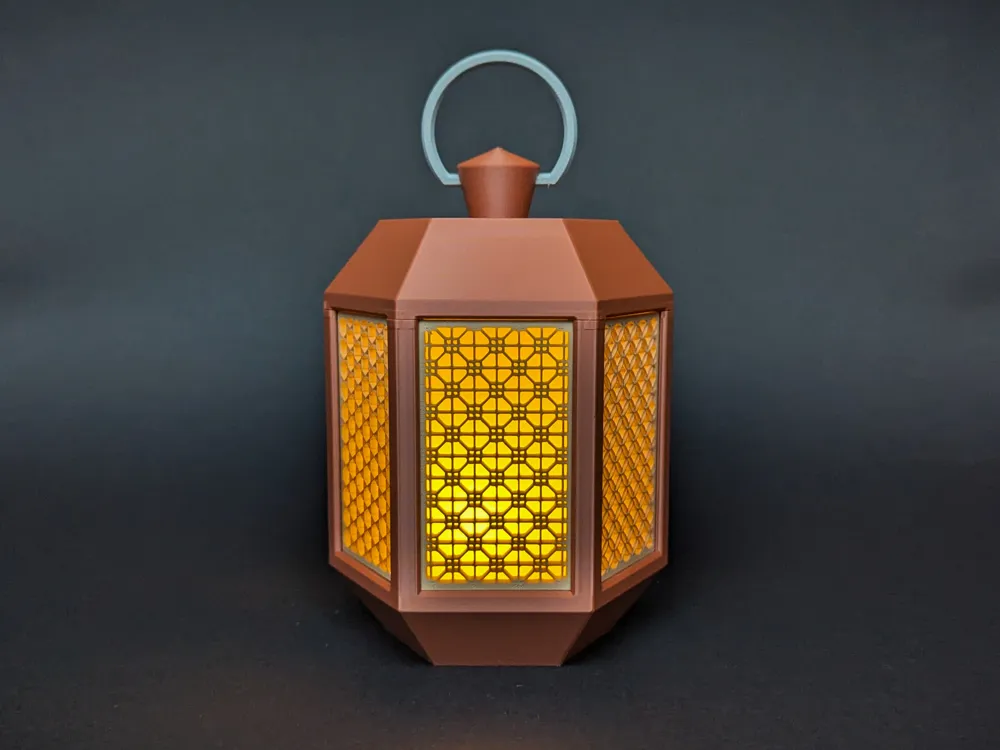

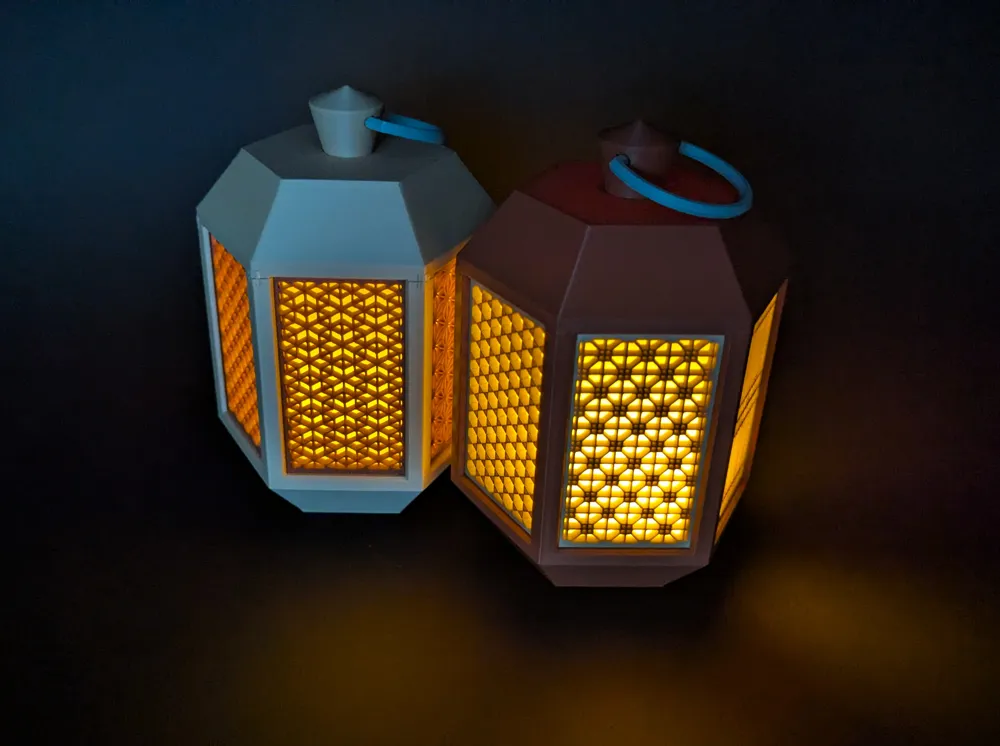

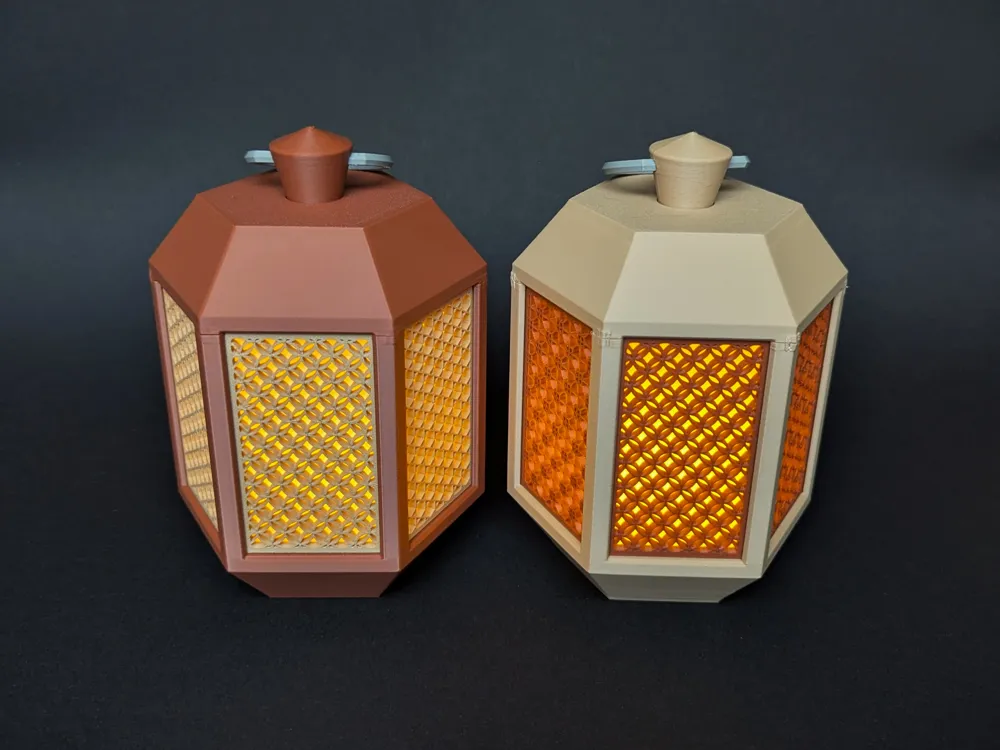

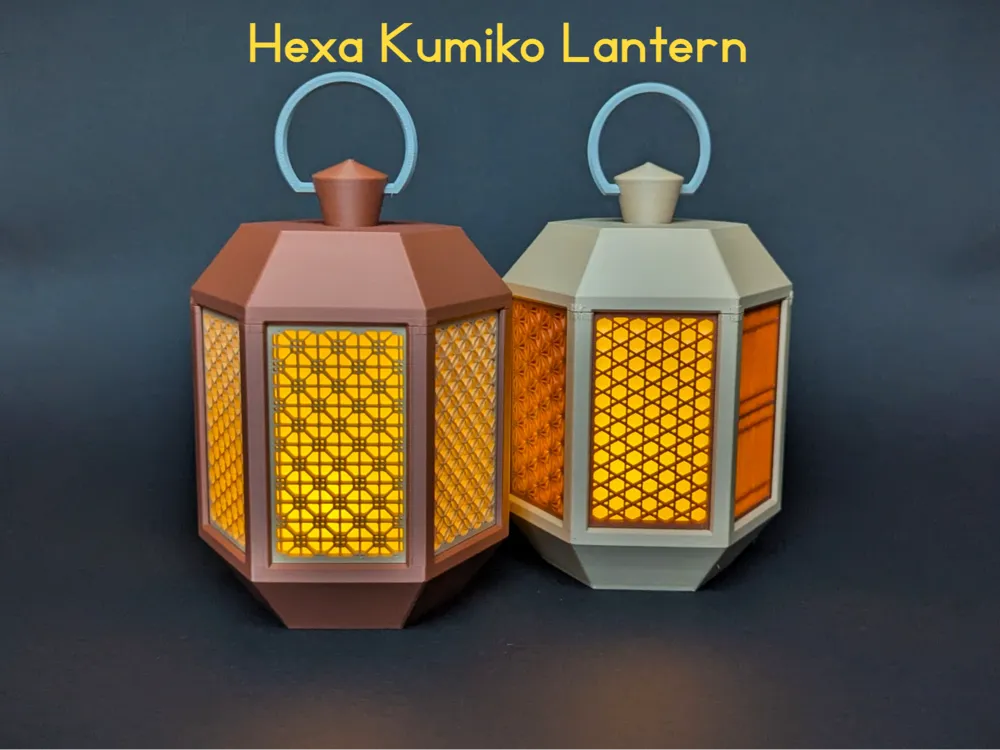

Hexa Kumiko Lantern – Modular Hanging LED Candle Holder

Inspired by traditional Japanese craftsmanship, the Hexa Kumiko Lantern blends minimalist hexagonal form with intricate Kumiko panel work. This elegant lantern makes a perfect decorative LED candle holder for cozy evenings or ambient indoor lighting.

Key Features:

• Timeless Design: A geometric hexagon silhouette combined with delicate Japanese Kumiko lattice panels
• Soft Lighting: A spiral-vase-mode white screen (1-wall thick) diffuses LED candlelight beautifully, creating a warm and inviting glow
• Modular Construction:
  • The top attaches with 12 × 5×2 mm magnets (press-fit or glue advised)
  • Easy access to the LED candle and panels while maintaining strength for hanging
• Hanging Feature: Includes a 43 mm ring that attaches to a glue-on hanging knob, allowing the lantern to be suspended
• Compact Size: Measures approximately 100 mm in diameter and 140 mm in height – great for desktops, windowsills, or hanging displays

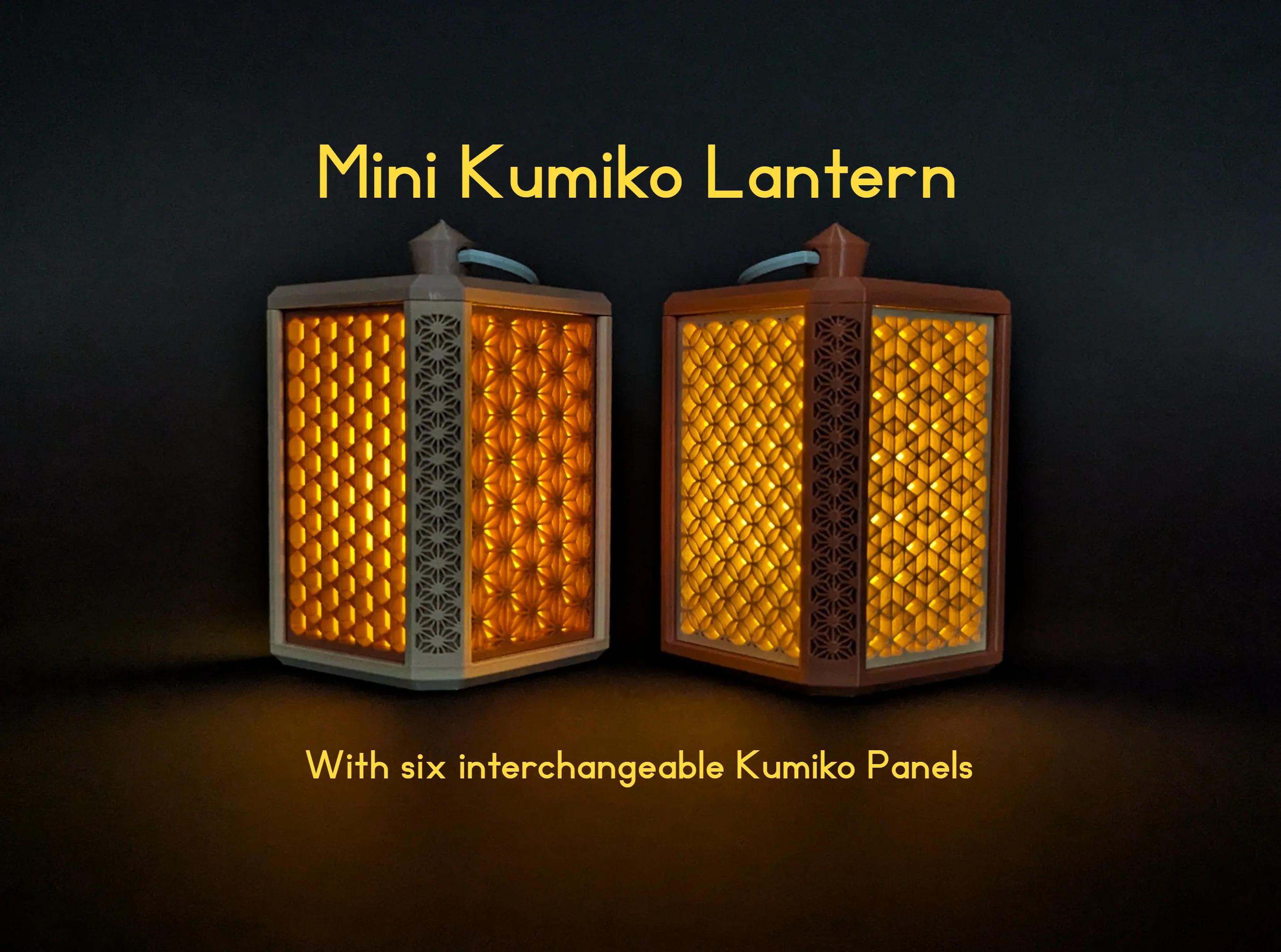

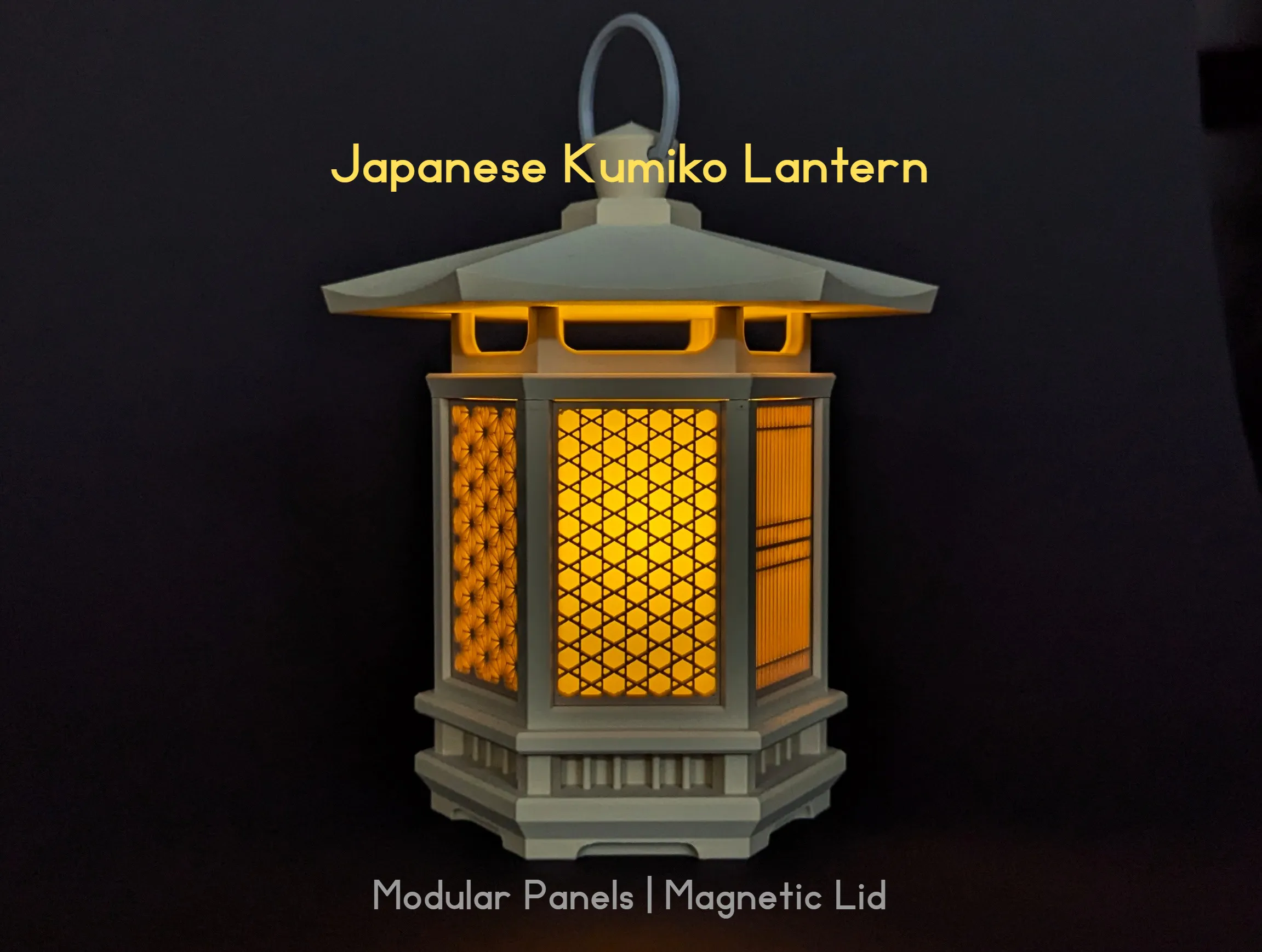

• Panel Compatibility: This model uses the same interchangeable panels as the Mini Kumiko Lantern and the Modular Japanese Kumiko Lantern, allowing you to mix and match designs across all three lanterns.
• Optional Assembly: If magnets aren't available, use the included pegs to glue the top in place

Kumiko Panel Designs:

This model includes six traditional Kumiko-style panel designs:

• Asanoha – Traditional hemp leaf pattern symbolizing growth and resilience
• Kagome – Woven bamboo motif representing protection and warding off evil
• Mikado – Elegant grid-style lattice symbolizing order and refinement
• Senbon – Thousand lines pattern representing prosperity and stability
• Shippo – Seven treasures circular motif symbolizing harmony and good fortune
• Shokko – Interlocking square pattern symbolizing connection and eternal bonds

Each panel captures authentic Japanese craftsmanship, and the soft LED light shining through the white screen beautifully highlights the fine details of each design.

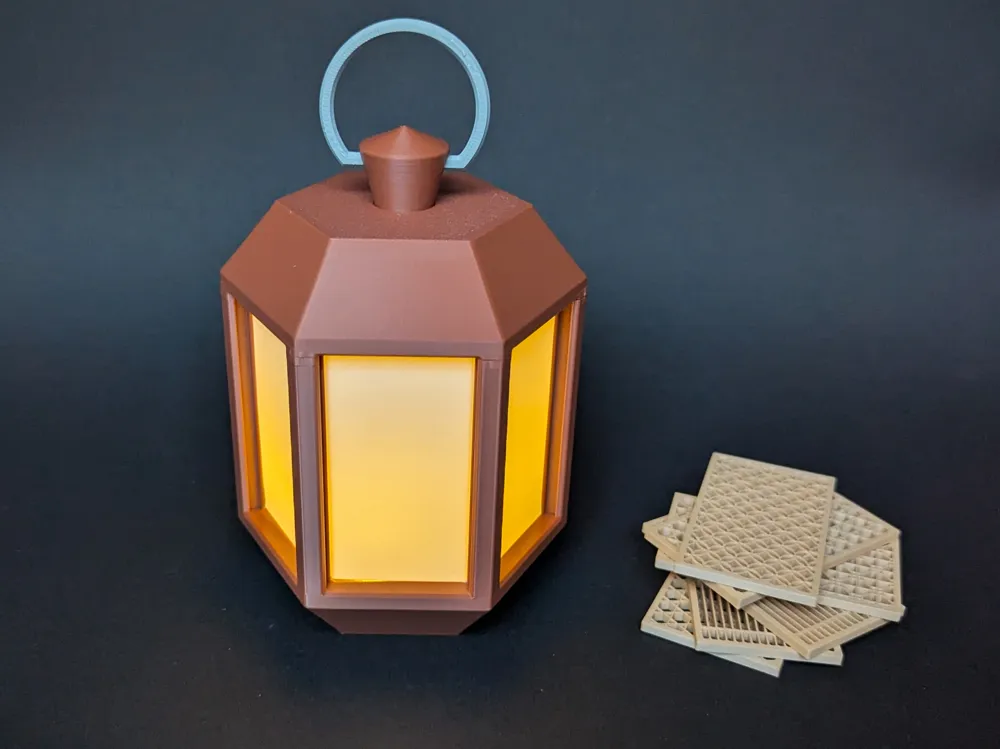

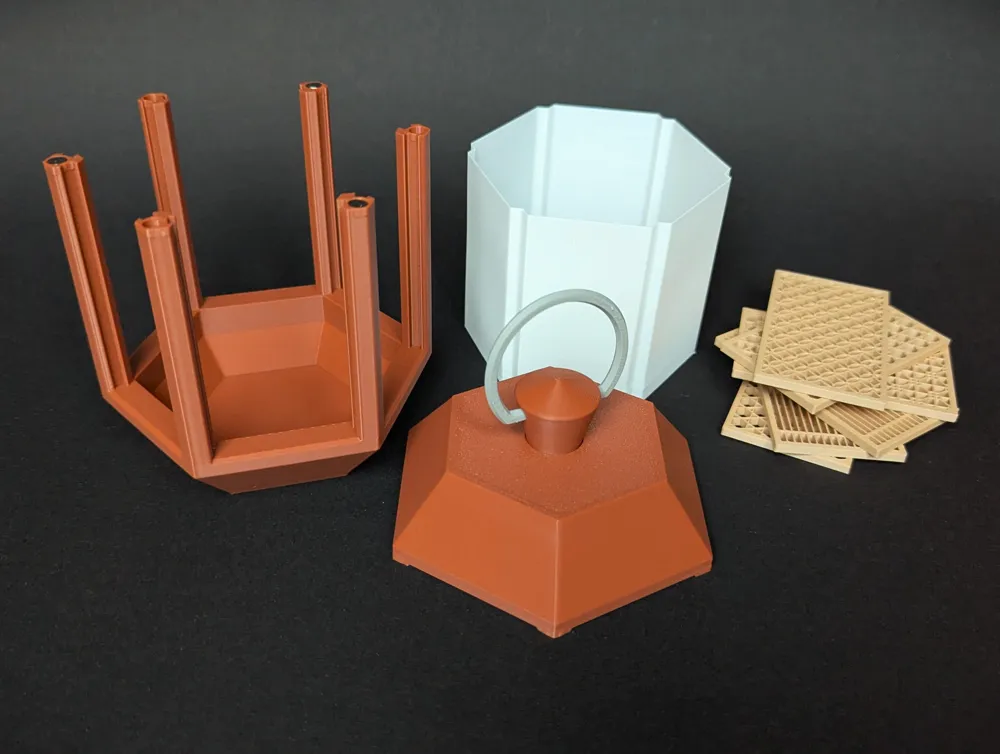

Included Parts:

• 1 × Lantern body (fits LED candle, Kumiko panels, and screen)
• 1 × Top lid
• 1 × Hanging knob (glues to top lid, holds the hanging ring)
• 1 × Hanging ring
• 1 × Spiral vase screen
• 6 × Kumiko pattern panels (compatible with other Kumiko lantern models)
• 6 × 5×2 mm pegs (as glue-only alternative to magnets)

🔩 Materials needed: 12 × 5×2 mm magnets

Optimized Print Profile:

• Layer Height: 0.20 mm
• Spiral Vase Mode: Enabled for the white inner screen (1-wall thick for a delicate glow)
• Arachne Walls: Used for Kumiko panels for sharper, cleaner line detail
• Supports: Not needed
• Organization: 4 neatly arranged print plates for easy slicing and setup
