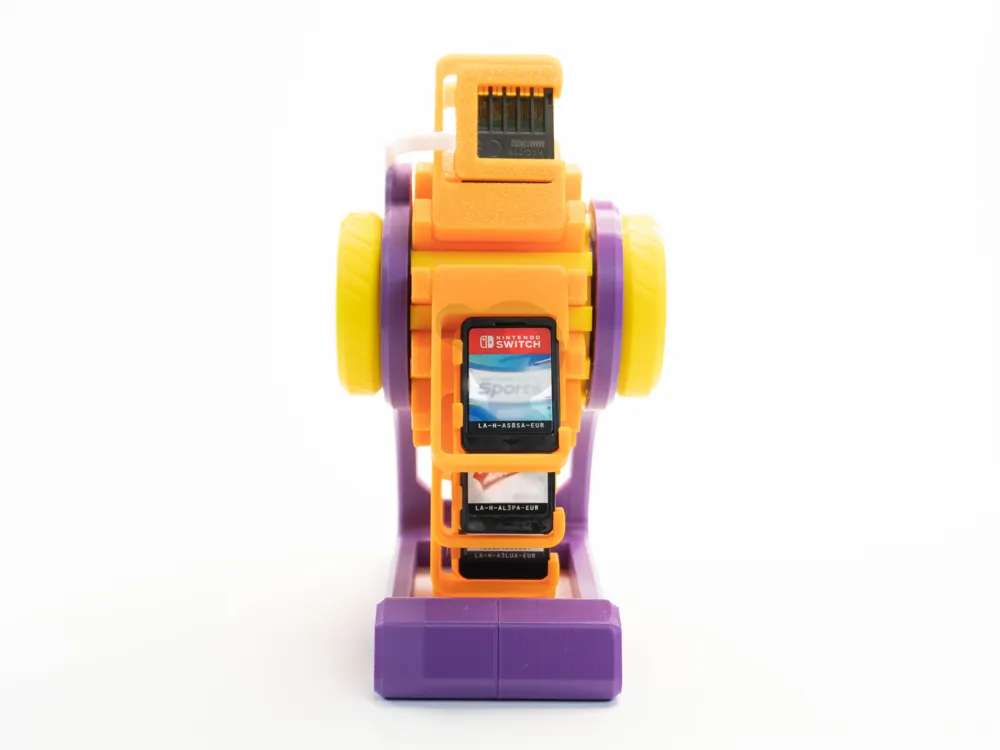

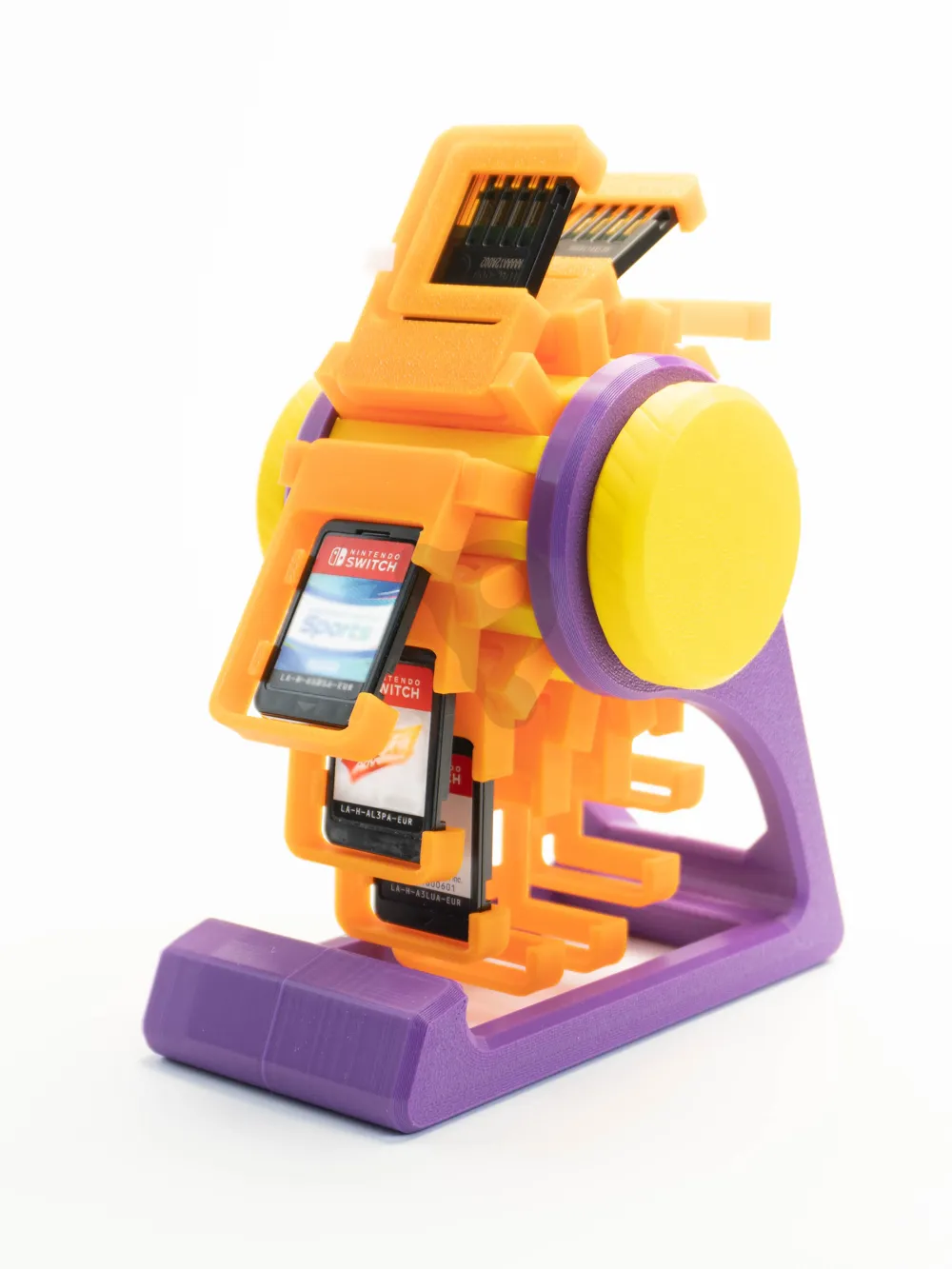

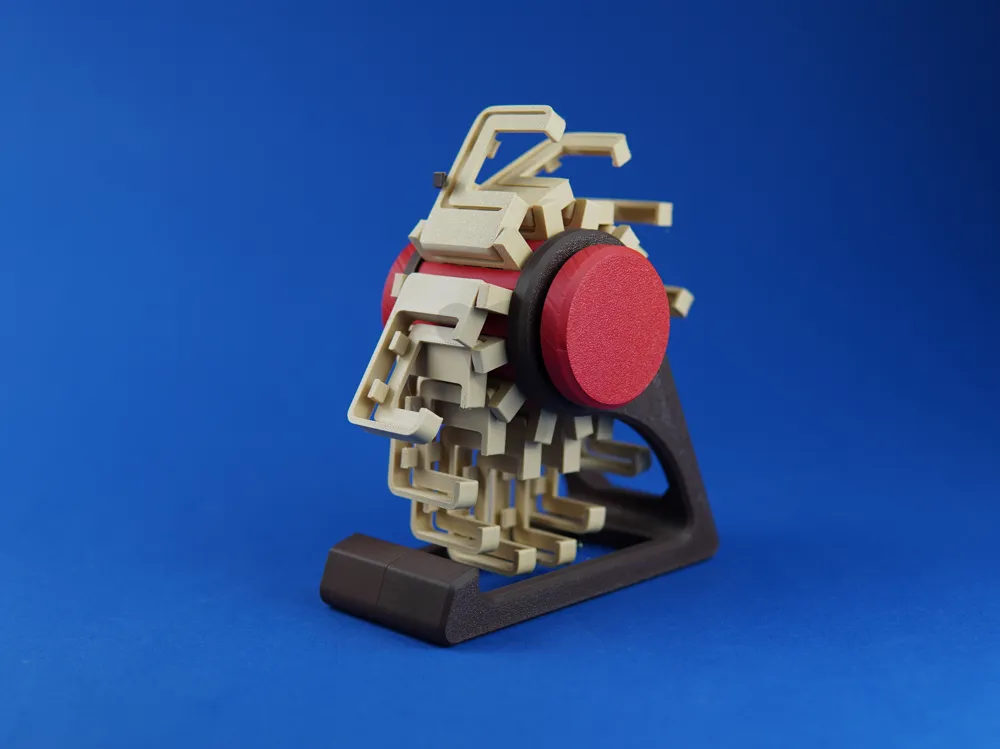

Nintendo Switch Game Cartridge Rotating Holder

🛠️ Remember flipping through cards on a Rolodex? This is the same idea—just way cooler, and for your Nintendo Switch collection.
Fully 3D-printable with no screws, no supports, and no tools required. All parts click together right off the printer, with a satisfying click on each rotation.

It’s compact, fun to use, and keeps your cartridges easy to browse—like a retro organizer reimagined for modern gaming.

✨ Why it’s awesome:
✅ Holds multiple Switch games securely
✅ Prints support-free – no cleanup, no hassle
✅ Clicky rotation – satisfying and smooth
✅ Snaps together – glue optional

🧪 Designed with simplicity and fun in mind. If you love unique storage and smooth mechanics, this one’s for you.

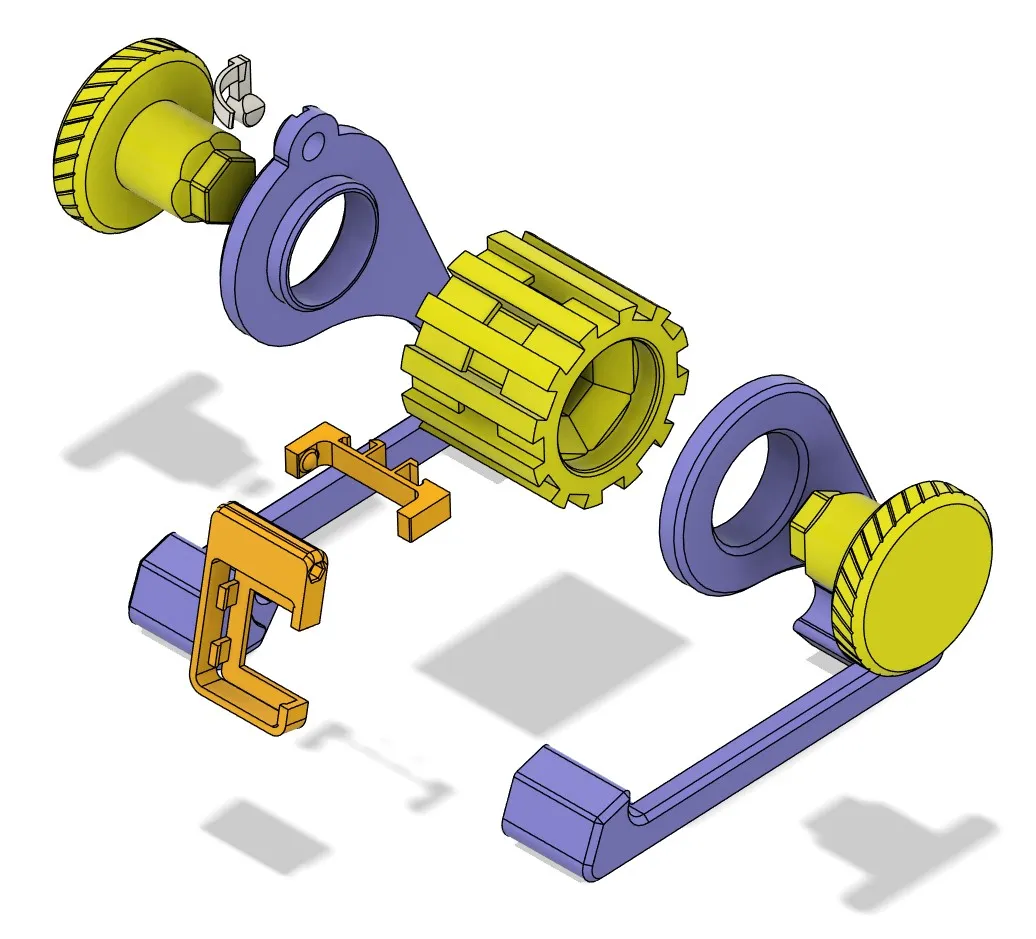

📖 Assembly Instructions

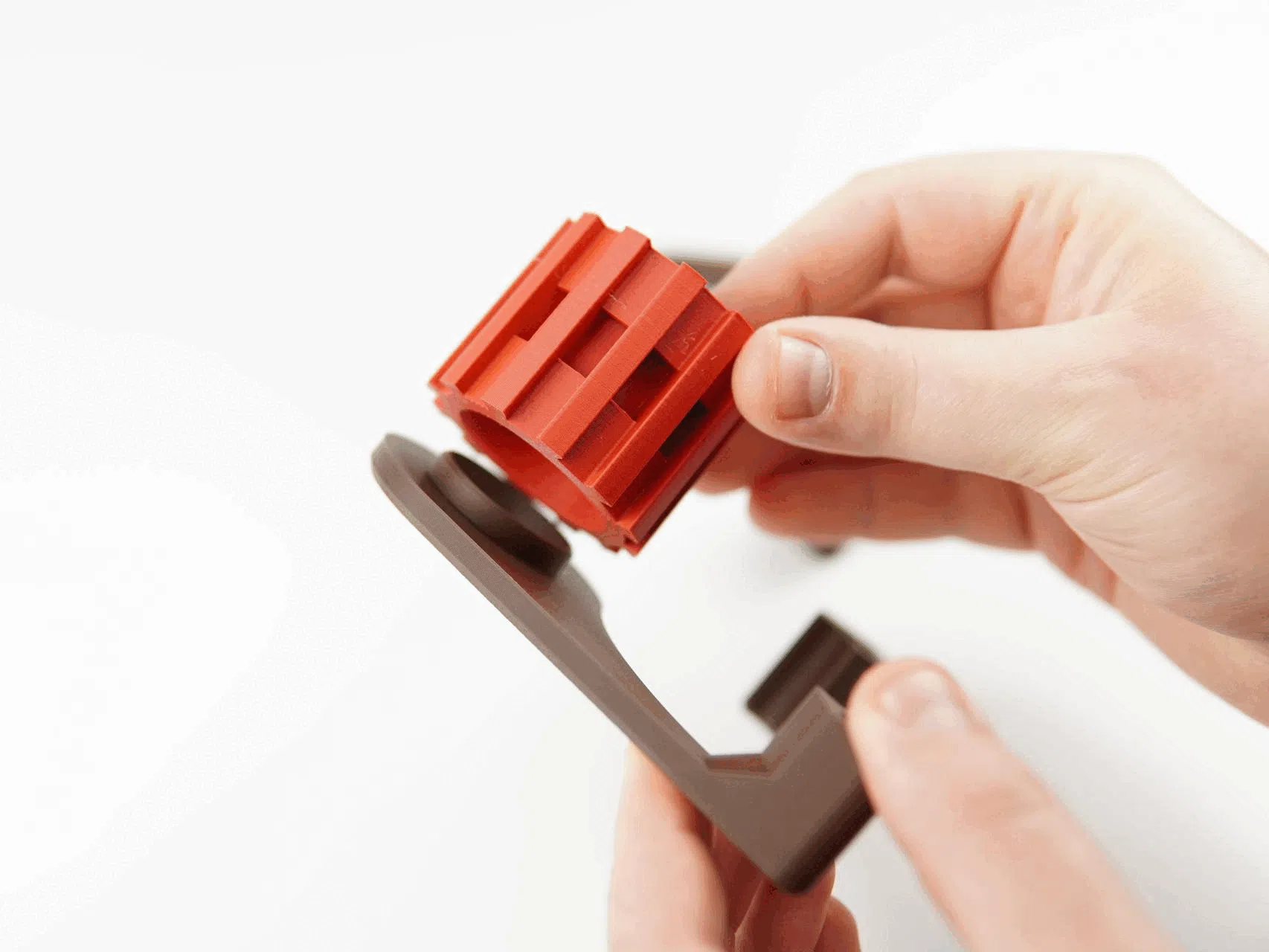

1. Side panels and drum
Take both side panels and the rotating drum. Place the drum between the panels and assemble them together.
👉 You may apply a small amount of glue in the red marked spots (see picture) to strengthen the connection.

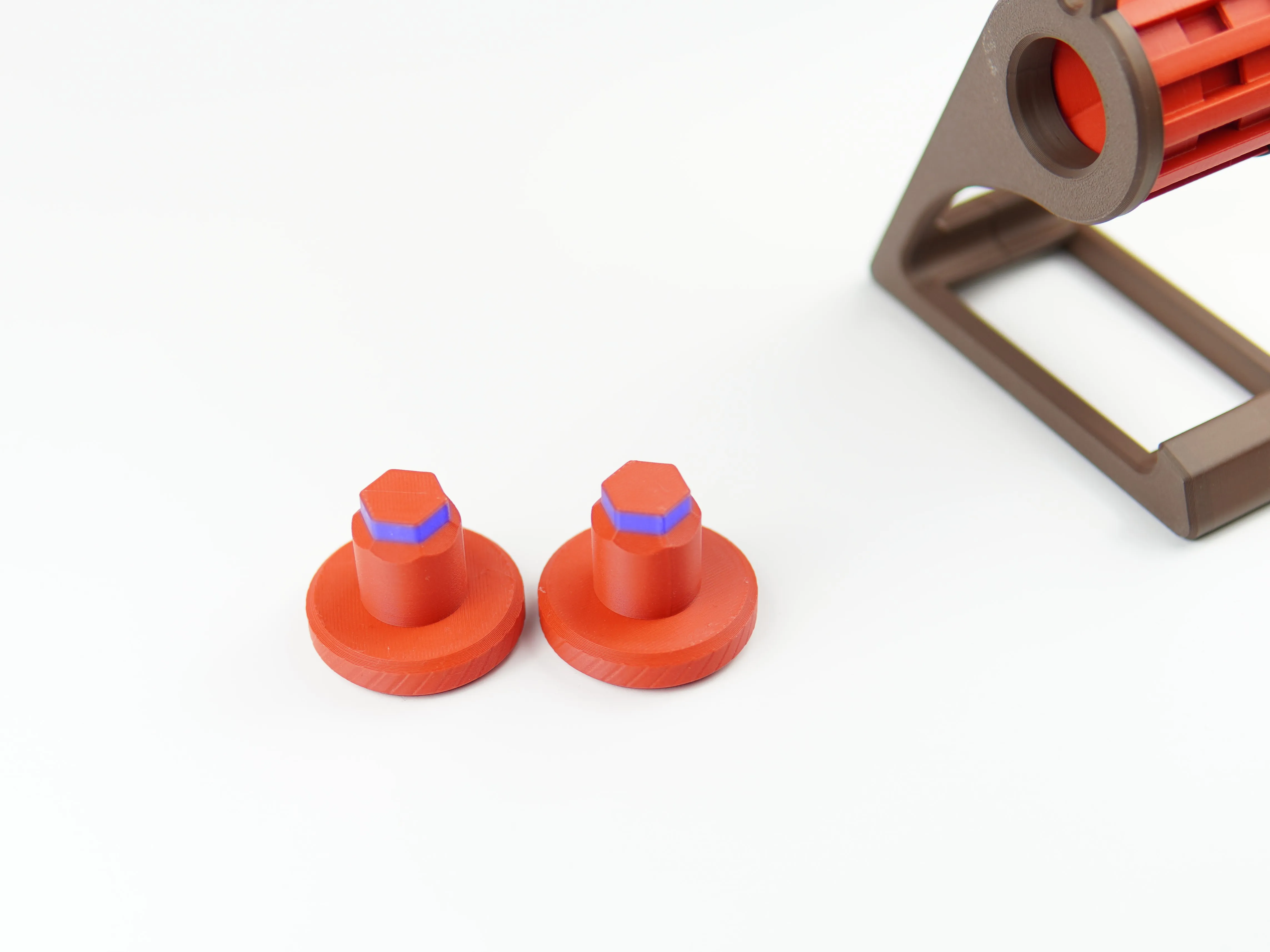

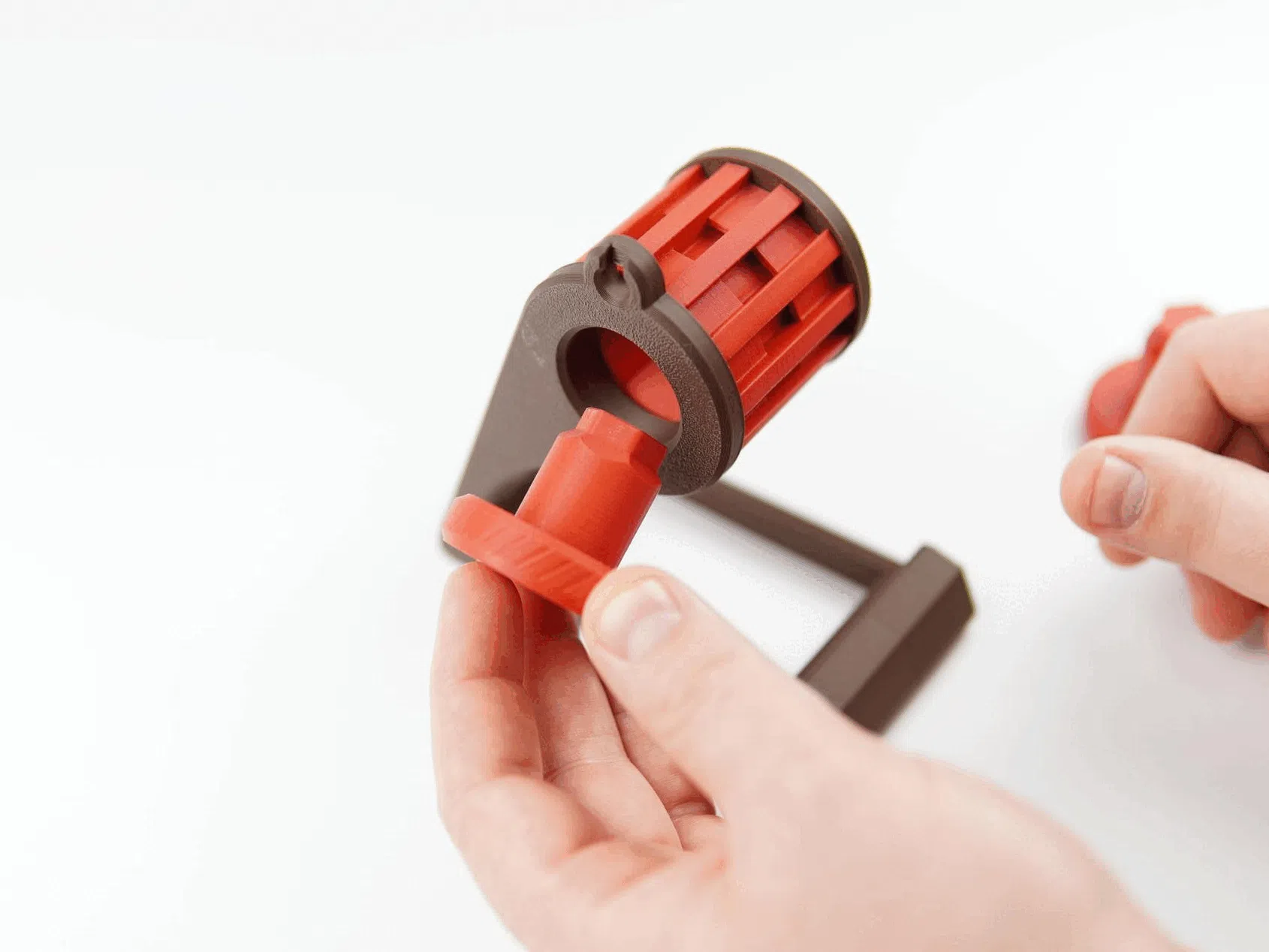

2. Knobs
Take both knobs and attach them to the drum.
👉 Glue can also be applied in the blue marked areas for extra stability.

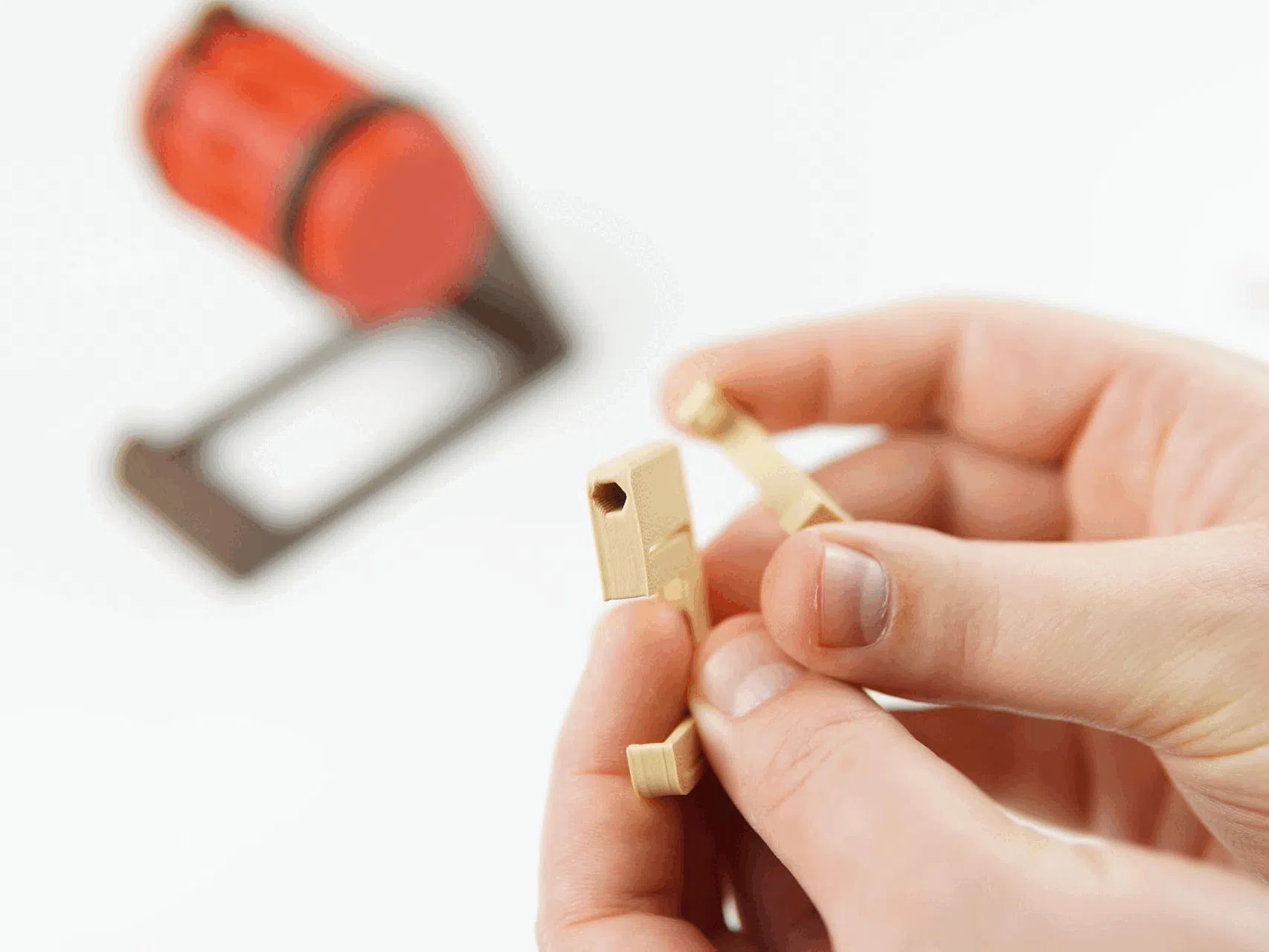

3. Cartridge holders
Each holder consists of two parts – one with pins and the other with matching holes.
👉 Align pins with holes and press the parts together.
👉 There is a slight clearance on purpose, so the holders can rotate freely.

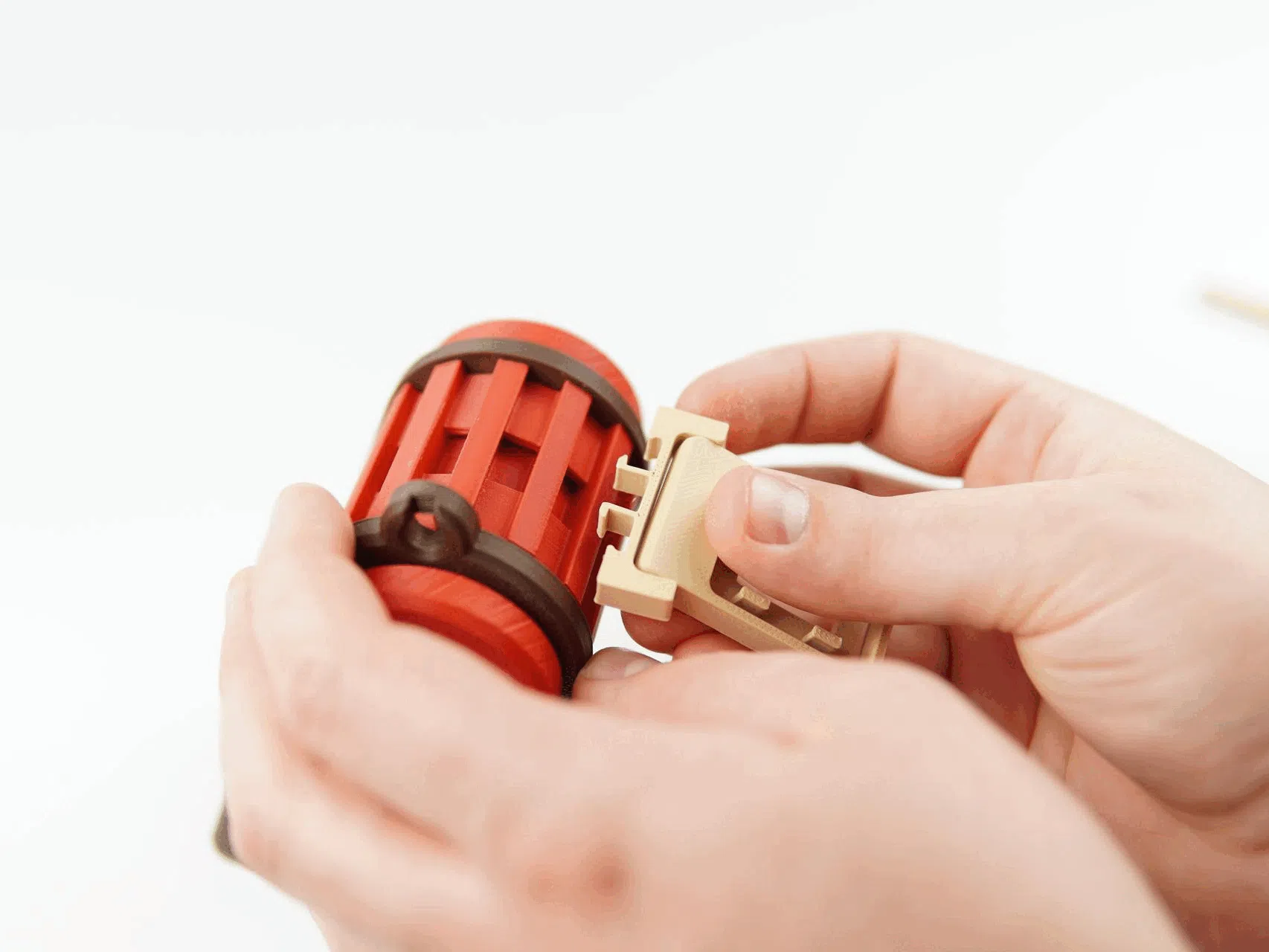

4. Mounting holders to the drum
Insert all assembled cartridge holders into the holes around the drum. Make sure each one goes in straight and can still move a little.

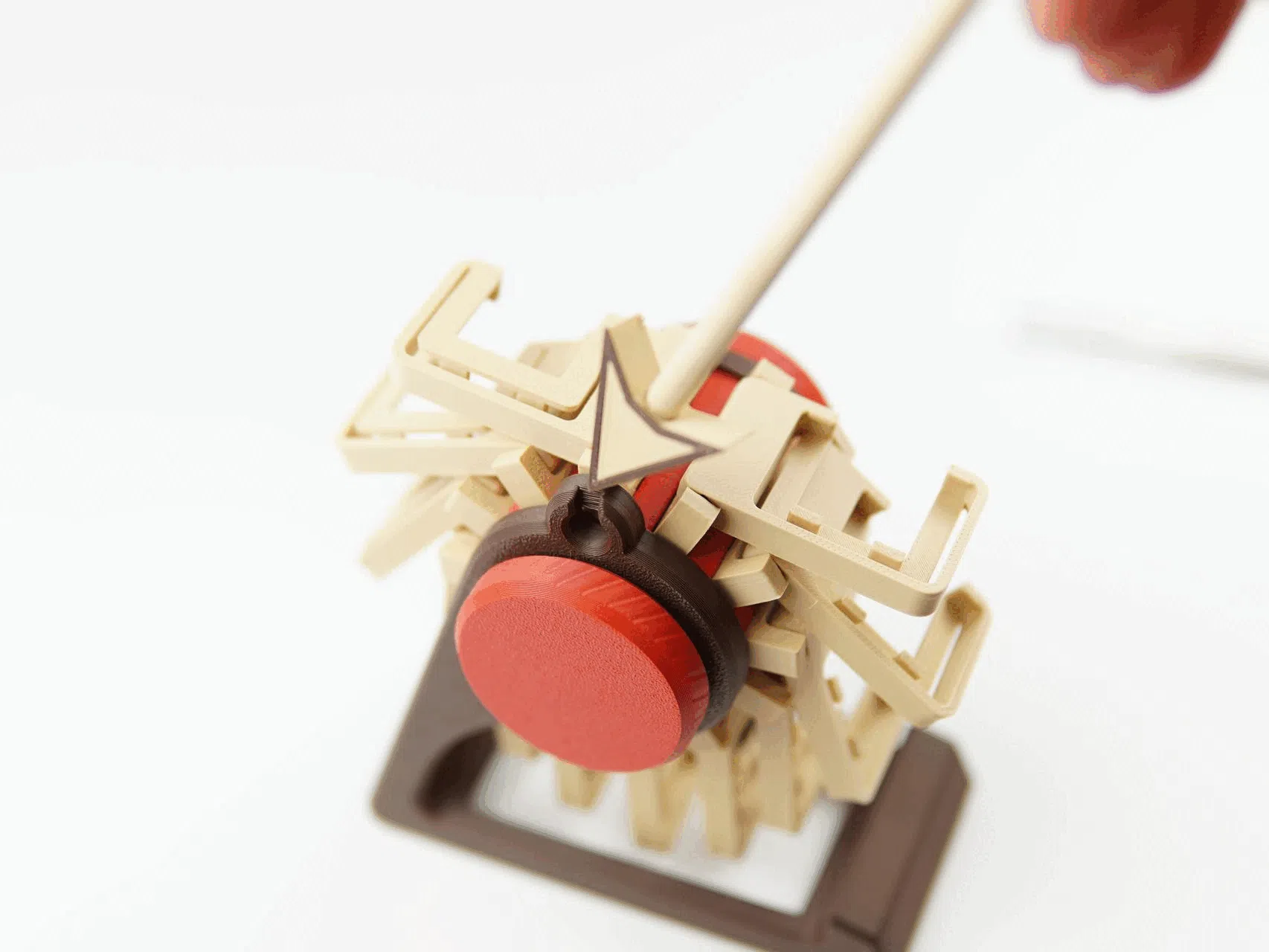

5. Locking piece
Press the locking piece into the marked slot on one of the side panels. This will prevent the drum from spinning freely.

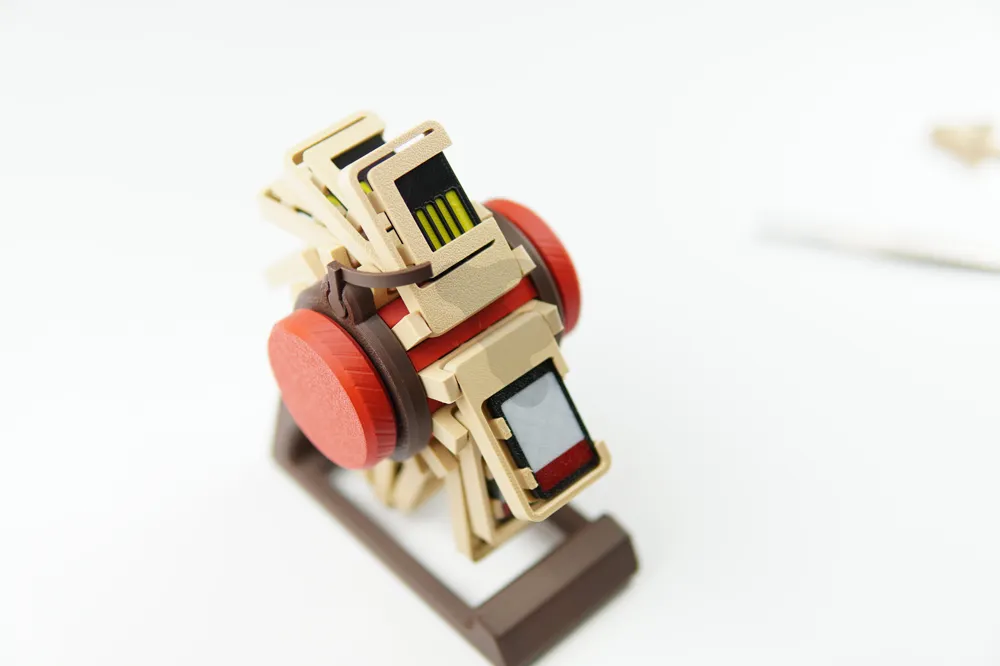

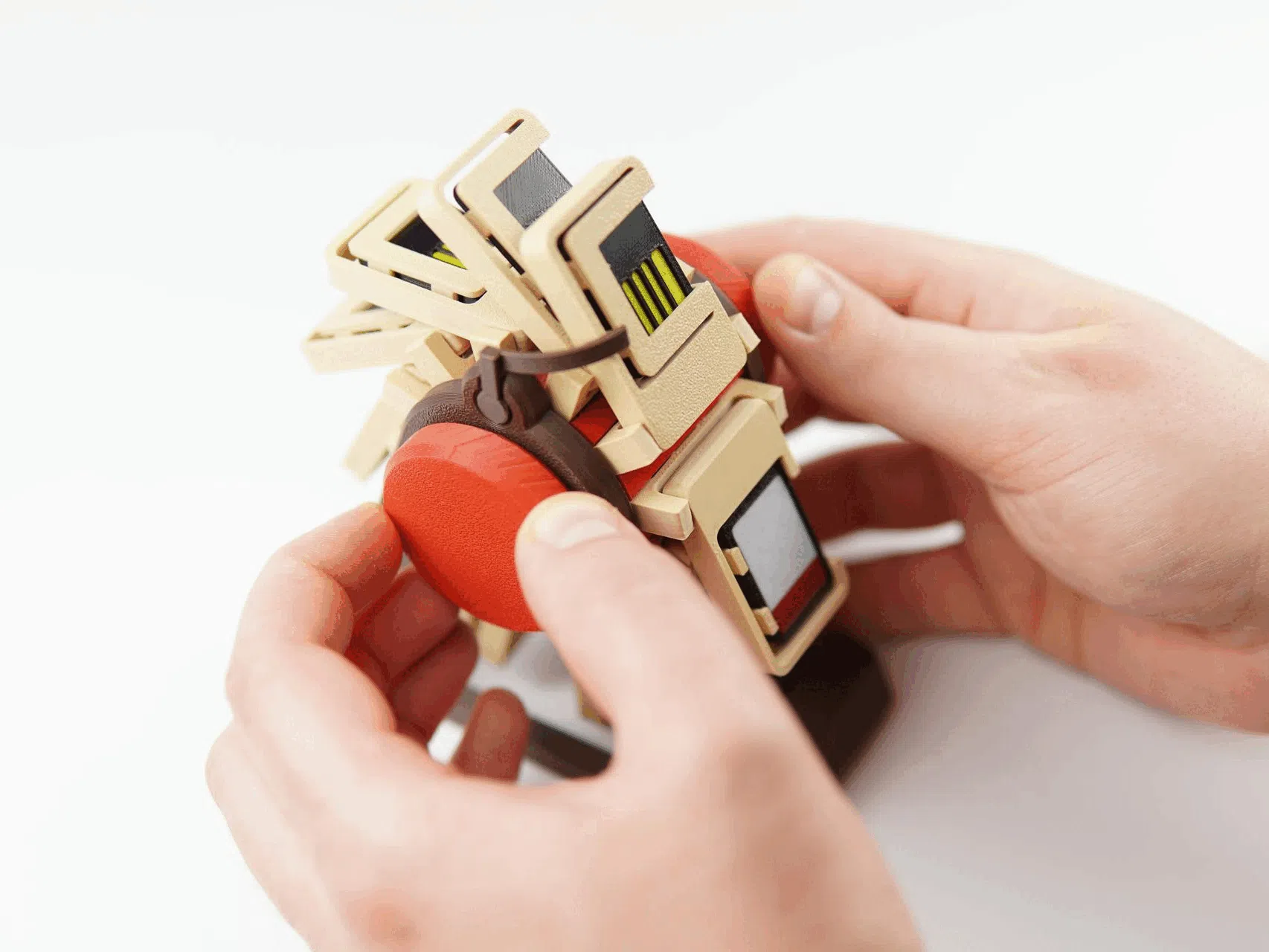

6. Done!

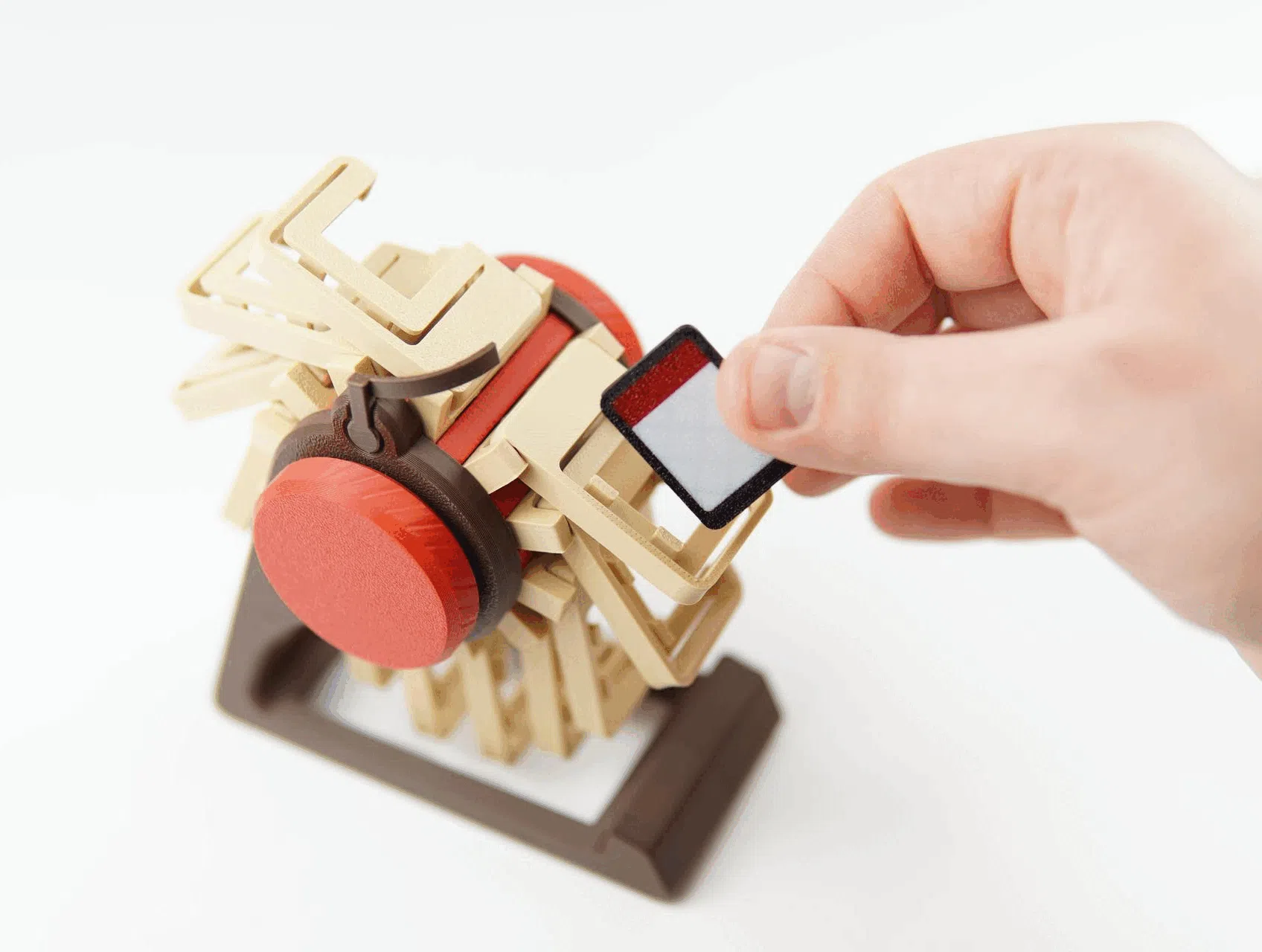

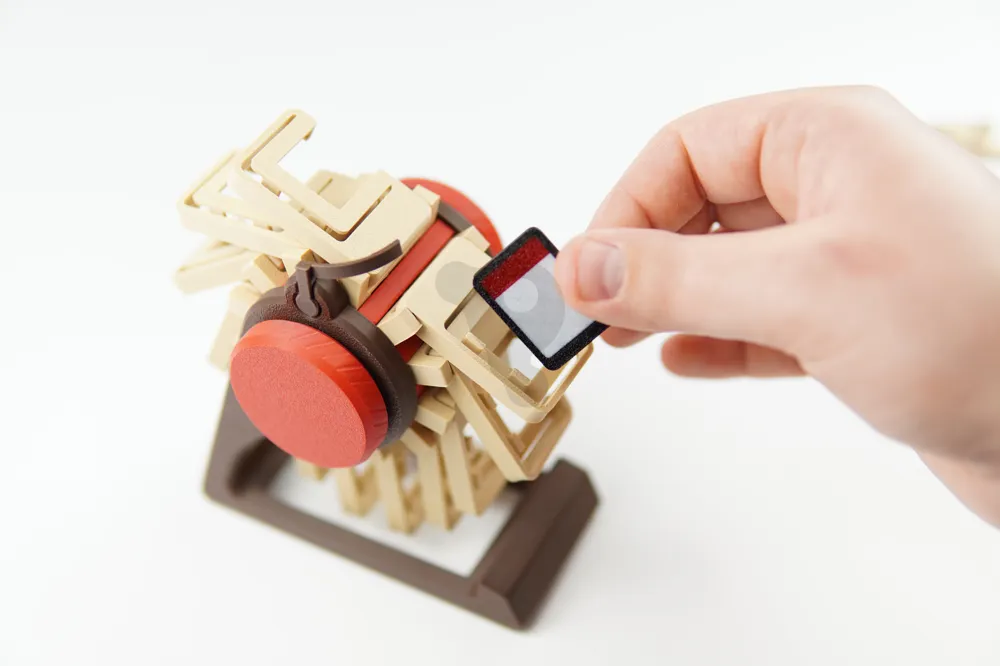

Place your cartridges into the holders and enjoy your new Nintendo Cartridge Rolodex. 🎮
