DeepDish Clock "Model Fuchs" Backlight Edition

Hello friends,

I designed this wall clock for you – inspired by the classic Fuchs wheel design, with a modern twist and set in a deep-dish style.

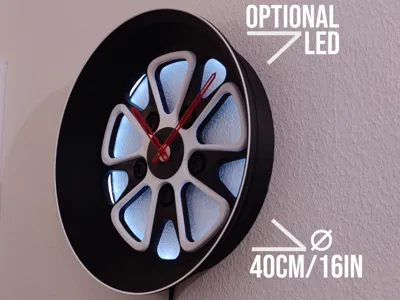

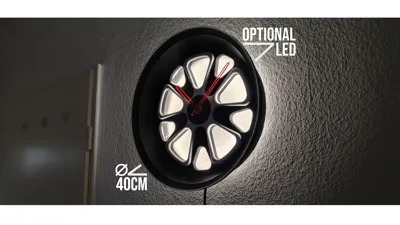

It’s compatible with the Bambu Lab Kit-011 clock mechanism and can optionally be upgraded with LED lighting (e.g., Bambu Lab KA004).

With a bit of care, proper alignment, and some glue, the print and assembly are pretty straightforward.

Assembly Instructions

1. Start by printing all parts in your desired color combination.
2. Glue the star pieces together – but make sure to remove any leftover print artifacts so everything fits nicely.
3. Next, assemble and glue the bowl sections. Again, clean off any rough edges to ensure tight connections.

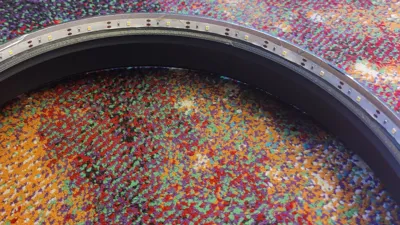

4. (Optional): You can now add LED lighting into the inner groove of the bowl and glue it in place.
5. Insert the star element into the bowl and fix it with a few drops of glue.
6. Add the lug nuts into position and glue them.
7. Insert the clock mechanism from the back, then glue the round center cap on top to secure it.
8. If LEDs are used, Fit and glue in the diffuser inserts.
9. If you’re using the LED option, I recommend using the larger wall-mount ring to give the clock more distance from the wall – but if you prefer a tighter fit or no lights, the smaller ring works fine too.
10. As the final step, press the hour and minute hands onto the clock mechanism.

And that’s it – congrats, you made it!
I hope you enjoy this clock as much as I enjoyed designing it.
Have fun printing – and don’t forget to share your builds or leave a thumbs up if you liked it! 😊
