Fillet (Radius) Gauge 0.05 - 0.50 inch
Print Profile(2)
Description

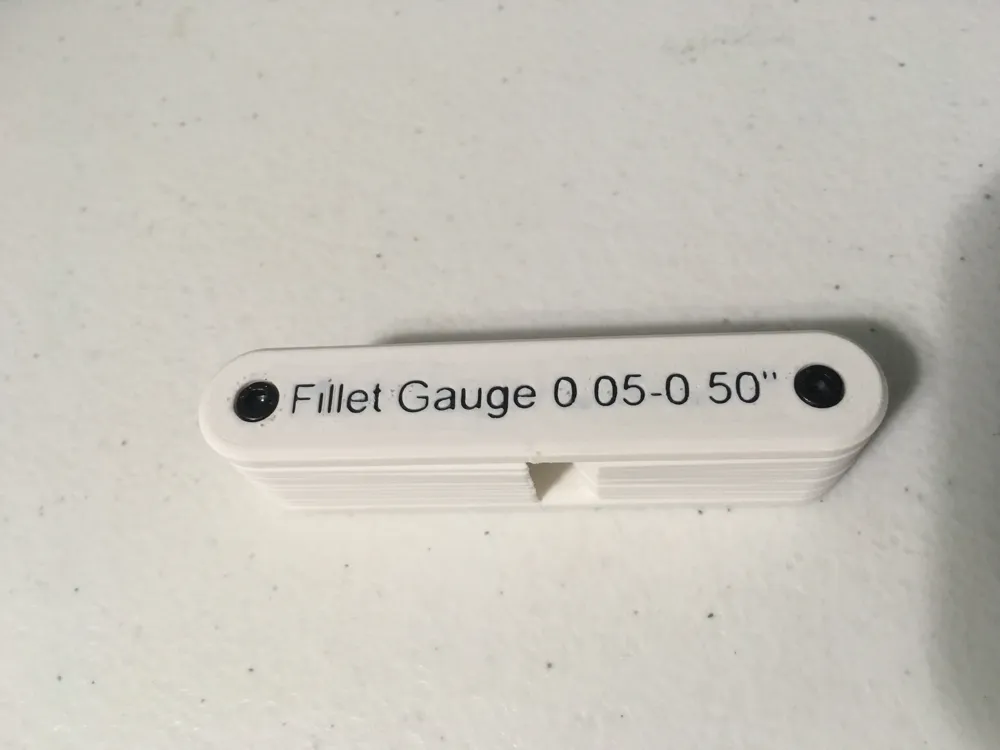

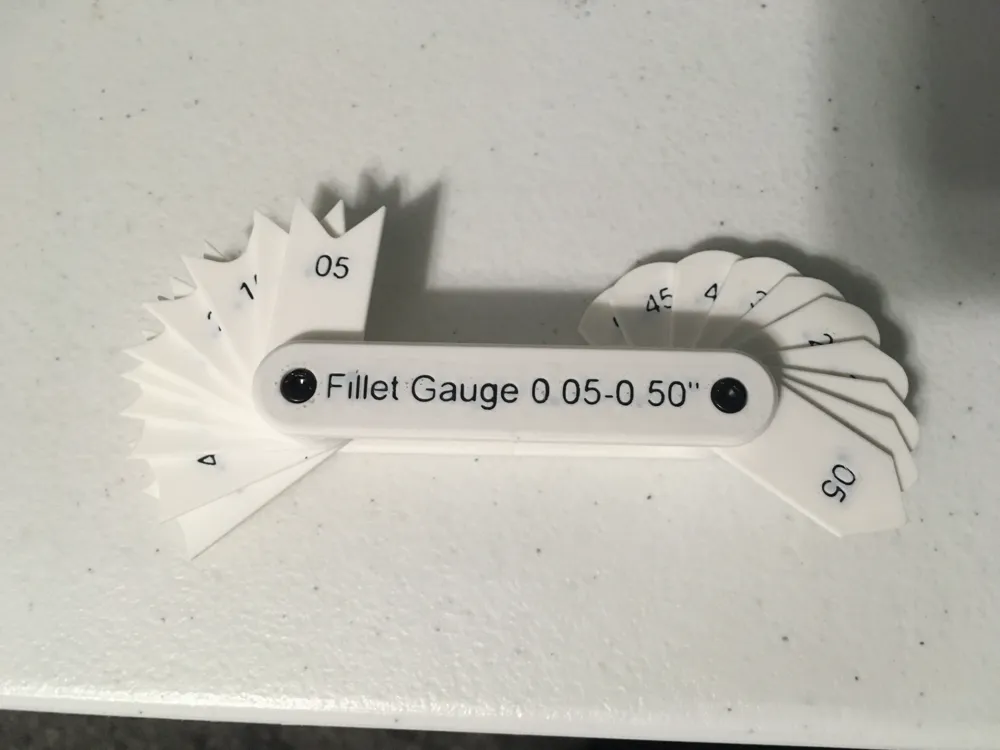

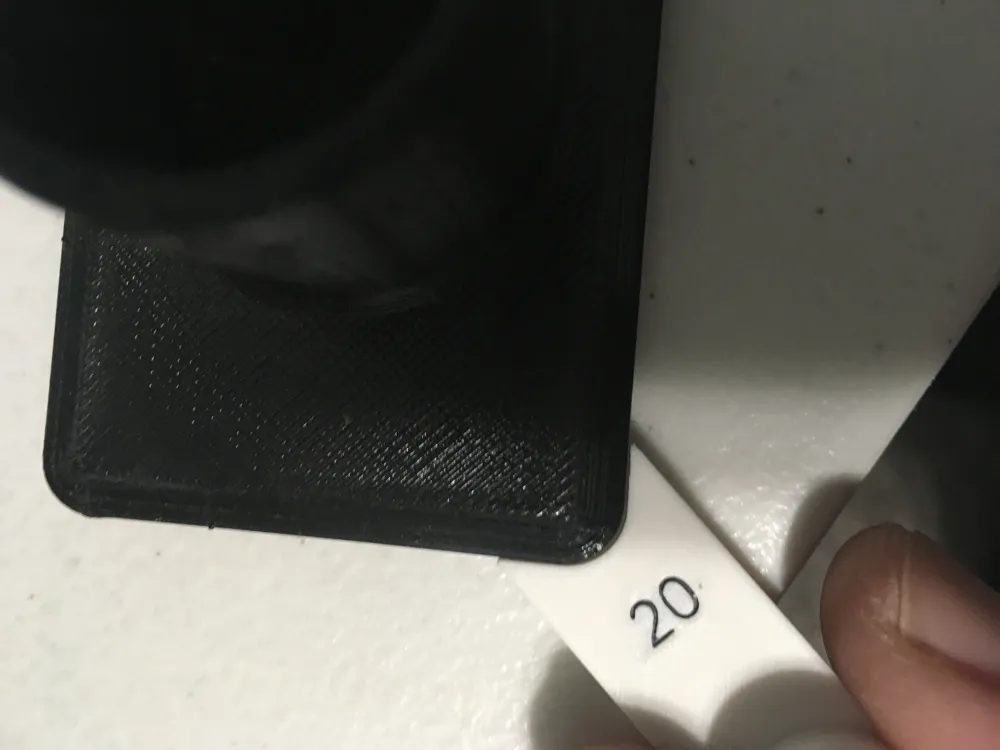

This is a fillet (radius) gauge that measures a fillet between 0.05" and 0.50"
This is very handy to keep next to your calipers while designing 3D objects.
I've included each STL file separately, as well as a 3mf file with the letters and numbers painted a different color.
I strongly recommend using a 0.2mm nozzle. A 0.4mm nozzle will work, but the letters will not come out very crisply.
To assemble you will need two M3 heat inserts and two M3 screws.
Upon request I can upload a version that takes an inset M3 nut or some other variation of assembly.
I've also designed a 0.55 - 1.00 inch version. You can find it here: https://makerworld.com/en/models/1436193-fillet-radius-gauge-0-55-1-00-inch
Please post a Make or a Comment if you print this. I love to see my designs helping other people.
