聚焦屏镜头盖 Focus Screen Lens Cap For Leica M

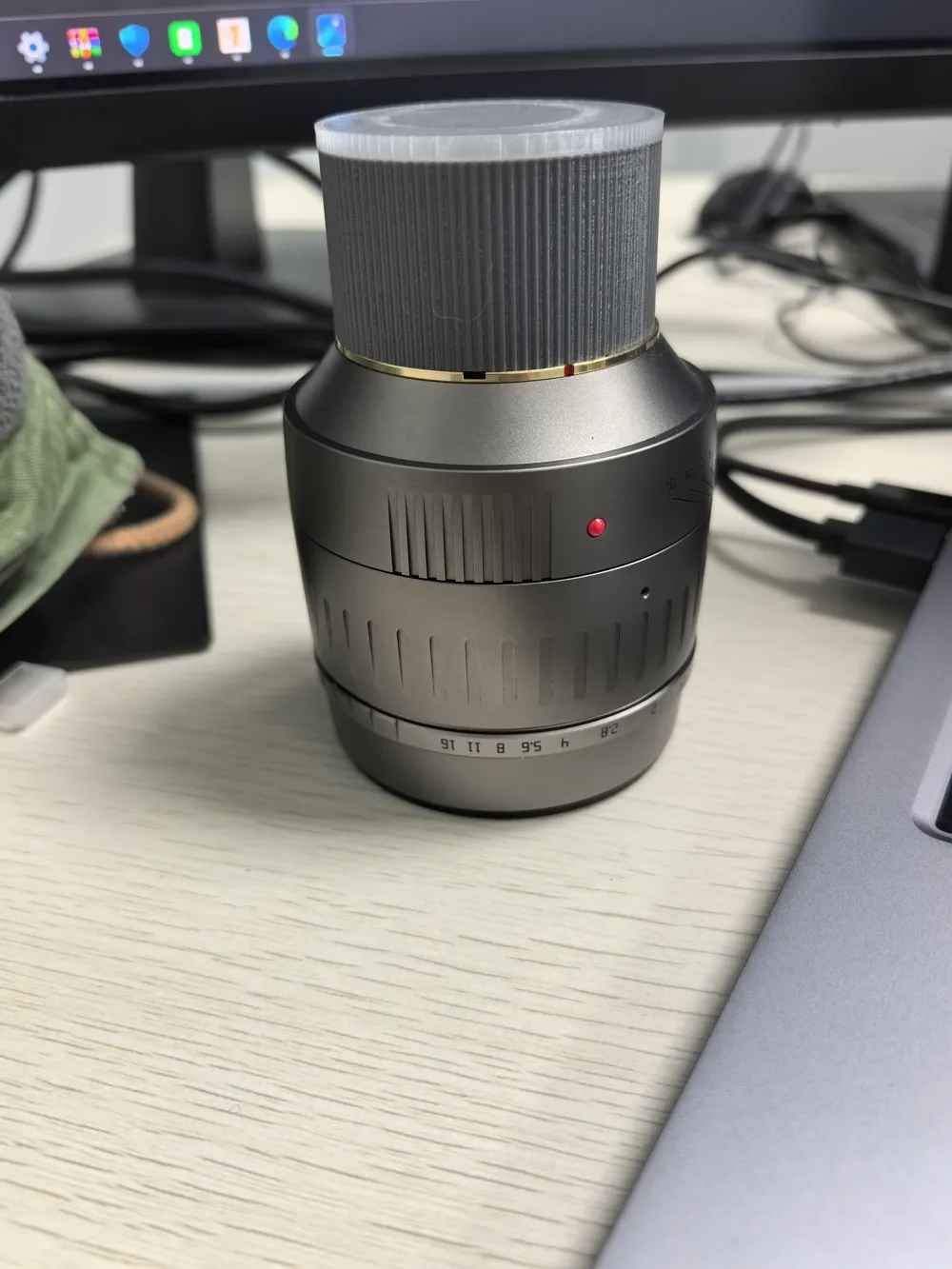

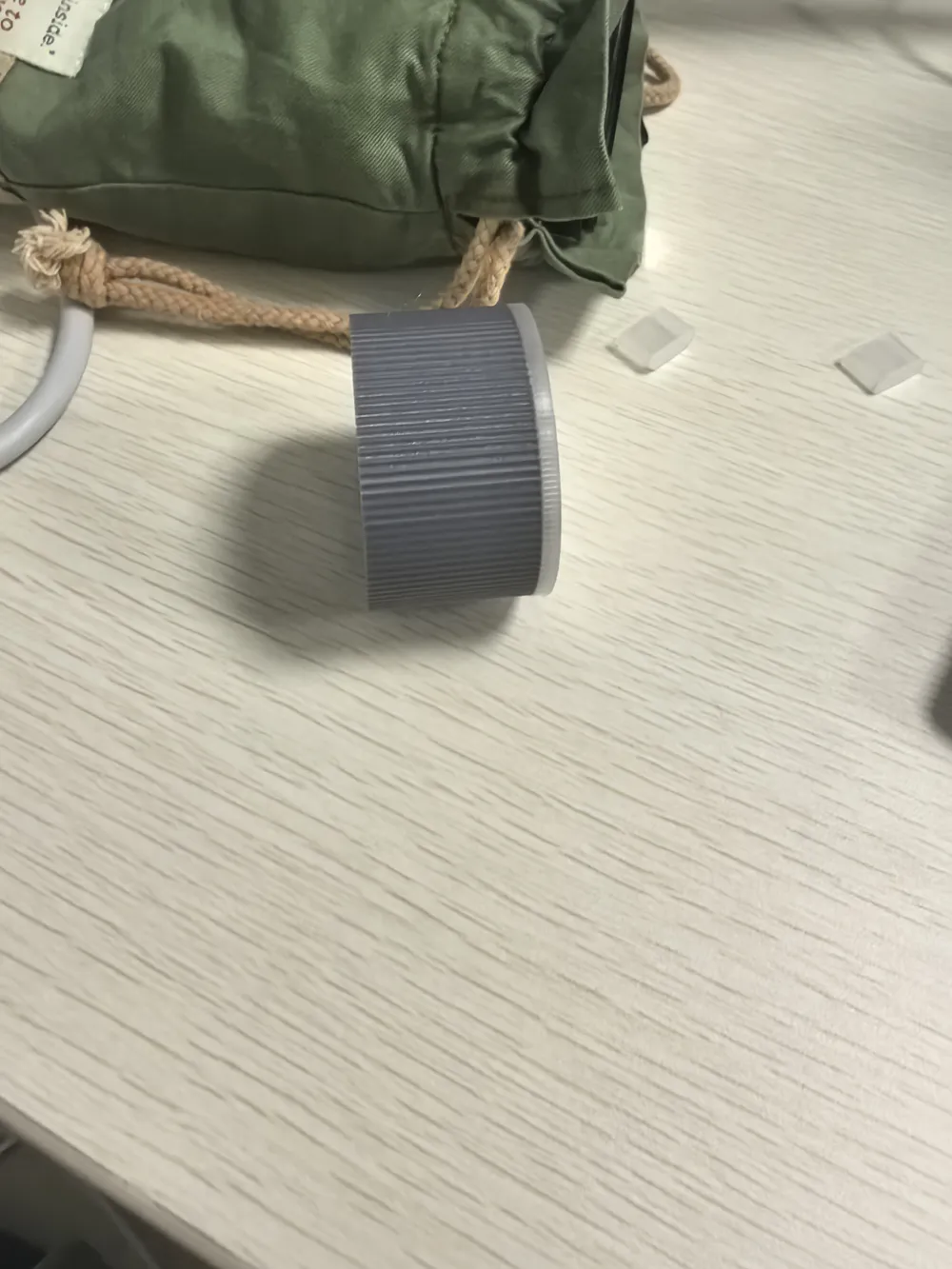

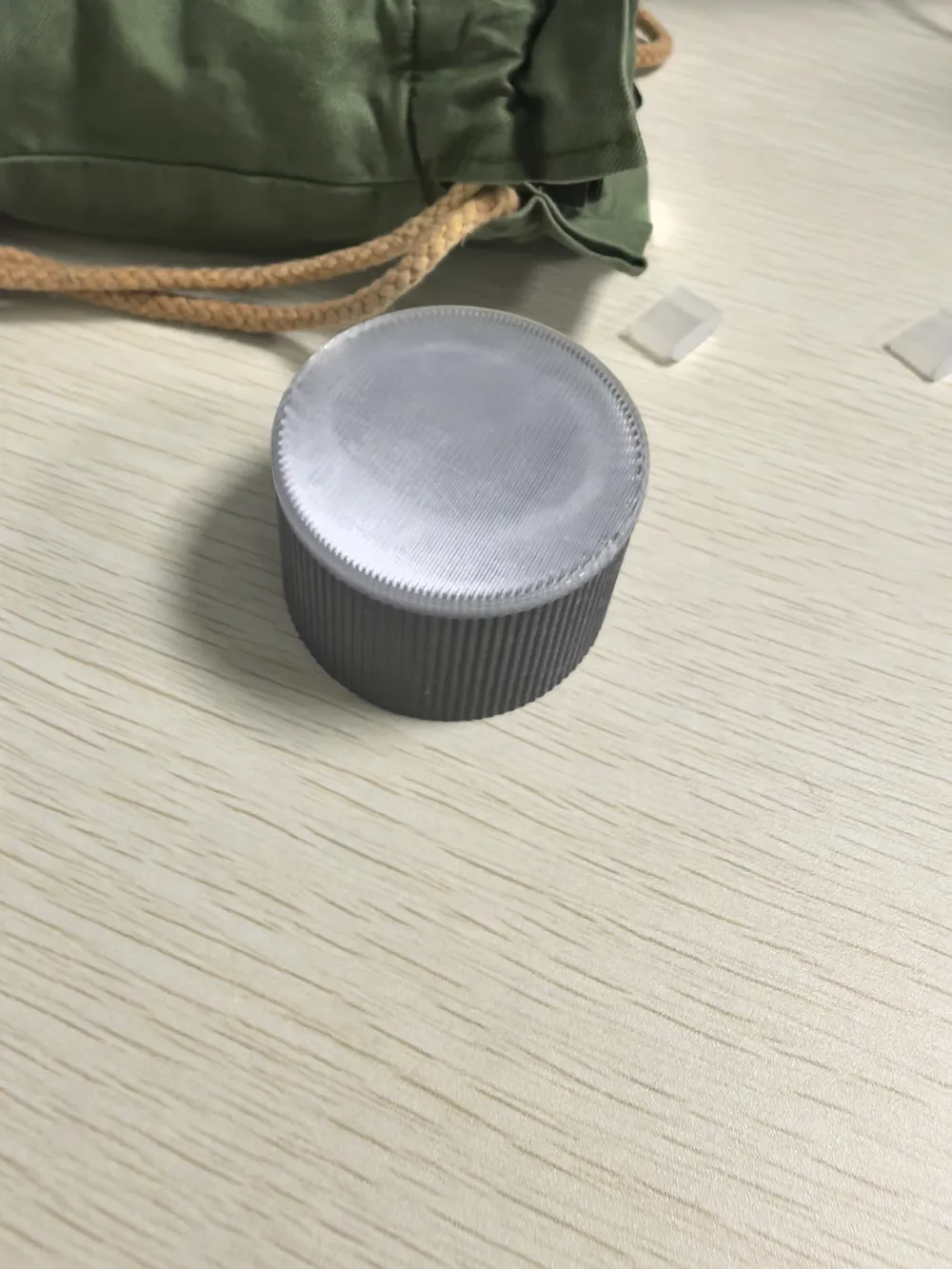

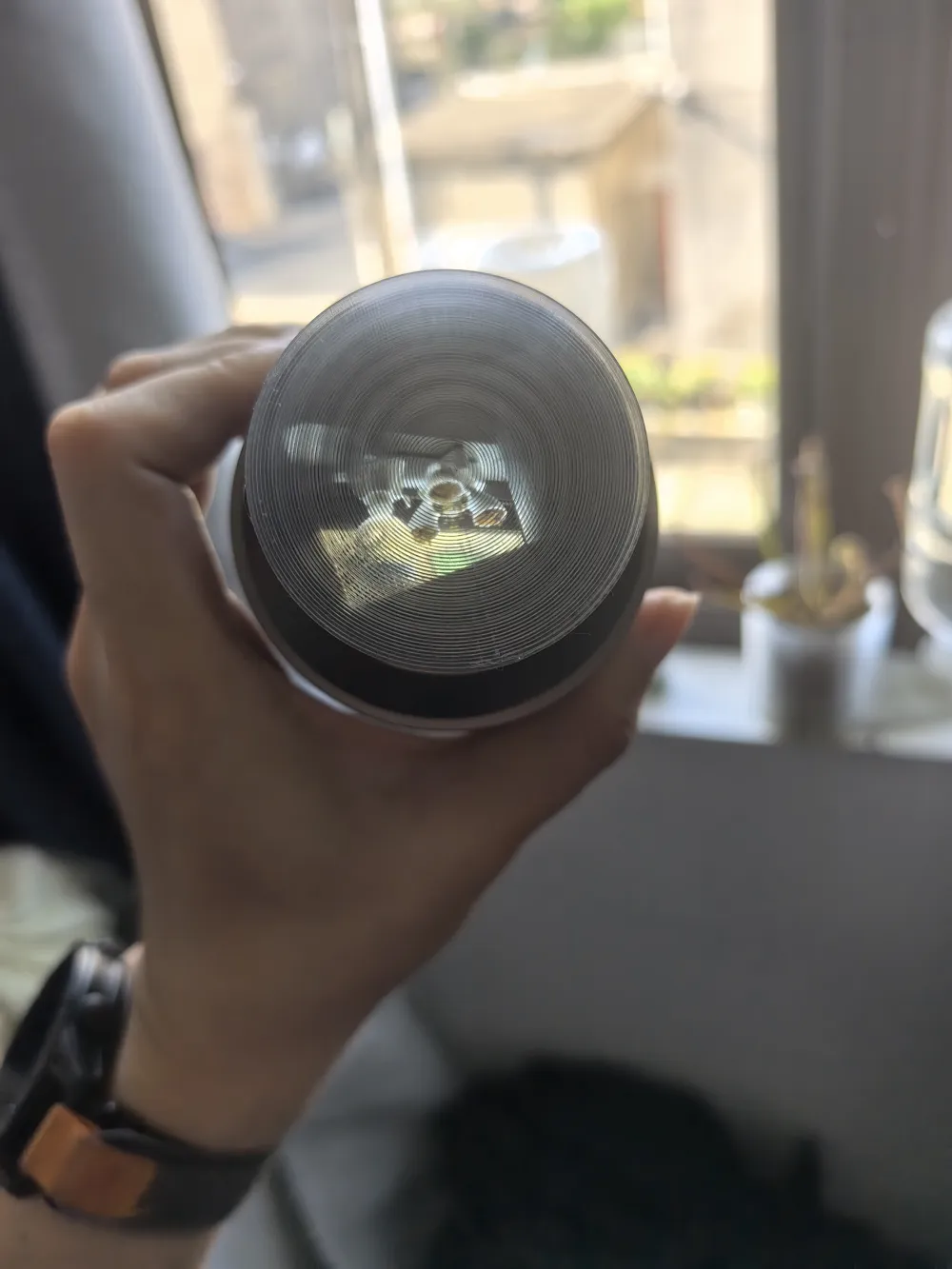

Inspired by the IC3D PETG glass print profile: Print Ice Cubes project, I created this pixel-style focus screen lens cap. It serves not only as a robust lens cover but also facilitates image capture.

Two distinct styles are offered.

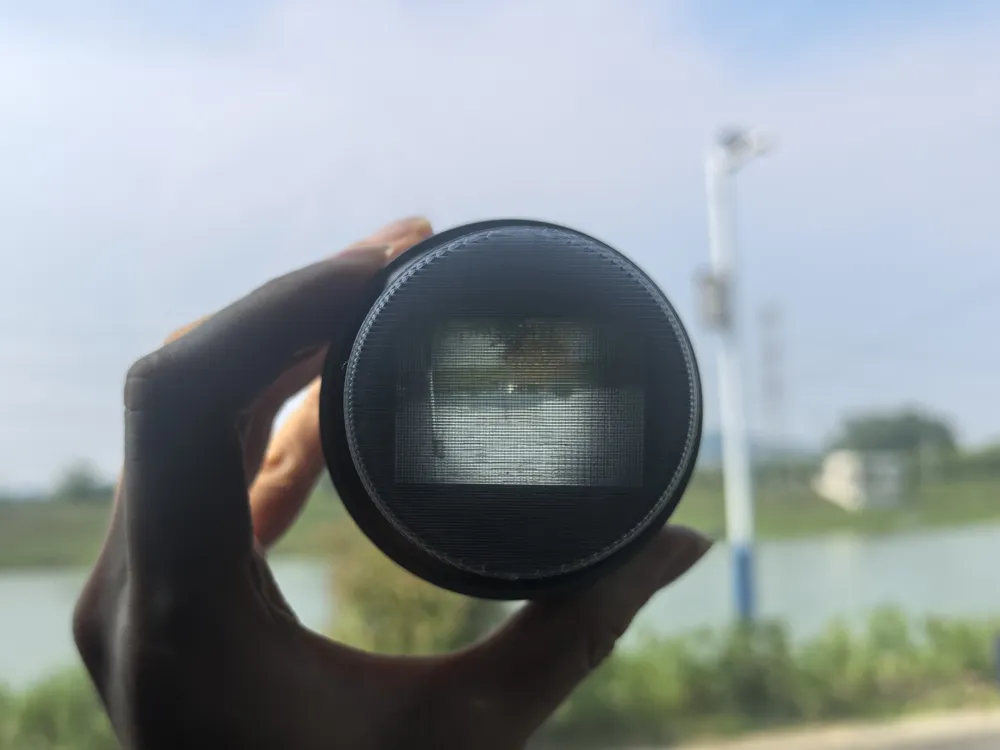

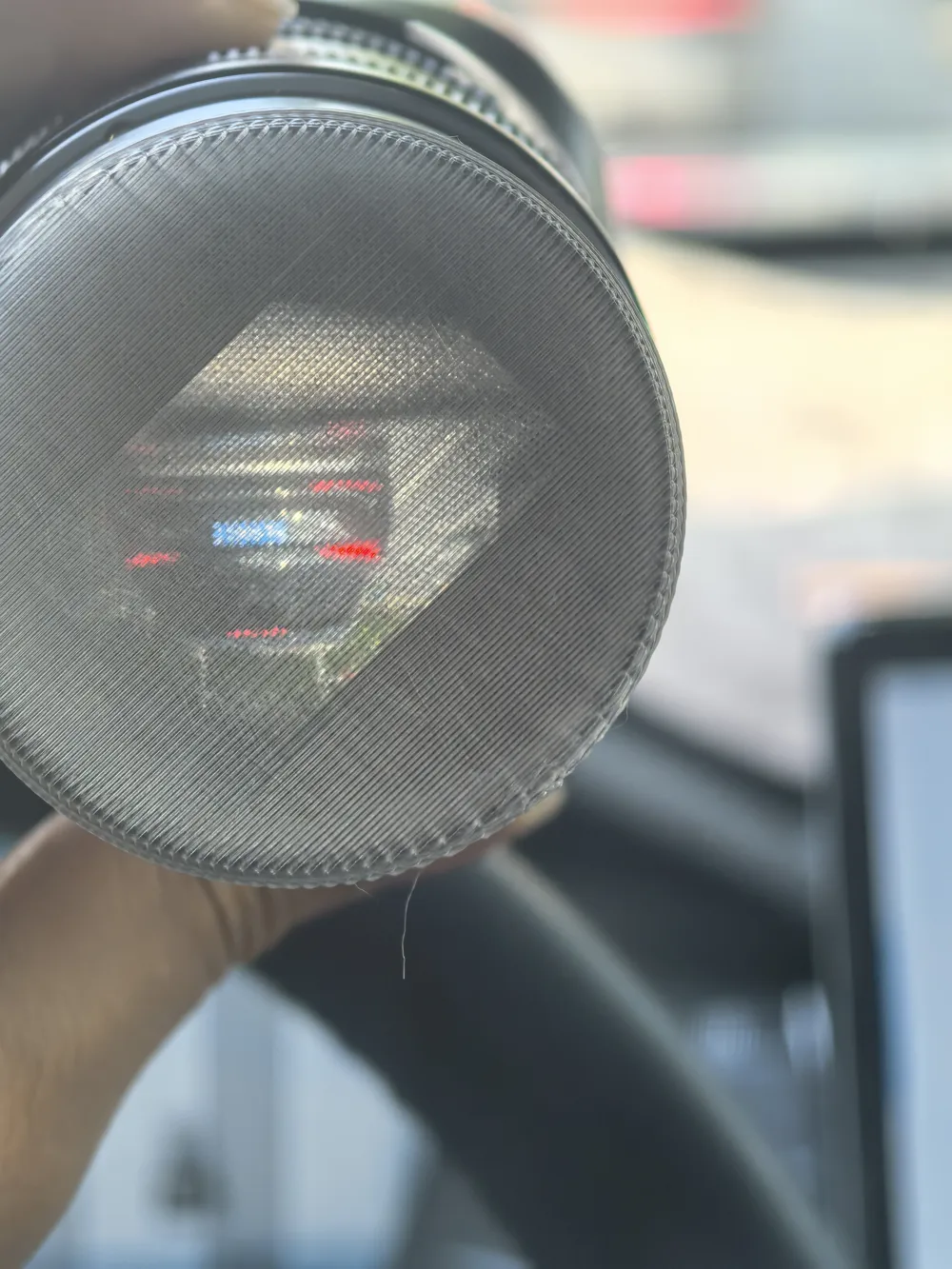

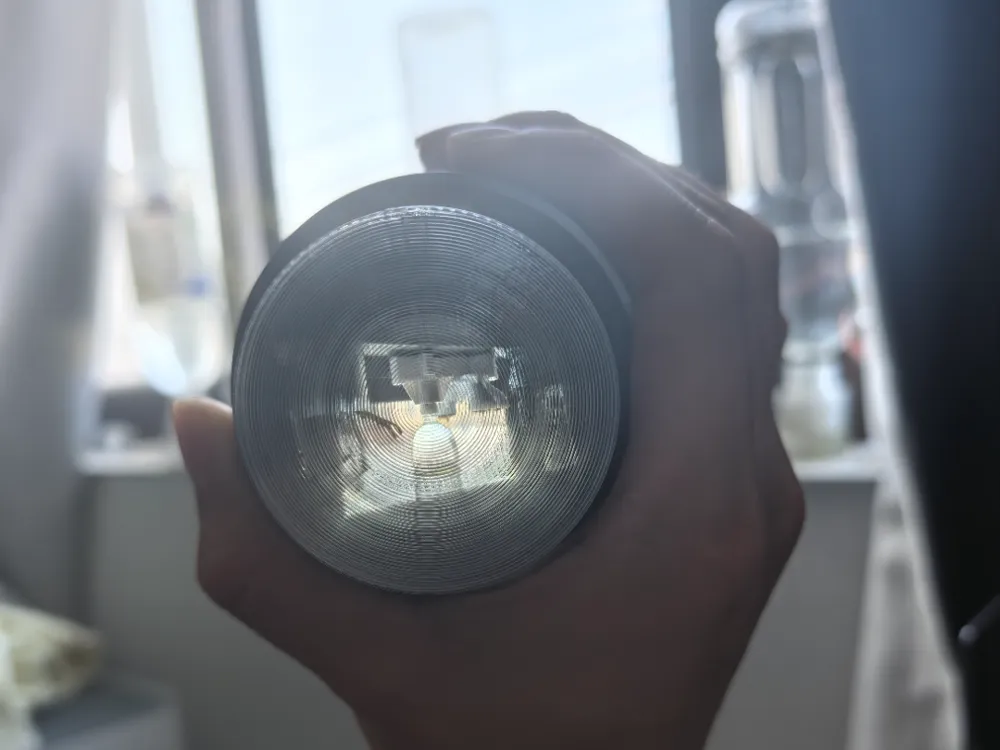

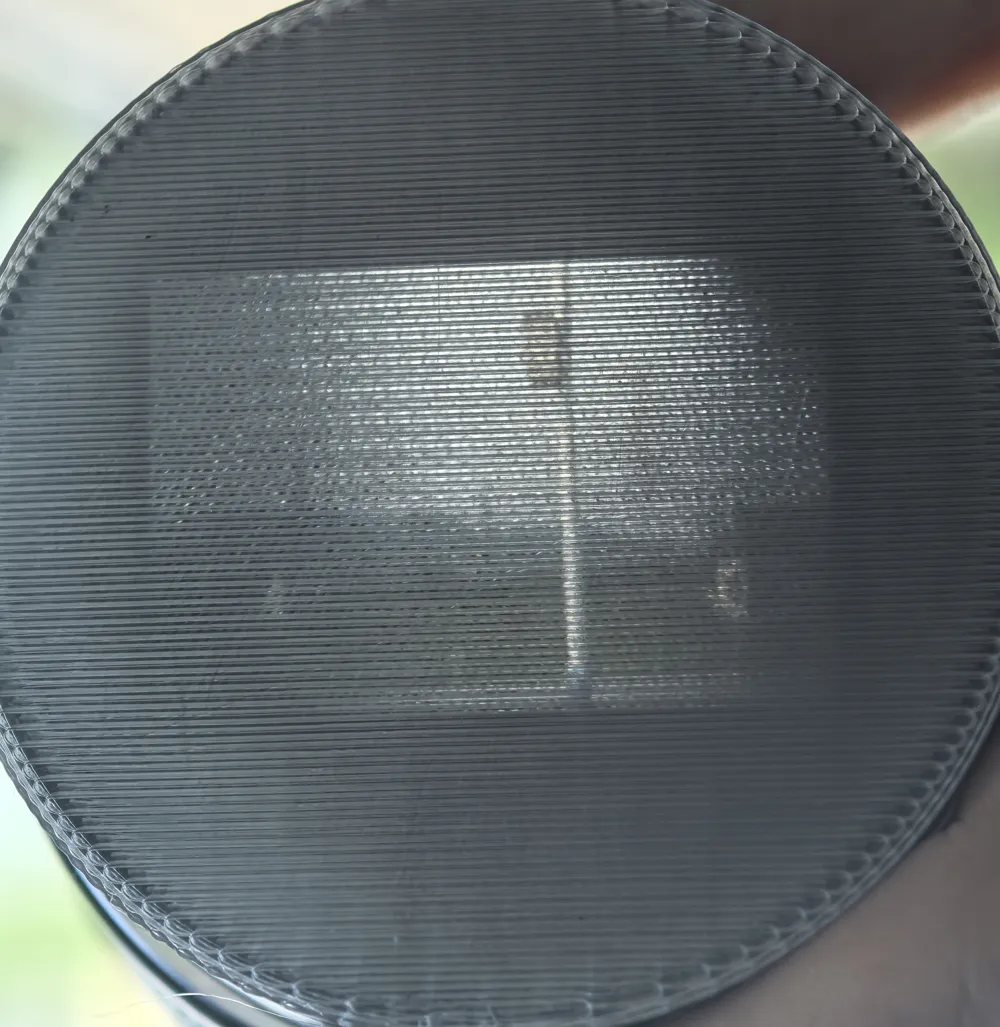

The lens's focal plane can be rendered as a low-resolution image in a pixelated style or in a sharper rendition.

Lenses with an aperture of F2.0 or larger are recommended for brighter images. Due to the angle of light incidence, wide-angle lenses will exhibit more pronounced vignetting.

Note: Always use dry filament.

5/25 Added a thinner rear shell version that offers improved brightness and is more compatible with wide-angle lenses. This enhanced luminosity comes at the cost of slightly reduced protection.

Note: If your printer supports automatic flow calibration, please disable it; it will diminish transparency.
