Vesa 100x100 Magnetic Tablet Holder
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 35% infill
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
10
18
0
1
23
6
Released
Description
Content has been automatically translated.
Hello!

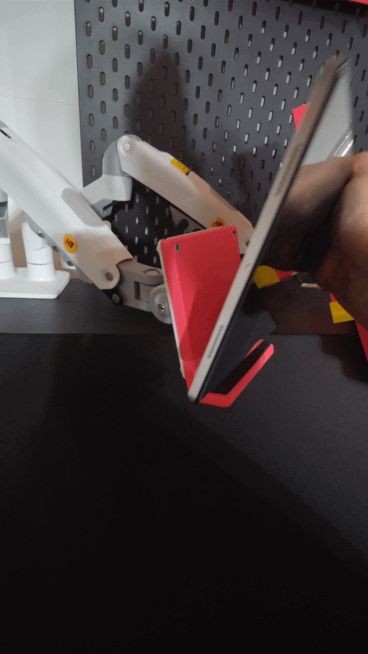

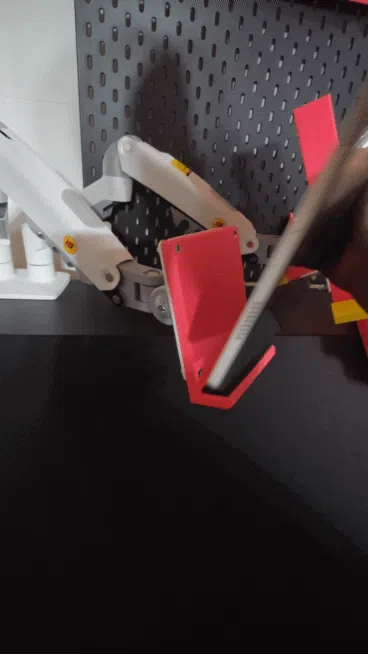

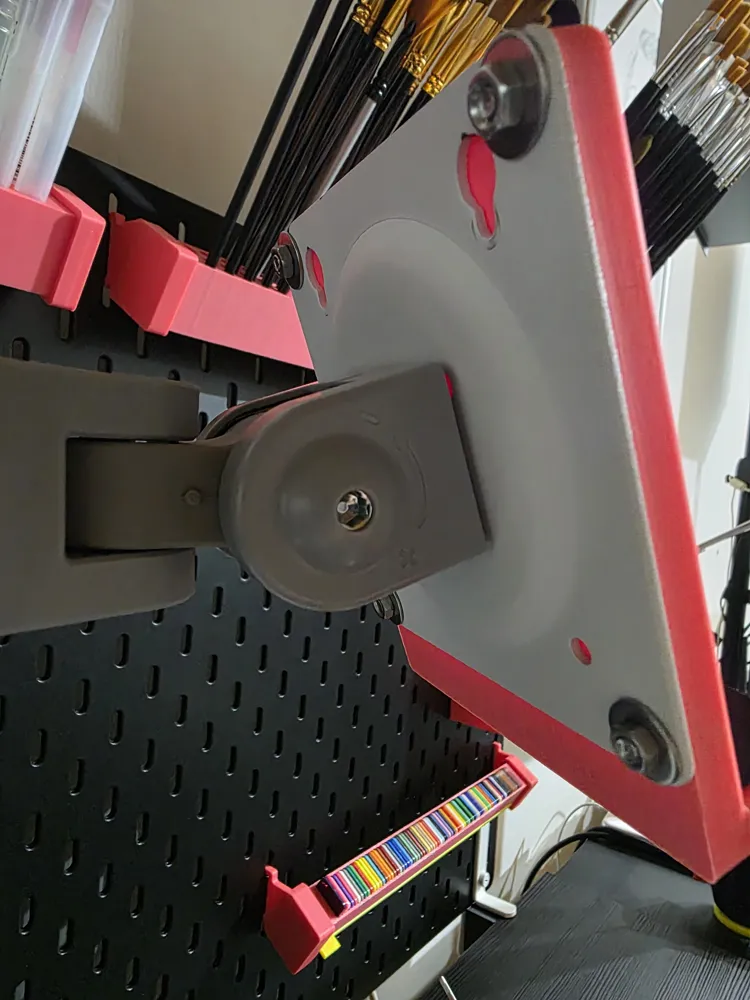

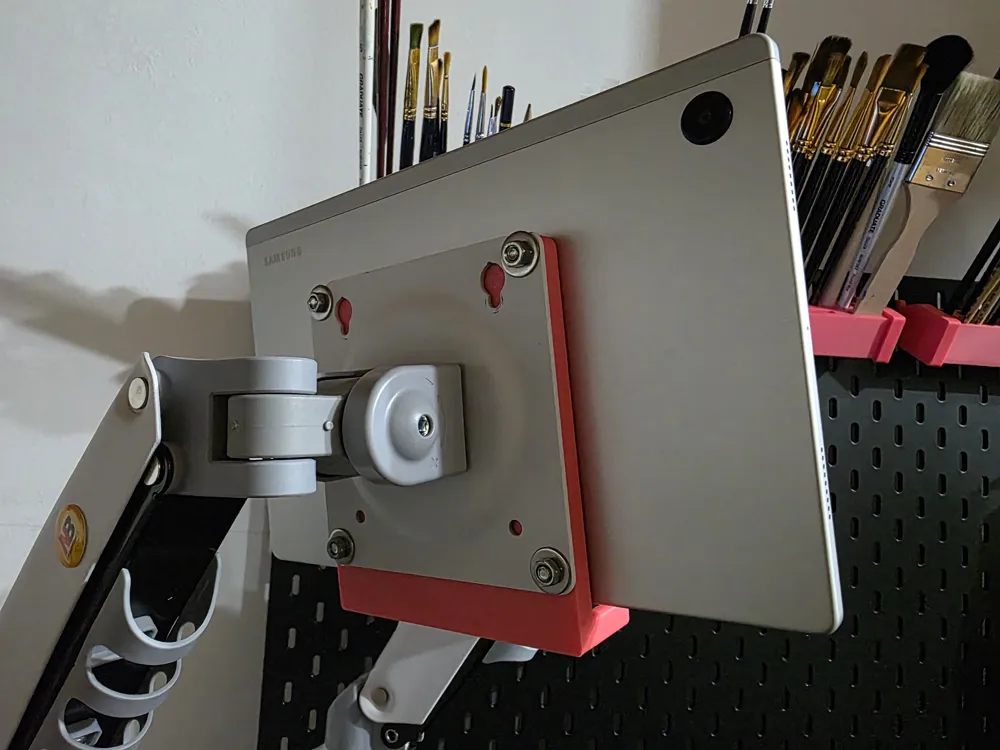

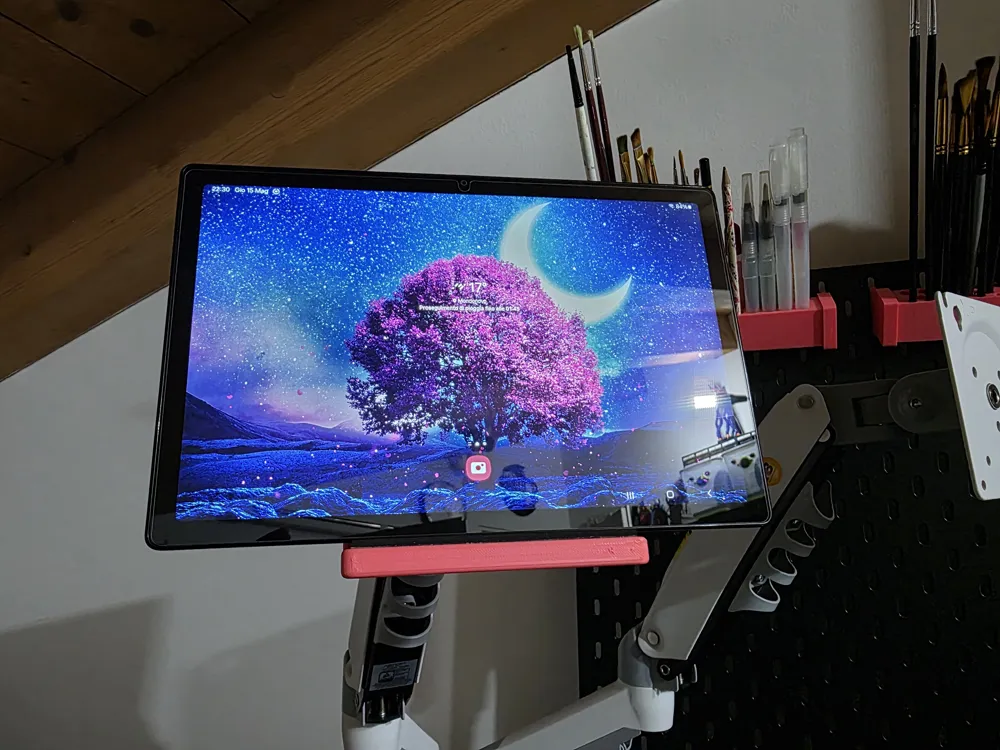

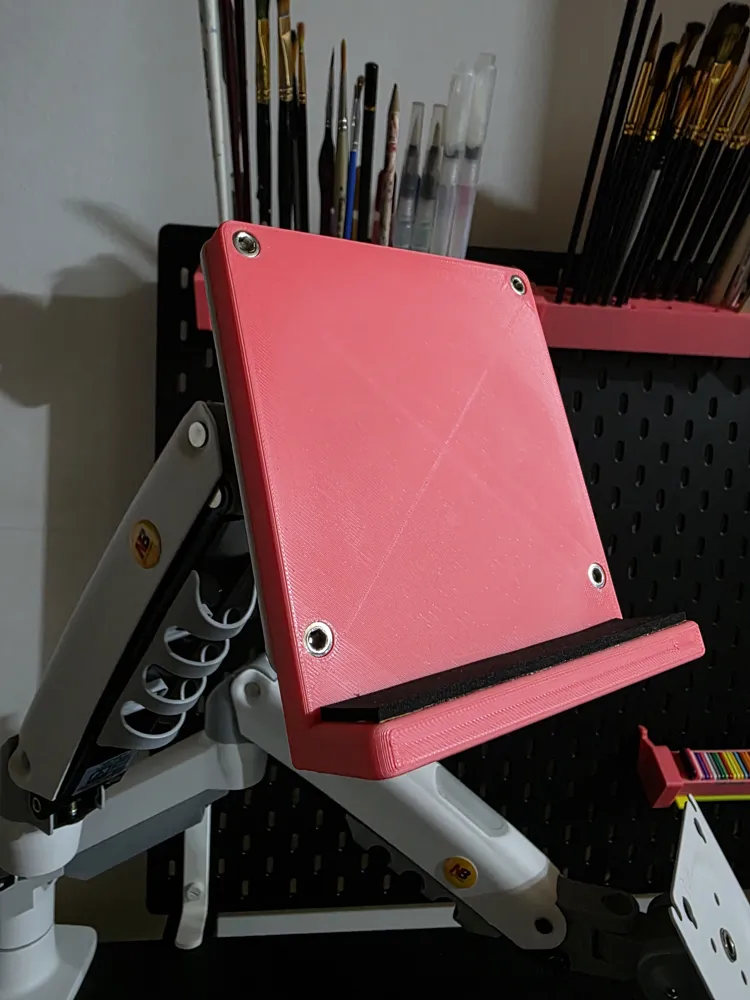

I created this tablet holder to attach to my VESA 100x100 articulating arm.

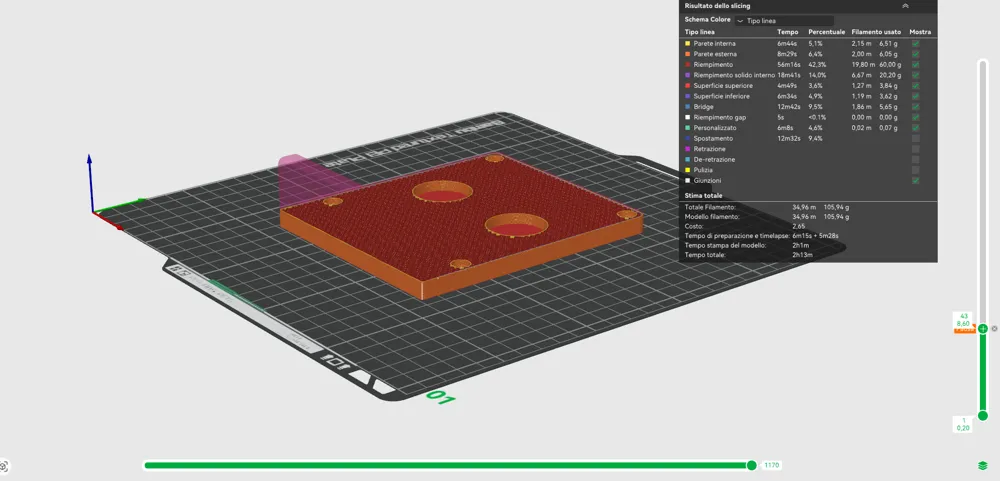

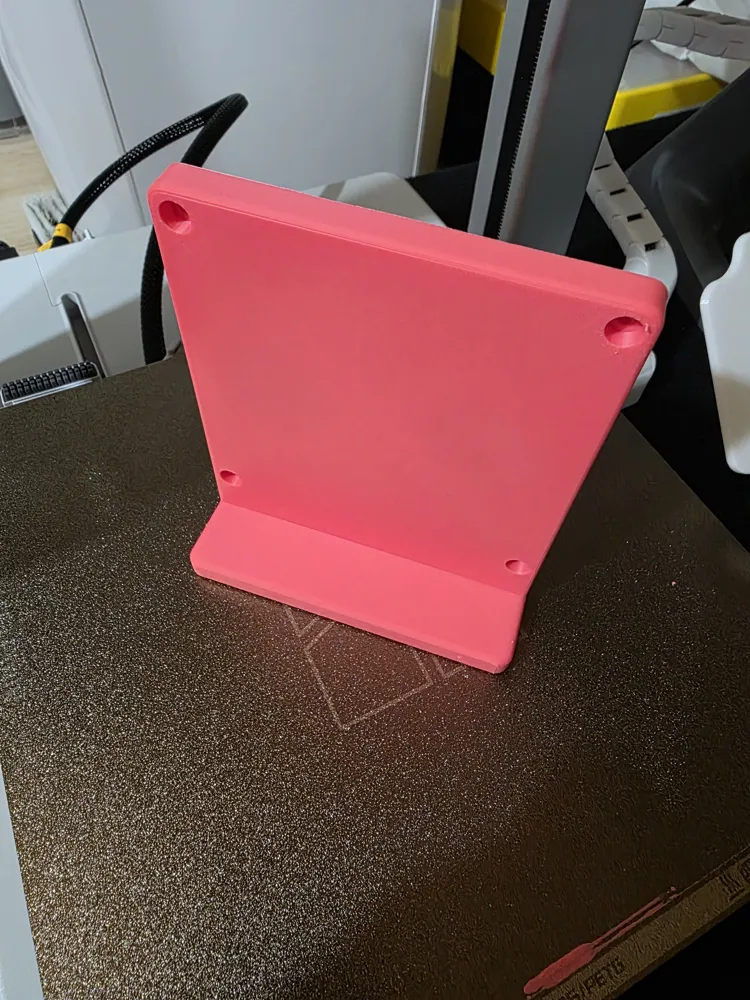

I recommend printing it from the Bambu Studio file because it contains the steps and pause to insert the two magnets during printing (the pause is at layer 41).

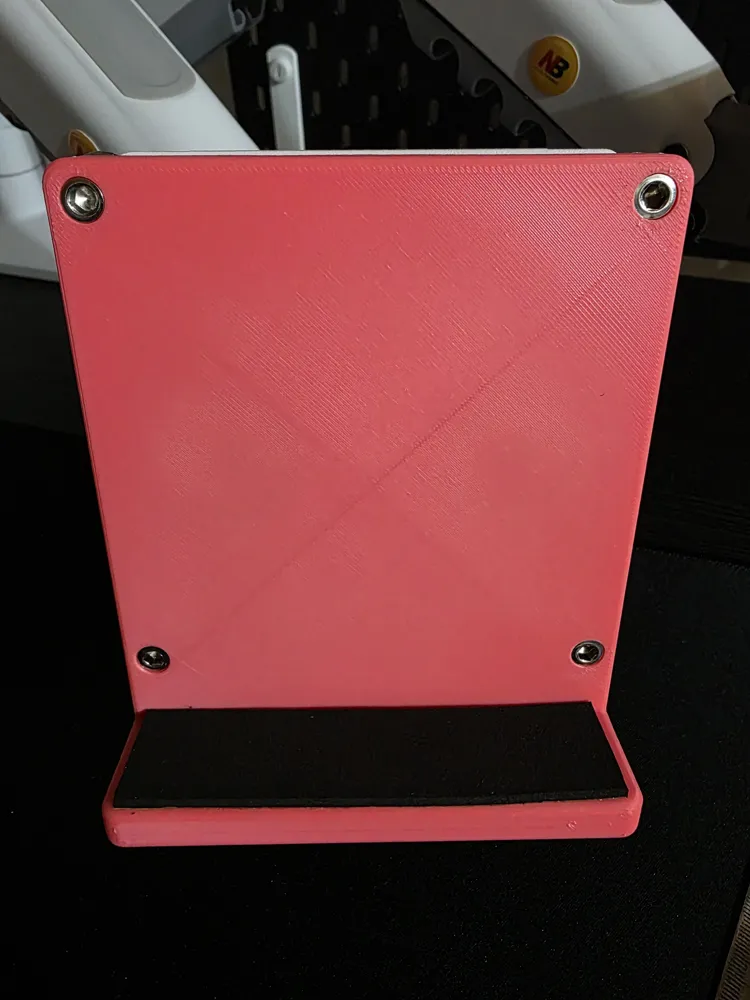

Once printed and installed, you can apply a strip of rubber adhesive to the base when placing the tablet or phone.
Necessary materials:

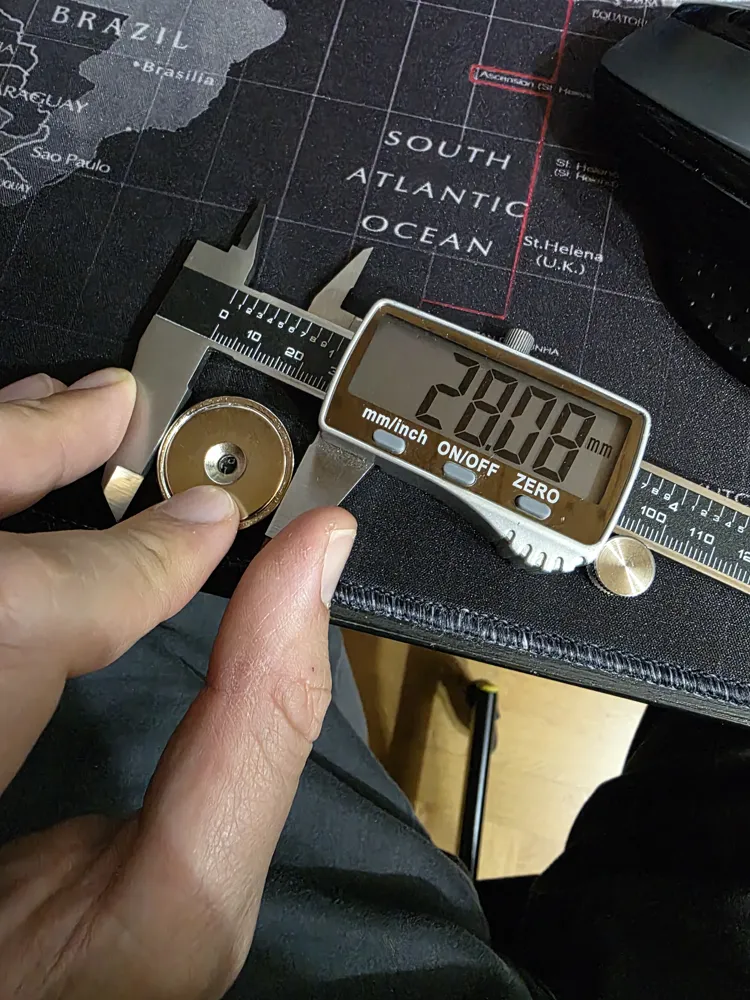

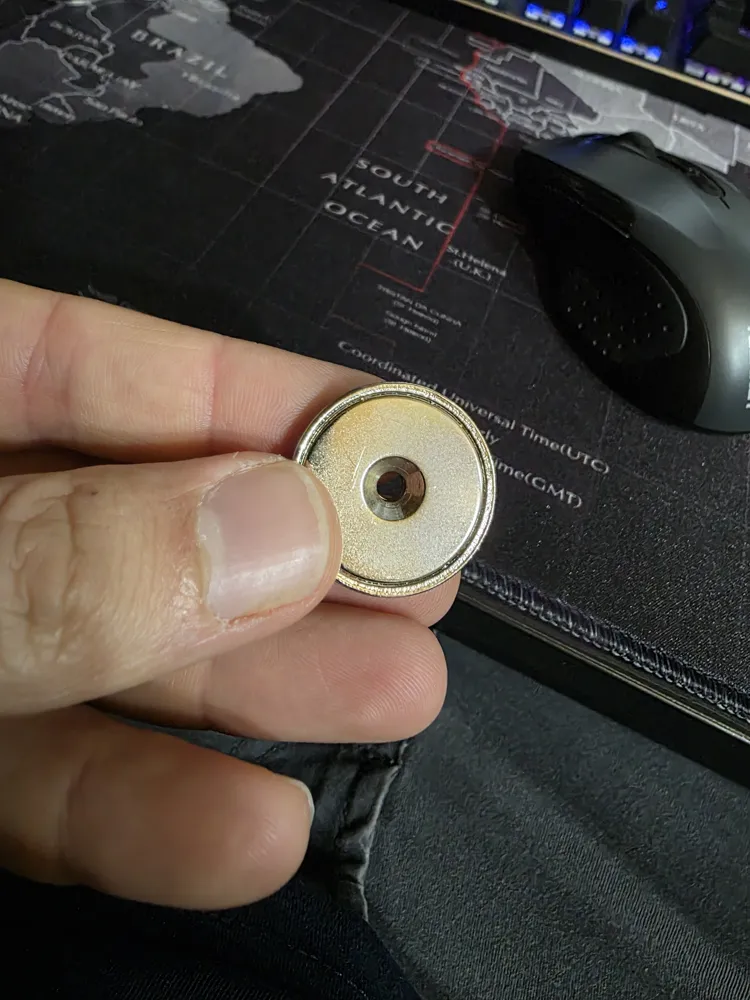

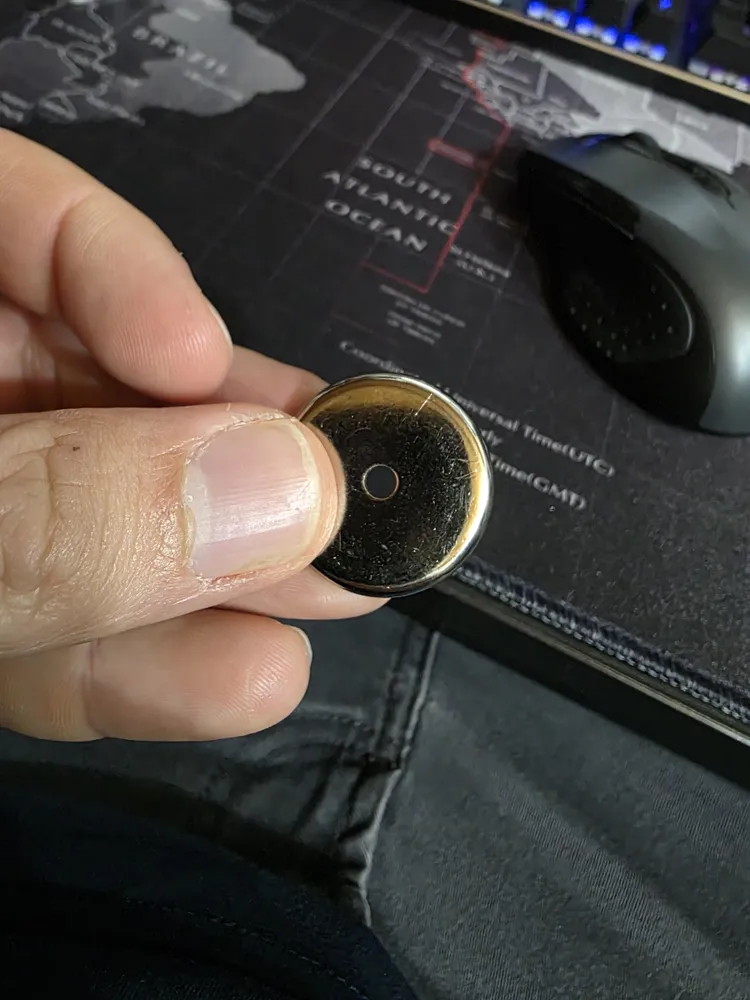

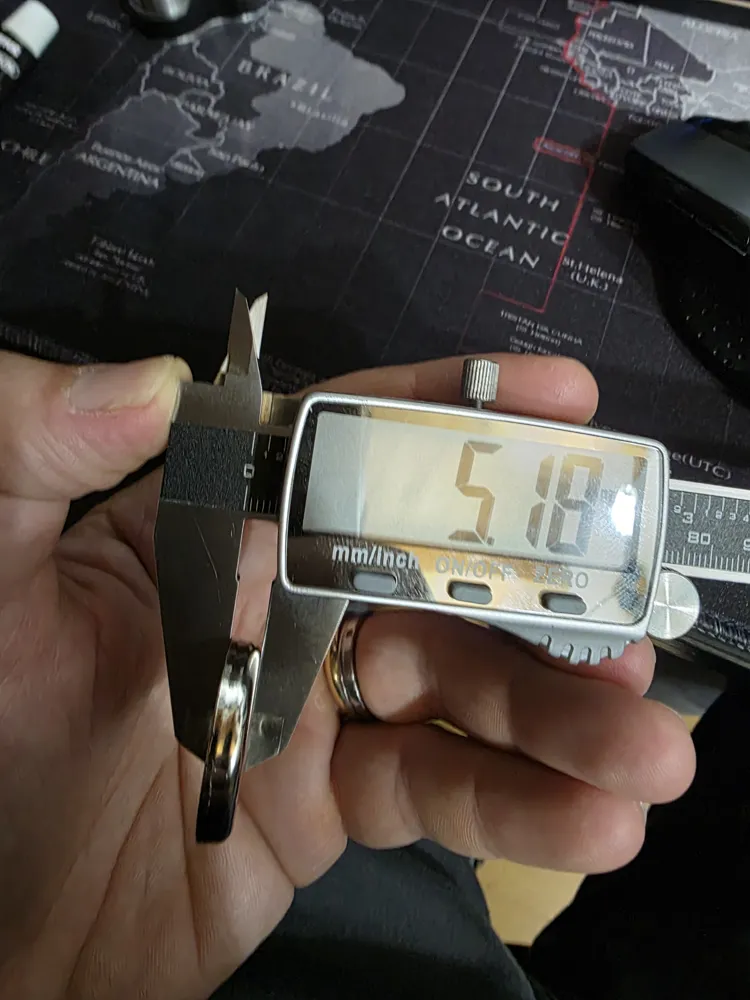

- 2 magnets, 28 mm diameter and 5 mm thick (https://www.amazon.it/dp/B07Q5R1ZLJ?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_9);

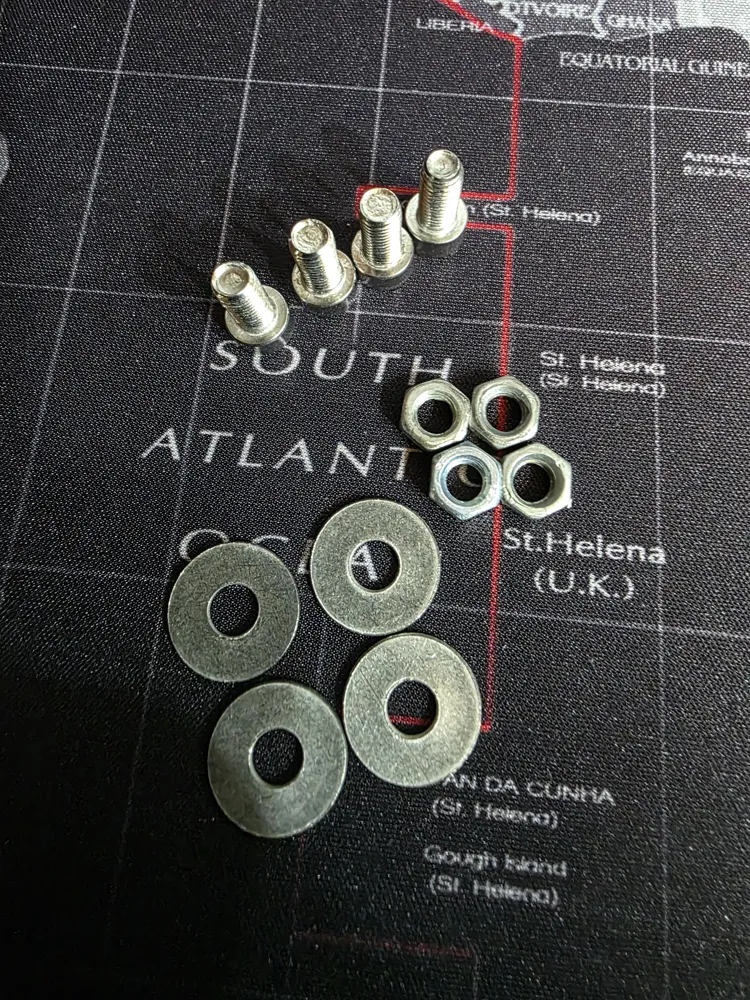

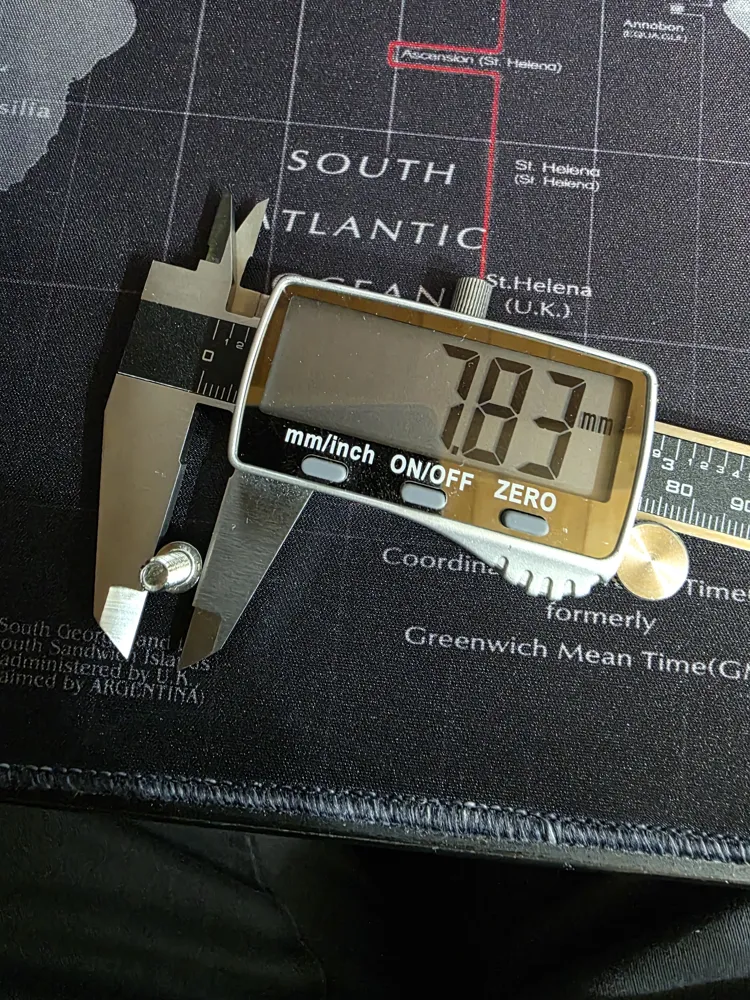

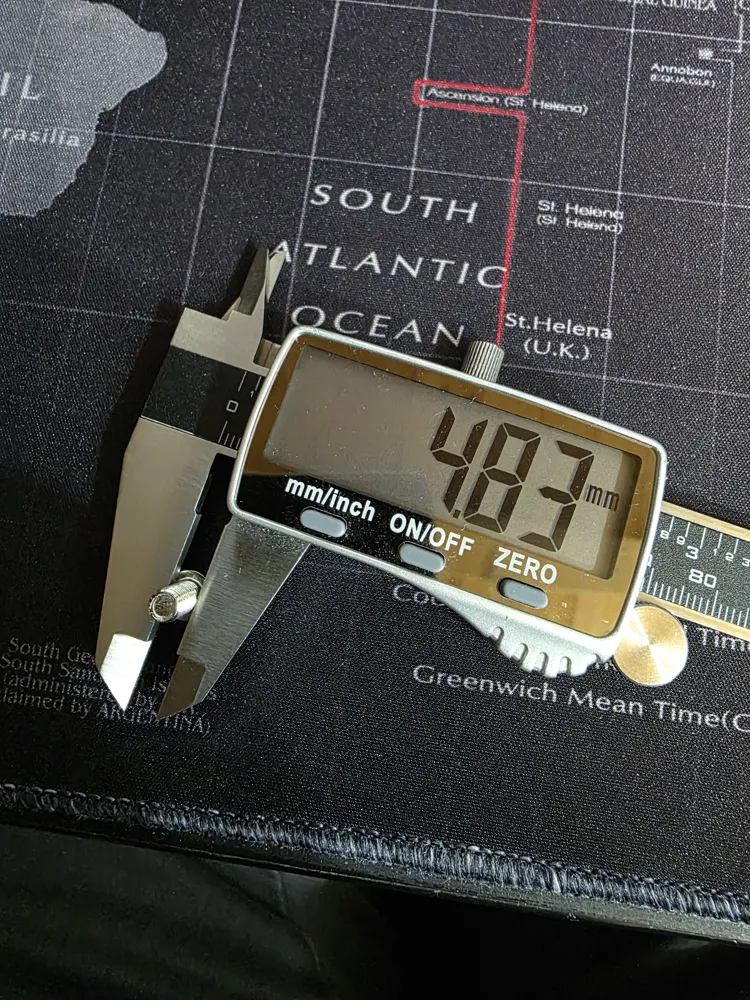

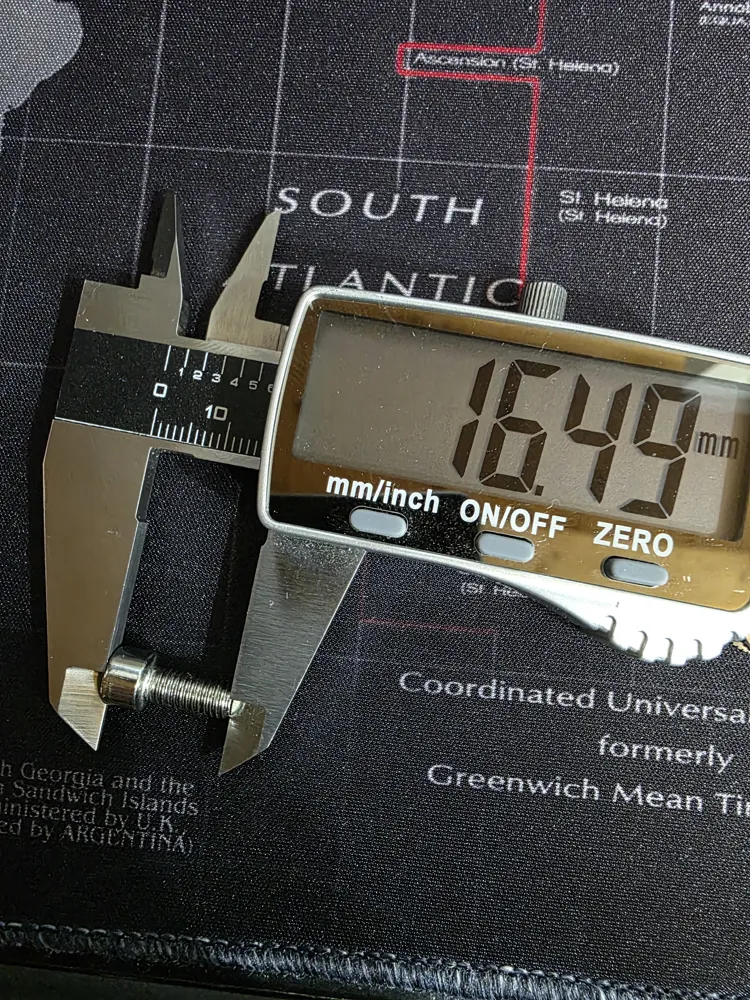

4 M5 Allen head washers, 12 mm length
4 M5 washers
3 M5 nuts

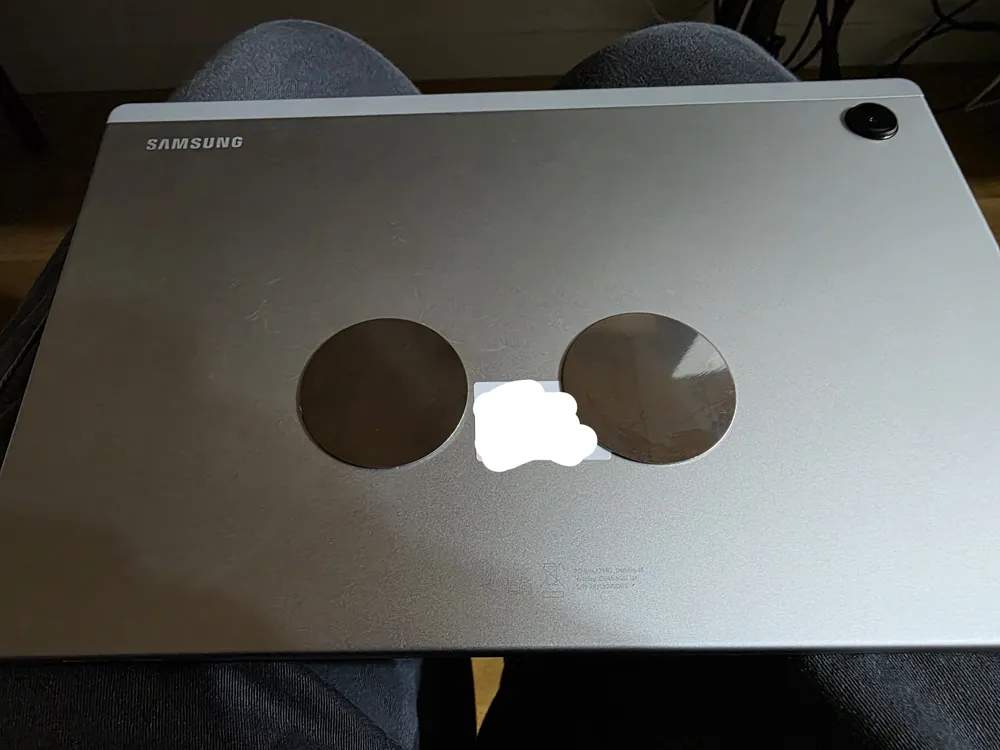

2 adhesive metal discs to apply behind the tablet
Happy printing!!! Remember to support me. Goodbye.
