Drill Bit Stopper Depth Stop - Set 4.0-10mm
IP Report
Print Profile(4)
PLA 0.2mm layer, 4 walls, 25% infill
Designer
1.7 h
7 plates
FLL NTV_REV1 PLA 0.2mm layer, 4 walls, 25% infill
Designer
2.3 h
7 plates
Half sizes 0.2mm layer, 4 walls, 25% infill
Designer
2 h
6 plates
HFL NTV_REV1 PLA 0.2mm layer, 4 walls, 25% infill
Designer
2 h
6 plates
Open in Bambu Studio
Boost
243
915
63
5
802
516
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

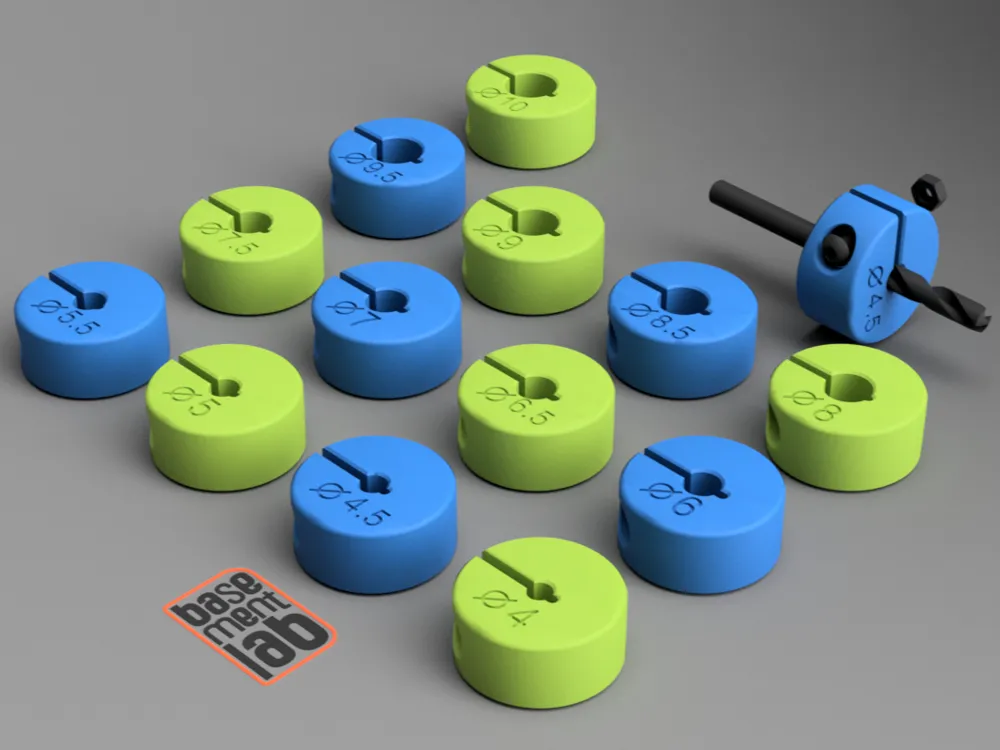

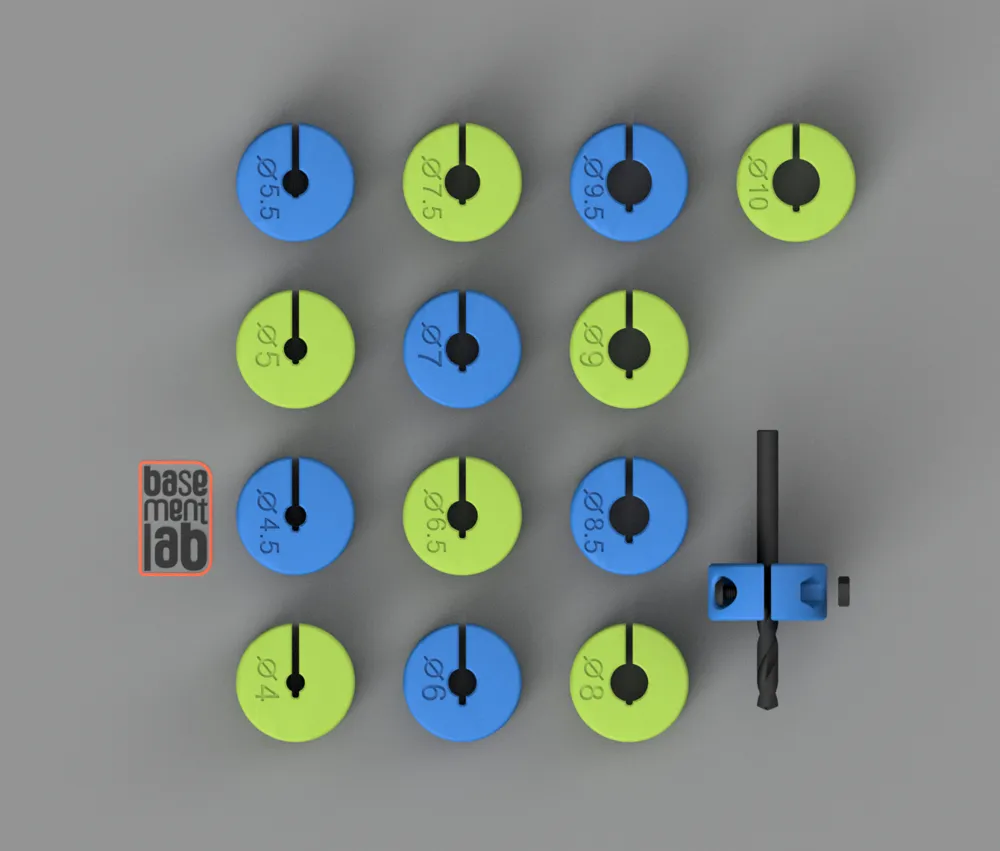

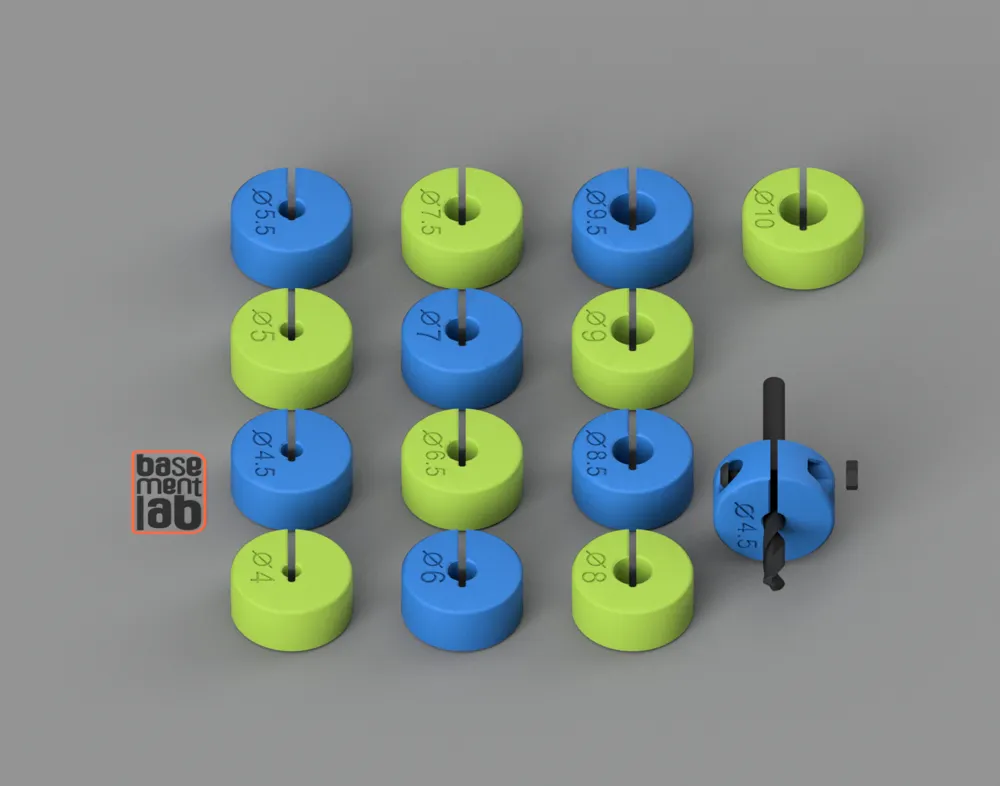

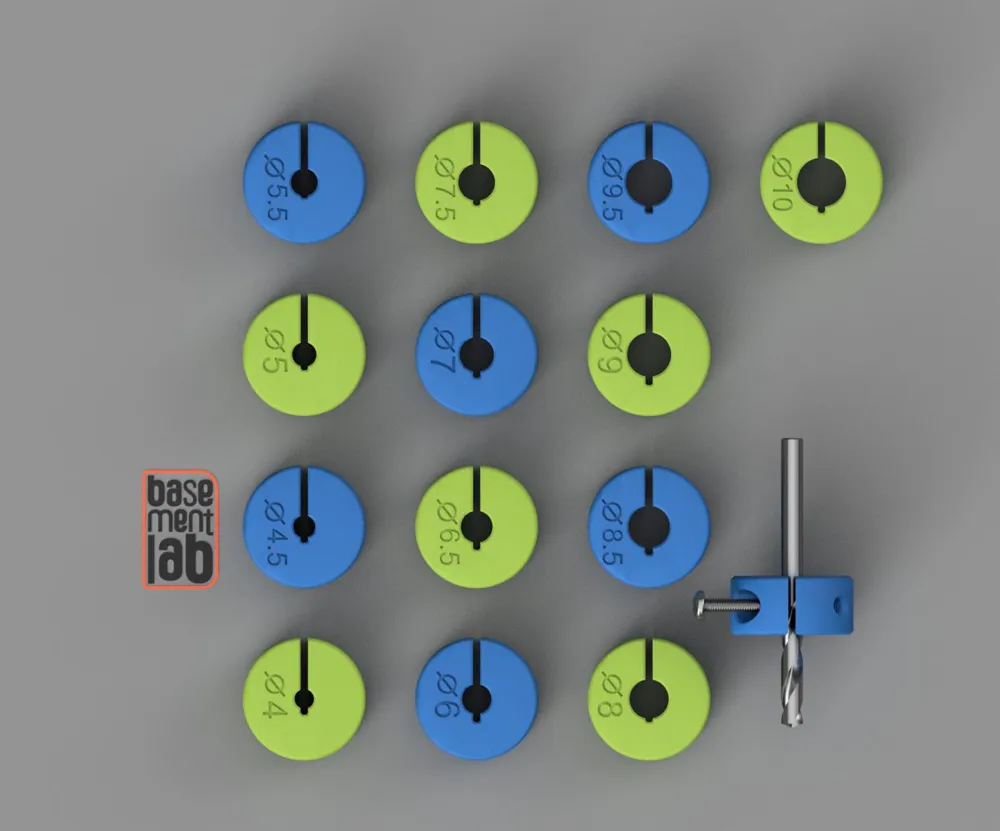

Drill Bit Stopper Depth Stop - Set 4.0-10mm M3 Thread
Update: Added NTV_RV1 with slot for M3 nut
Suitable for:
| Ø4mm | Ø4.5mm | Ø5mm | Ø5.5mm |
| Ø6mm | Ø6.5mm | Ø7mm | Ø7.5mm |
| Ø8mm | Ø8.5mm | Ø9mm | Ø9.5mm |
| Ø10mm |
Hardware needed:
- Screw DIN-7985 PH1 M3x16mm or M3x16 SHCS Machine Screw AA039
- Hex Nut DIN-934 M3
Resize to adjust dimension
