XT60 Adjustable Power Supply
Print Profile(1)
Bill of Materials
- SK35H x 1: https://s.click.aliexpress.com/e/_oCafK2S
- Banana Connectors x 2: https://s.click.aliexpress.com/e/_olCntdc
- XT60 x 1: https://s.click.aliexpress.com/e/_oCTKApo
Description

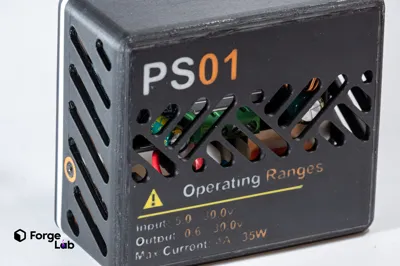

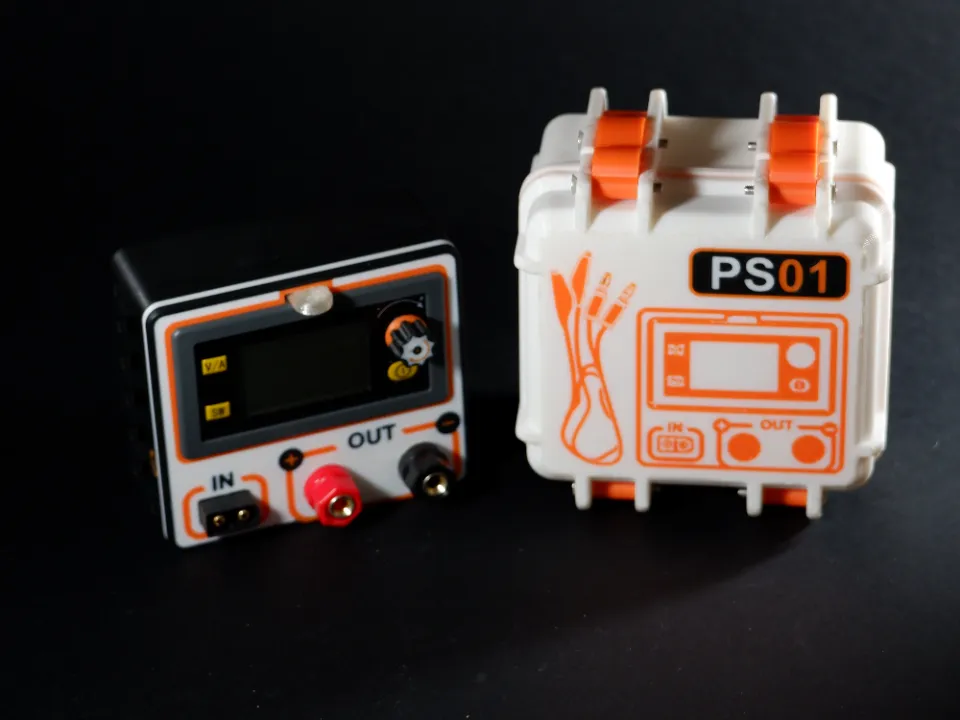

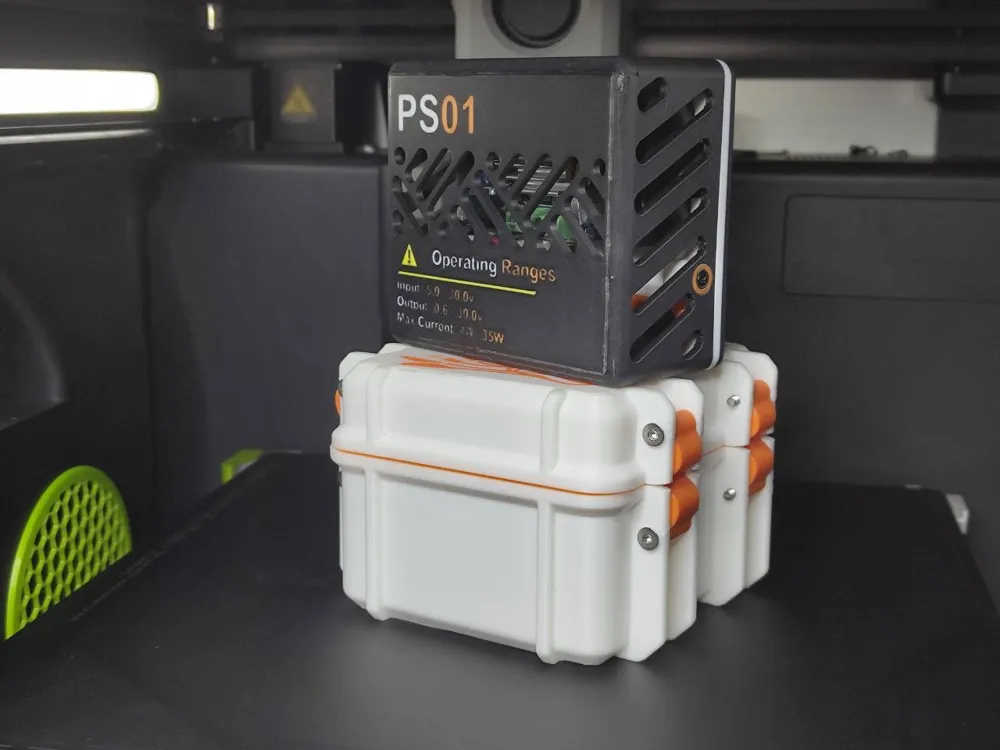

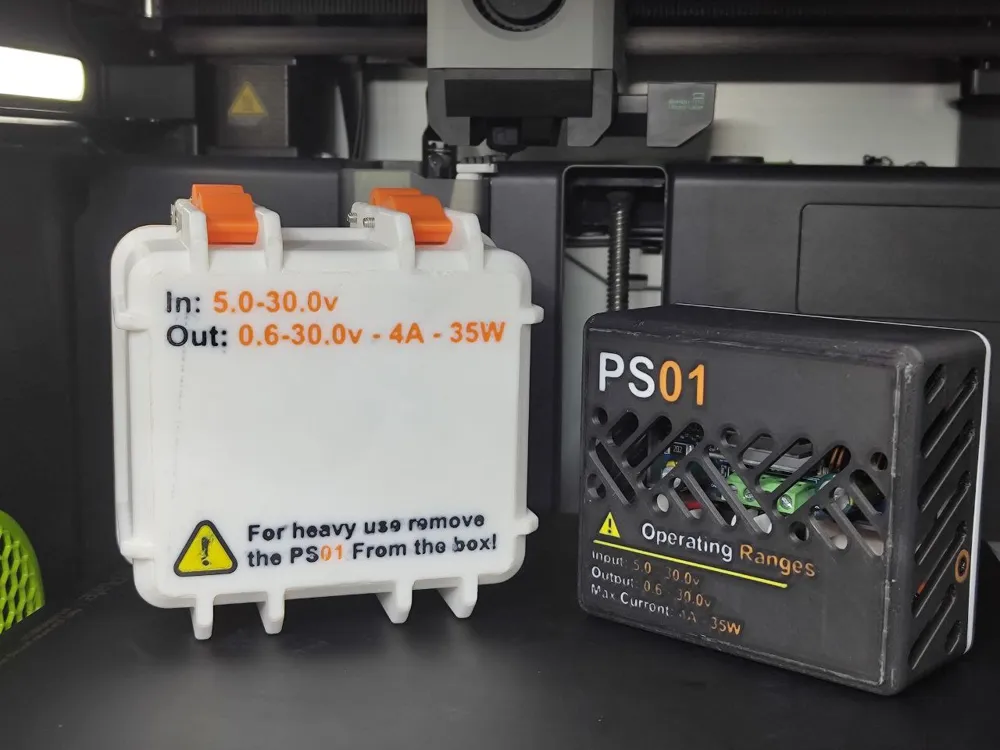

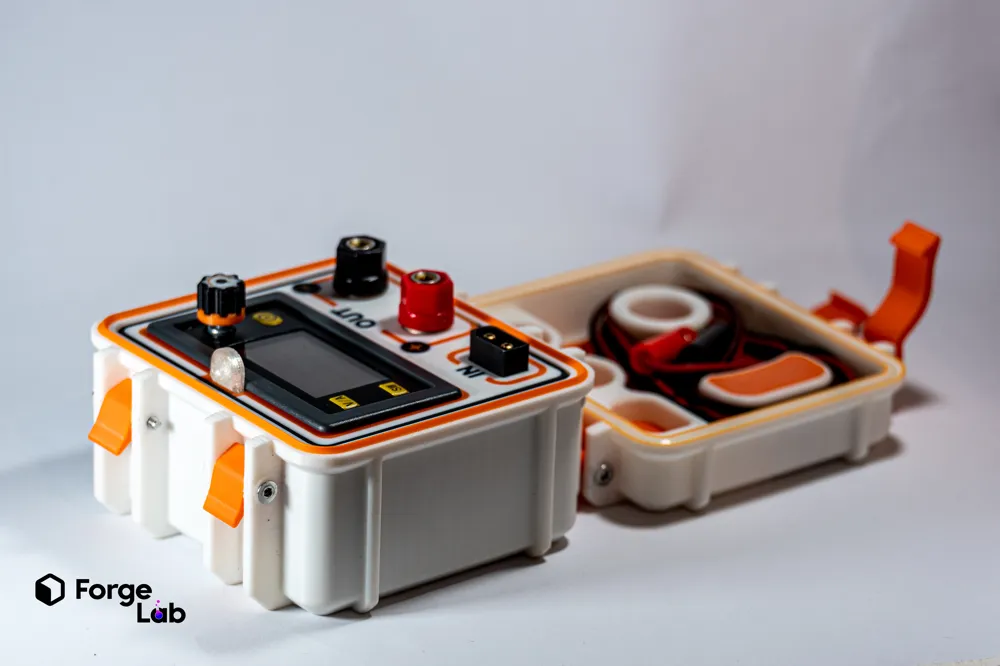

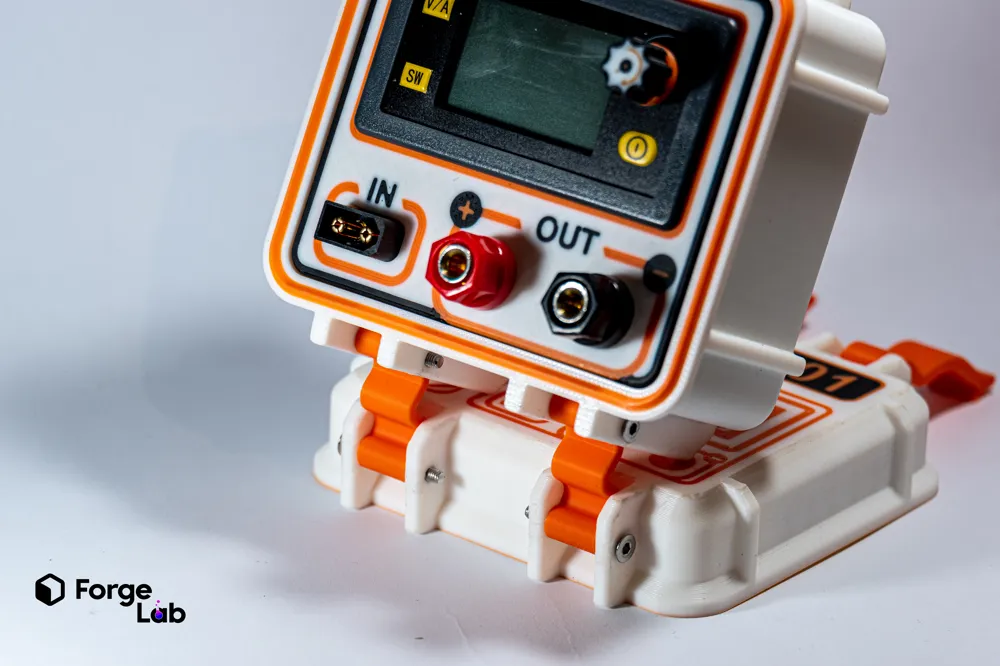

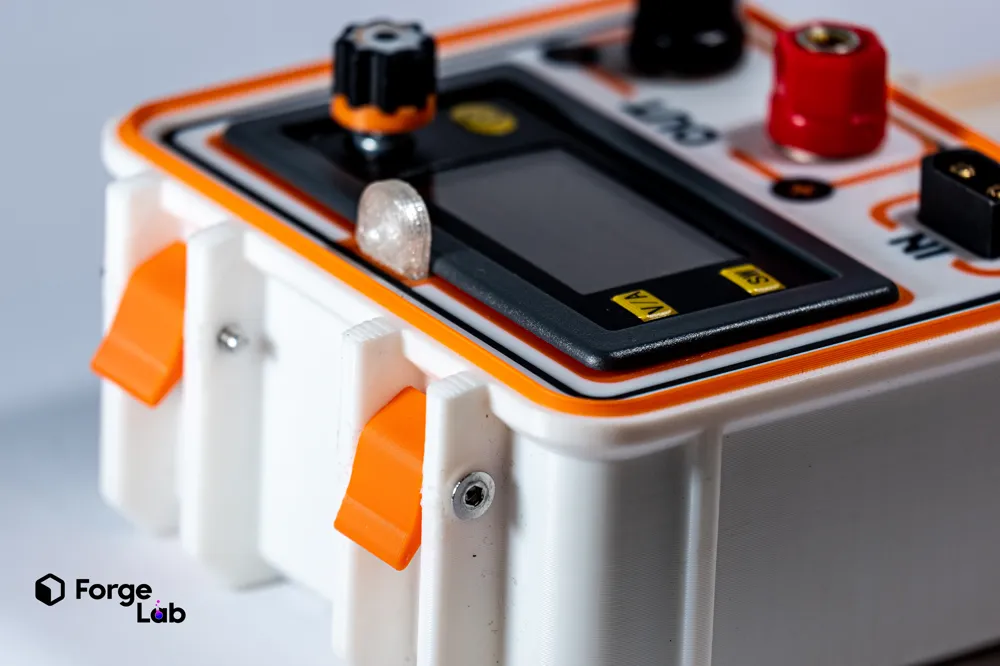

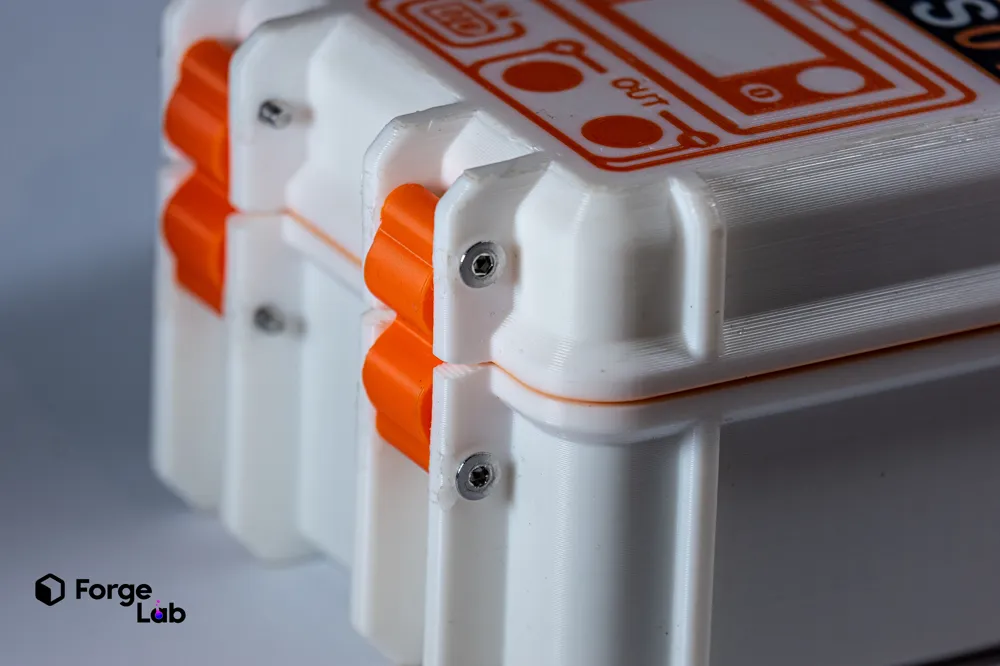

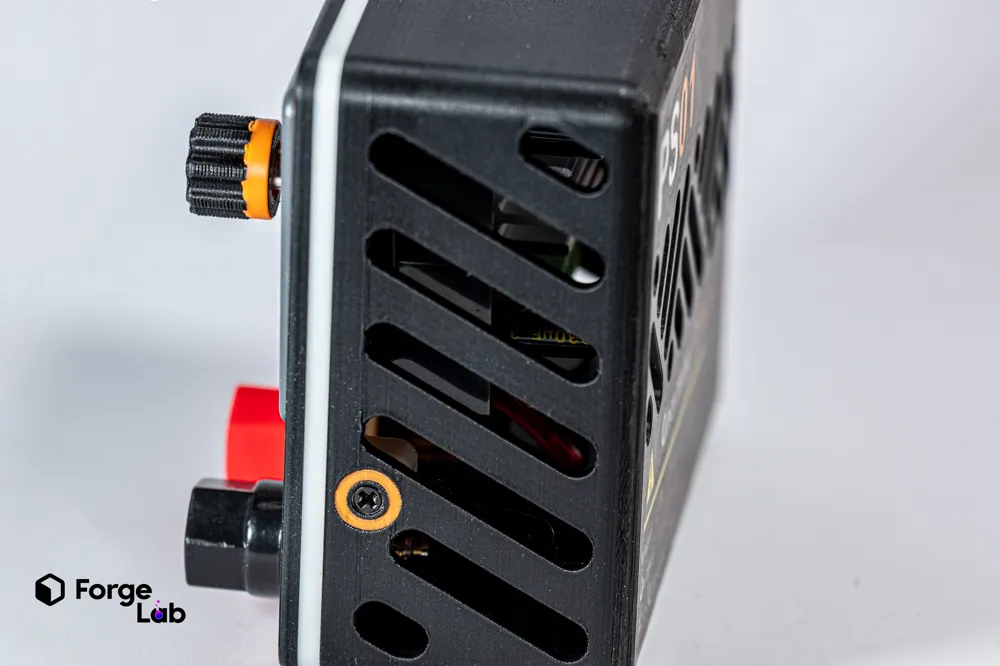

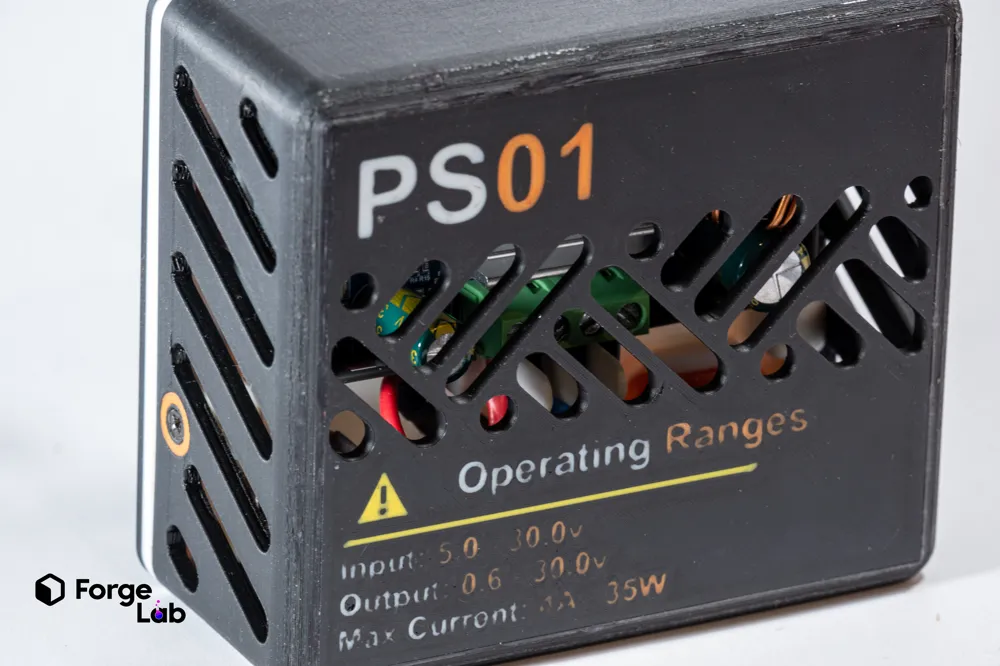

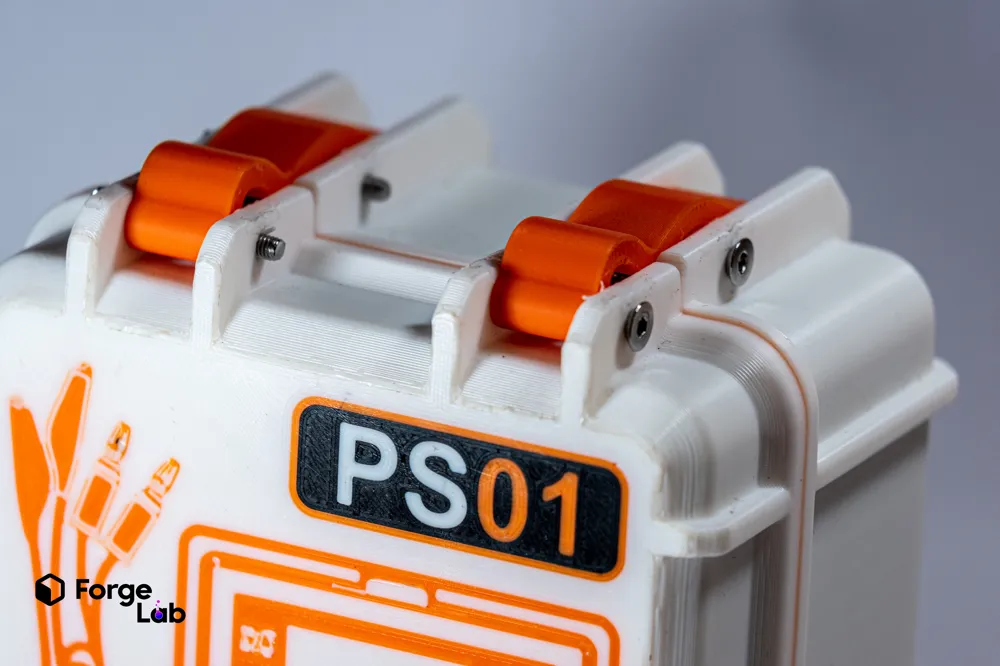

Rugged waterproof box for SK35H buckboost converter, this box feature an internal case for the power supply with the connectors and an external rugged box with the space for the crocodile to banana clamps cable.
Parts
1x SK35H: https://s.click.aliexpress.com/e/_oCafK2S
2x Banana Connectors: https://s.click.aliexpress.com/e/_olCntdc
1x XT60: https://s.click.aliexpress.com/e/_oCTKApo
2x M2x5 inserts
2x M2x8 Screws
1x M2x3 Insert
1x M2x5 Screw
8x M3 Screws
Also other models and parts can work but are not tested here is my confguration. (use a fanless only converter, the box will block the air)
Assembly

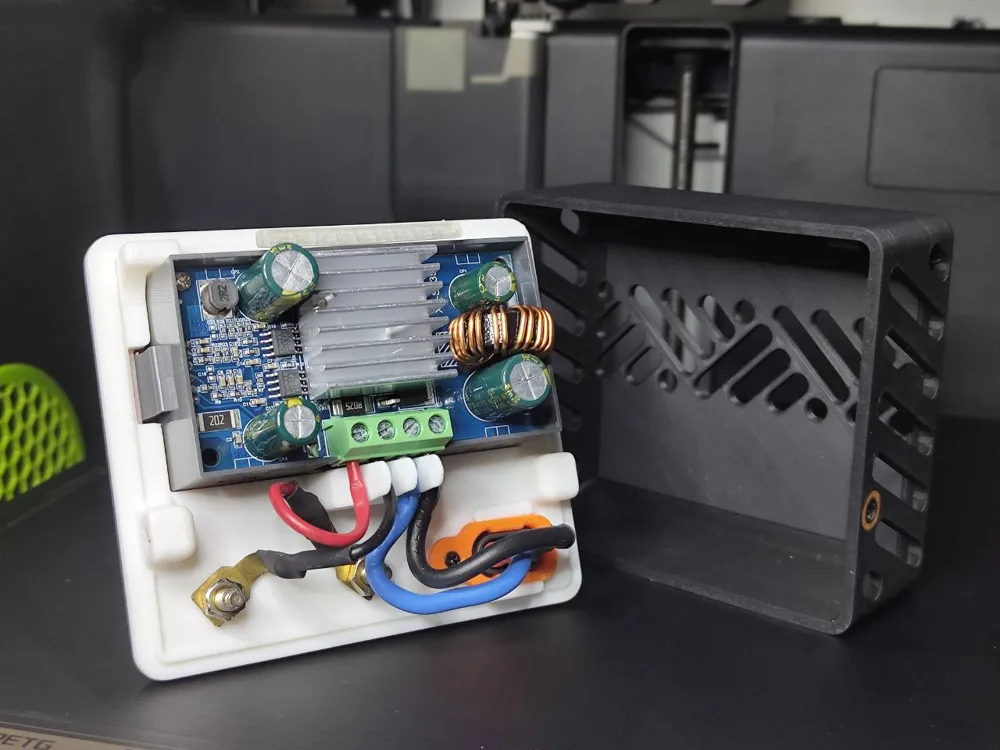

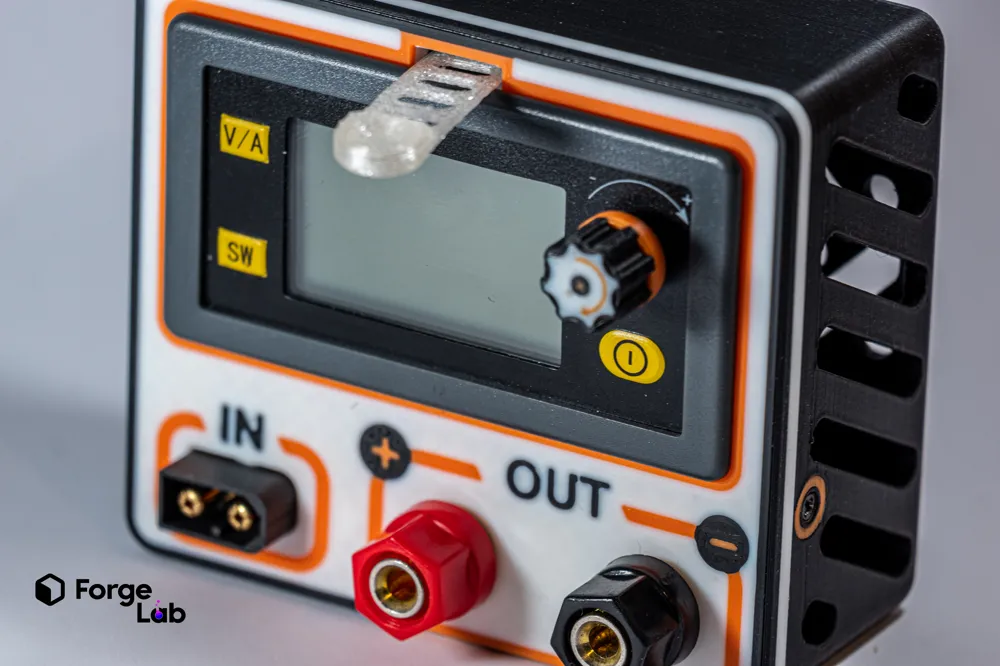

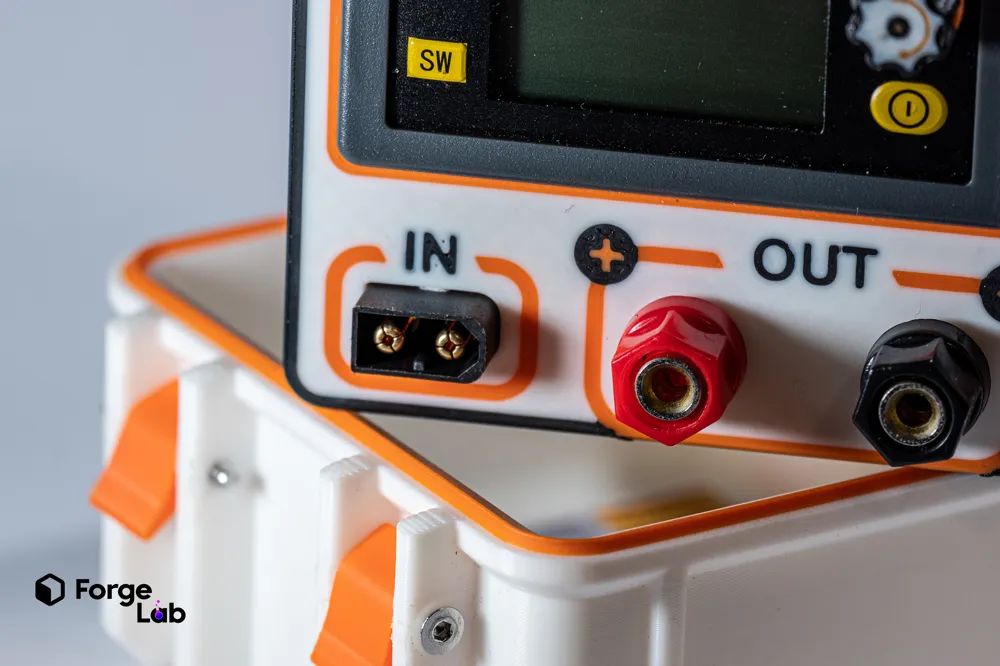

You have to place the hated inserts on the front panel of the case then mount on the front panel the banana screw terminals, and plug them in the Output of the converter, then screw (shorter m2) the clip of the xt60 to keep the xt60 in place and connect it to the input of the converter. then you have to screw all the bolts in the holes.
