Coin Holder / Coin Vise
Print Profile(2)
Description

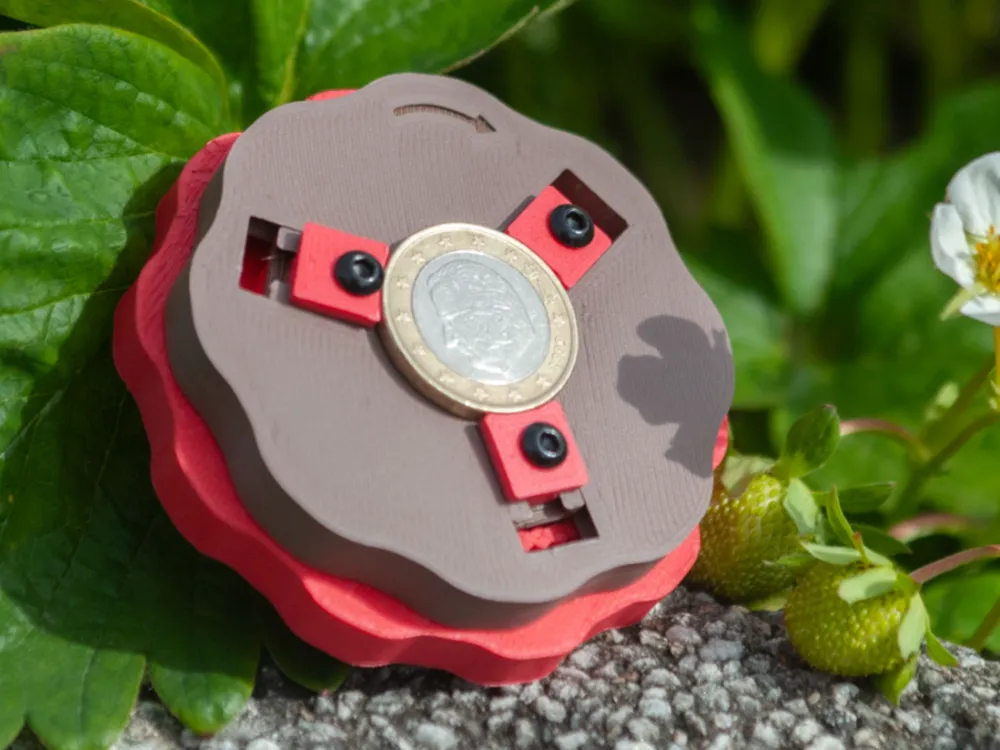

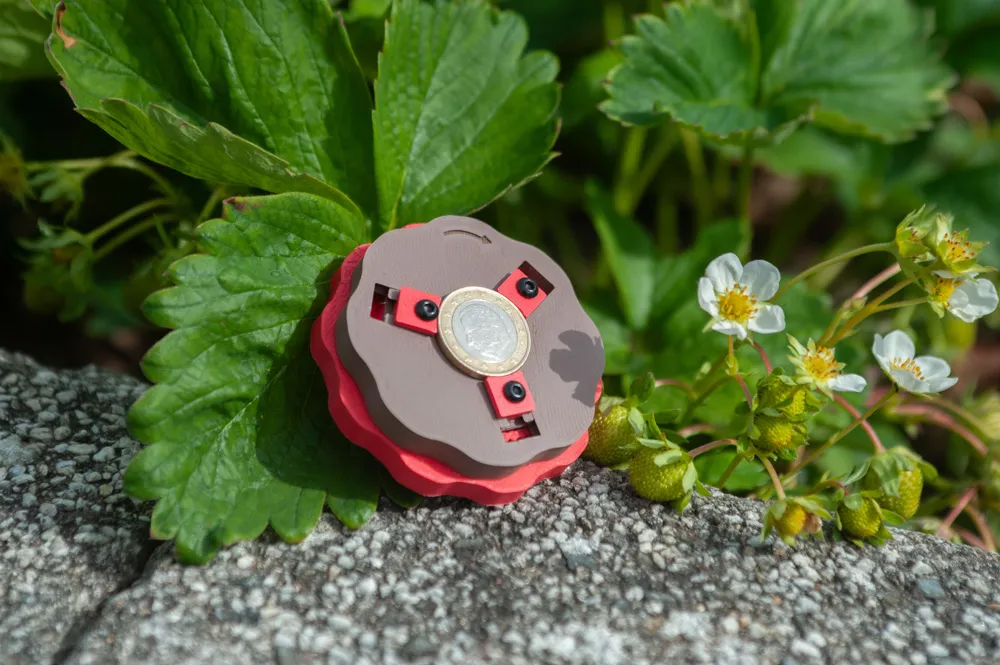

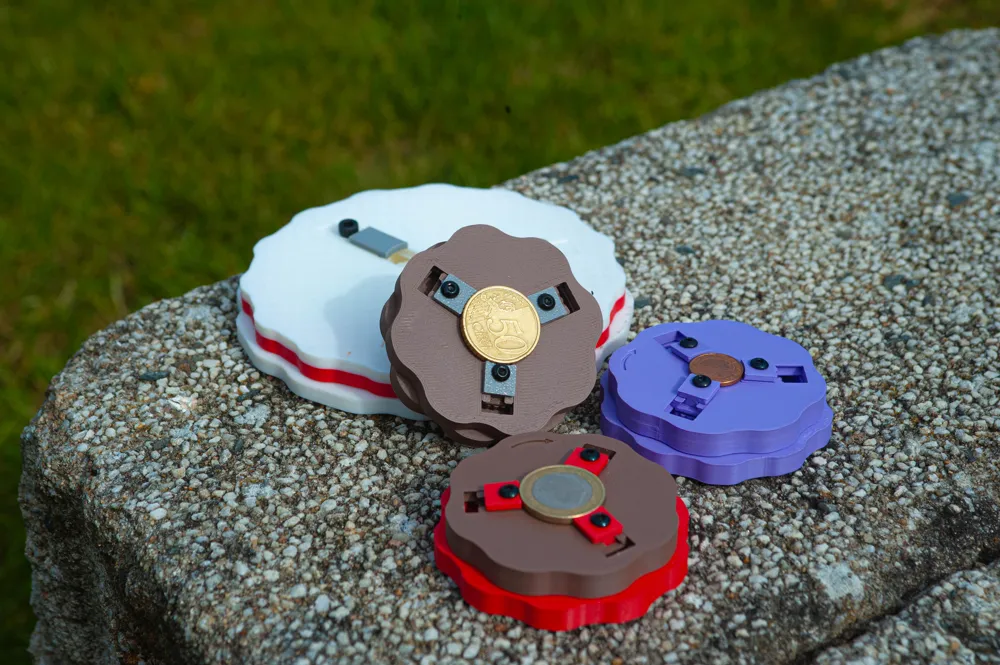

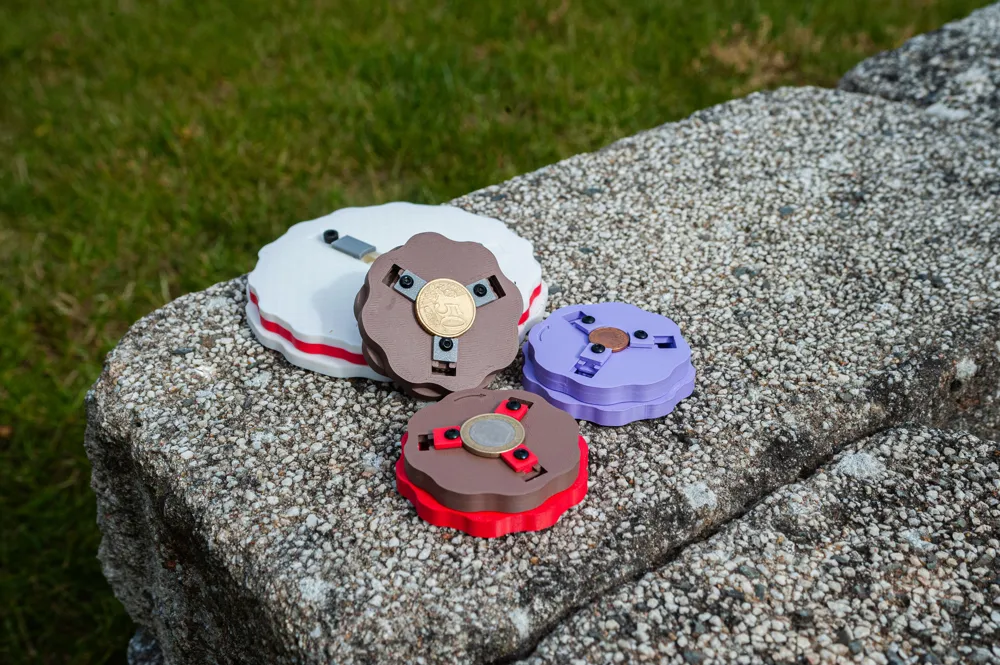

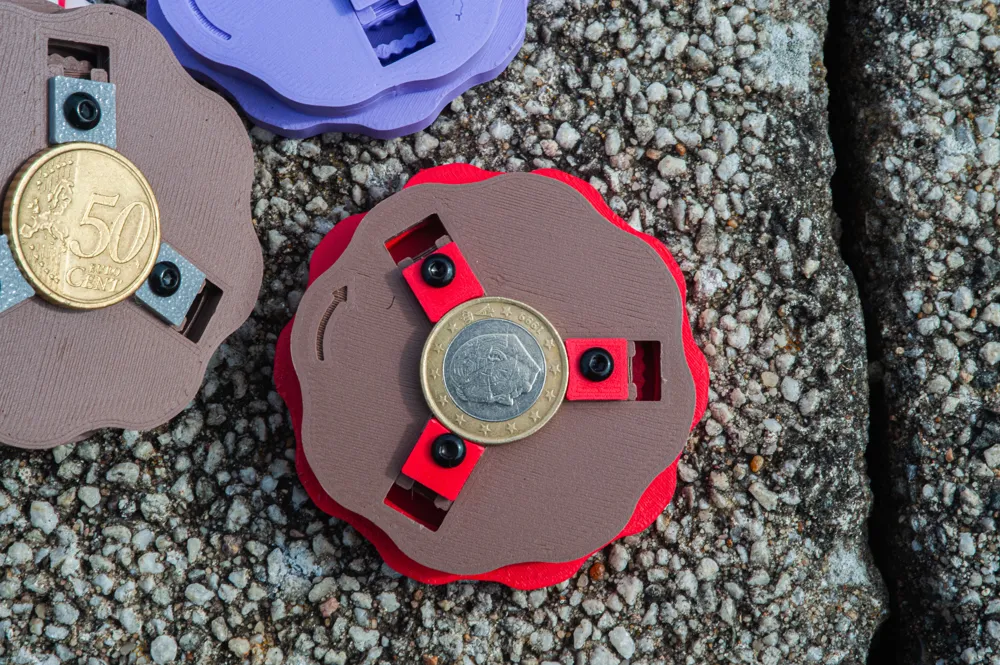

This is a rotatable vise for clamping coins or other round objects. Ideal for cleaning or examining them. A perfect gadget for metal detectorists to clean their finds.
Assembly:

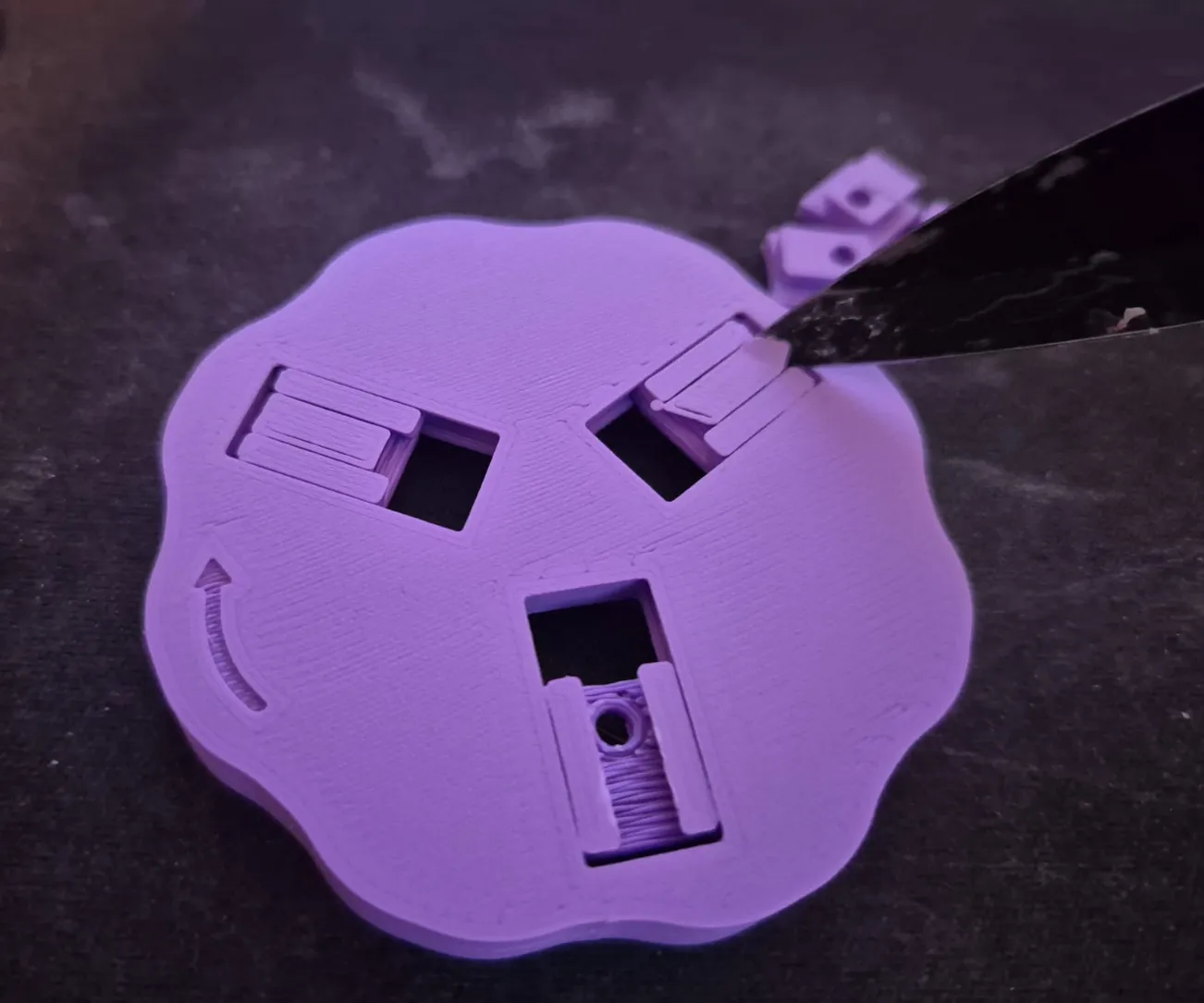

- Remove the supports from the top plate
- Place the top plate at an angle onto the bottom plate, ensuring the scar aligns at this point.

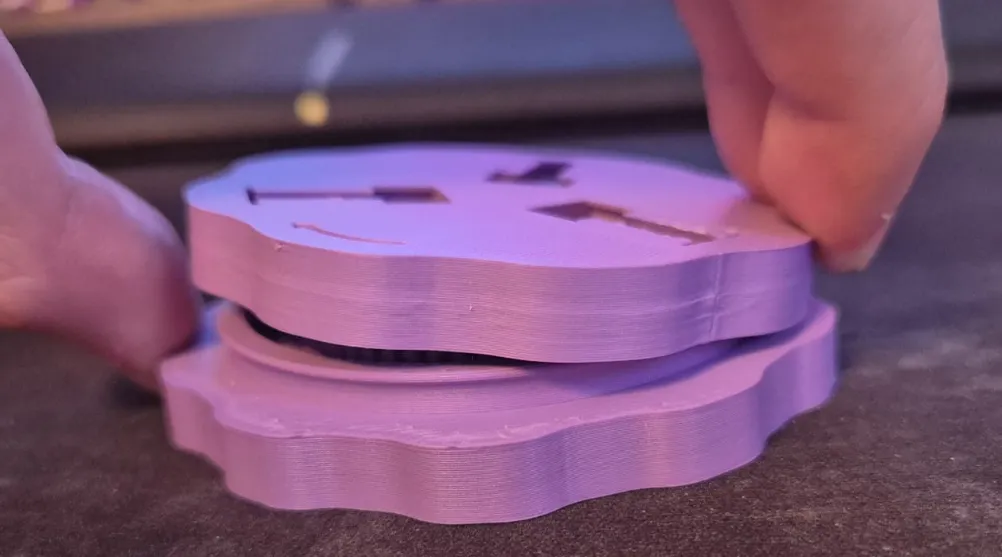

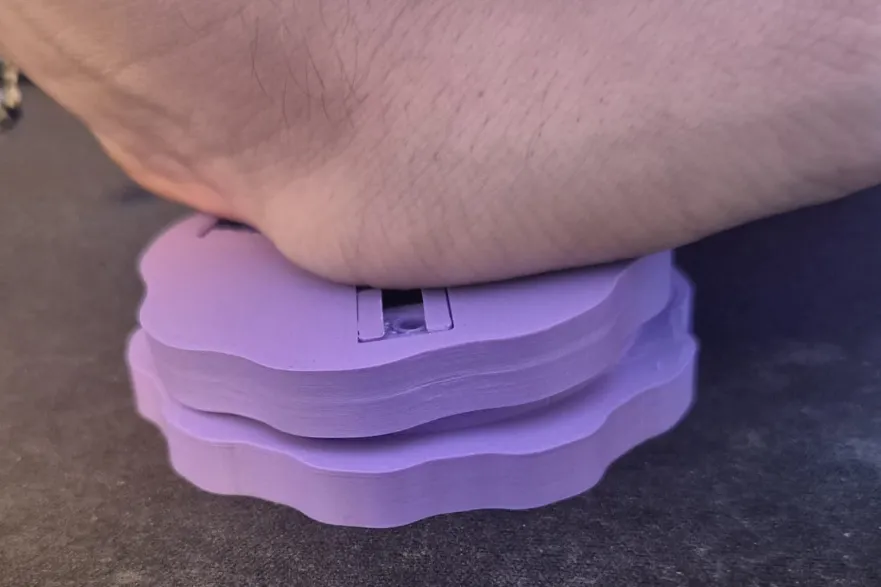

- Press firmly on the top plate; significant pressure is required to insert the two parts.

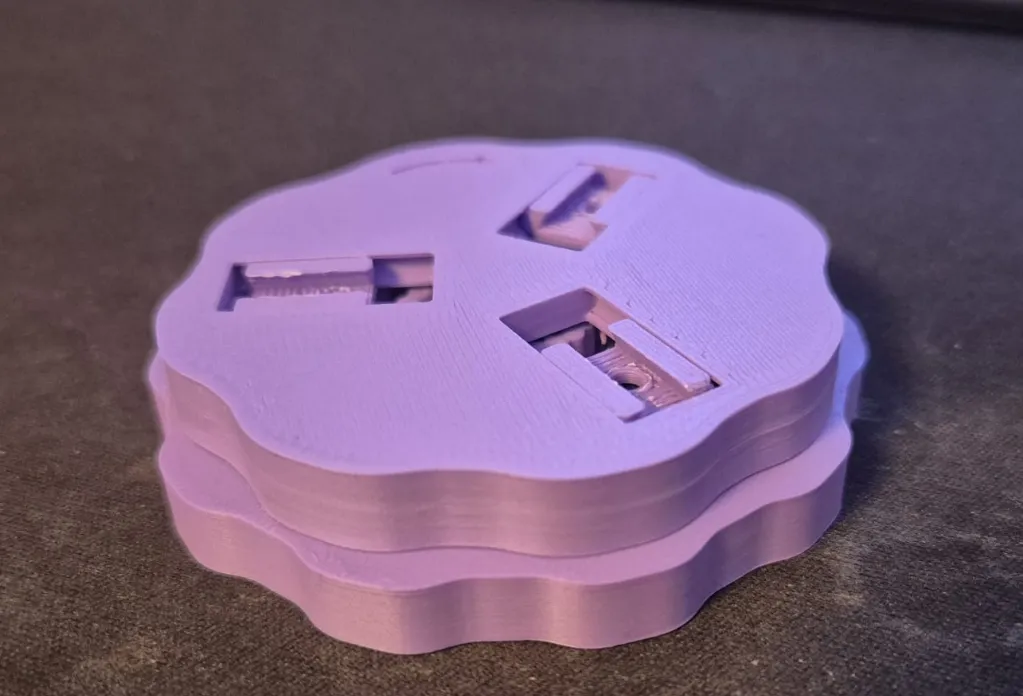

- With a click, both parts are united and can move freely.

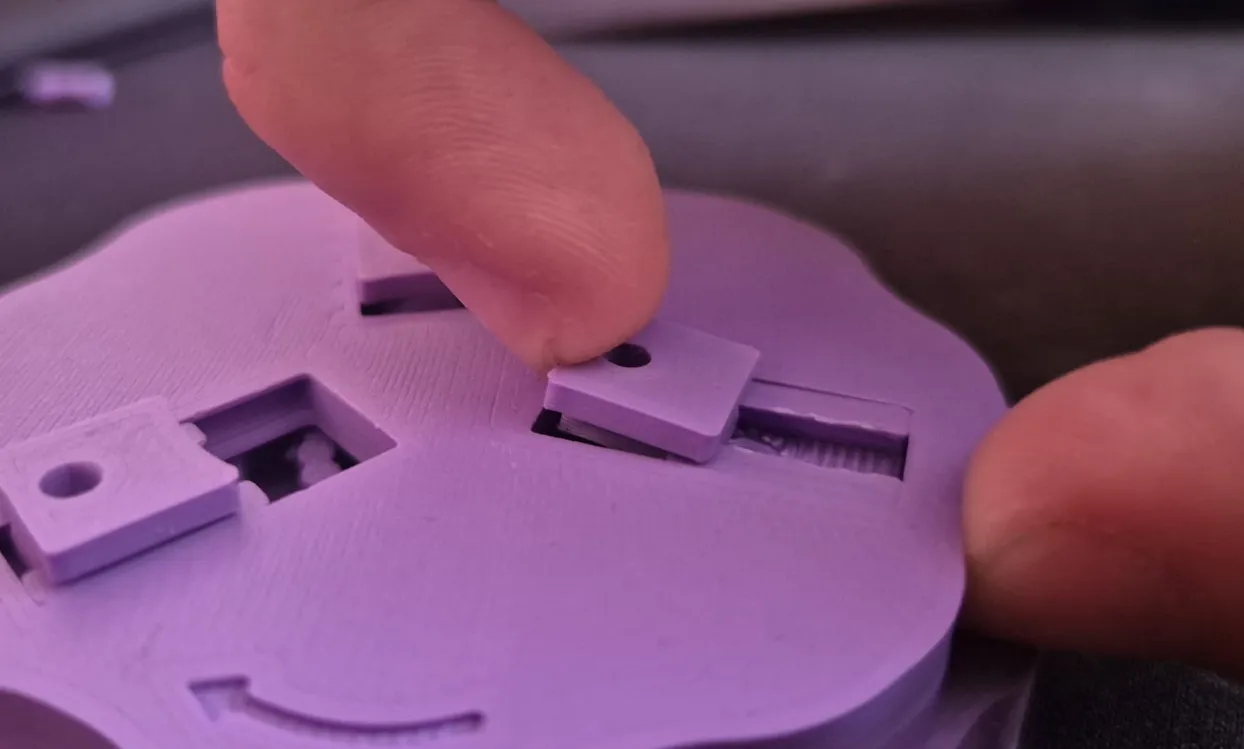

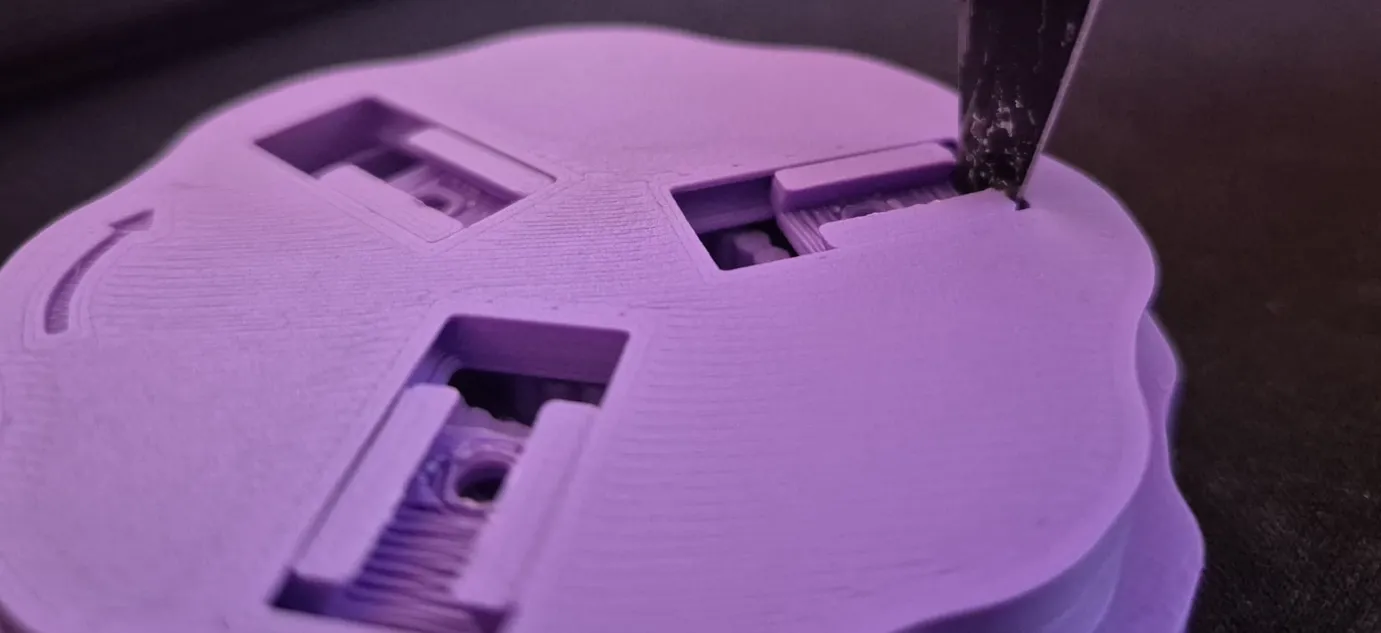

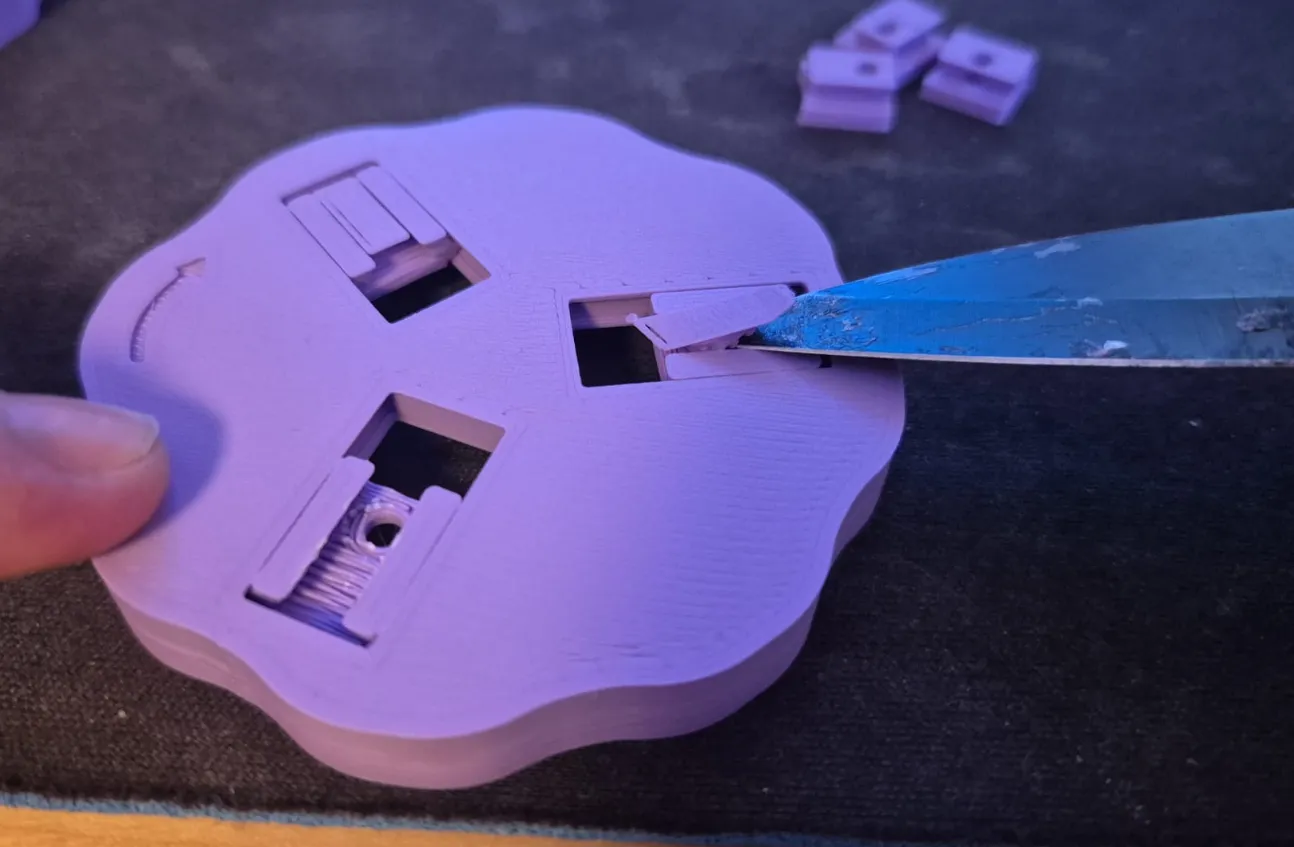

- Release the moving parts from the top plate by pressing the parts towards the center.

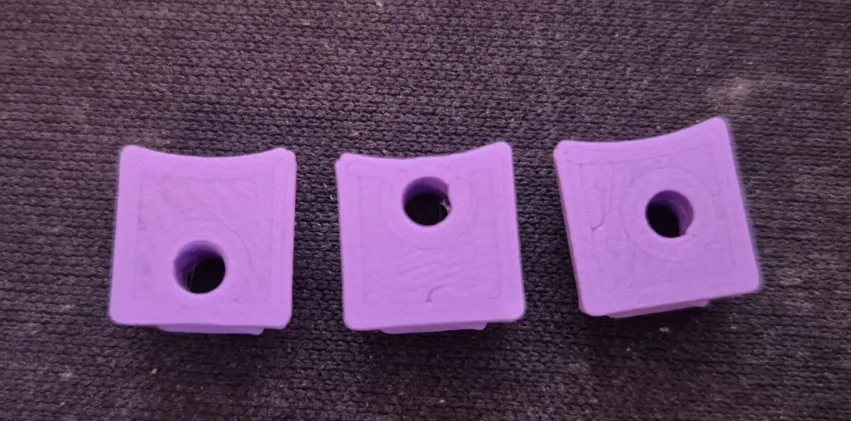

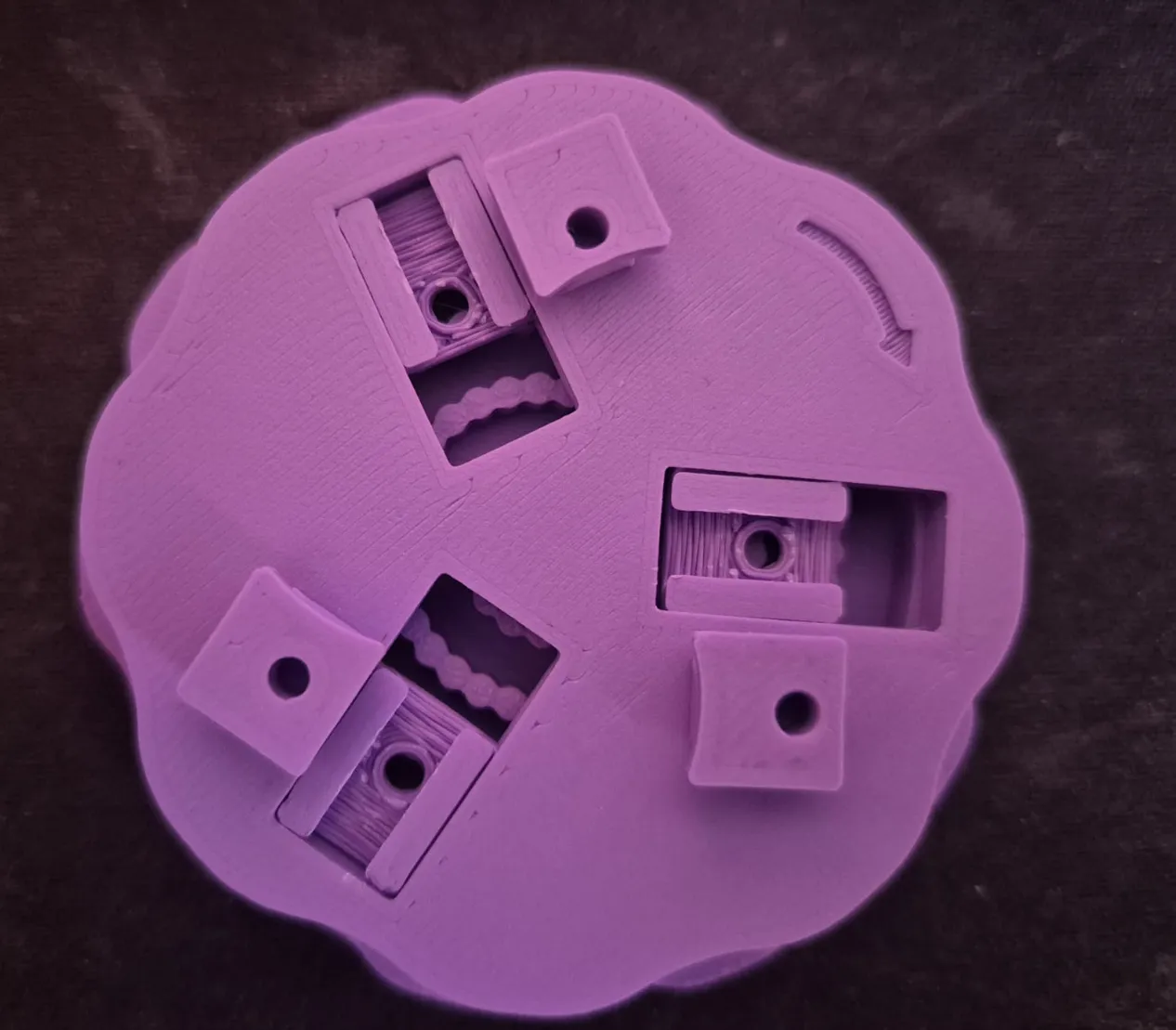

- Insert the attachments into the grooves of the moving parts
- Note: Each attachment belongs to one part, and the holes must match

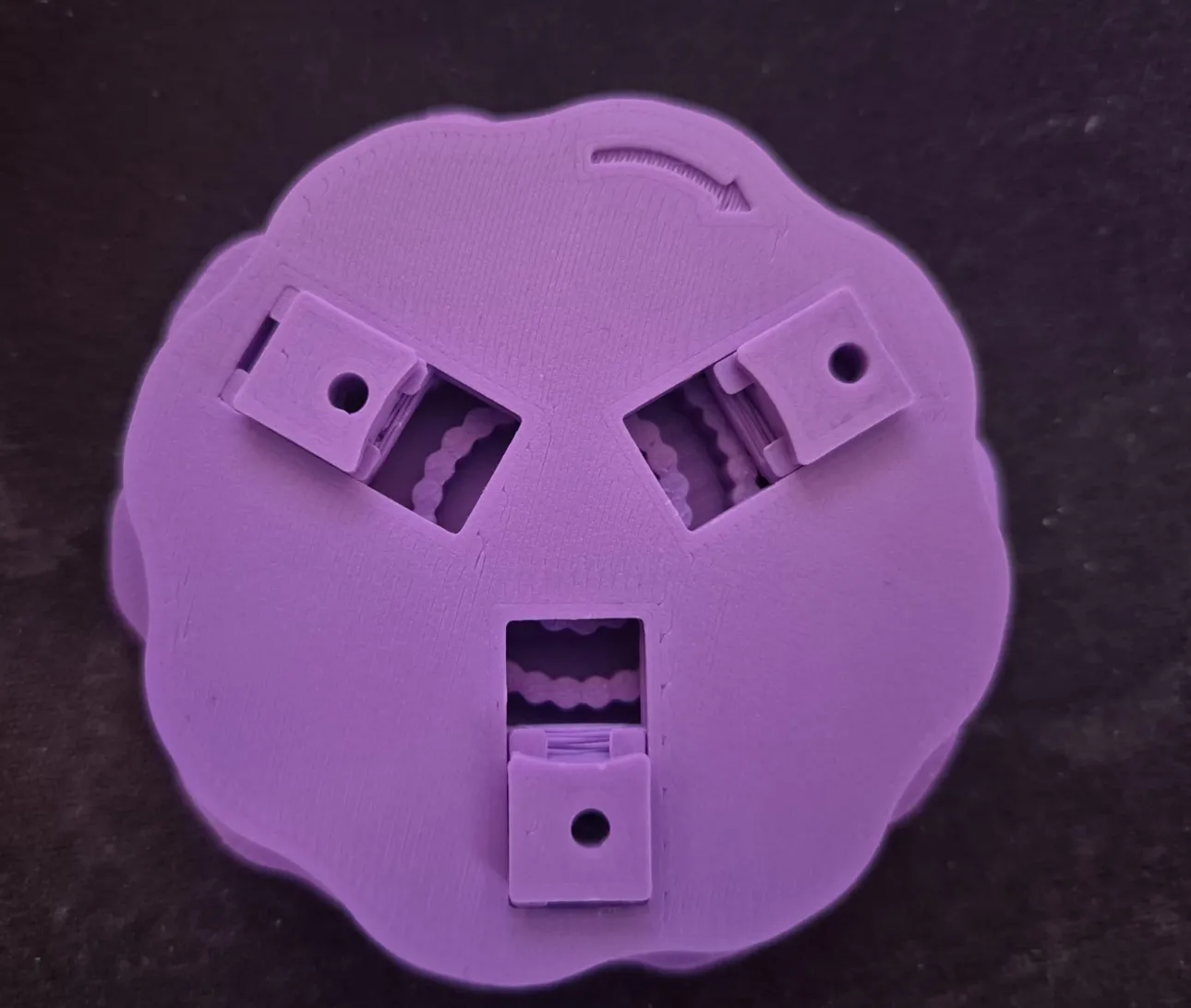

- Position all moving parts, ensuring the holes align.

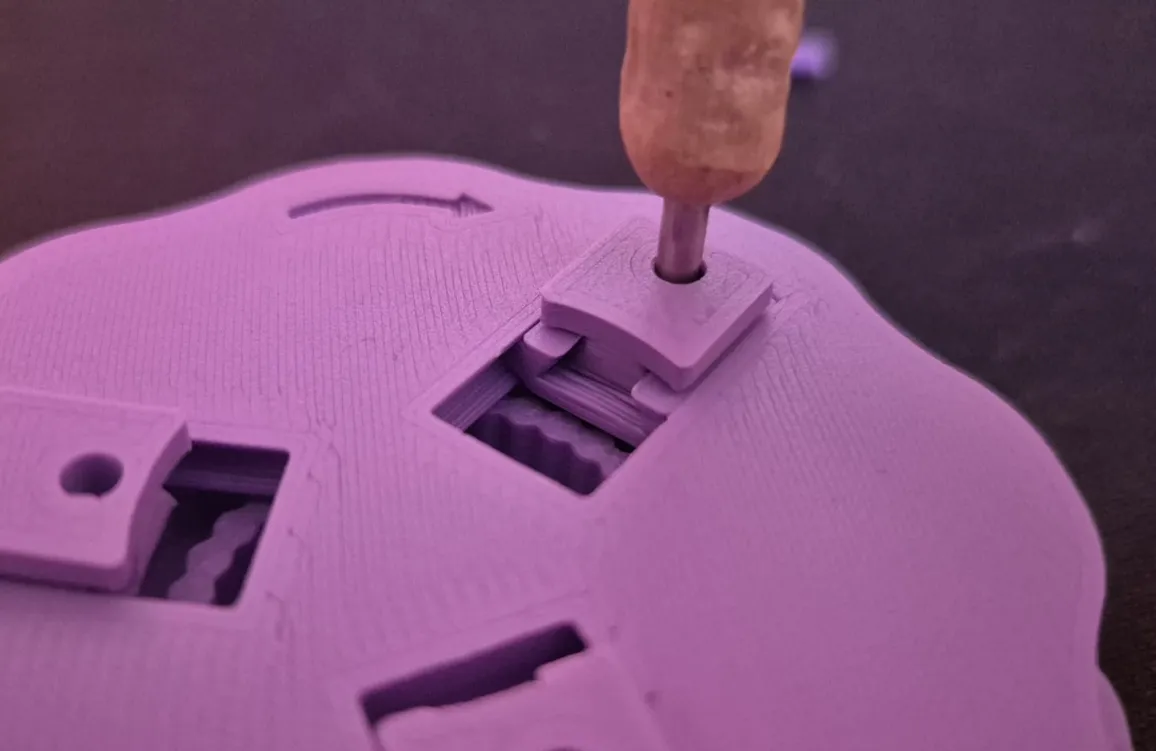

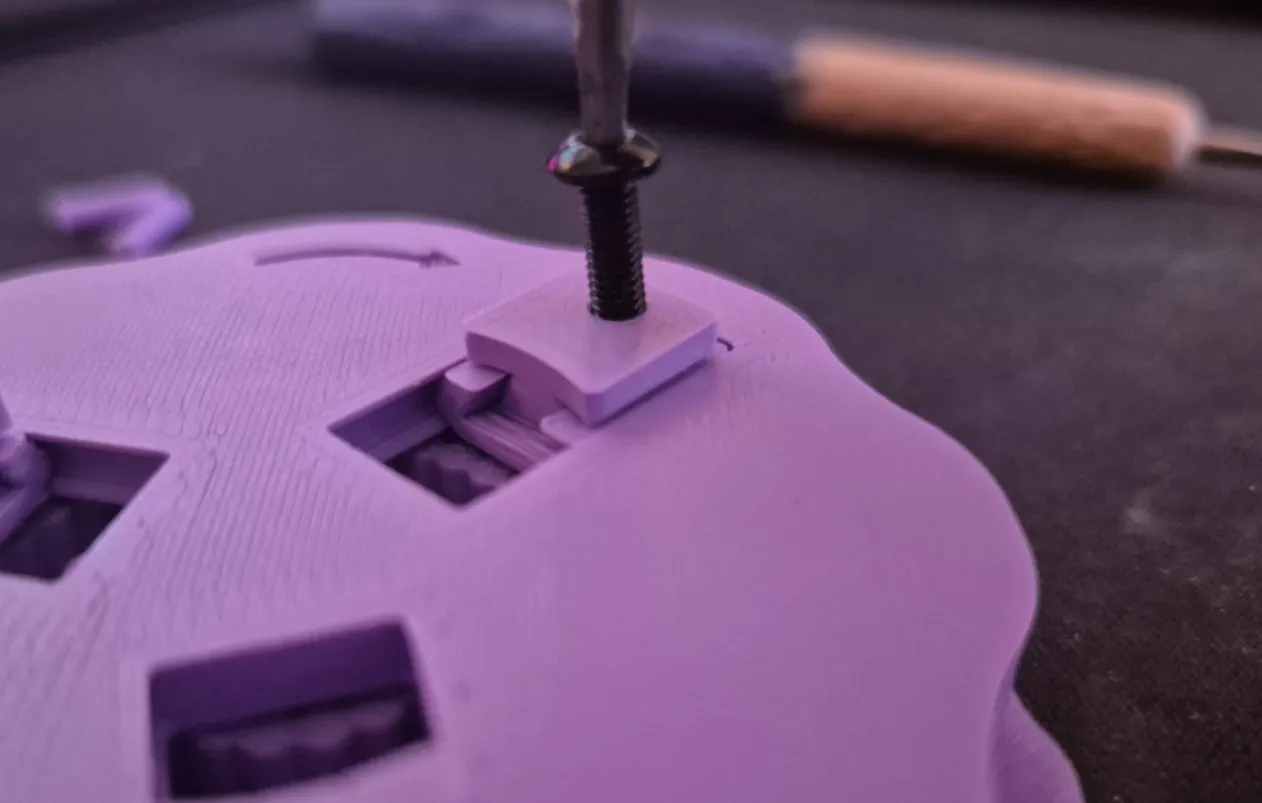

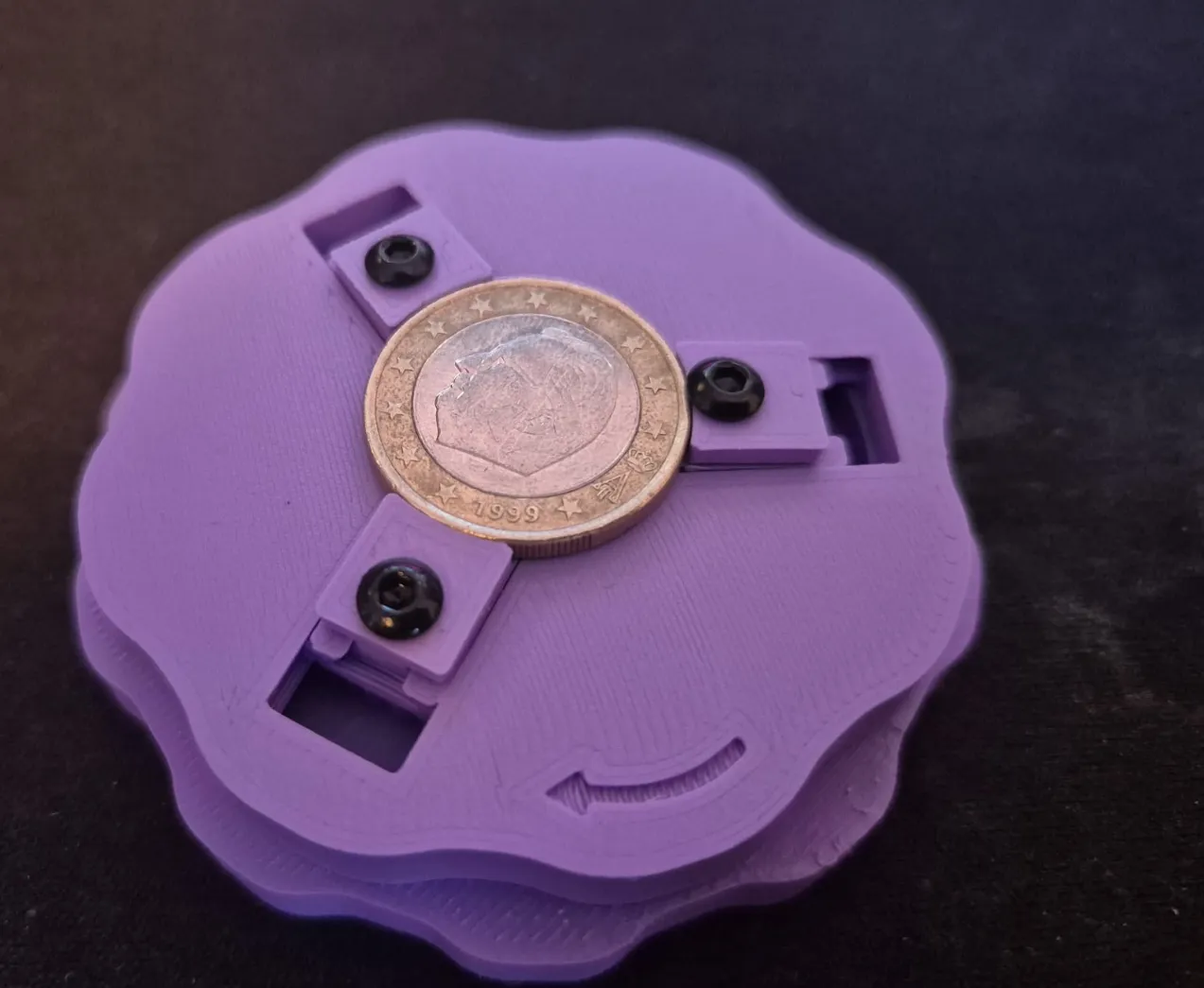

- Screw M3 (8mm) screws through the holes or the printed pin.
If the rings do not rotate easily, slightly unscrew the screws, rotate the rings a little, and then screw them back in.
