PCB holderSolder Station Part placement / holding
Print Profile(2)
Description

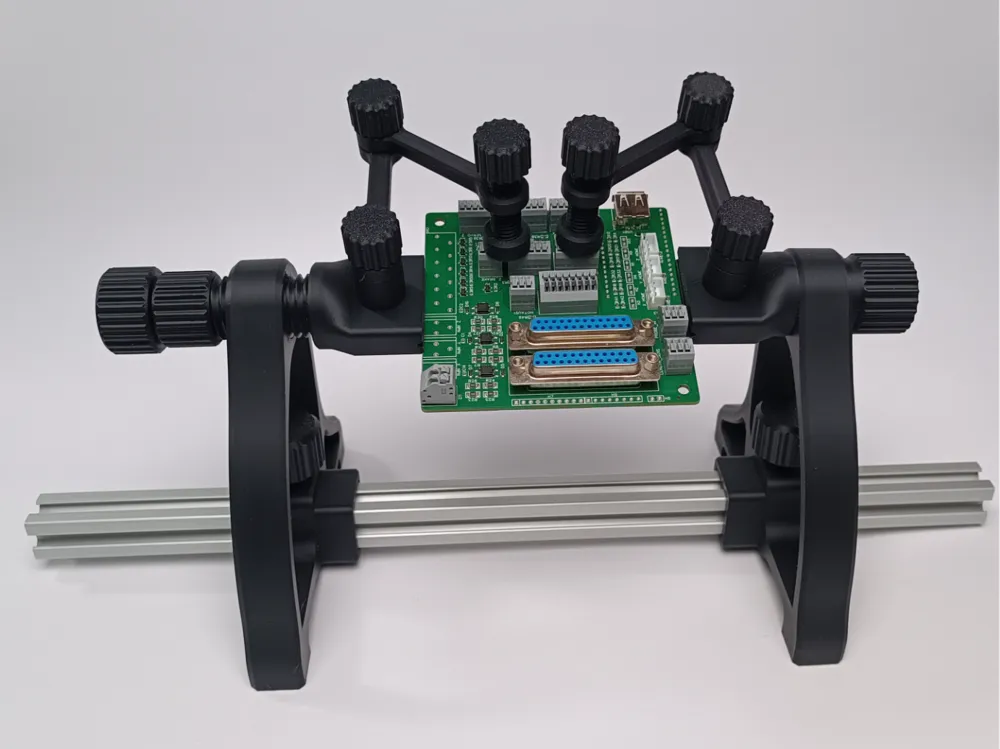

I have developed this PCB holder especially for soldering through hole components. The holder can hold the PCB as well as hold down the component while you spin the pcb upside down to solder the pins.
The holder is completely 3D printed apart from the 2020 aluminium extrusion that the main parts slide on. A 300mm long extrusion gives you about 170mm of clamping width. Of course you can go as bigger or smaller depending on your needs.
I made a quick video that shows the assembly process:
Boost Me (for free)
If you like the design and find it helpfull please consider leaving a Boost. It would help me a lot to create and prototype these kinds of designs. THANK YOU!
