Multi-tool Organizer: H7 Lamp and Automotive Inserts Case

H7 Multi-Tool Organizer: Compact and Functional

Short Version

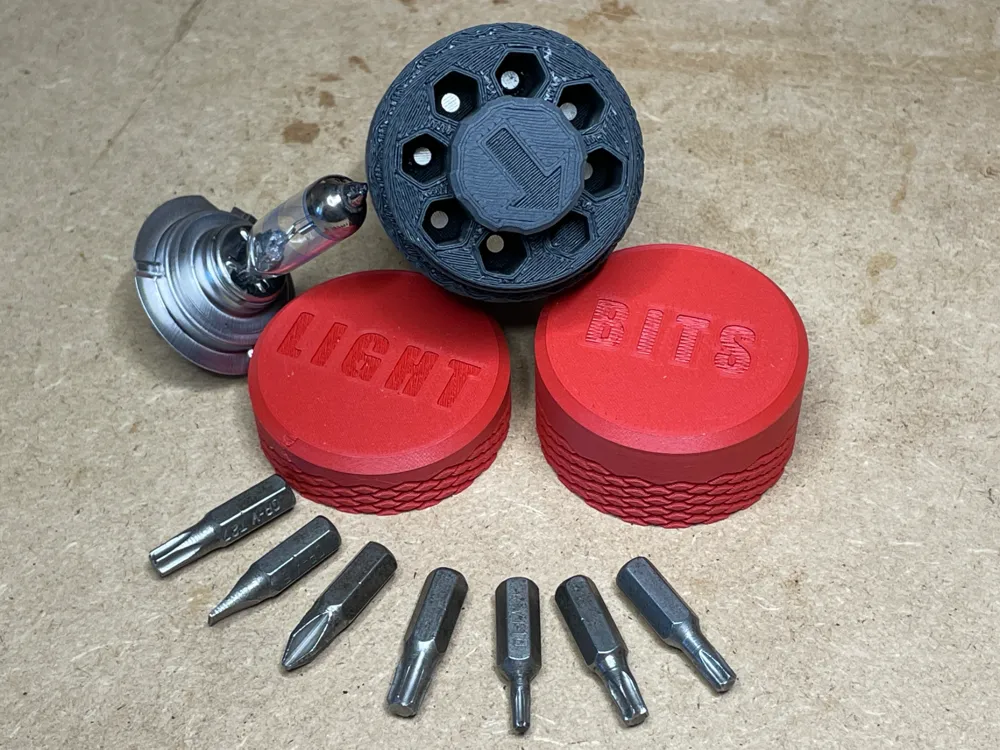

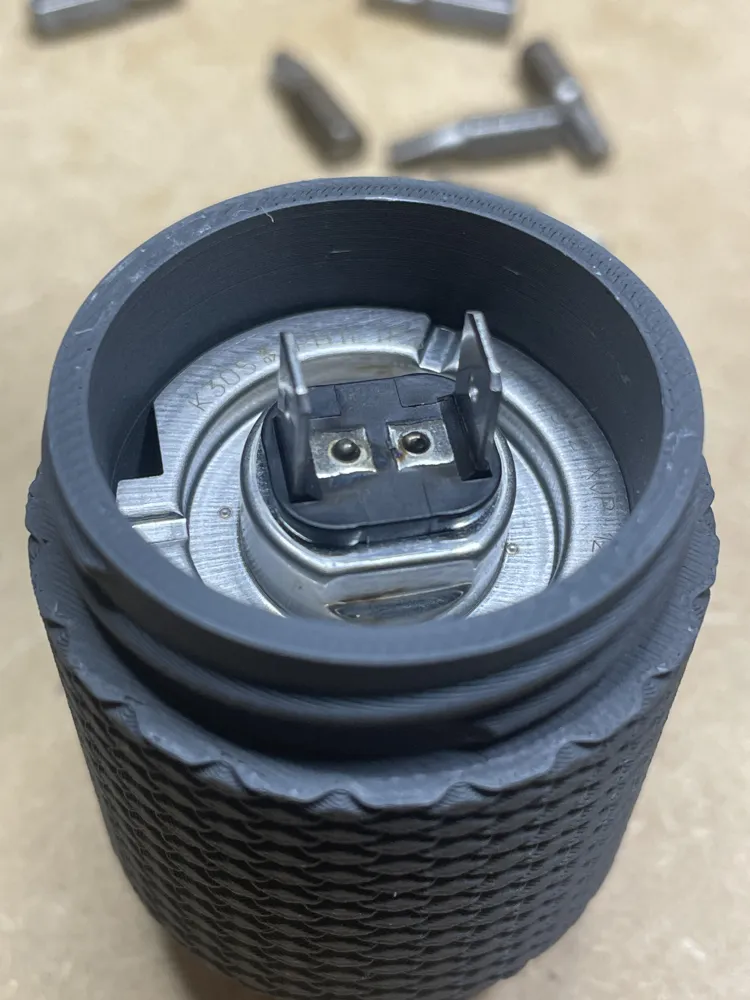

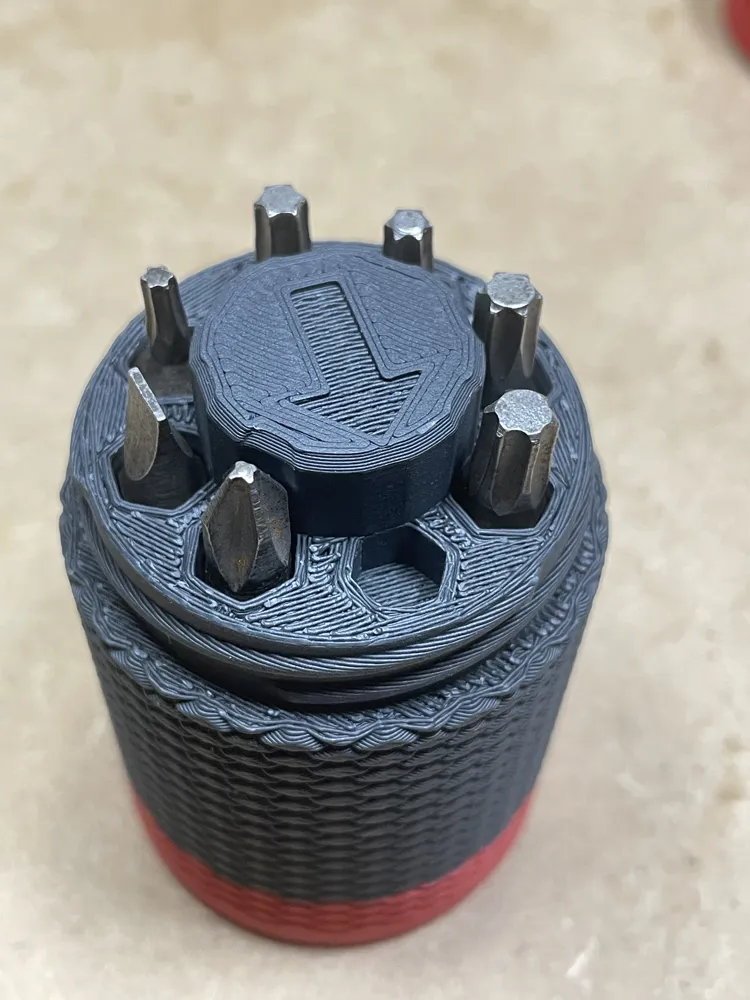

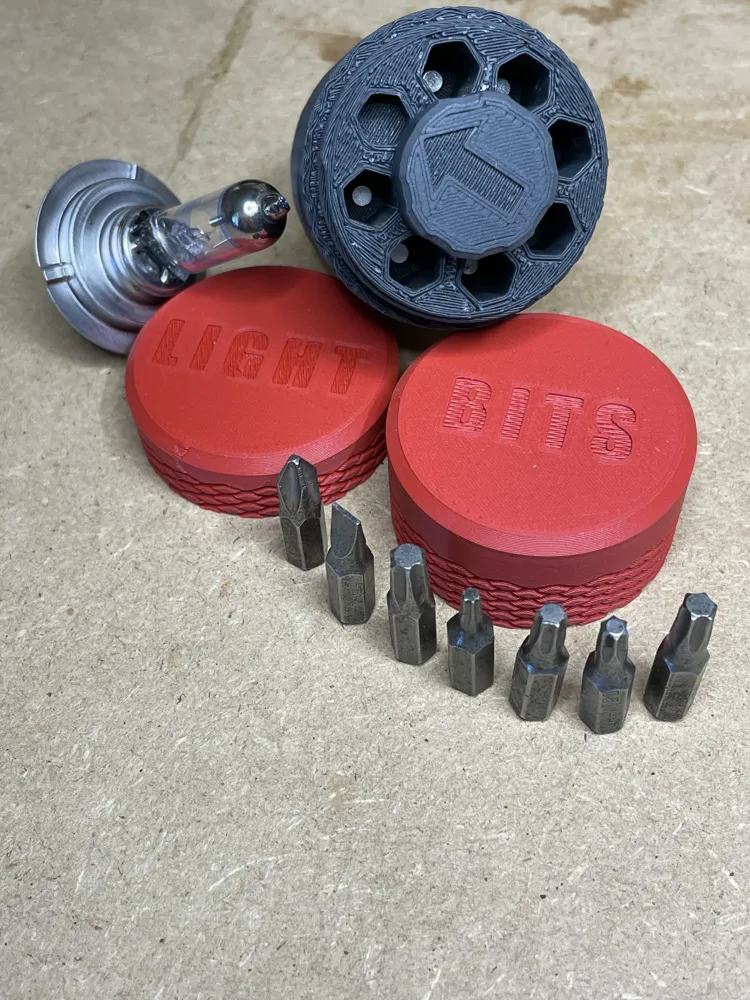

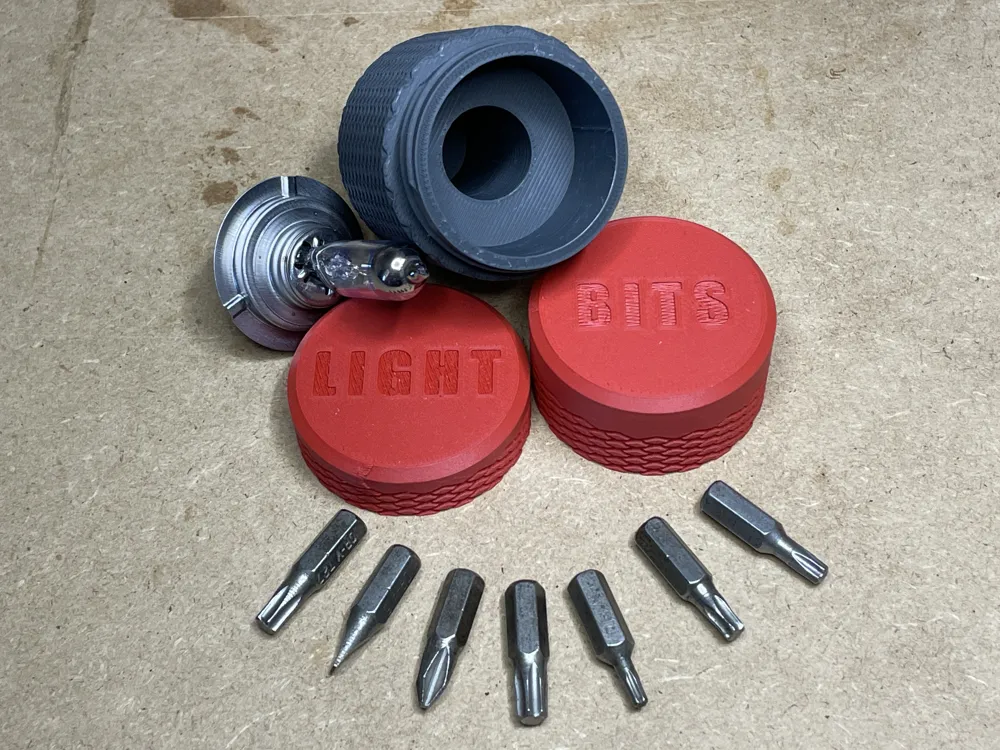

An intelligent organizer designed to safely store a spare H7 lamp and a collection of seven inserts. Perfect for those seeking a compact solution that combines protection and practicality: the standard H7 halogen lamp is housed in the center, while seven 25mm x 6.3mm inserts fit into their designated spaces.

Project History

Every motorcyclist knows this truth: space is as precious as gold. During my travels, I always carry the essential tools to deal with minor roadside mishaps, and among these is a fundamental element that can never be missing: the spare H7 lamp.

The problem? Halogen lamps are as fragile as crystal. An accidental bump in the backpack was enough to transform my safety into useless shards. Adequate protection was needed, but the generous circumference of the lamp required a rather bulky case.

The Idea

Instead of wasting all that precious space, I thought: “Why not make the most of it?” This is how this multifunctional organizer was born. The space around the lamp becomes home to a series of perfectly organized inserts, always ready to use and never lost in the chaos of the tool bag.

Organization is everything when you're on the road: in an emergency, every second counts and you can't afford to search for the right tool in the dark or in the rain.

Smart Technical Details…or at least I try :-)

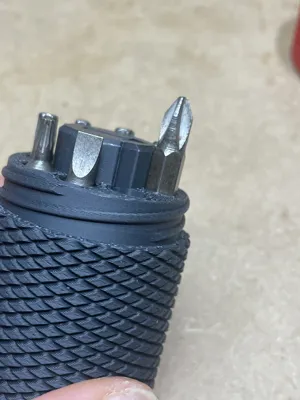

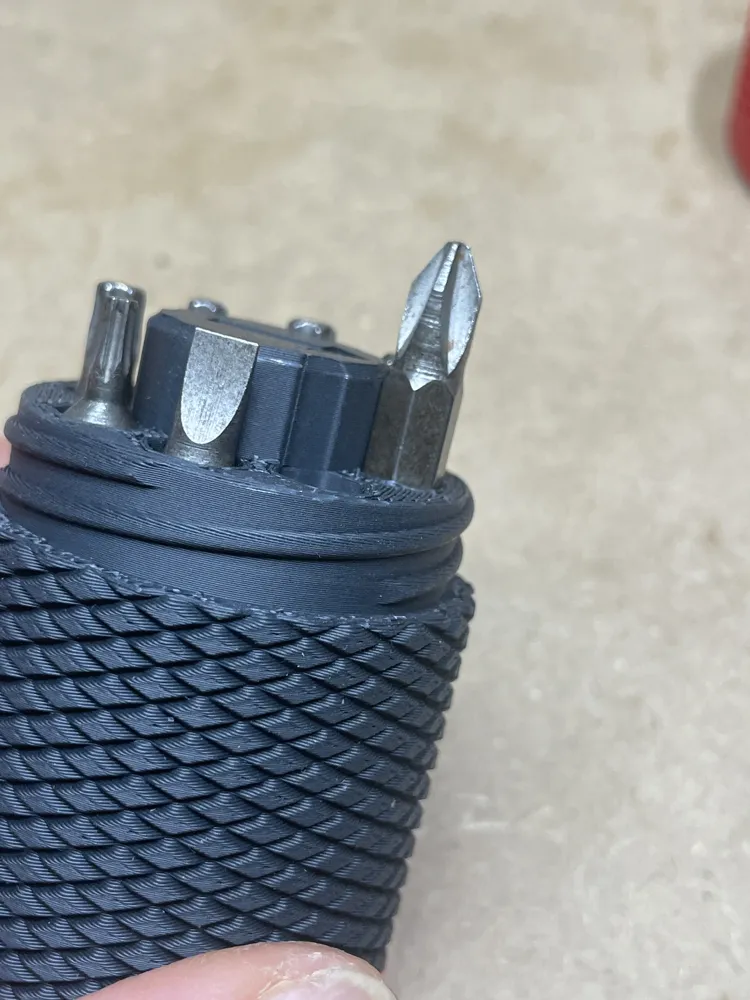

The magnet touch: A small magnet on the bottom (optional but recommended) transforms the organizer into a magnetic safe that retains the inserts even during an accidental overturning of the toolbox, because the seat that holds the inserts is wide enough to extract them with extreme ease. We all know how annoying it is to handle objects with greasy hands.

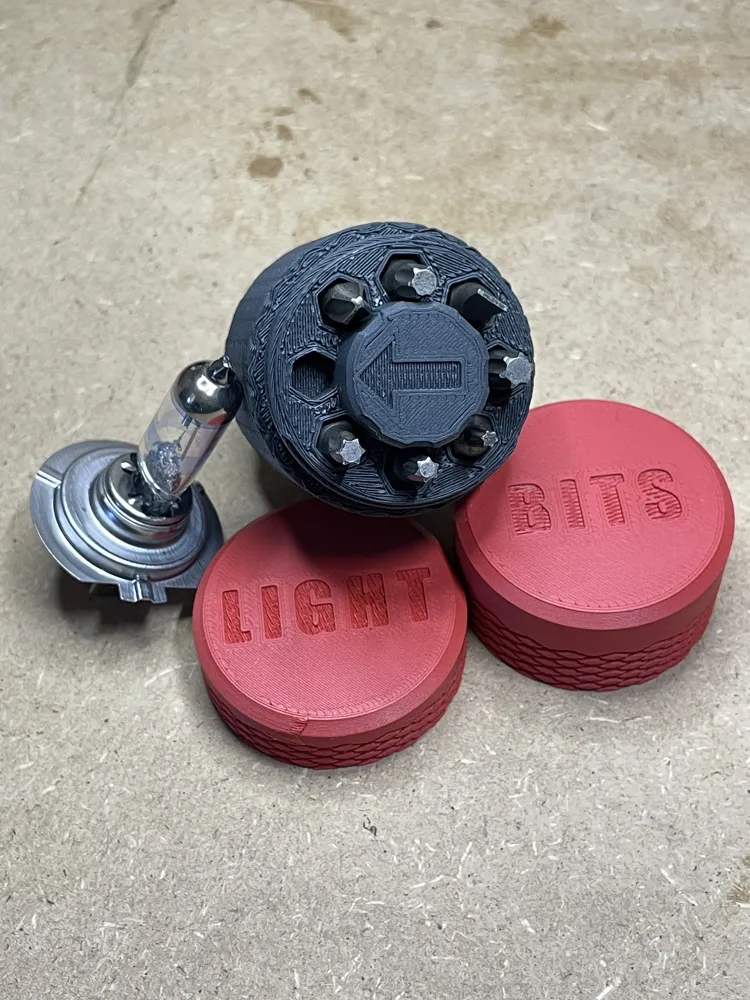

Emergency function: One housing has been “sacrificed” with a lower negative extrusion than the others to transform the organizer itself into an emergency key. Don't expect miracles of torque, but when you're stuck on the road, even a temporary solution can save your day.

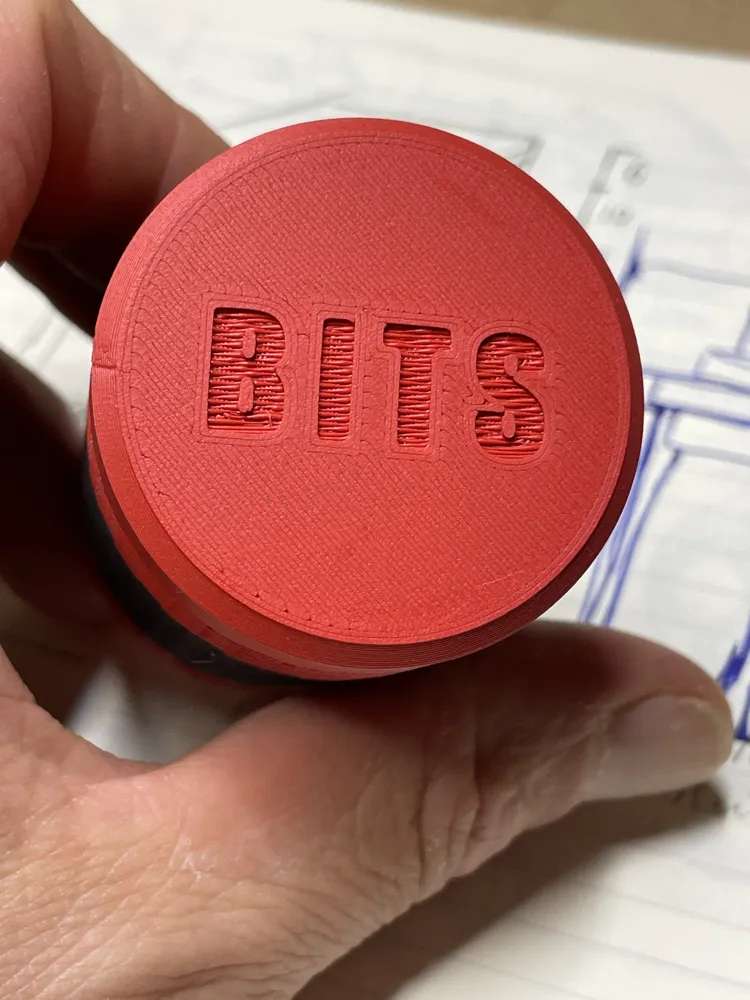

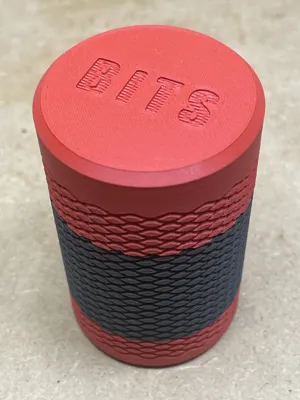

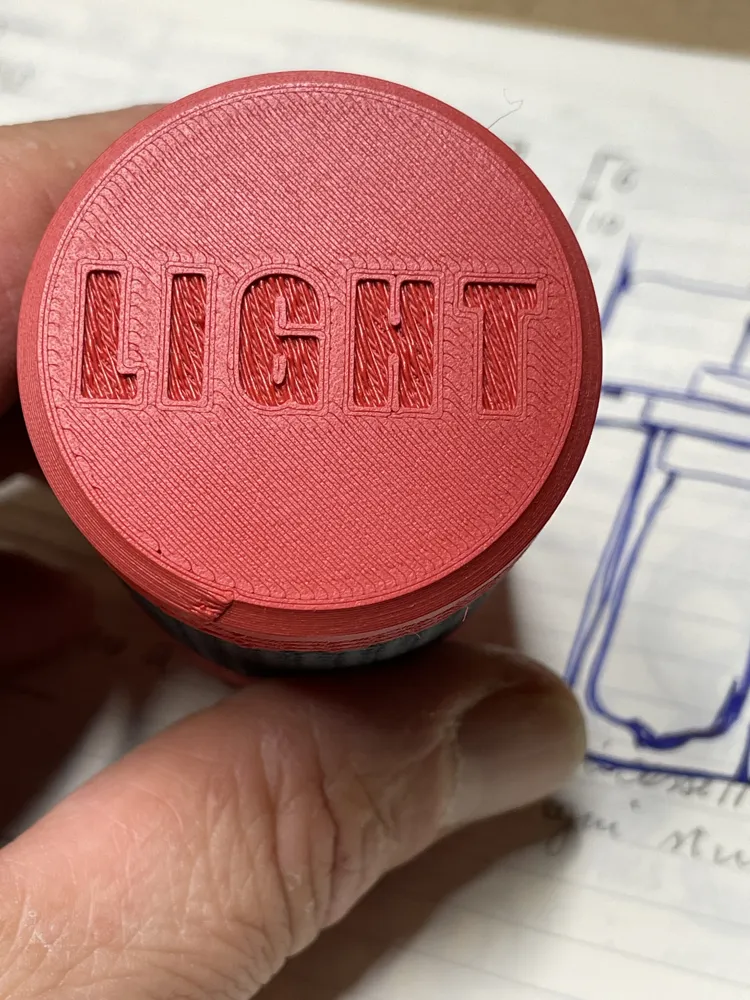

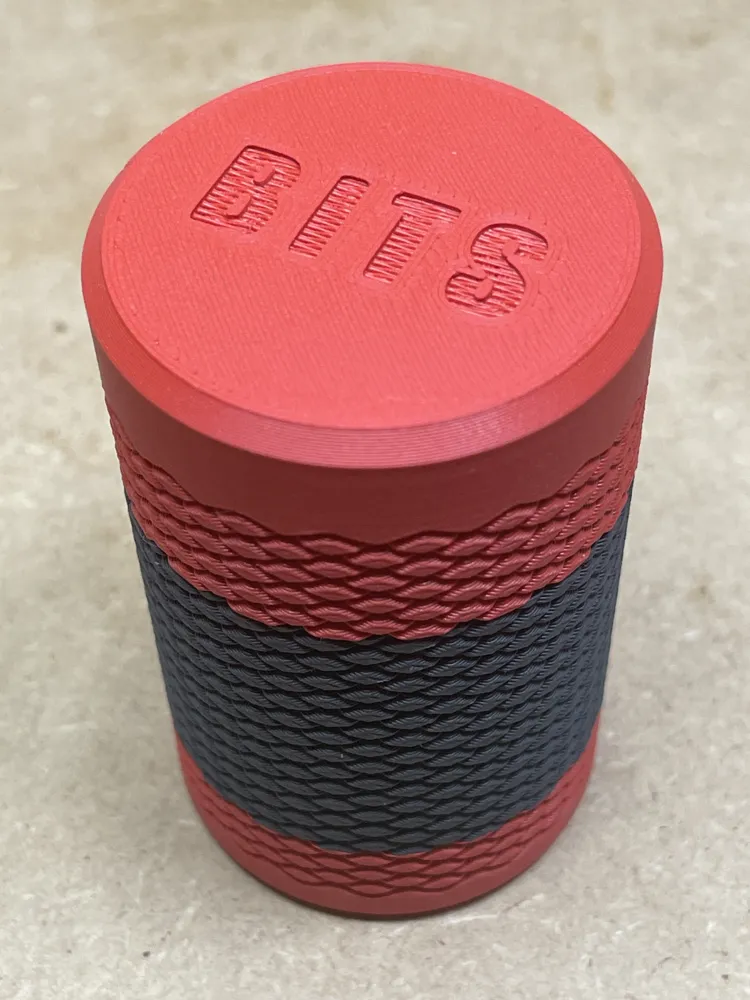

Studied design: The external texture is not just an aesthetic quirk - it significantly improves grip during use and, a non-negligible bonus, elegantly hides the printing seams that are always evident on cylinders. Furthermore, I wanted to learn how to design them. To finish, two 0.5mm negative extrusions on the caps “emboss” the name of what they contain.

Technical Notes for Printing

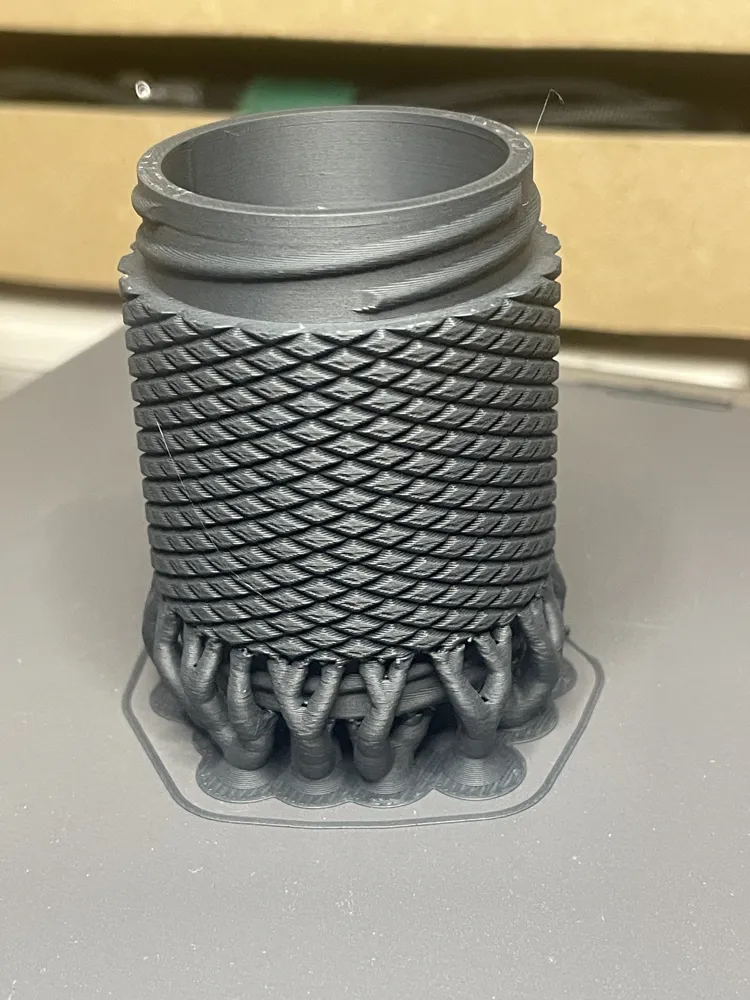

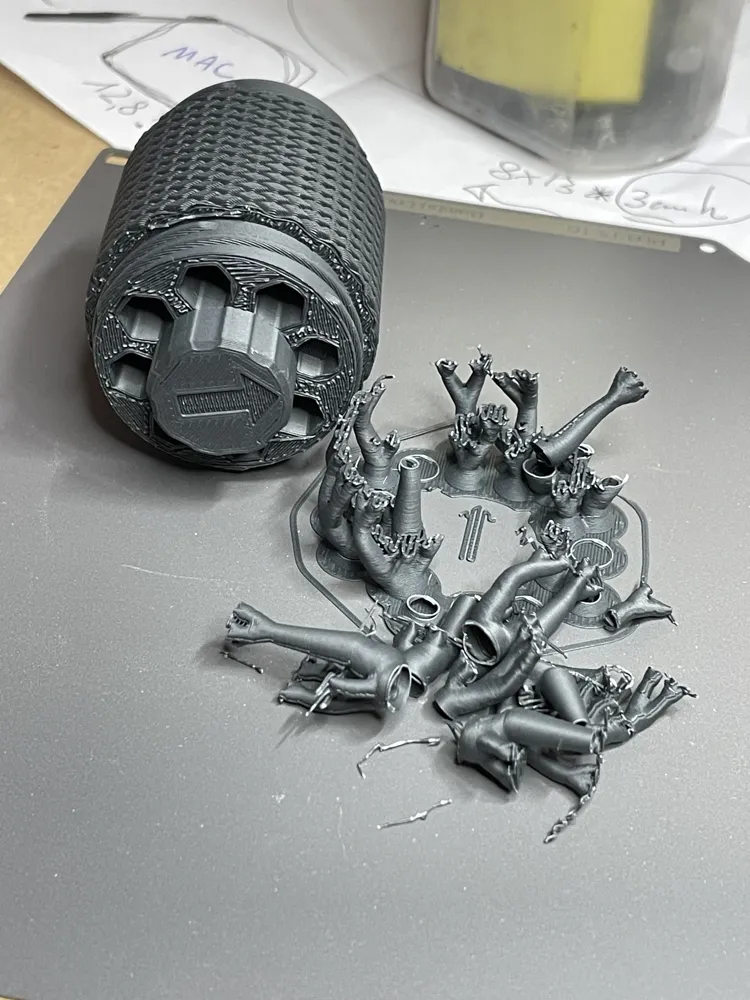

The central body requires supports for printing. A little tip from maker to maker: be patient and let both the plate and the piece cool completely before removing the supports. Your fingers and the quality of the final result will thank you.

Conclusions

With 5-6 Torx sizes, this small arsenal covers most of the roadside maintenance needs of my motorcycle. For everything else… well, there are workshops! But until then, travel safely knowing you have everything essential in intelligently organized space.

In the future I plan to expand the project with other tool holders. Stay tuned!

I hope this solution can also be useful to you… have a safe journey everyone.
