Description

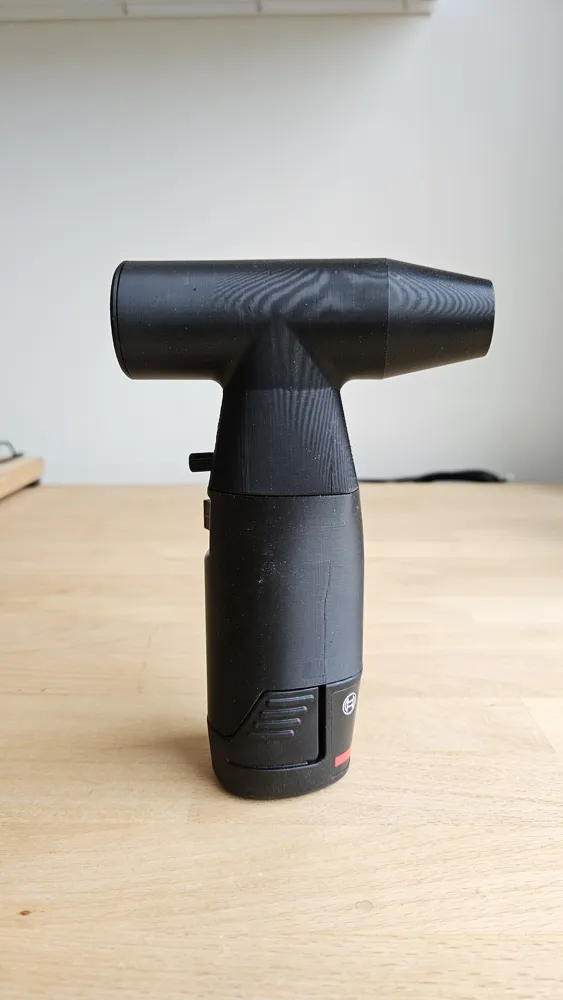

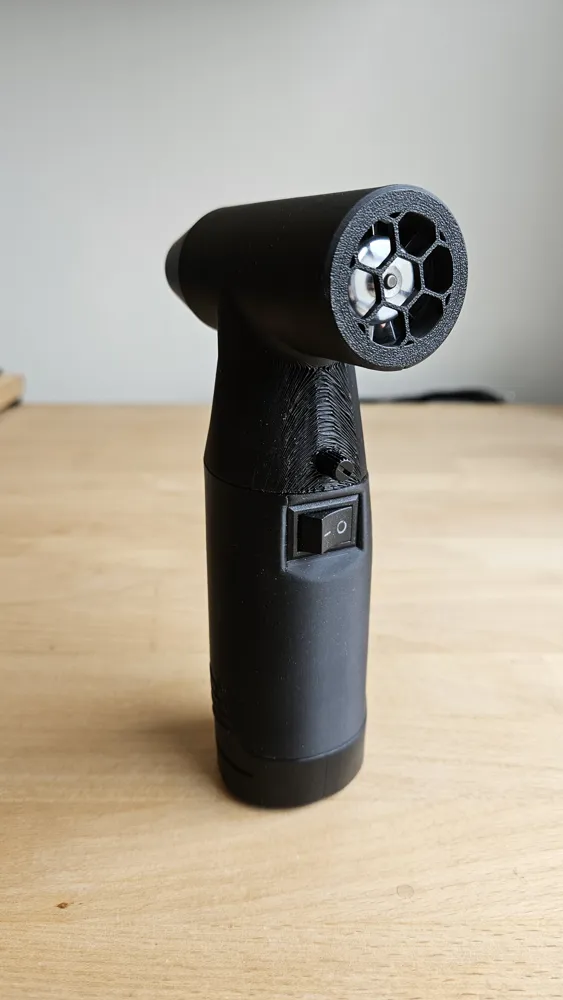

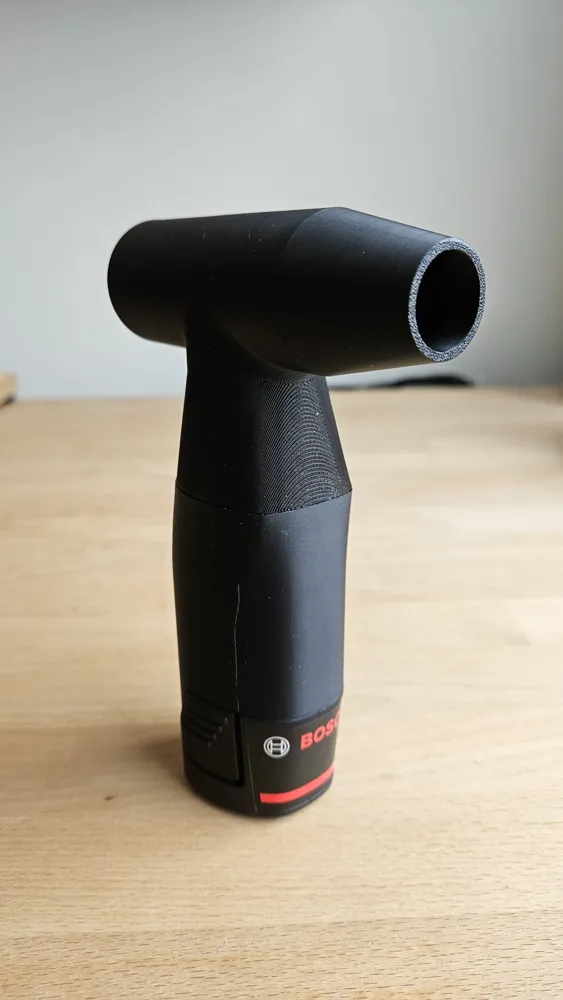

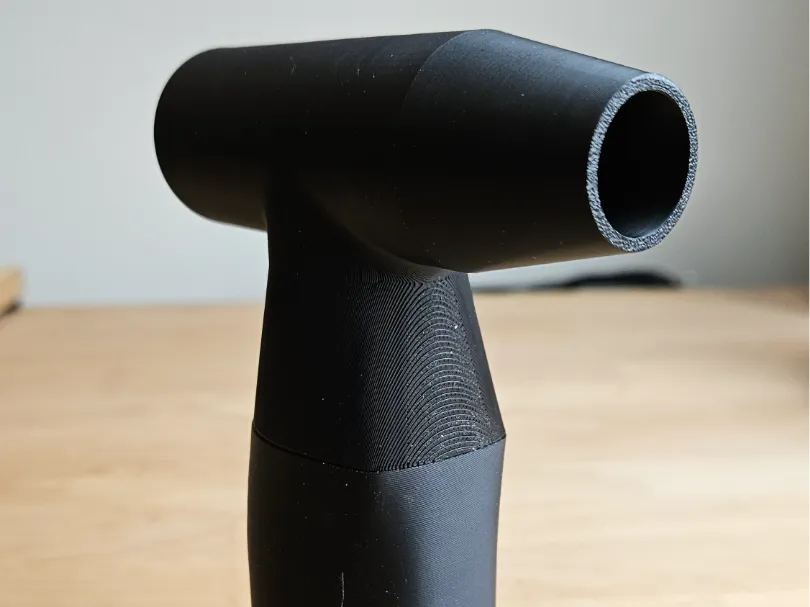

I found a 12v high speed fan on Aliexpress and wanted to do something with it. I already had the Bosch 12V battery so I remixed the model by Ksuszka to hold the battery and made the fan part on top my self. There exist also a version for the 12V Milwaukee battery.
Print settings
- 0.2mm layer height
- You will need supports for the battery holder and main body
- I printed it with ASA but PLA/PETG will work fine
You will need the following parts
- Fan 9-12V
- Switch 21x15mm
- 3x M3x12
- 2x 6.3mm spade connector
- Few cm of electrical wire
- Soldering iron
Assembly
- Tap the holes in the main body to m3
- Push the fan in to the main body (wiring first) against the little stops
- Route the wiring out the middle
- Crimp 1 spade connector with a wire to the switch
- Crimp the other spade connector to the negative of the fan
- Solder the positive of the fan to the switch
- I used some hot glue to hold the pot meter in place
- If everything works you can press/glue the fingerguard and nozzle in place
In case there are any issues with the Aliexpress links, below are some reference images and search terms.

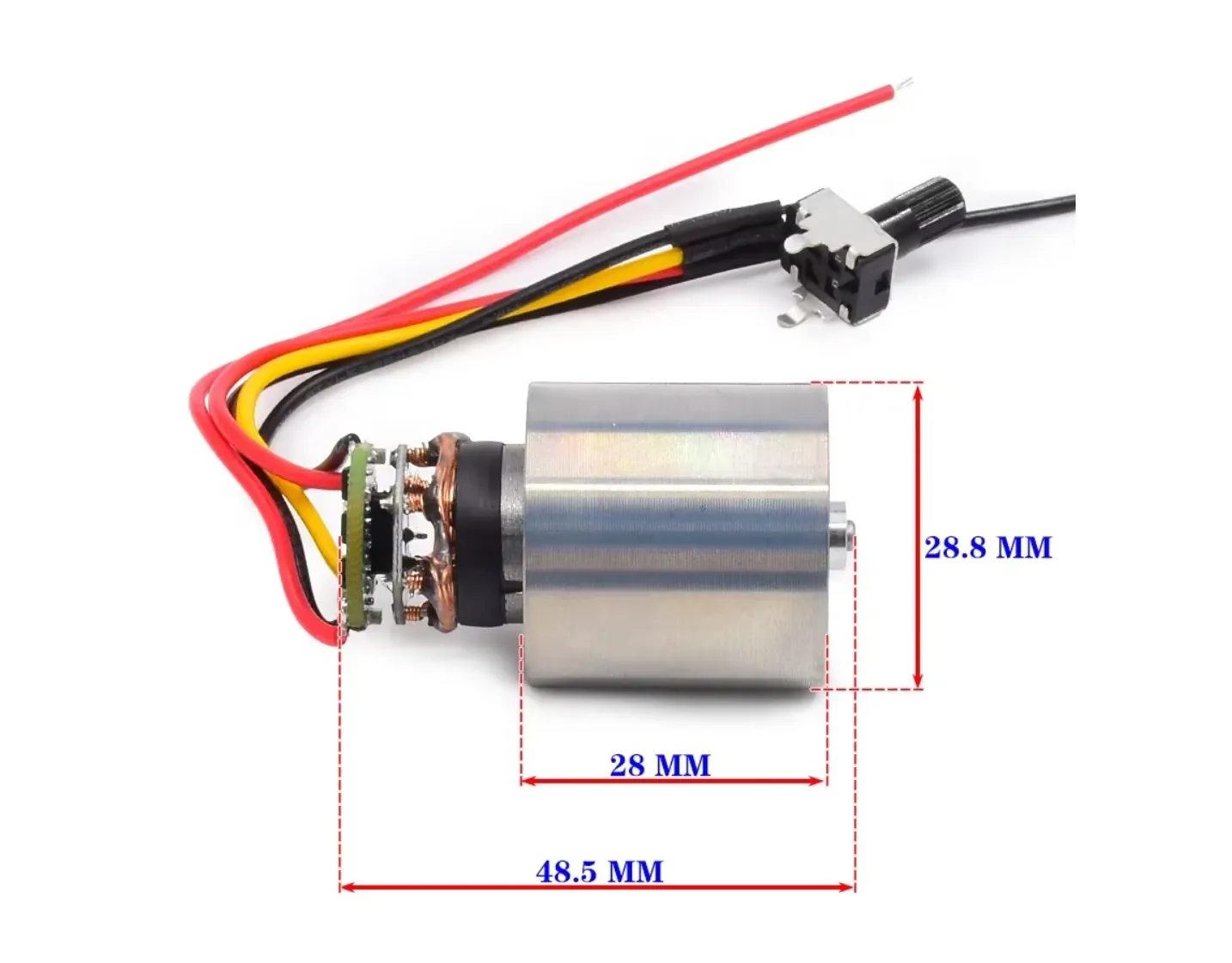

Fan EDF 9-12V 100000RPM
Switch 15*21mm 2Pin ON-OFF

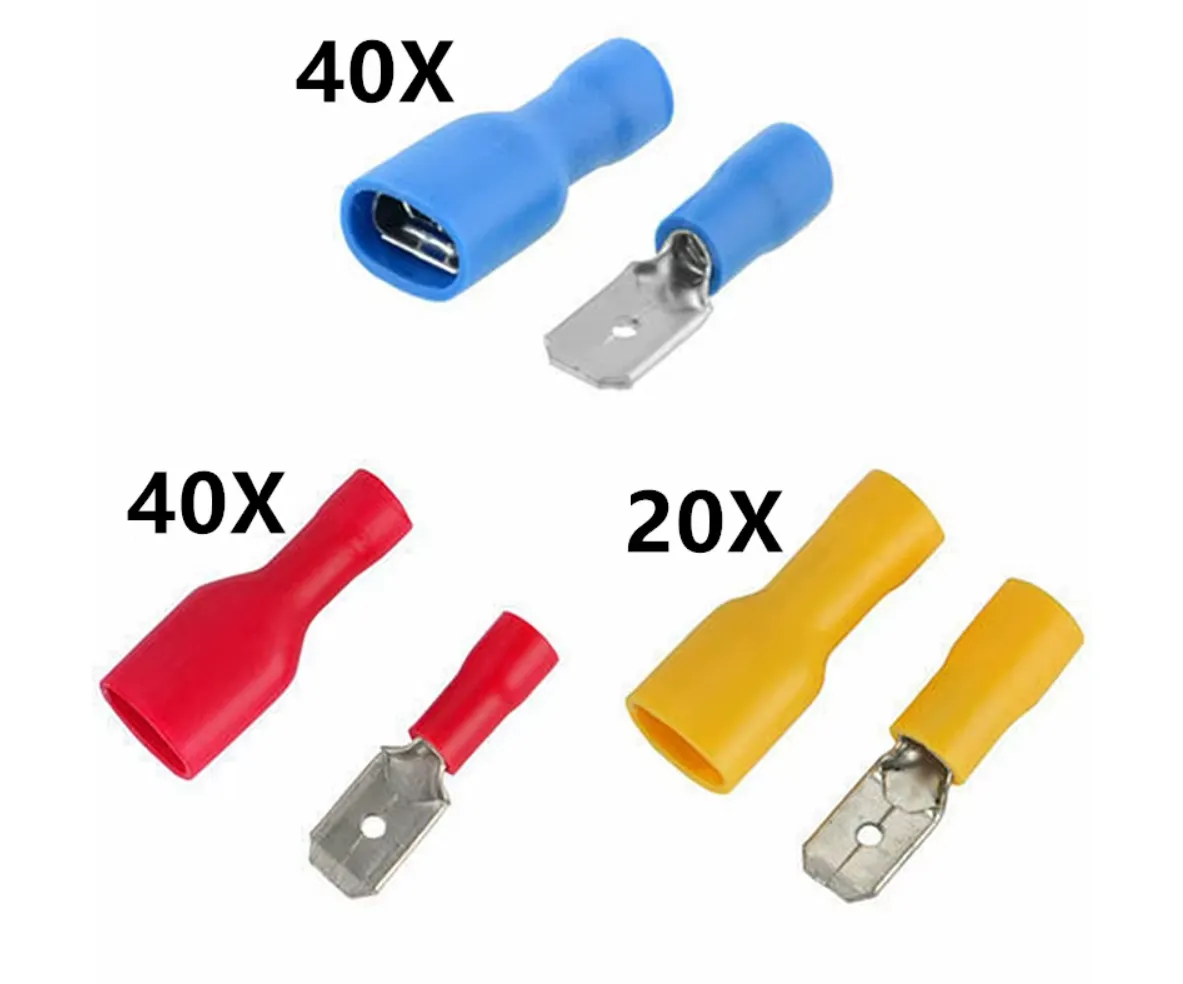

Spade connector 6.3mm
