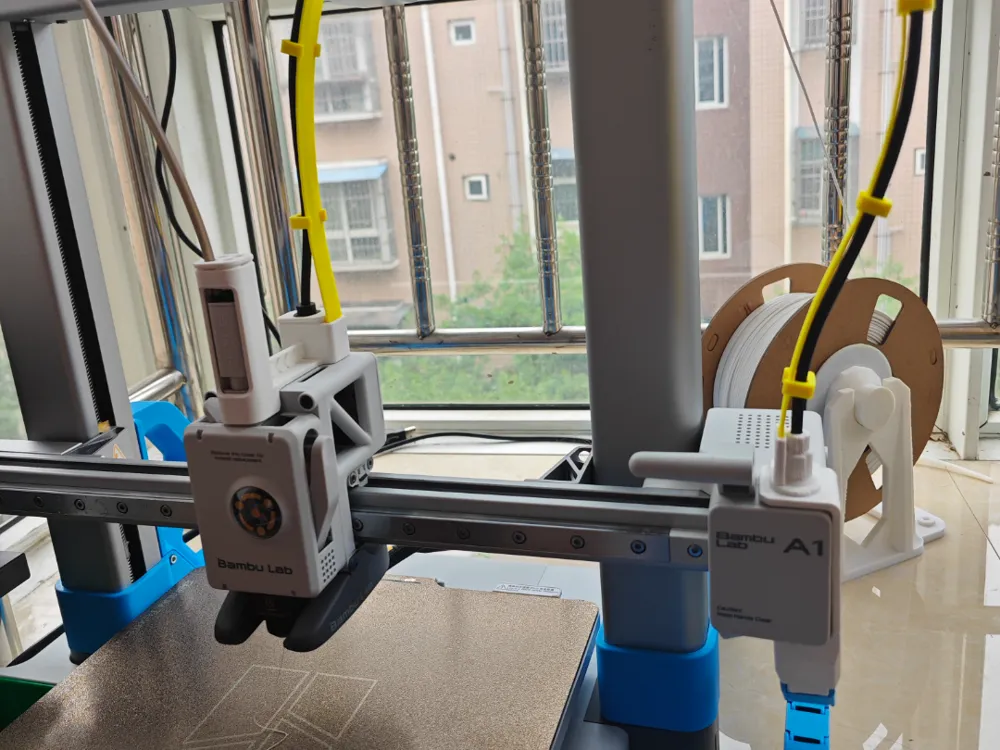

Having just bought the printer, I've printed many accessories, so I'm sharing the parts for this cable chain assembly. This is my first published work, so please provide feedback if you find any issues. Please don't mind the colors; I'm using whatever filament I have on hand.

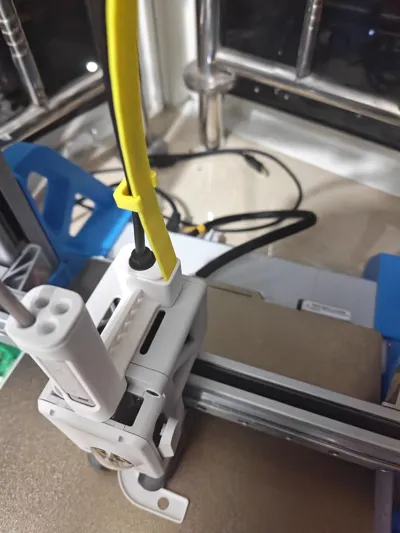

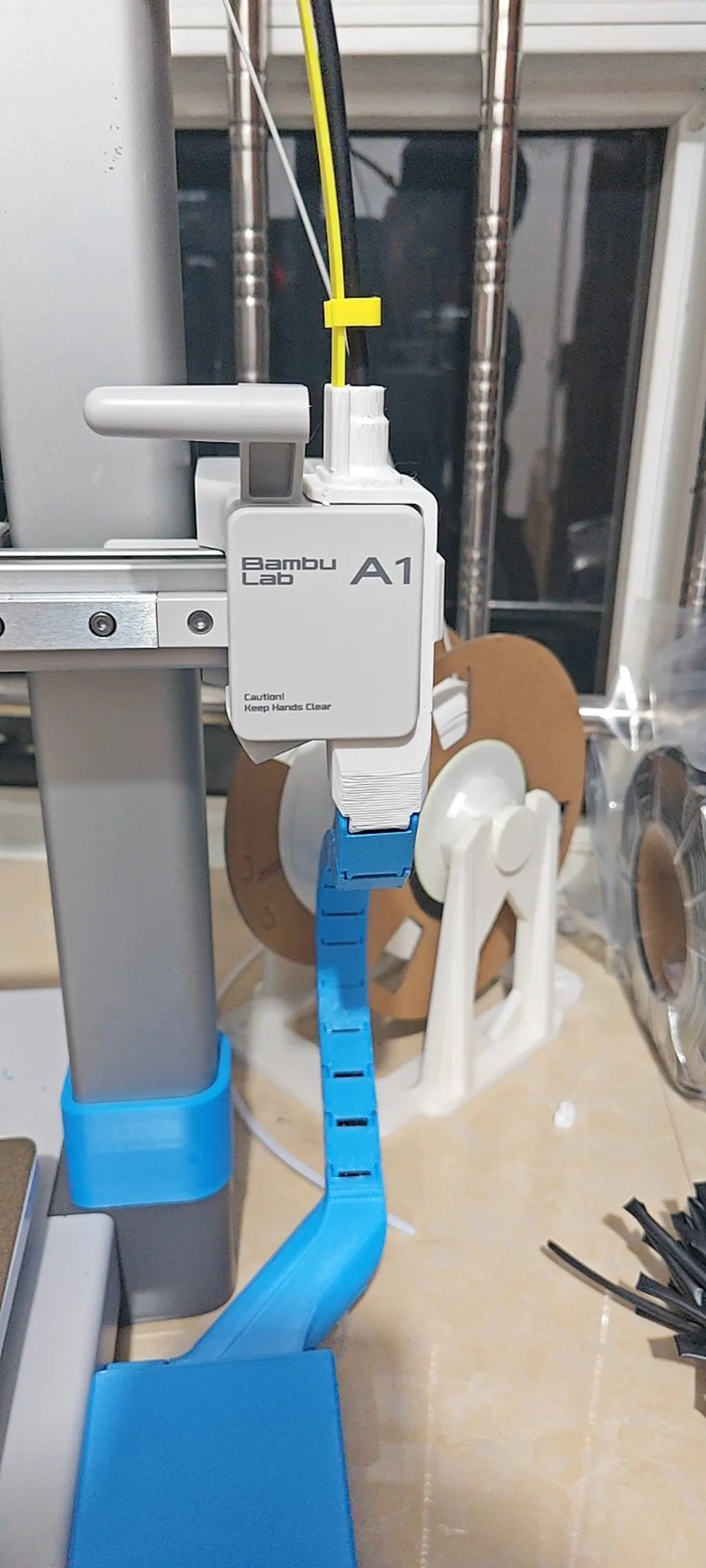

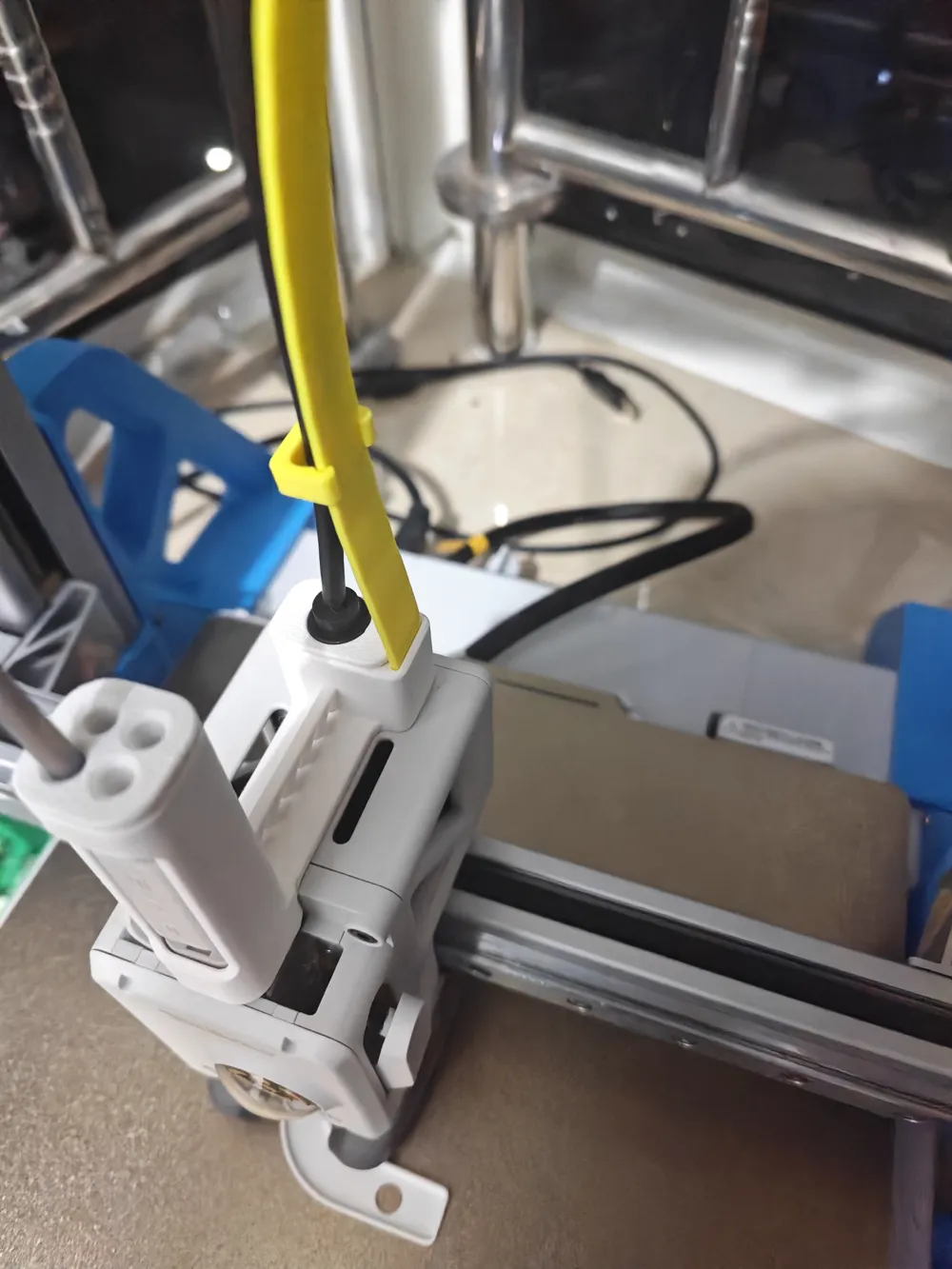

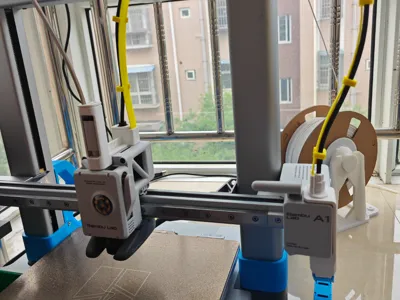

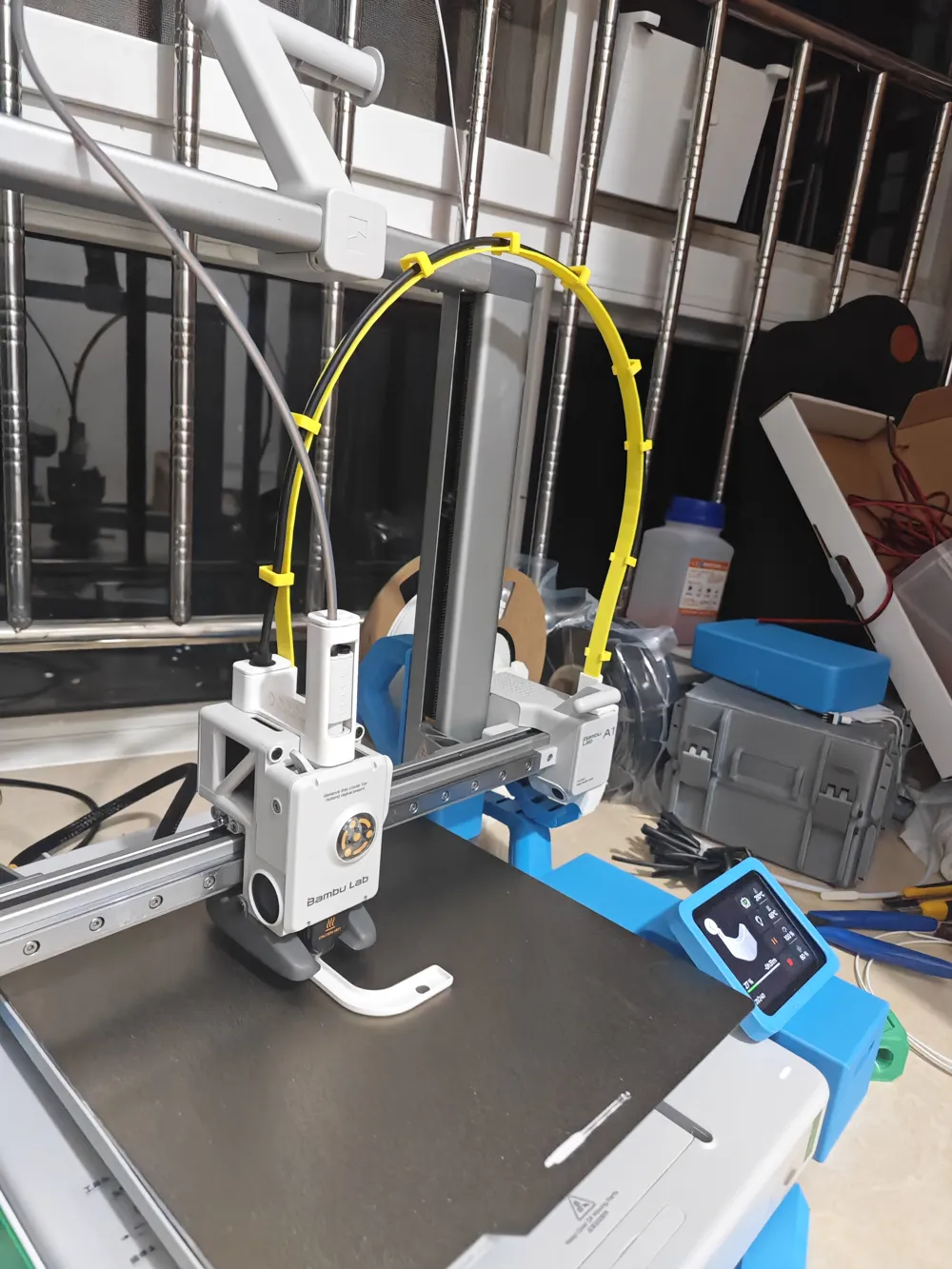

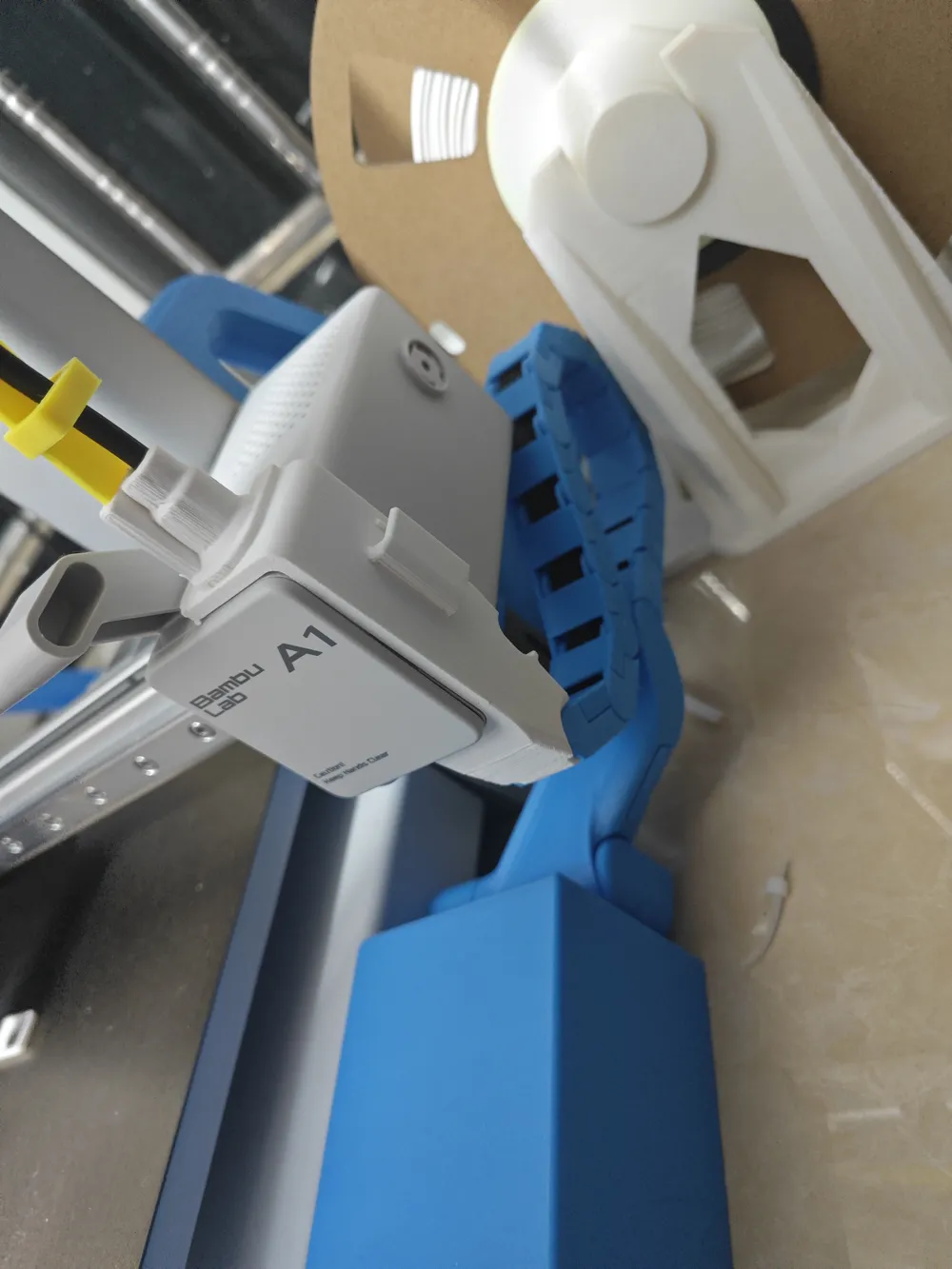

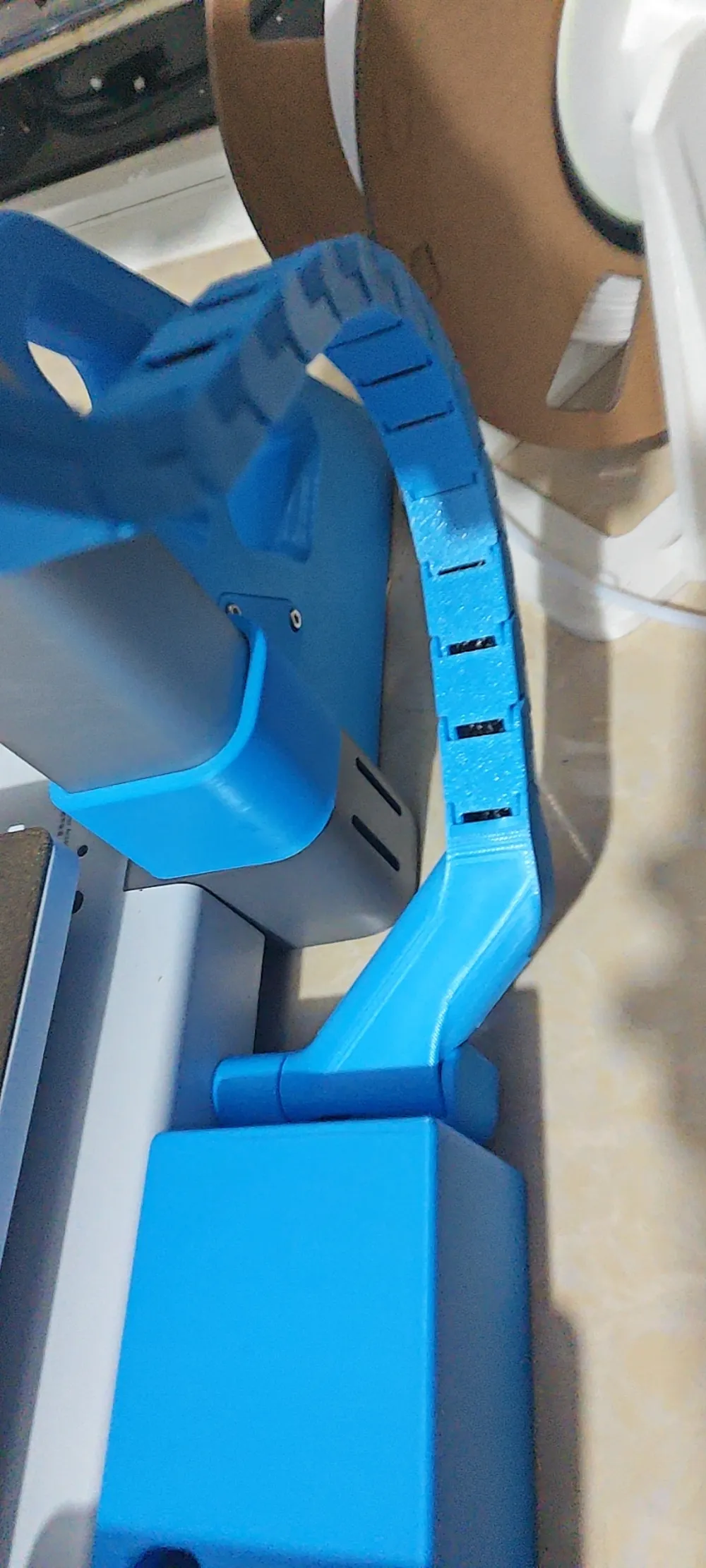

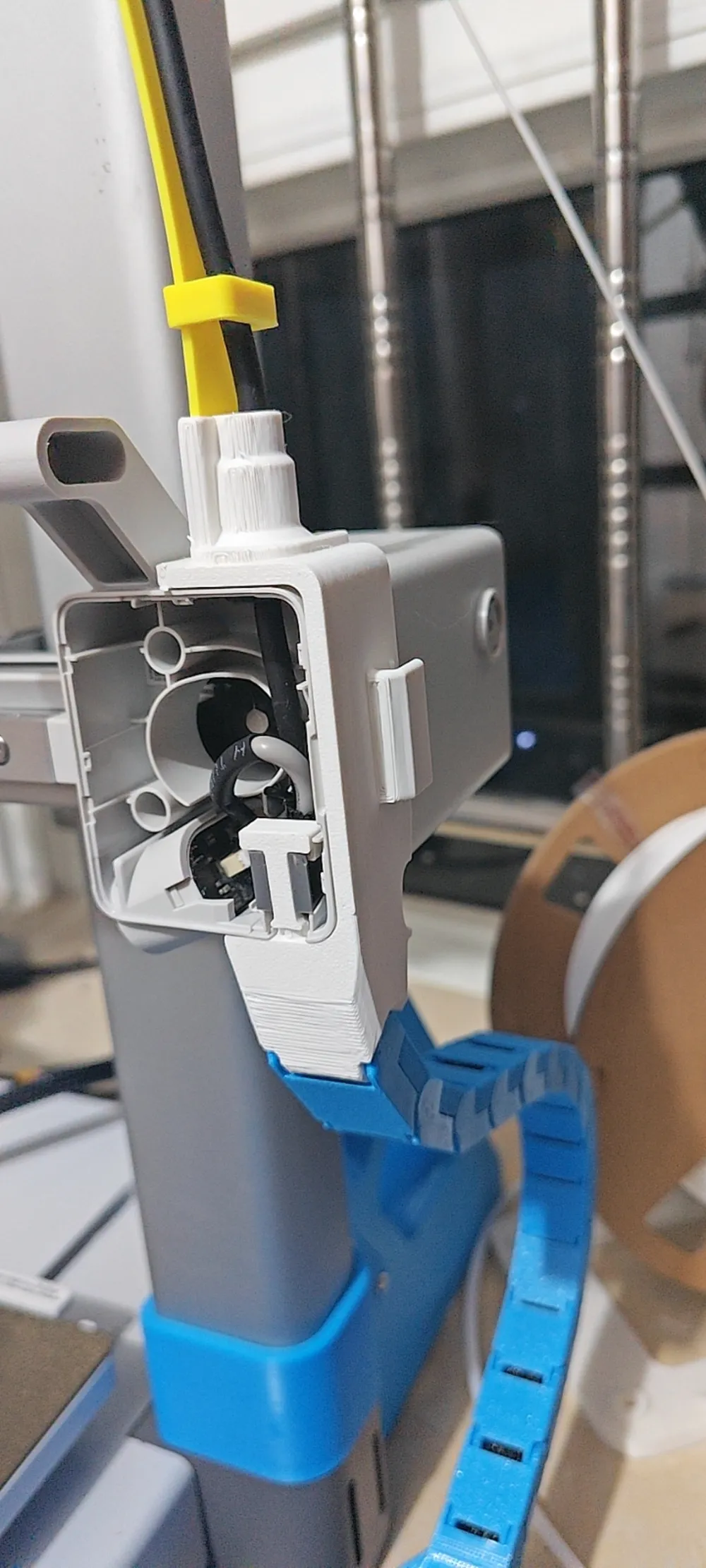

Description: The bottom cable chain source: A1 side cable chain, cable chain from Kar FaiMakerWorld: Free 3D model download, I've optimized two points; originally the bottom could not rotate 90 degrees, after optimization it can. Then combined with the flexible cable from the expert, A1 series cable support flexible track chain from DougBurton1969MakerWorld: Free 3D model download, to create a unified assembly of the cable chain and flexible cable (this model has two versions, one requires removing the X-axis motor cover (just unclip it), the other doesn't, and finally the hot end part is combined with the five-way protection bracket A1 / A1 Mini series five-way protection bracket 1.0 from PierreMakerWorld: Free 3D model download.

Note: Needs to be used with the models mentioned above, especially the A1 side cable chain, unmodified parts I haven't included here. For installation instructions, please refer to the original materials. If you can't find the installation tutorial, you can ask me in the comments section.

New to this, many models are shared by experts. Some have been modified and adjusted, if the original author has any objections, please contact me to delete them.

I will be updating the hot end with an additional fan solution later, please keep an eye out for that.
