Magnetic Manual Filament Feeder (Enhanced Seal Version) - Compatible with PC4-M6

Upgraded Sealed Magnetic Manual Filament Feeder, Compatible with PC4-M6~

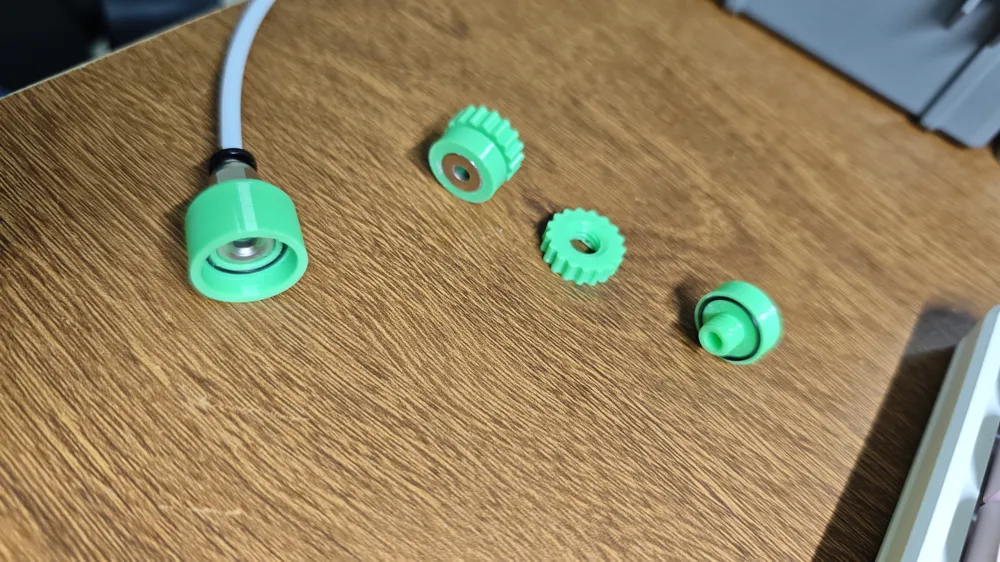

I have a phobia of leaks, and I've tried many semi-automatic and manual filament feeders in the community. I'm still a bit worried about the sealing, and I feel that semi-automatic ones are not as convenient as manual ones, so I designed a reinforced sealed manual filament feeder.

Parts List

1、Seal: Outer diameter 16mm*wire diameter 1mm (inner diameter 14mm), one set requires 2 seals;

2、Magnet: Outer diameter 12mm, thickness 4mm, countersunk 4mm

3、Pneumatic fitting: PC4-M6 through-type;

4、Teflon tube compatible with 4mm outer diameter;

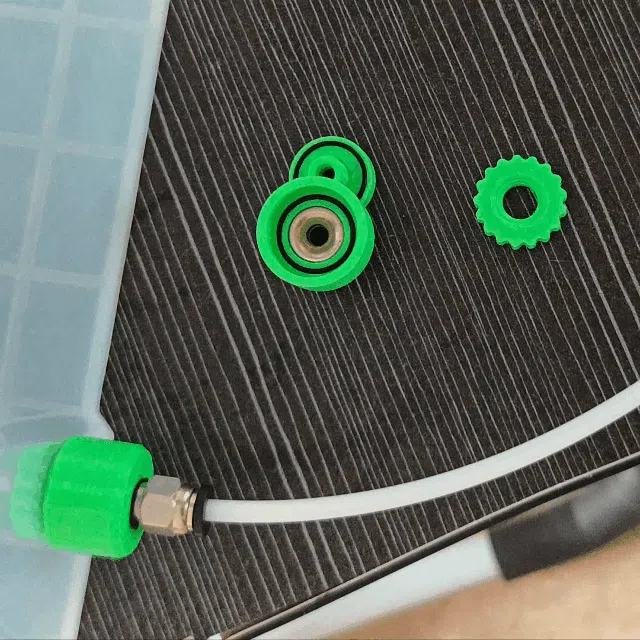

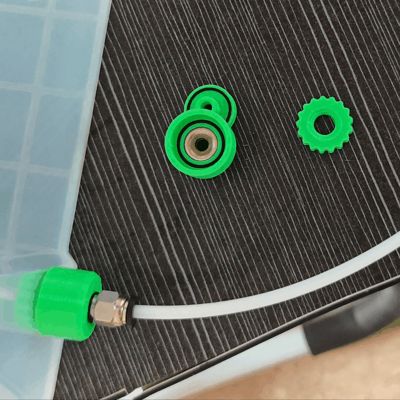

Printing and Installation Notes

For smoother thread matching, it is recommended to use a layer height of 0.16mm or higher; hole diameter: 8mm, with nut fastening. The seal has a compression design, and even pressure can completely insert it. If you are worried about seal falling off, you can add a bit of 502 glue after pressing in the seal.

The editable original file has been uploaded, and you can edit it yourself if you need to adapt it to other pneumatic fittings. If you have any other needs for pneumatic fittings, you can contact me in the comment area for drawing~
