Star Wars Death Star Wall Panel in 1:6 for A1 Mini

Now redesigned for the A1 Mini!

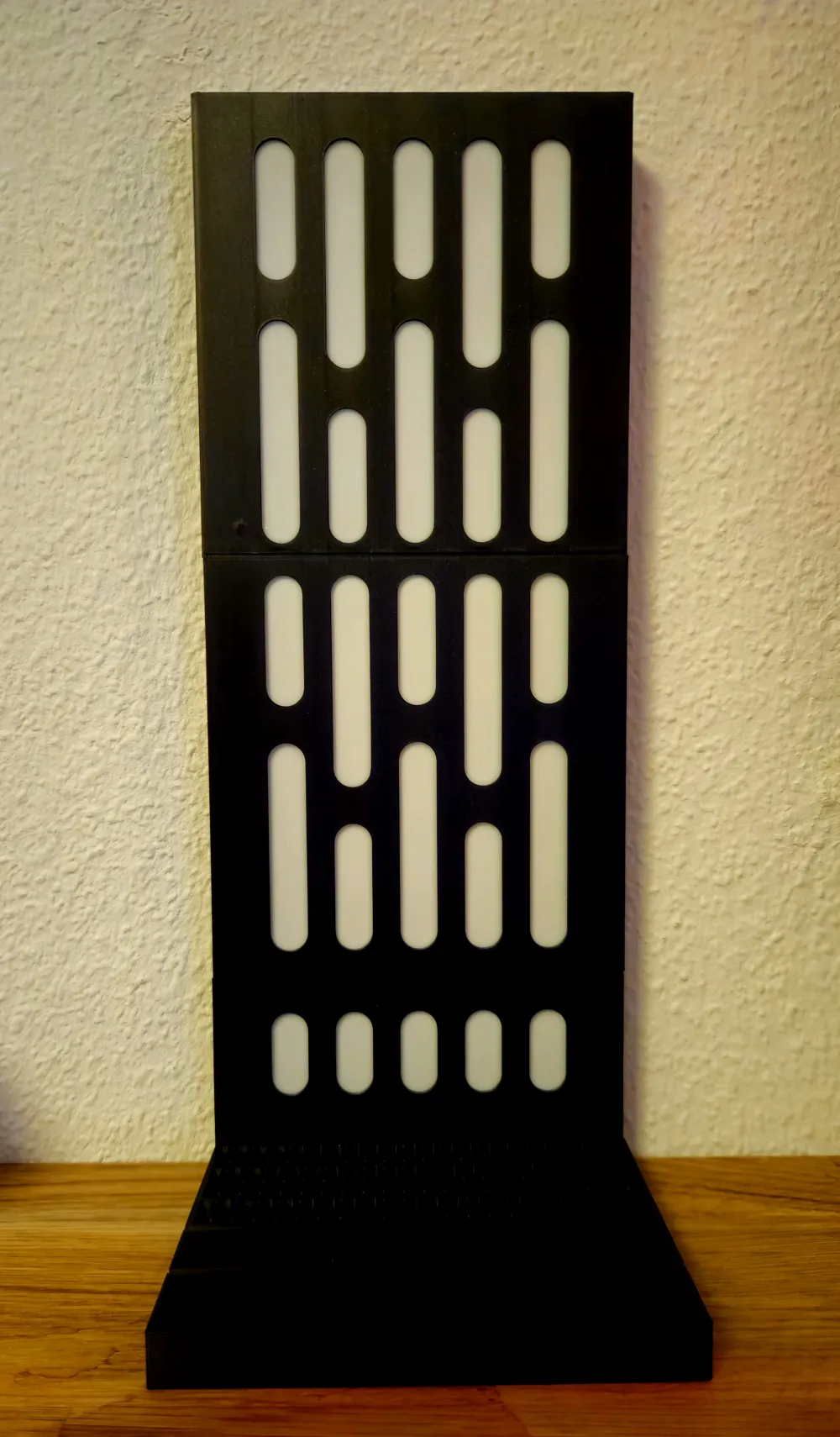

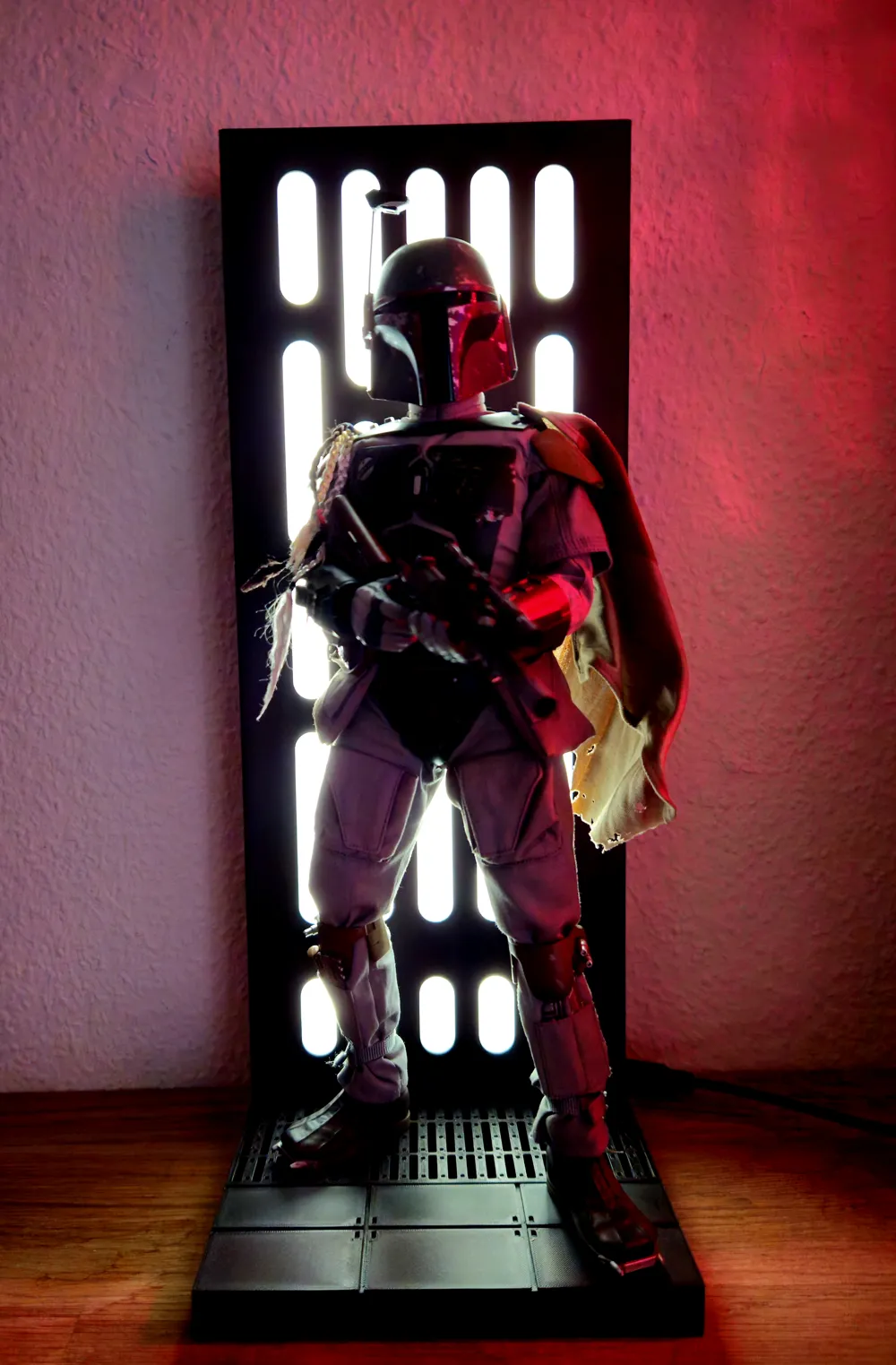

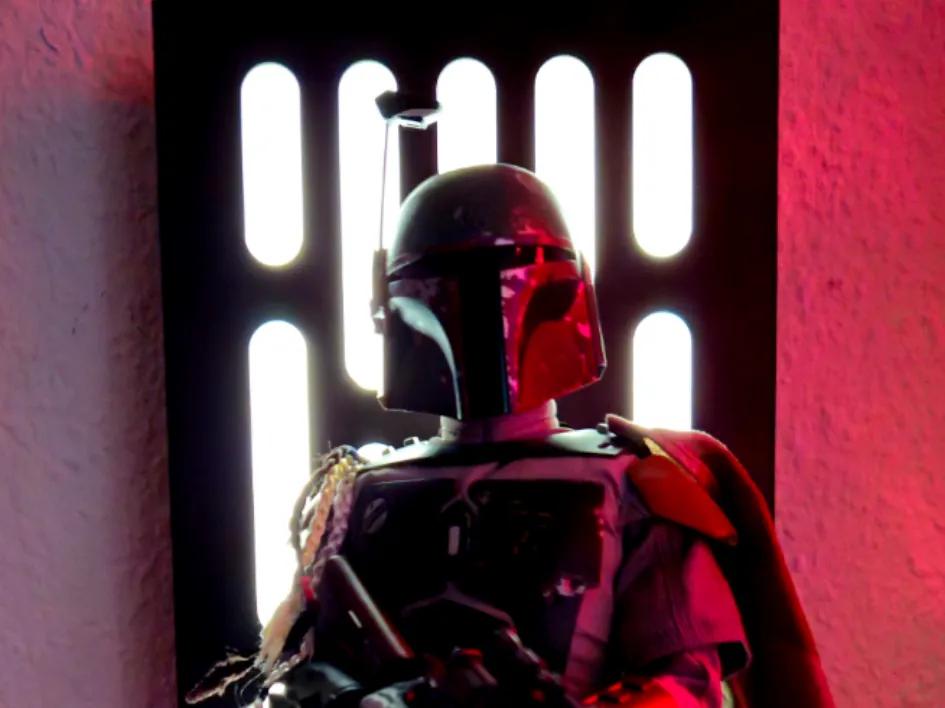

This Death Star Wall Panel designed in 1:6 scale is mainly for collectors of figures from like Hot Toys or other brands. But with the dimensions it could also be used just as a lamp or better ambient lighting.

Dimensions: 37 cm height, 14,5 cm width and 2,4 cm depth - without cables.

In the print profile is also ironing activated for the Front Panels for a smooth finish. These settings worked best for me. Print the Front Panels as placed on the print plates for the best ironing finish.

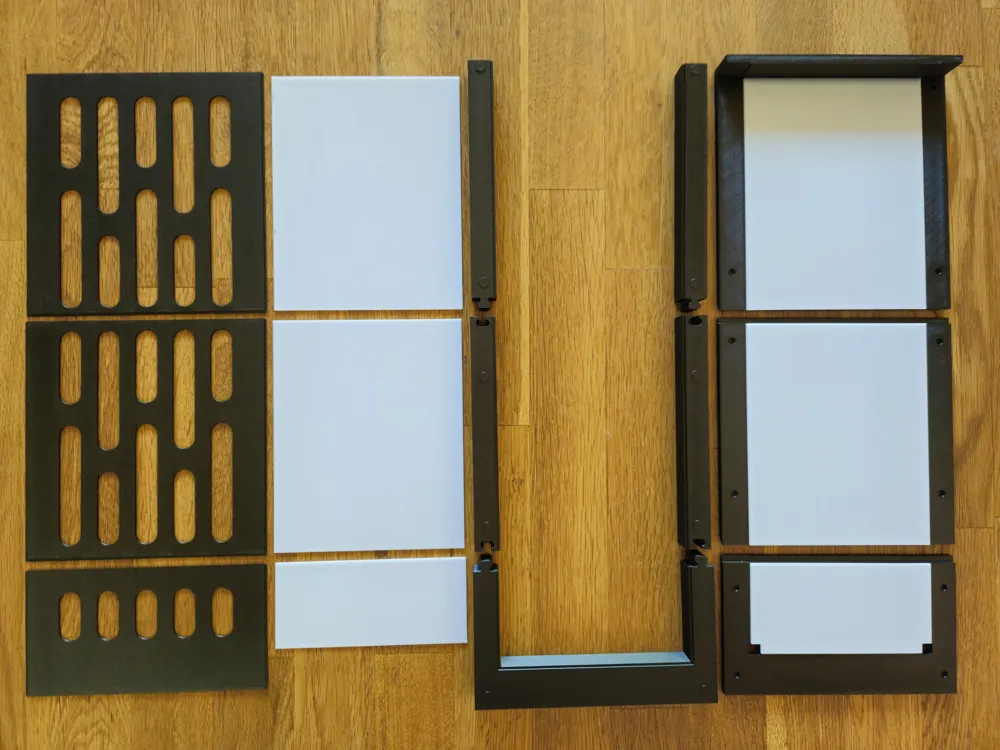

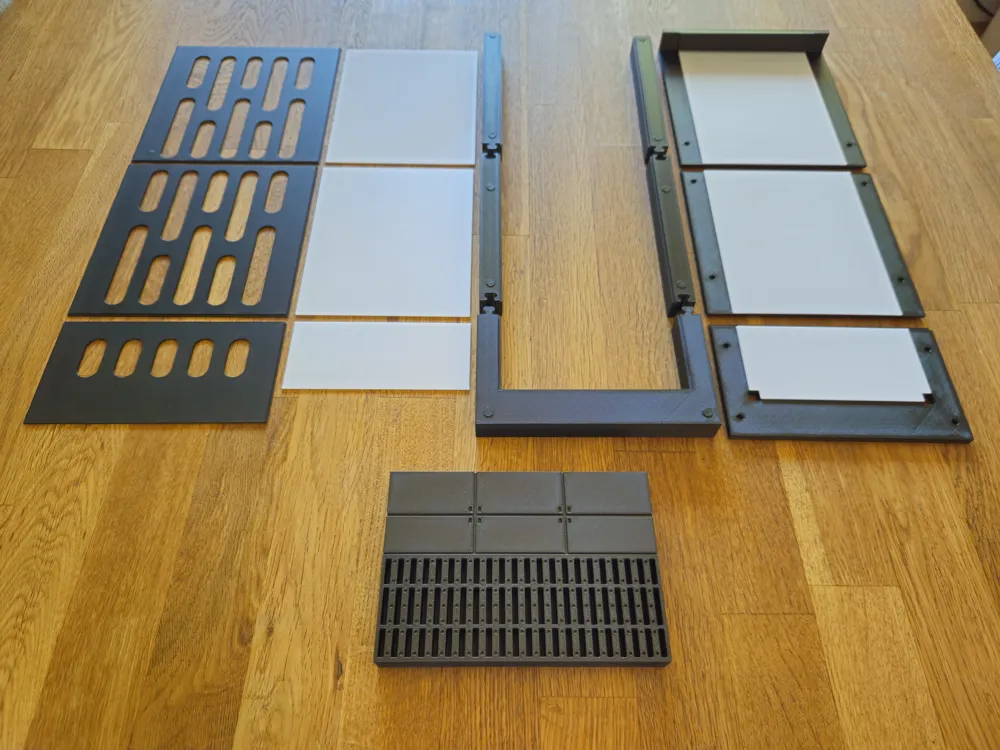

Assembling after printing:

1. Connect the Middle Pillars, the wall ledge has to be inside
2. Lay down the LED Diffusers on the ledge of the middle pillars (or you can slide the panel in, after glueing in step 3, but this can be a little bit difficult. You have to slide them all the way down to the bottom)

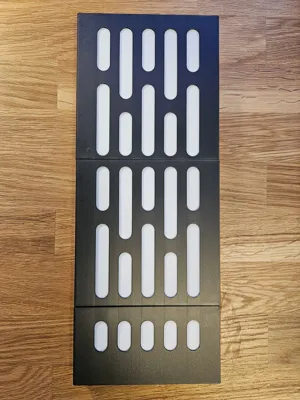

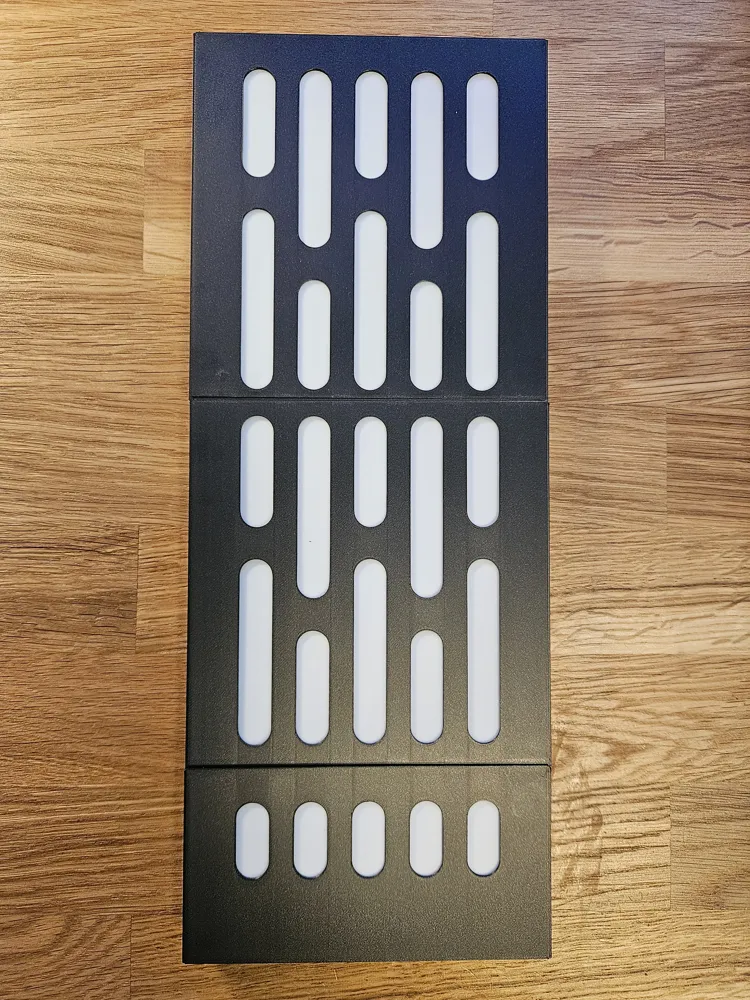

3. Glue the Front Top, Middle and Bottom Wall Panel to the middle pillars. On the middle pillars are on each side 5 round elevations, and on the Front Panels are also round recesses as a helping guide for glueing. Press the parts good together (maybe put a book onto them).
4. Install the 4x2 magnets in the Middle Pillars and the Rear Covers. Mostly they will fit and stay, but you can also glue them if they come off.

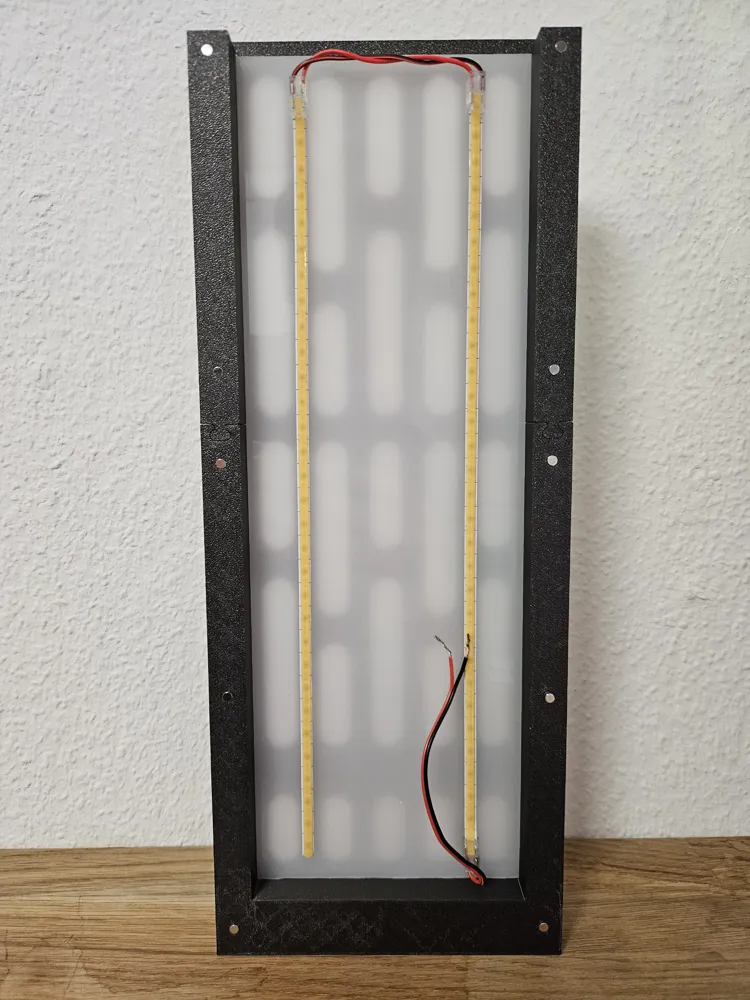

5. The 5mm LED stripe has to be layed down on the back of the LED diffuser panel (look at the last picture). The LED stripe will be visually covered from the Front Panel. Two stripes are enough, cause the white backdrop will amplify the light.
6. Use one of the cutouts of the Rear Bottom Cover to lead the LED stripe cable outside.

BOM - Bill Of Materials

• Filament: Bambu Lab PLA Metal Iron Gray  and Bambu Lab PLA Matte Ivory White
• LED 2pin stripes 5mm width (Amazon.de) these are very bright, you need a dimmer for them
  -→ for one wall you need two stripes each 31 cm long
• COB 2pin connector for LED stripes and cables (Amazon.de)
• 24 x Magnets 4x2mm (Amazon.de)
• LED Dimmer with power connector (Amazon.de)
• Power Adapter
