Magnetic Extraction Hose Coupler for DW735 Planer

EDIT: PRIOR TO PRINTING YOU MAY WANT TO MEASURE THE OUTER DIAMETER OF YOUR DUST PORT TO AVOID PRINTING A MODEL THAT WILL NOT FIT.

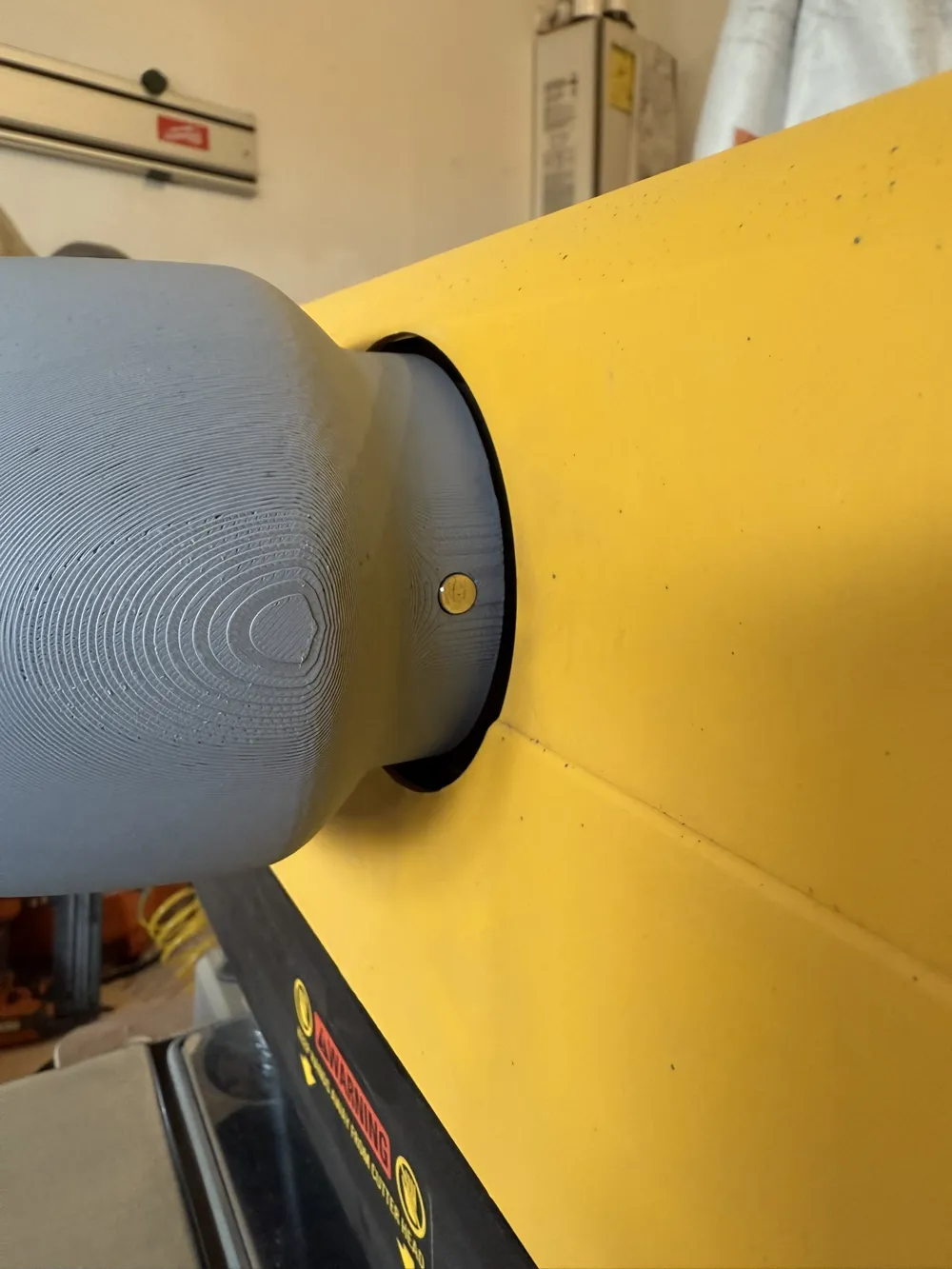

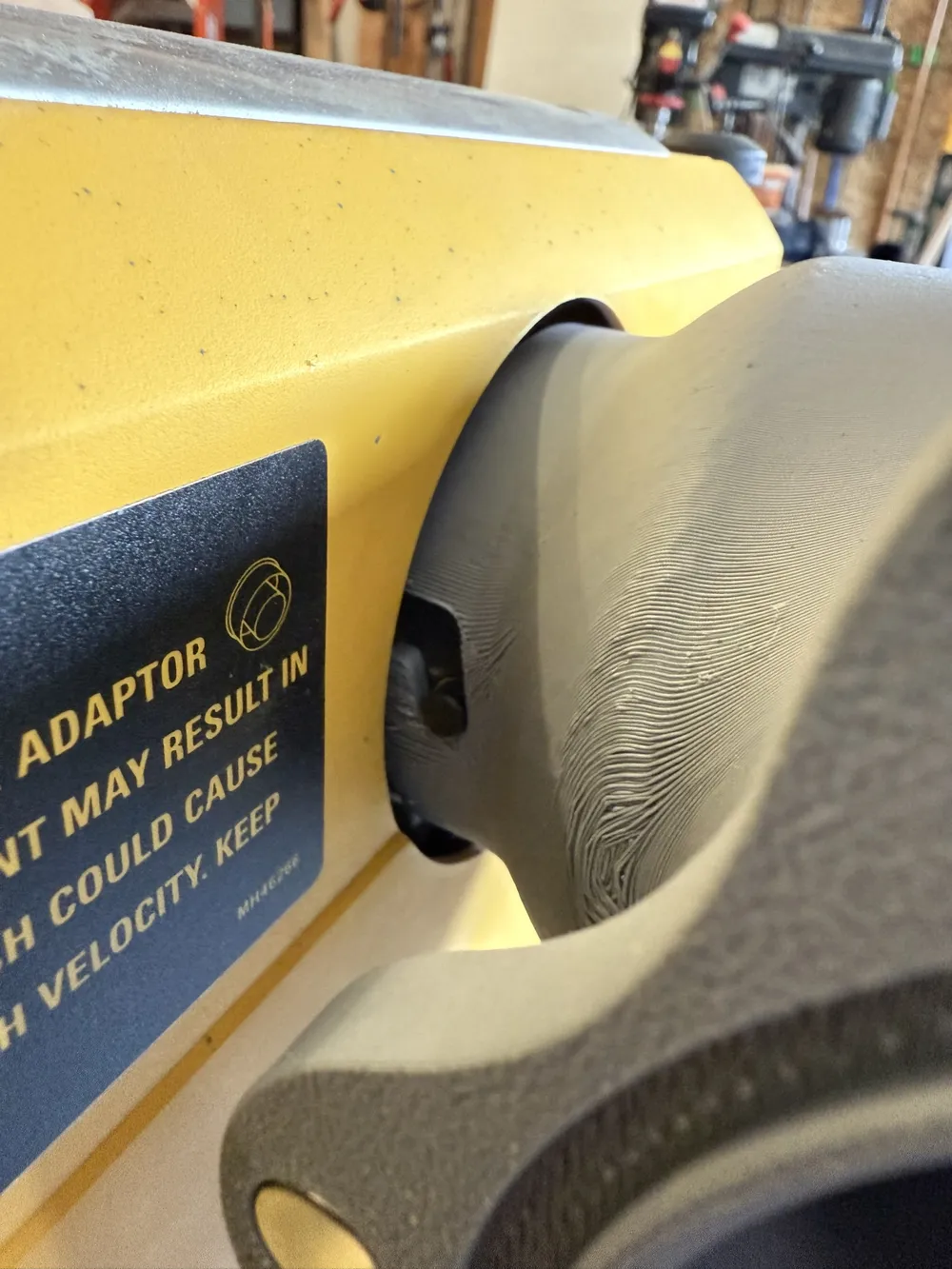

In response to comments about this not fitting. I have now uploaded a version with a 71mm inner diameter. It seems like there is some dimensional differences between DW735 dust ports. If you can, please measure the dust extraction tube on your planer under the included plastic component with the “teeth”. The 70mm ID (original model) fits snug on my planer which has a 70mm OD port.

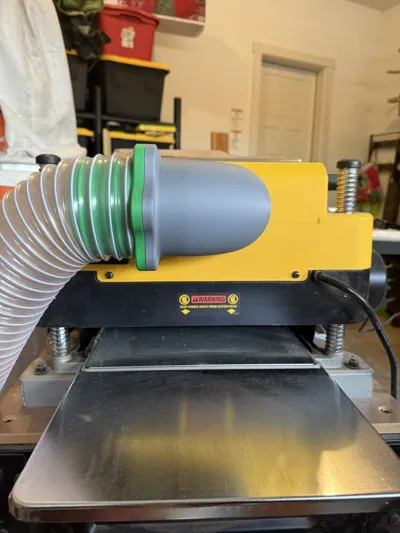

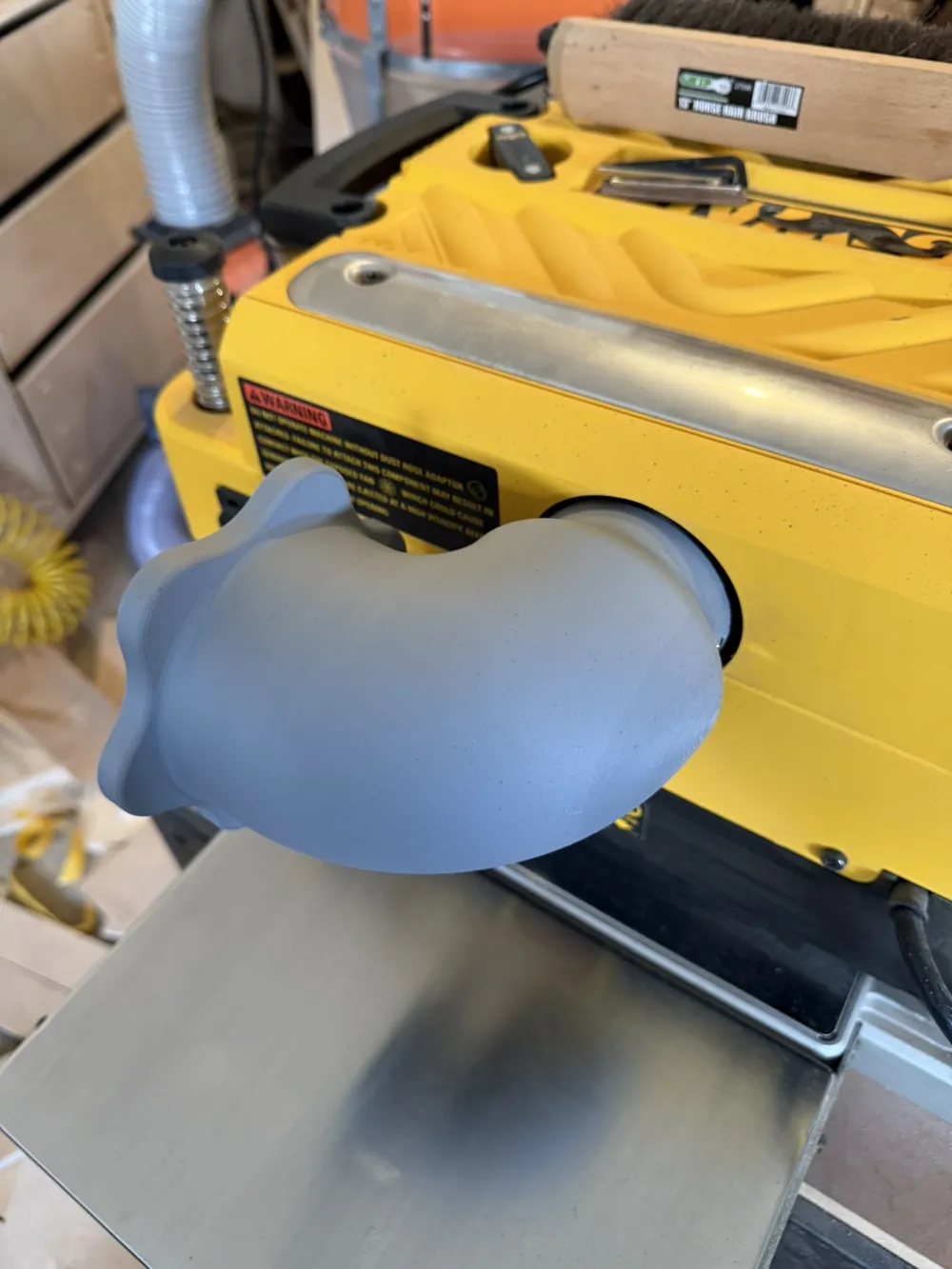

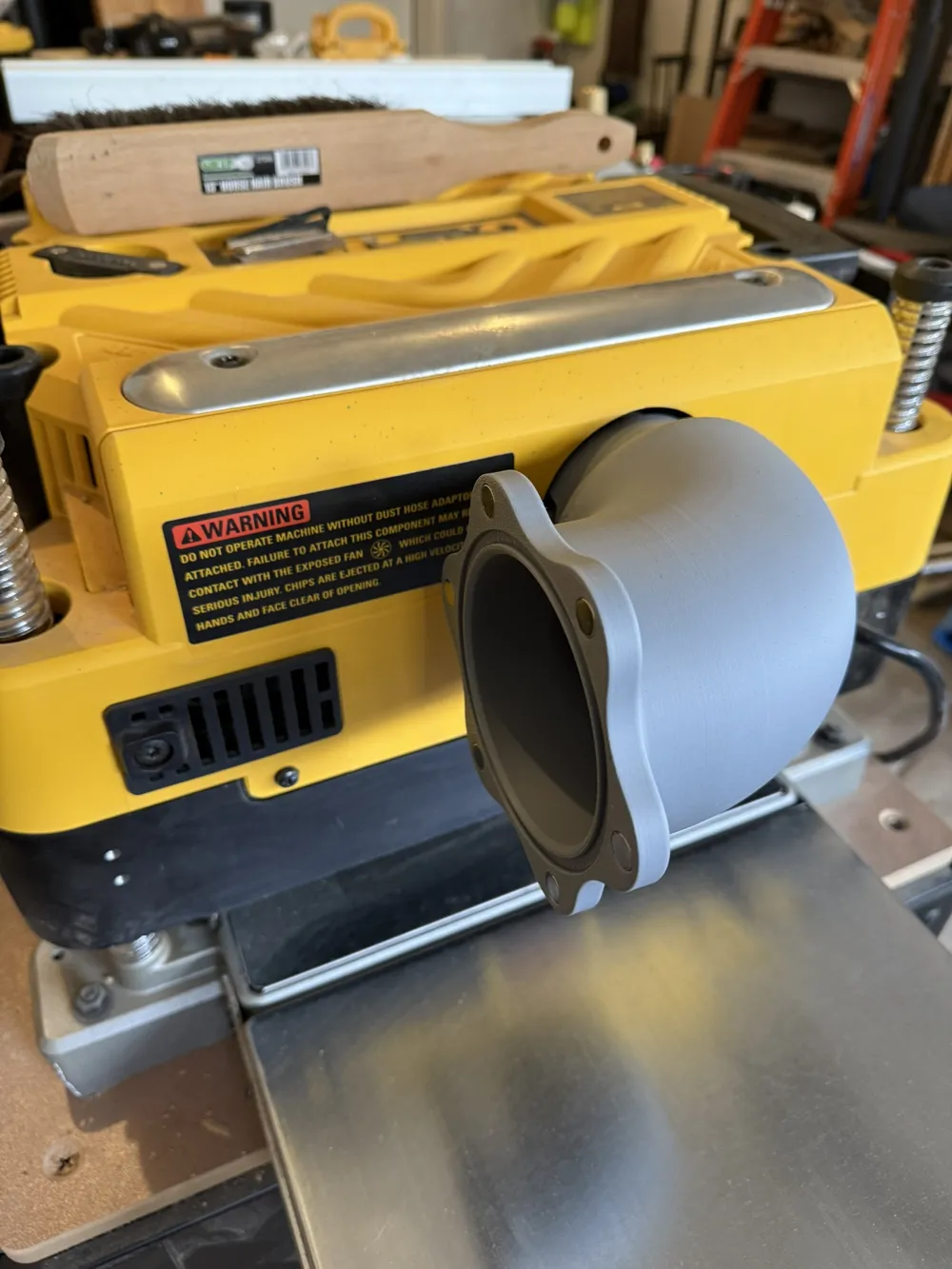

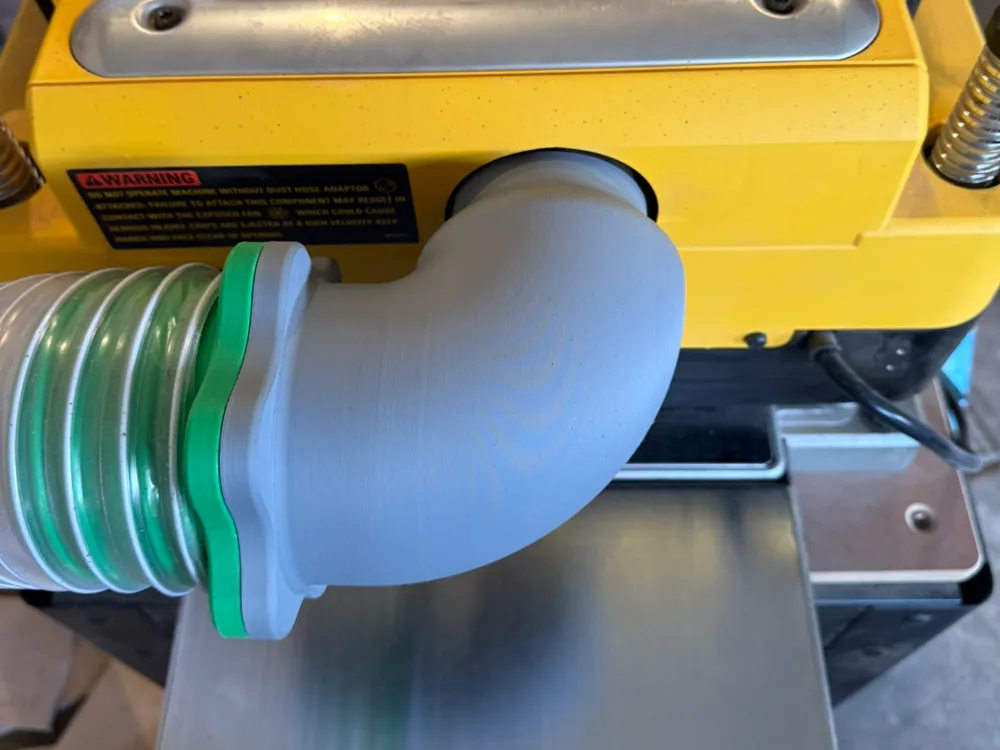

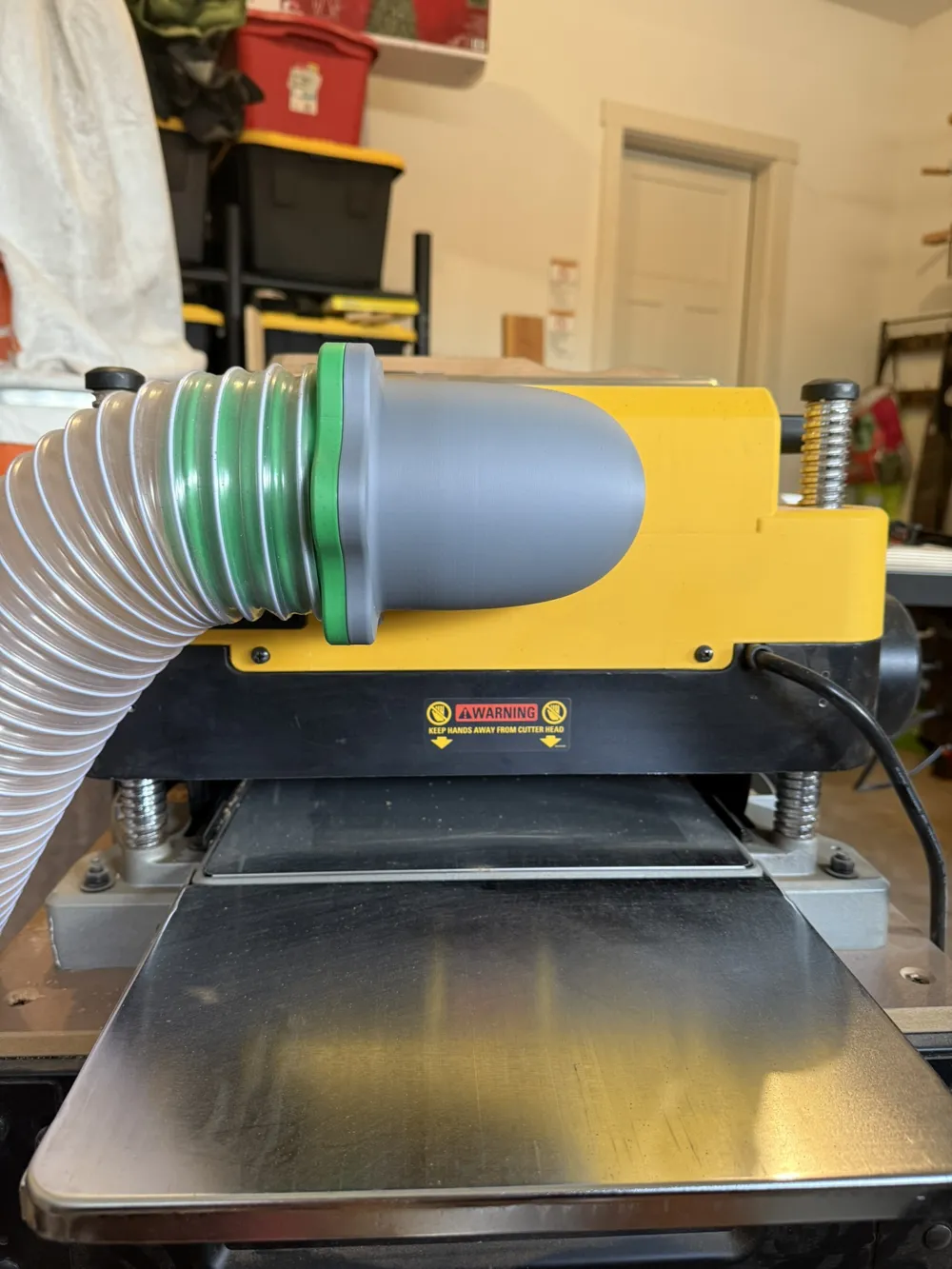

This 90degree dust port for the Dewalt DW735 Planer is based on a design by @alxtech to allow magnetic coupling between 4" dust collection hoses. This model attaches to the DW735 planer dust extraction port the same way as the original dust port that is included with the machine. For the dust hose portion, please refer to the following model: https://makerworld.com/en/models/252336-dust-extraction-hose-magnetic-coupling-100mm#profileId-268706

This uses qty. 6 of 10mm x 3 N52 magnets.

I used onshape to model this as well as an import step file from the original creator. This can be found at https://cad.onshape.com/documents/3d0740228de7905bc6af437f/w/8e115aa419b77548a6a8e3b0/e/452fa4759e74470ee8572c9c?renderMode=0&uiState=6834d0a86ce4892d9e6d6f1d
