Gridfinity A1/A1 Mini/H2D Series Nozzle Tray

IP Report

Print Profile(1)

All
A1 mini
H2D
X1 Carbon
A1
X1E
X1
P1P
P1S
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
2.7 h
1 plate
5.0(2)

Open in Bambu Studio
Boost
21
55
2
0
56
23
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
M3x8 FHCS Machine Screw (20PCS) - AA086
D6x2 mm Round Magnet (20PCS) - CA004

Description

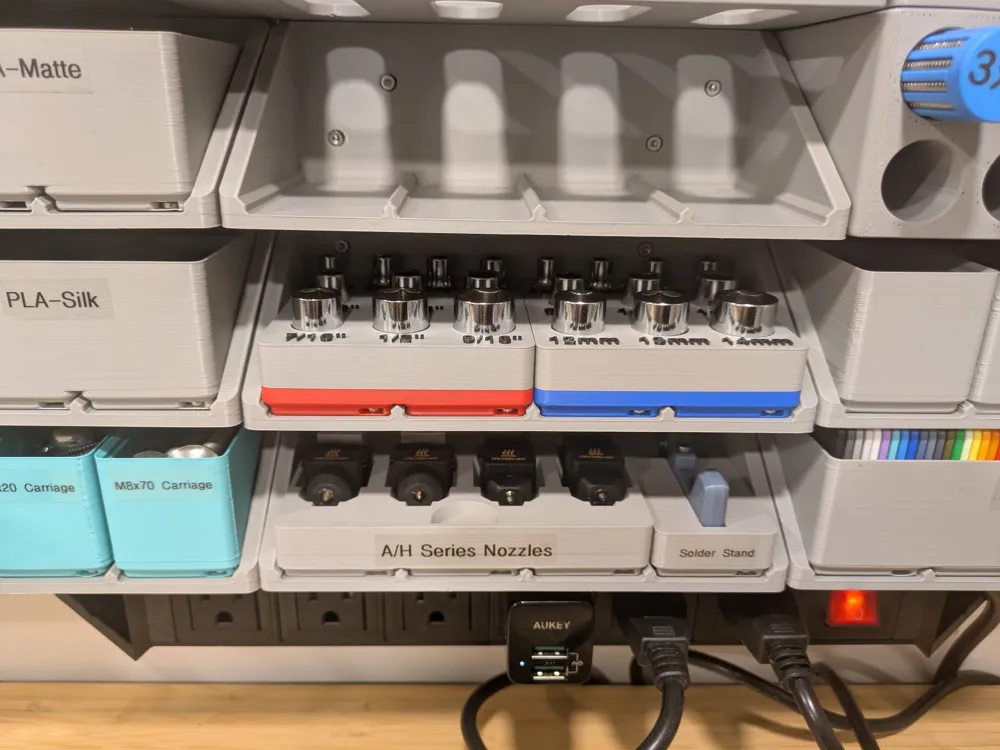

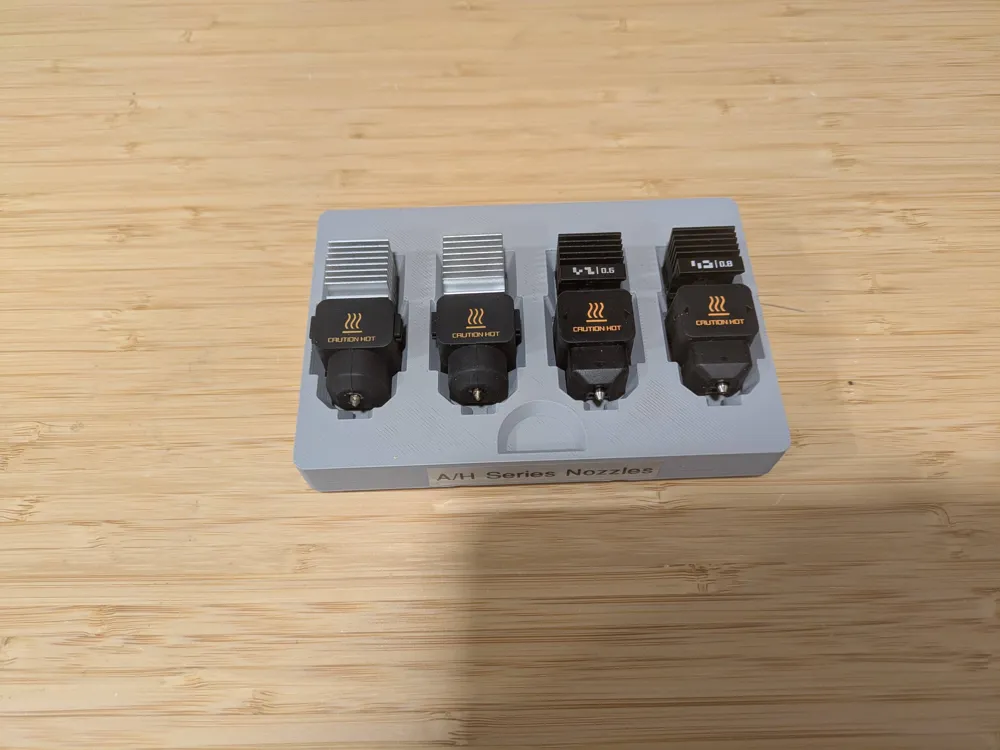

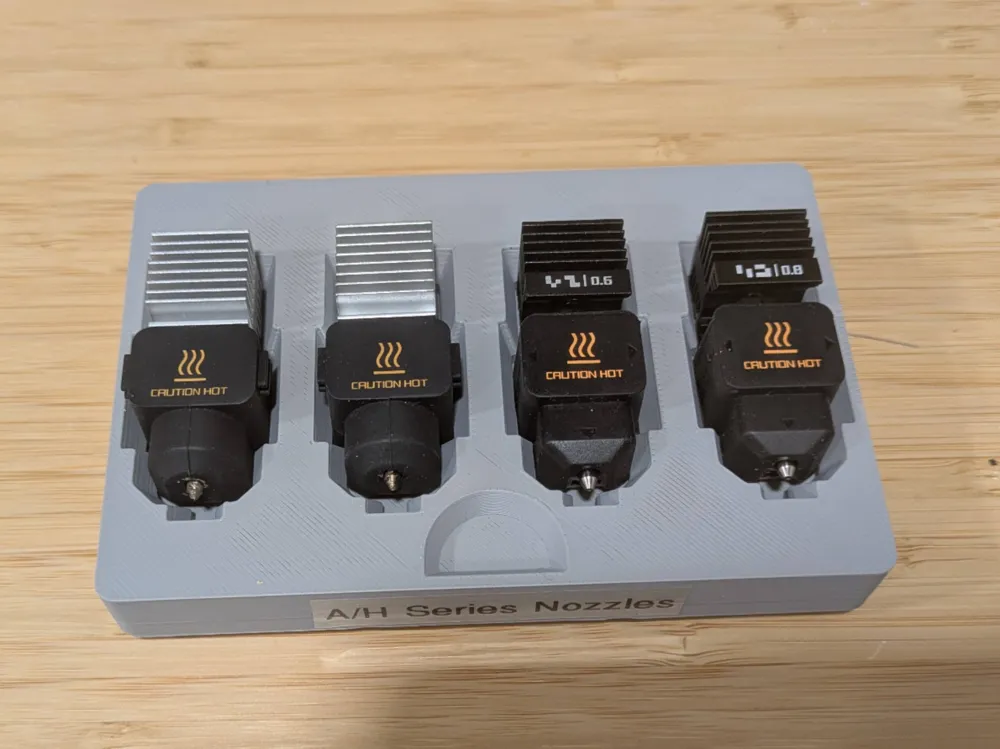

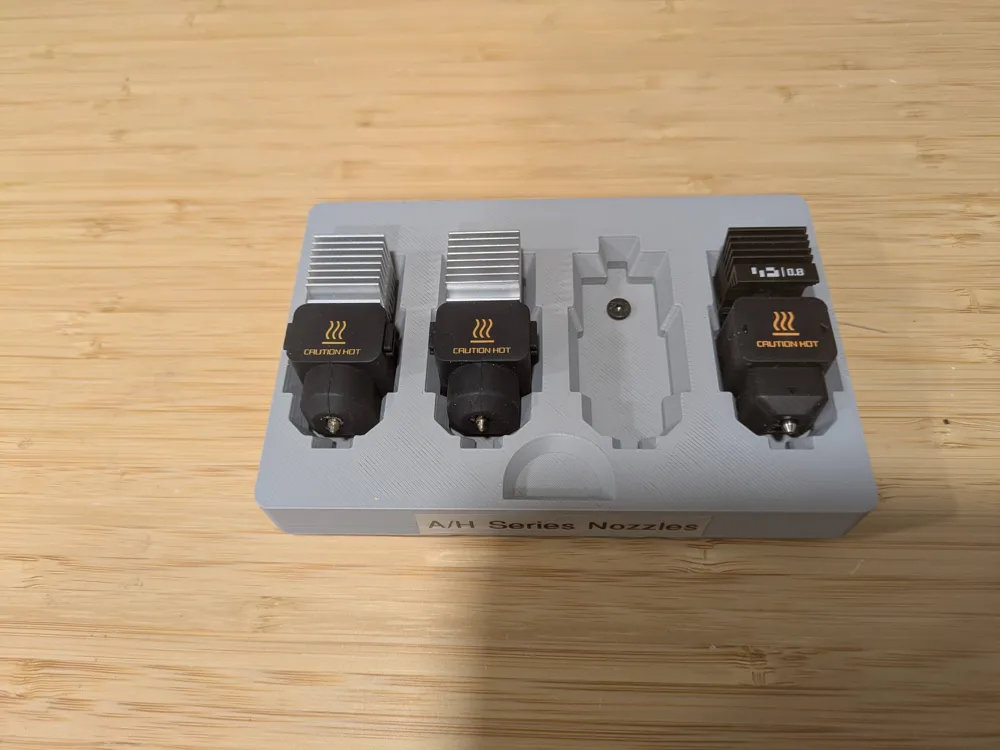

A simple Gridfinity nozzle tray for A and H series nozzles using the Gridfinity Refined spec by grizzie17 on Printables. There's plenty of these already, but the last one I was using was developed before the release of the H2D and my H-series nozzles wouldn't fit, only my A-series nozzles, so I had to make a new one from the ground up, which was a good excuse to add a few small features, theres holes for M3x8 FHCS screws so the nozzles magnets can latch on and won't fall out even when turned upside down (you can adjust the holding strength by screwing it in all the way so there's a tiny gap between the screw and the magnet, but I prefer to have it screwed out a bit for a better hold,) there's a chamfer so the nozzles go in easy, and a little thumb pull for easy use on my Skadis/Gridfinity slider drawer system.
