The Foxconn PID040M12Q-4056 server fan is a super powerful fan with a theoretical power of 60W at 12V 5A, making it an excellent choice for a DIY handheld swappable battery high-power fan This fan sells for just over ten yuan online and is much more powerful than common 2A current fans

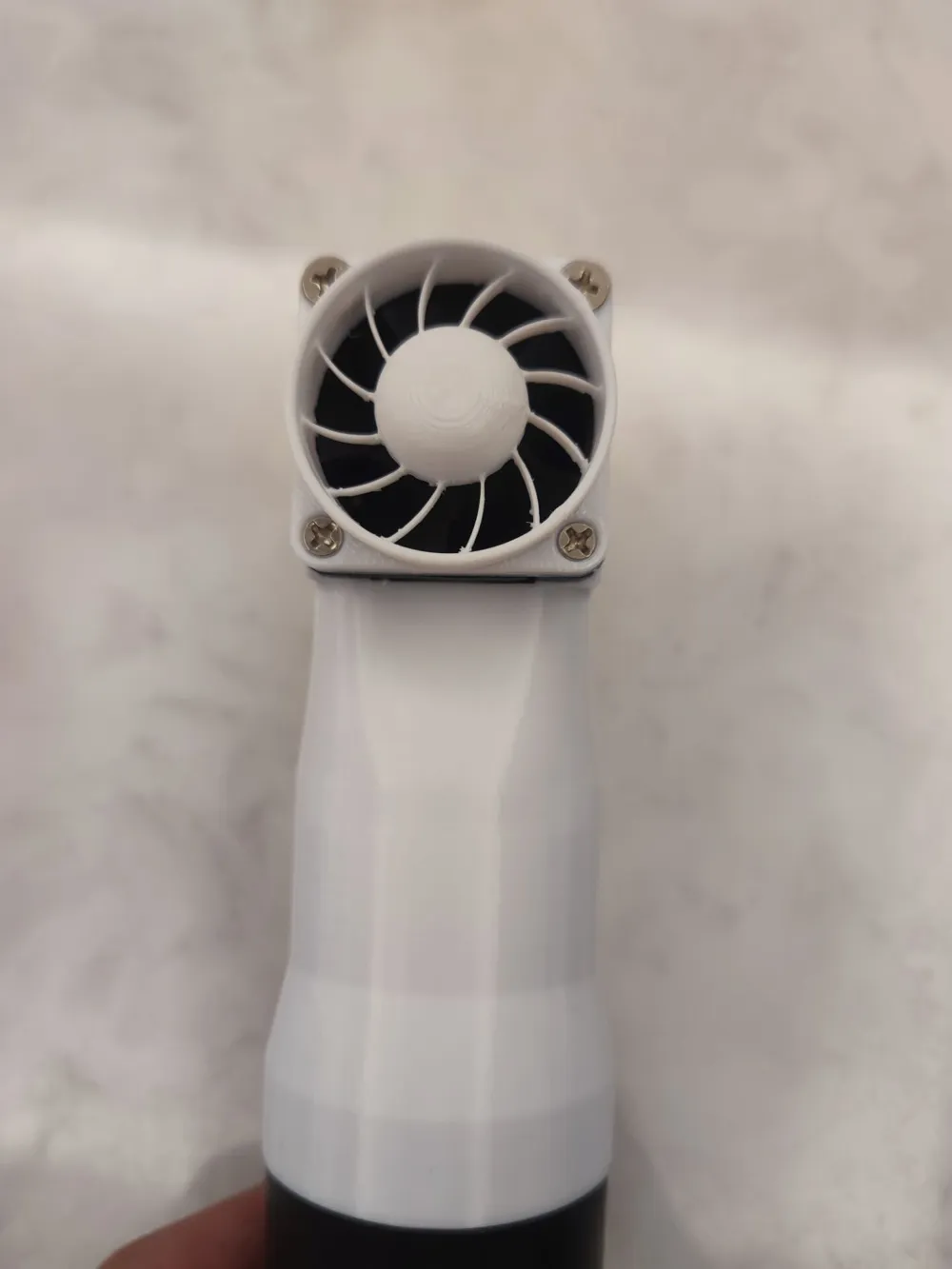

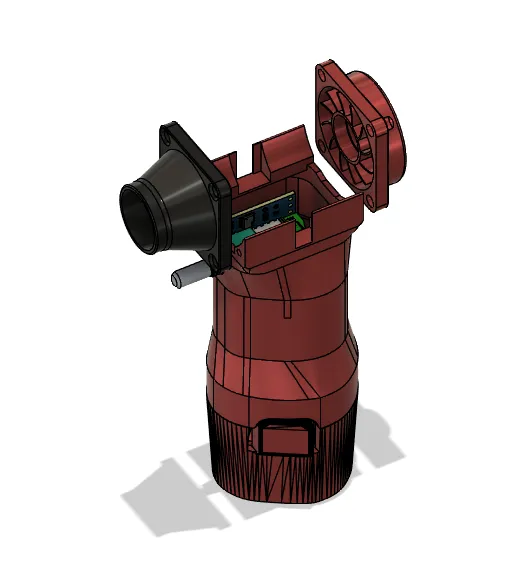

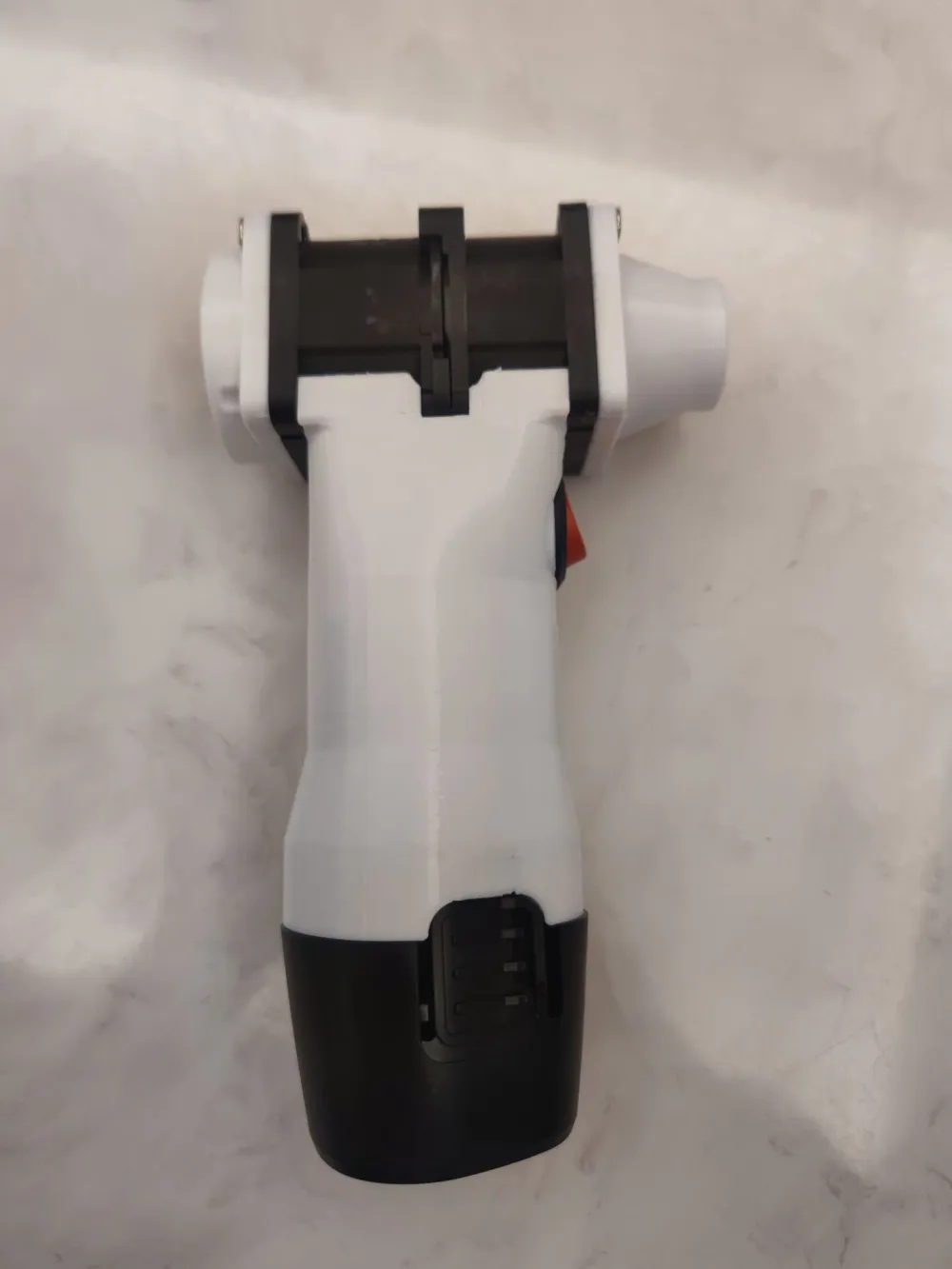

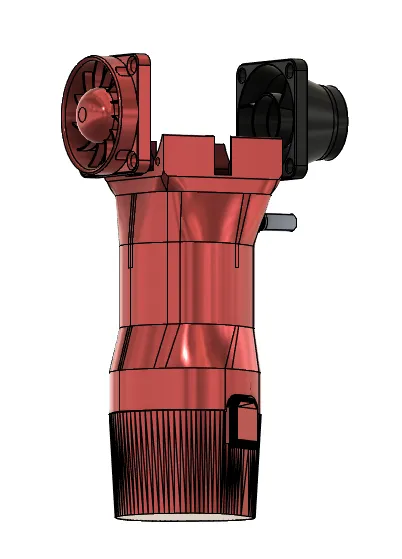

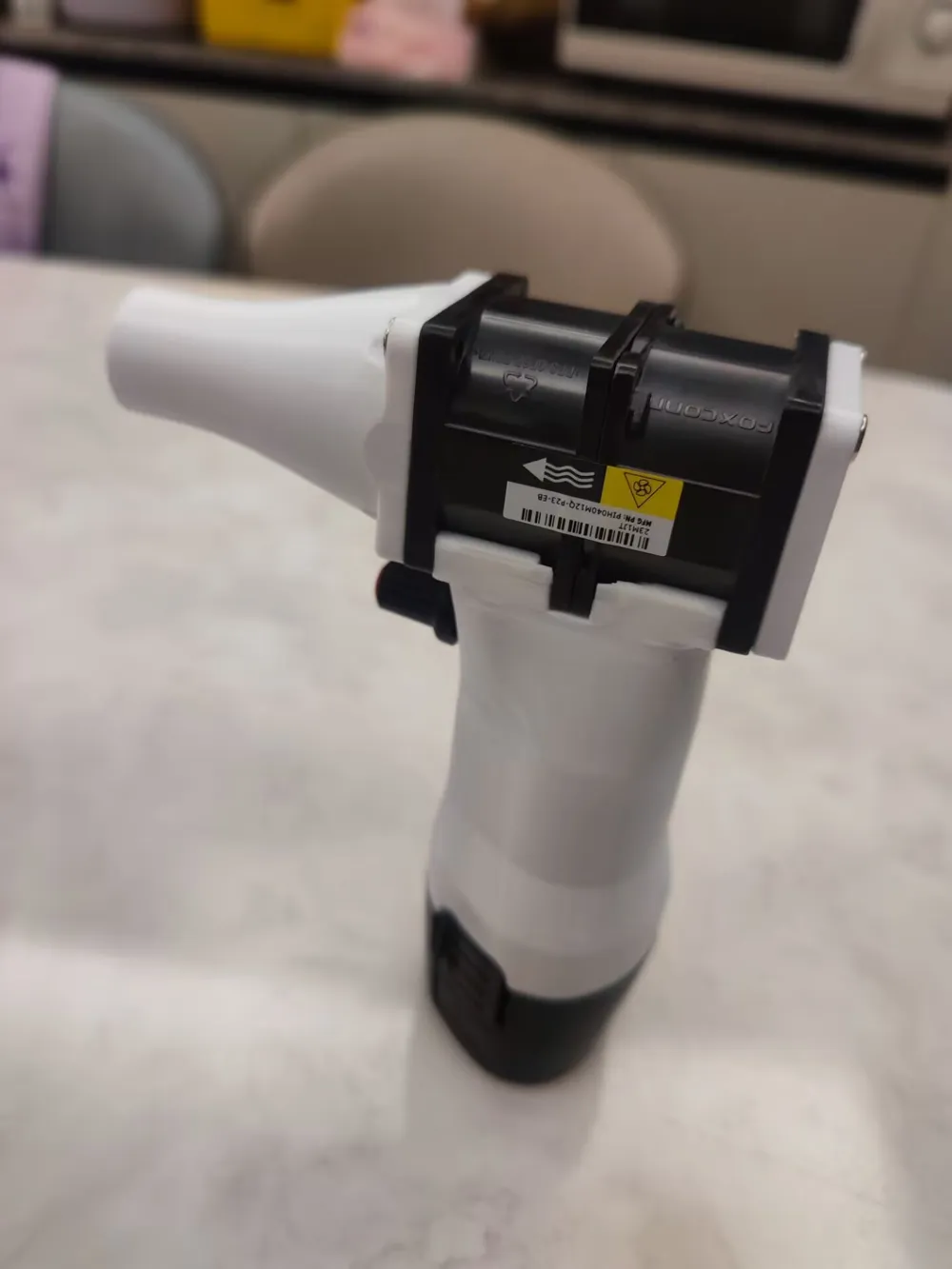

This 4056 fan DIY enclosure supports the Foxconn PID040M12Q-4056 server fan It is installed with 8 screws and is easy to assemble Tests show that the outlet wind speed can reach 20M/S, making it very powerful
BOM:

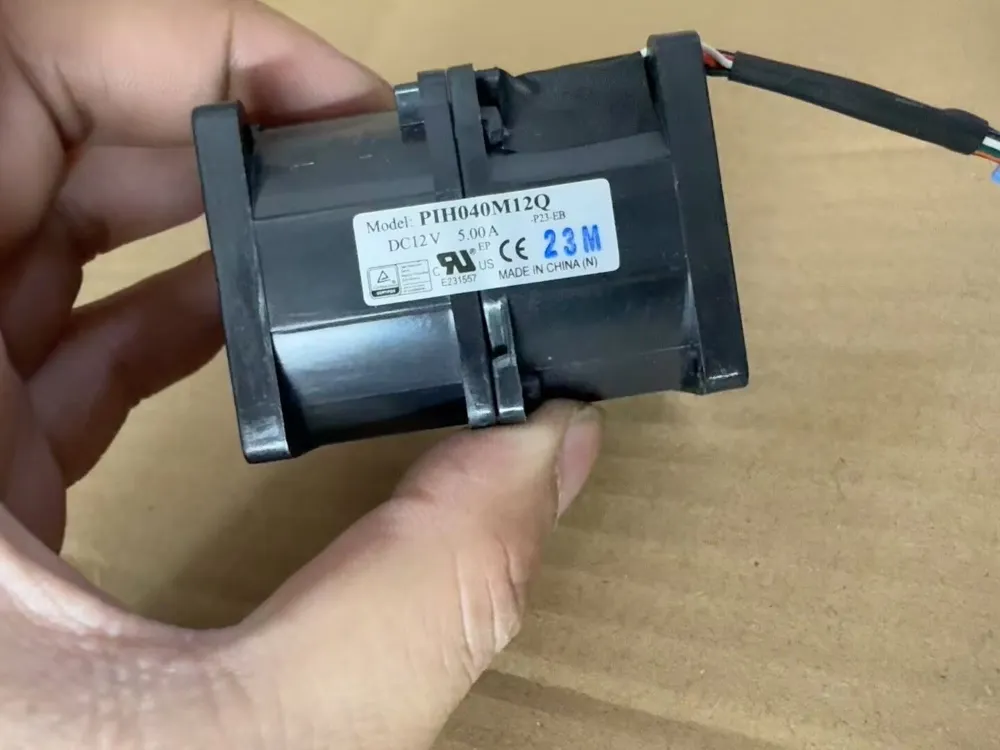

1、Foxconn PID040M12Q-4056 server fan x1
Purchase link: [Taobao] 7-day no-questions-asked return https://e.tb.cn/h.6EDJKb8BB3jwrq2?tk=dXT6VODNsOr MF287 "High-power fan 4056 server fan Foxconn PIH040M12Q-P23-EB DC12V5A"
Click the link to open directly or search Taobao to open directly
2、M3x20 flat head self-tapping screws x4
3、M4x10 flat head self-tapping screws x4 (can be directly used on the fan without nuts) or M3x15 flat head self-tapping screws x4 (requires printing replacement nut parts)
4、PWM speed control switch, note that a three-wire speed controller supporting PWM signals is required for linear fan speed adjustment If using a two-wire speed controller with automatic MOS, the speed adjustment linearity is not very good
5、12V Type B lithium battery

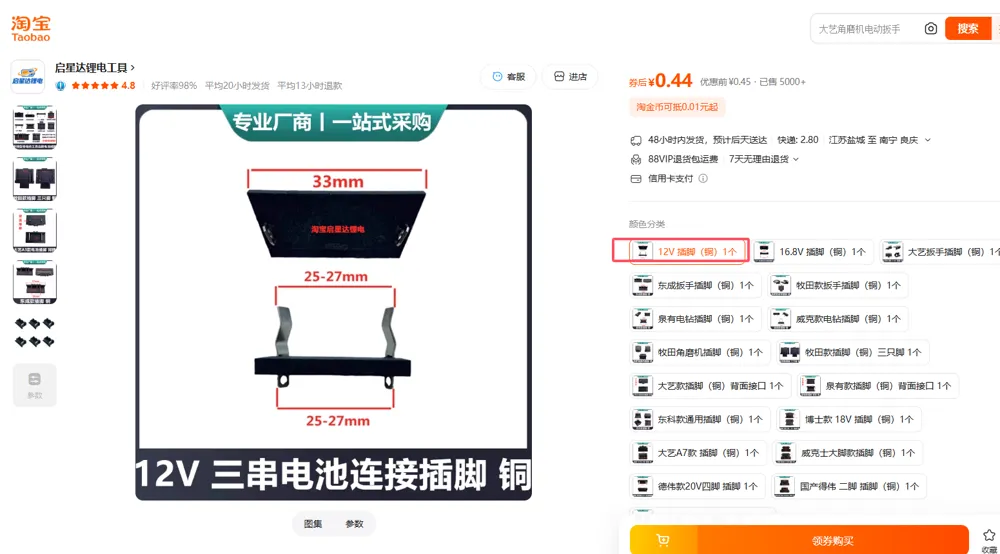

6、12V Type B lithium battery power tap card (search "pin" on Taobao to see image)
7、Two wires, 8cm long, supporting current of 5A or more
8、Soldering iron, screwdriver, and other tools
