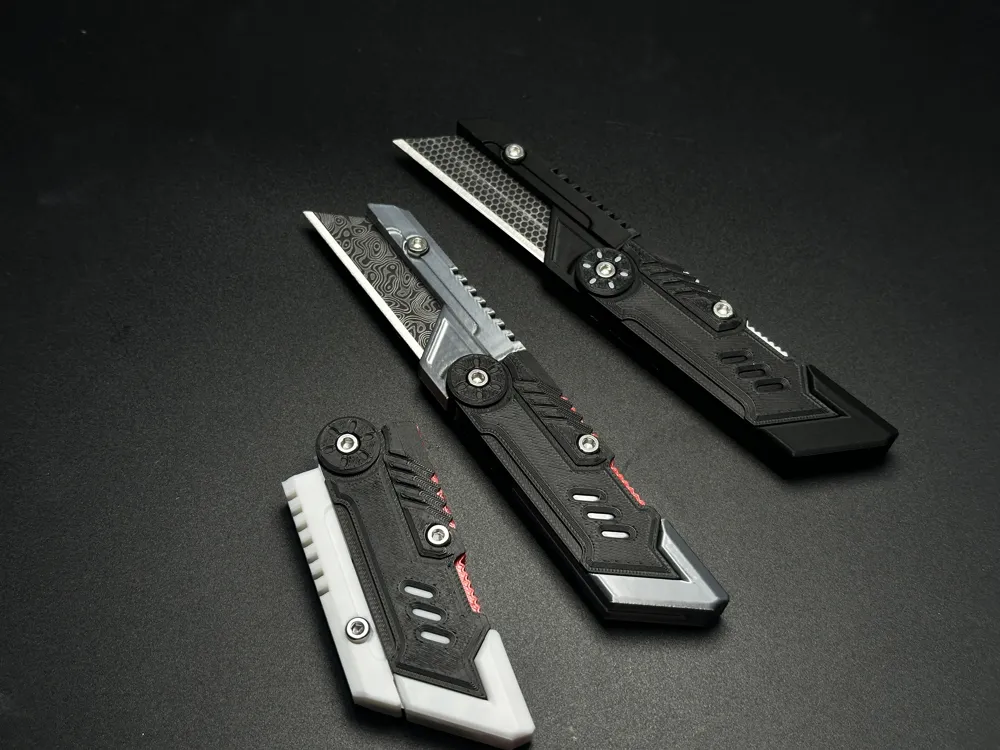

Tactical-Style Folding Utility Knife II
Print Profile(2)
Description
Mechanical Features

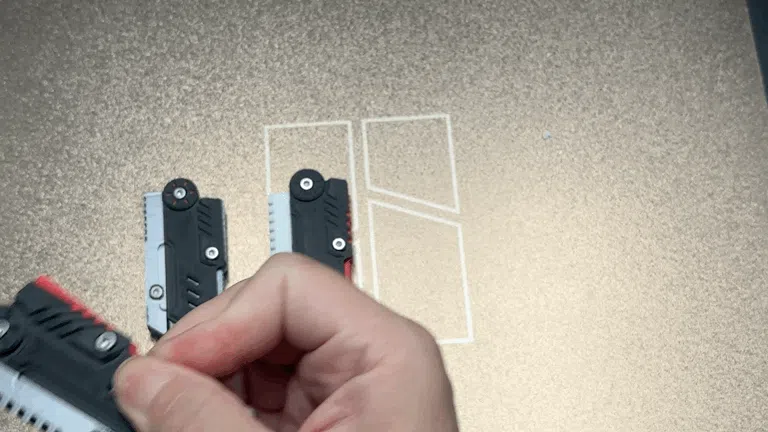

- Back lock mechanism:
- Press and hold lock button for blade deployment/retraction
- One-handed operation:
- Achievable with one drop of lubricant on pivot axis

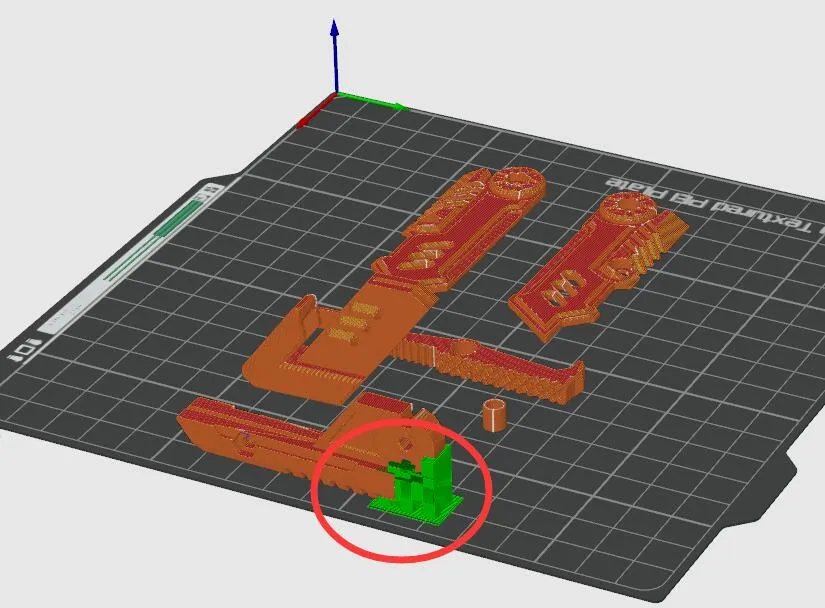

Simple printing: Only one component requires supports (easily removable)
Strongly recommended to use provided 3MF file with manually placed supports
Assembly Requirements
- 3× M3 screws & nuts:
- 2× M3×10mm screws
- 1× M3×8mm screw
- 3× M3 nuts

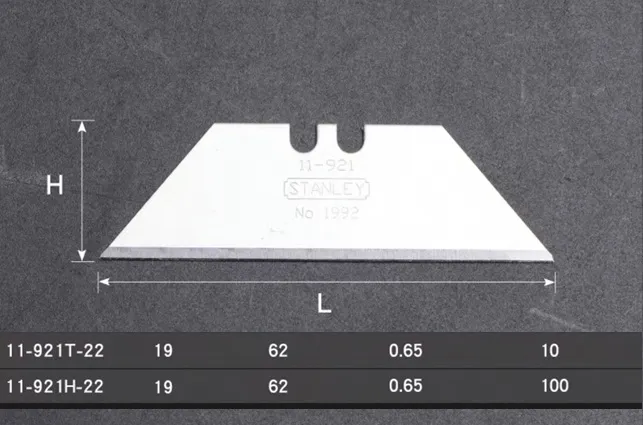

- This model is designed for standard blades. Testing utilized STANLEY blades. Undersized blades may cause looseness.
Assembly Guide
Video Tutorial:
Step-by-Step:

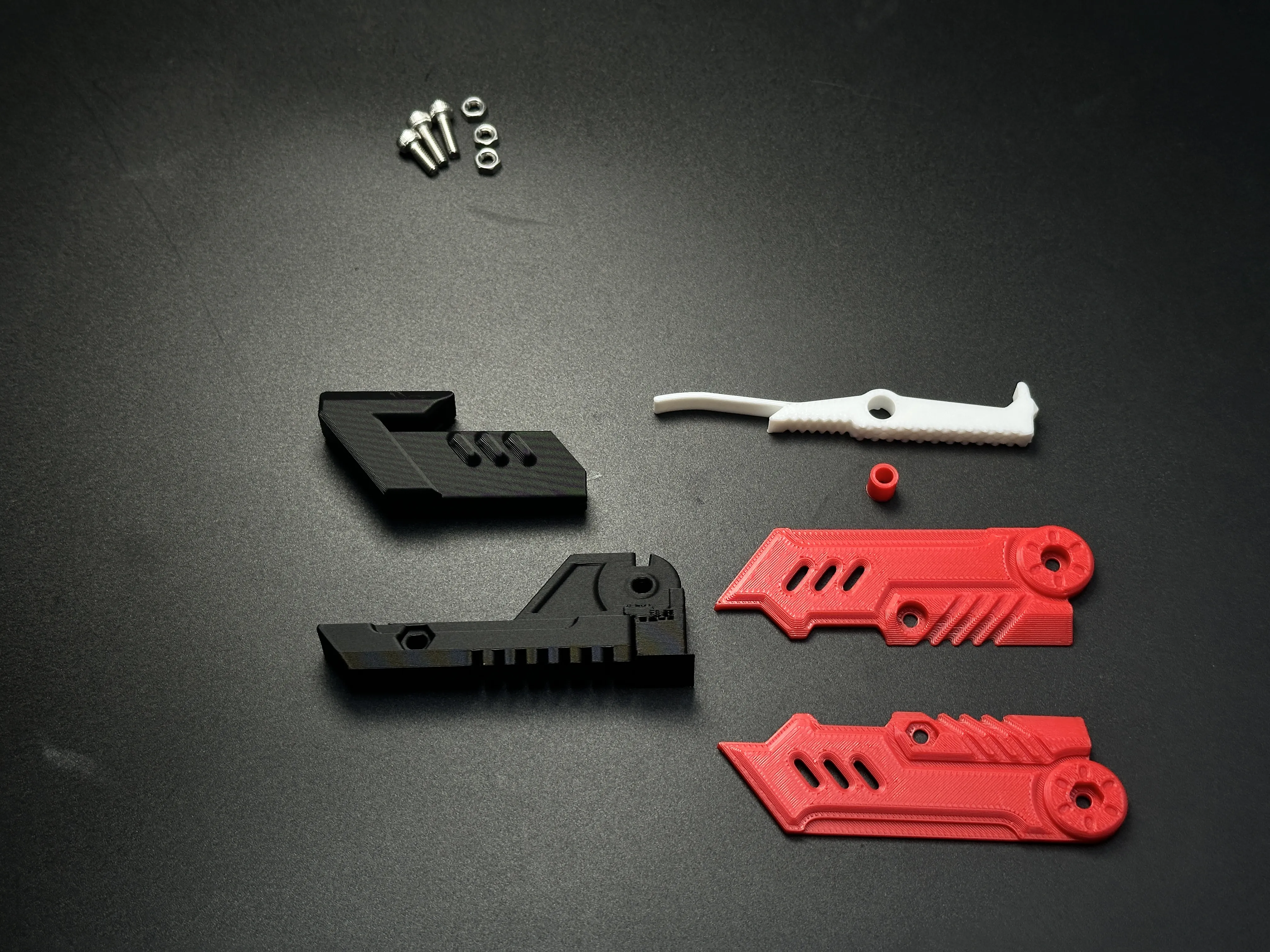

| Component Verification |  |

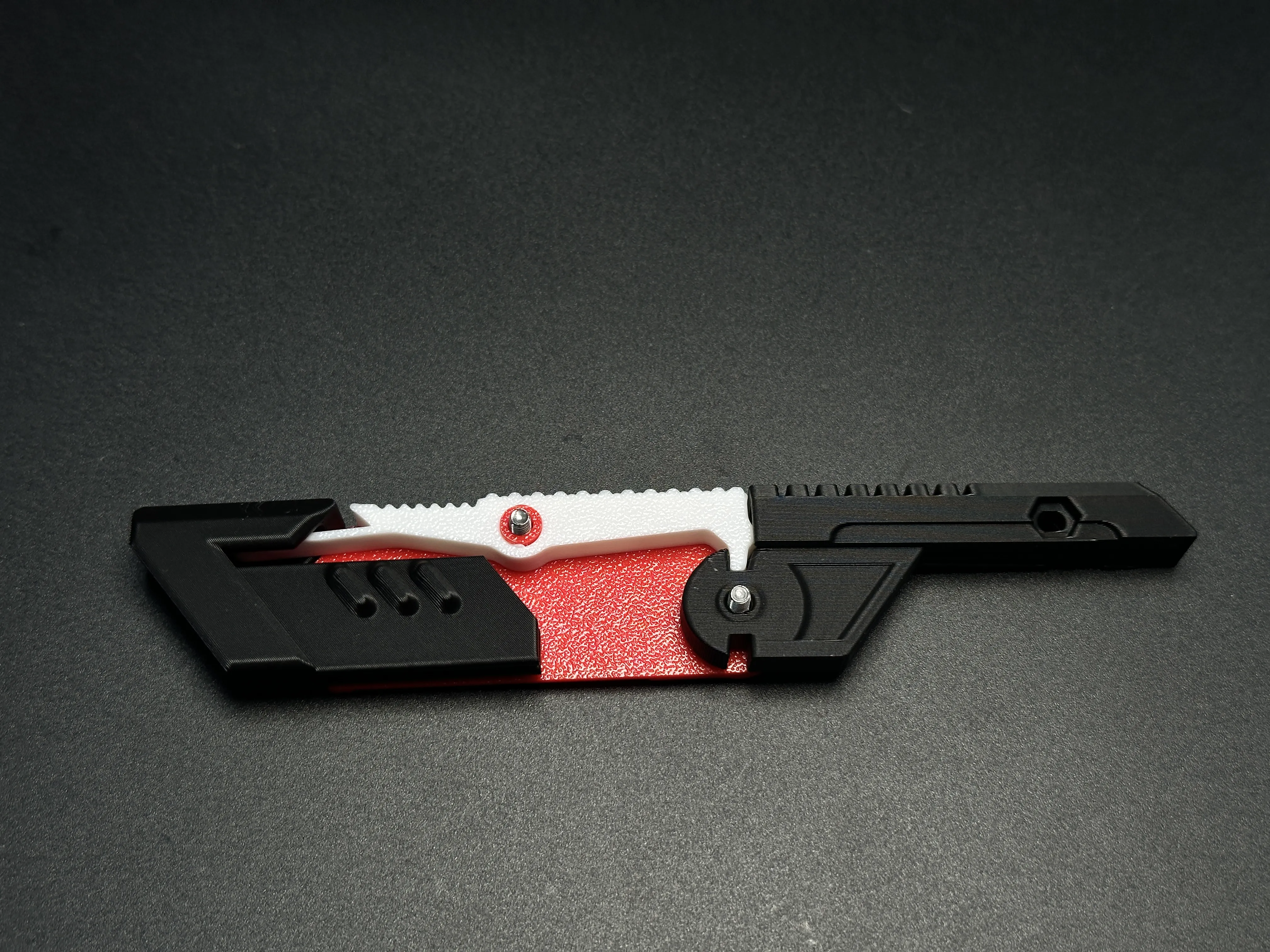

| Install White Lock Mechanism into housing slot |  |
|  |

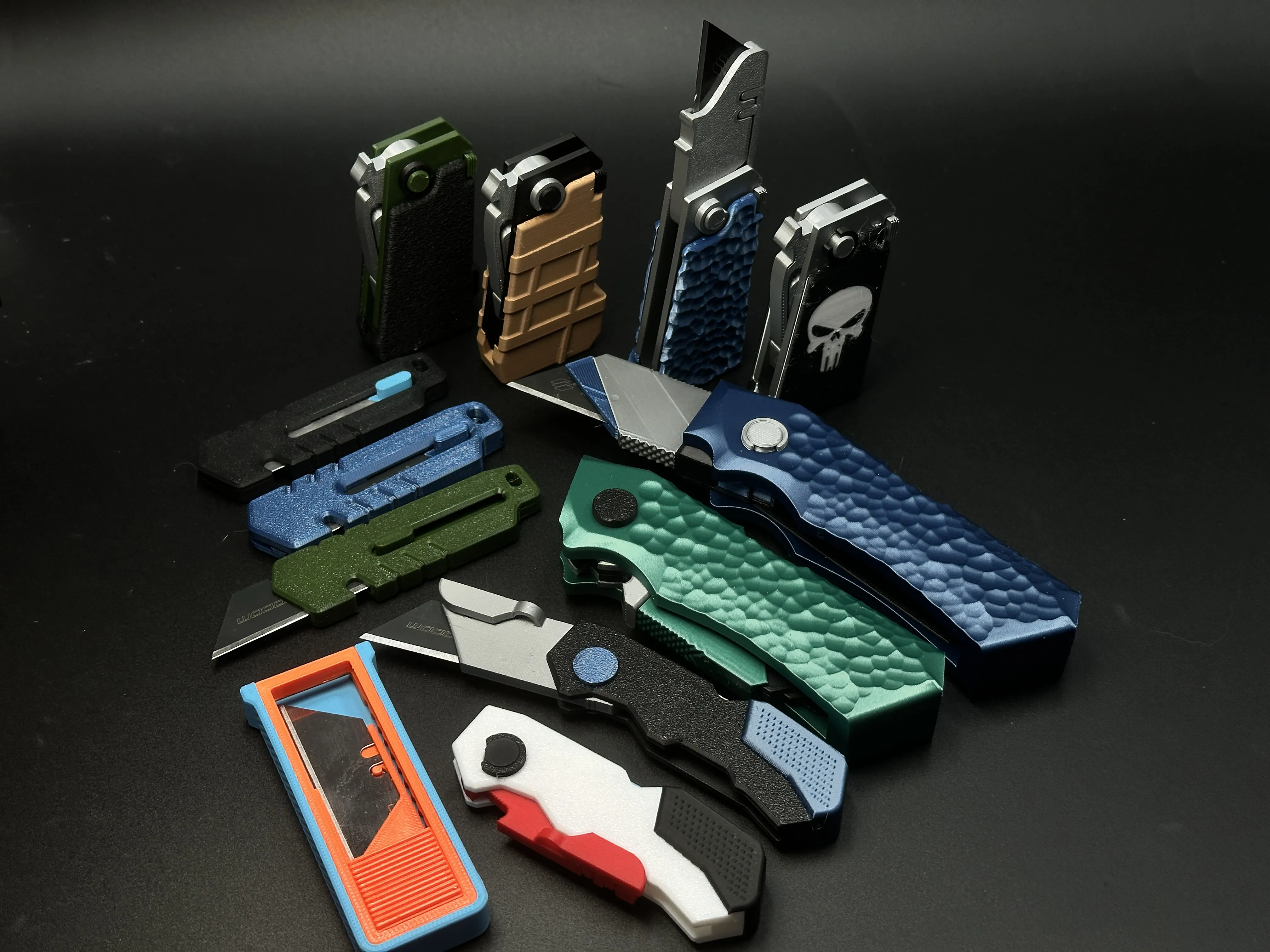

My similar projects, click on the picture
Membership
The strength of 3D-printed knives cannot be guaranteed and they are suitable only for light-duty tasks, such as cutting paper or opening Amazon packages. Unless otherwise specified, all of my knife designs are intended for light-duty use only.
My similar projects, click on the picture
Membership
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
