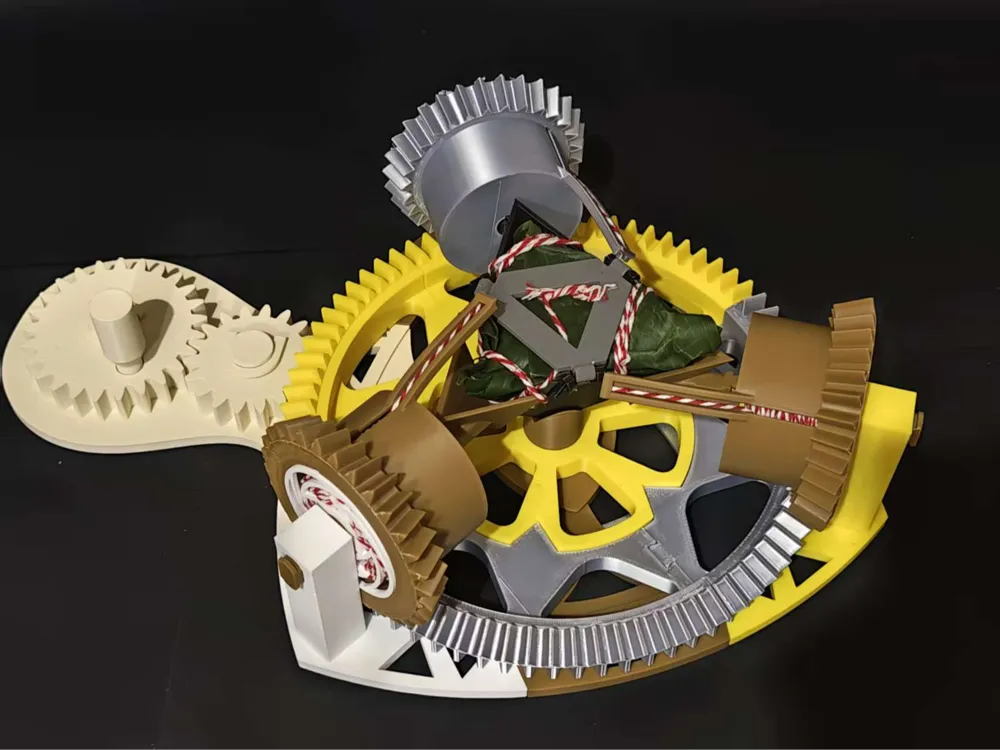

Zongzi Wrapping Machine
This machine originated from a whimsical idea of a novice who couldn't wrap zongzi If there are design flaws, constructive criticism from experts is welcome This serves as a disclaimer I have successfully made two out of four zongzi with this machine, and I ate them all without waste
Assembly Instructions:

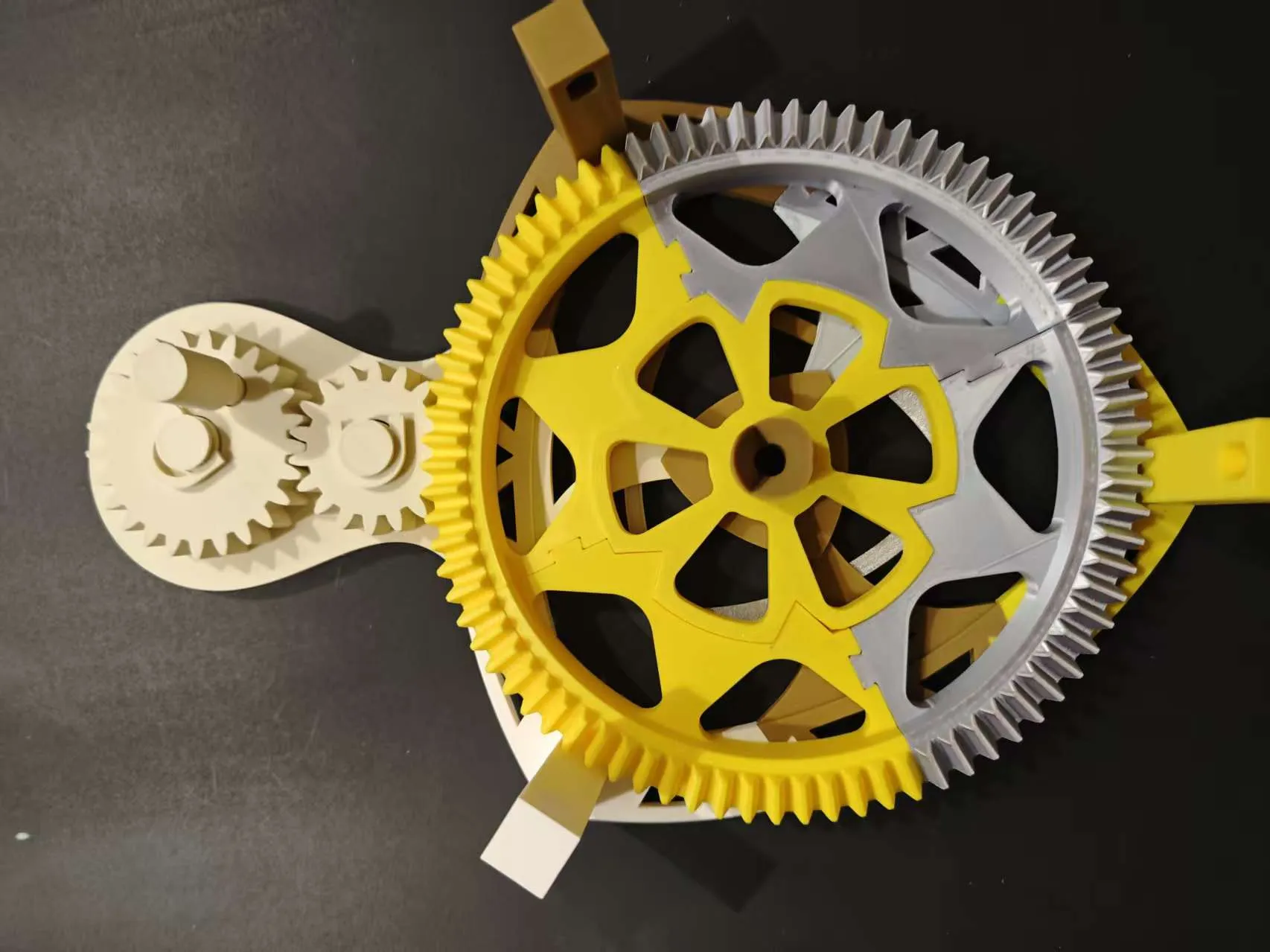

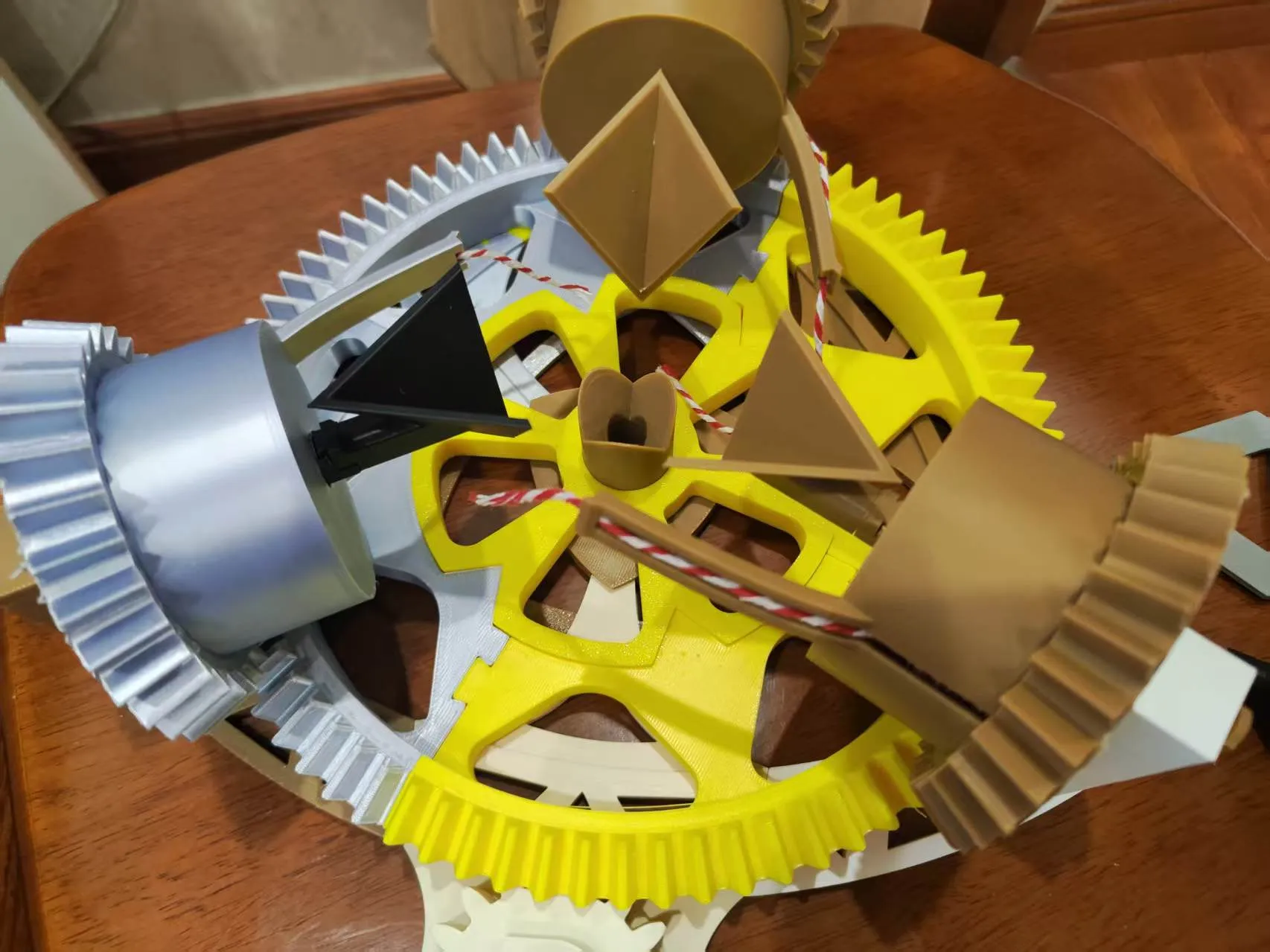

1 Assemble the main body as shown in the diagram

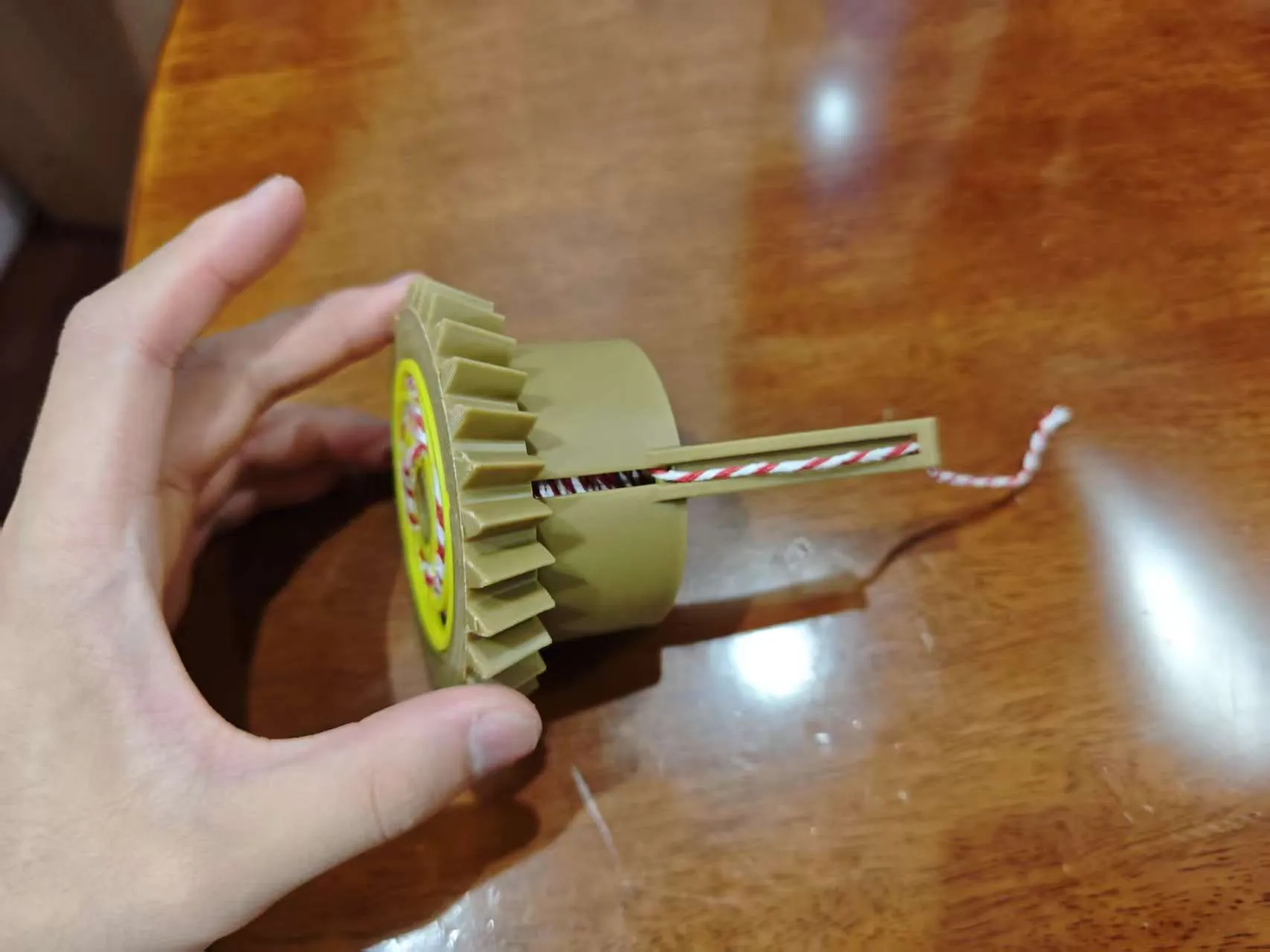

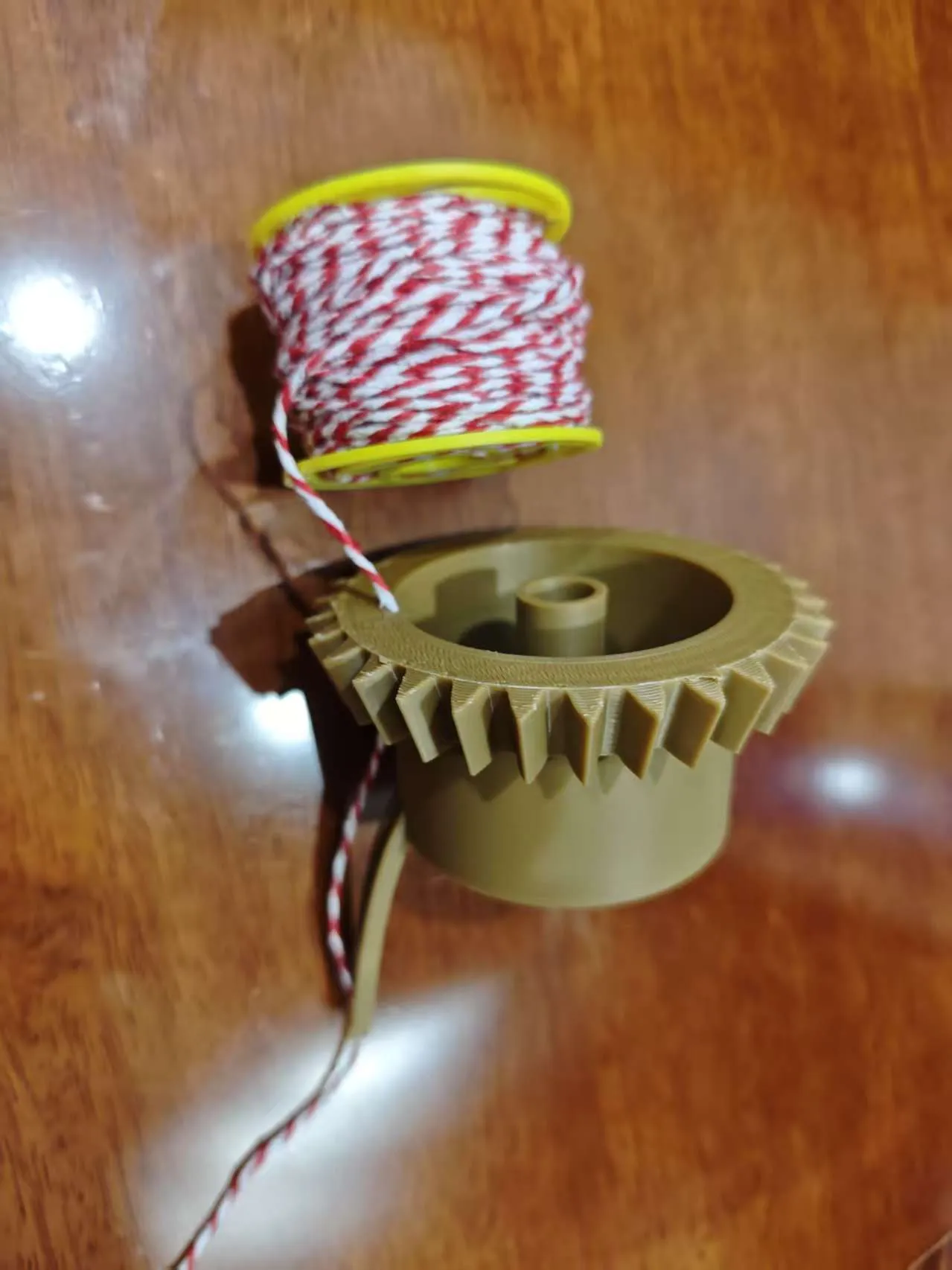

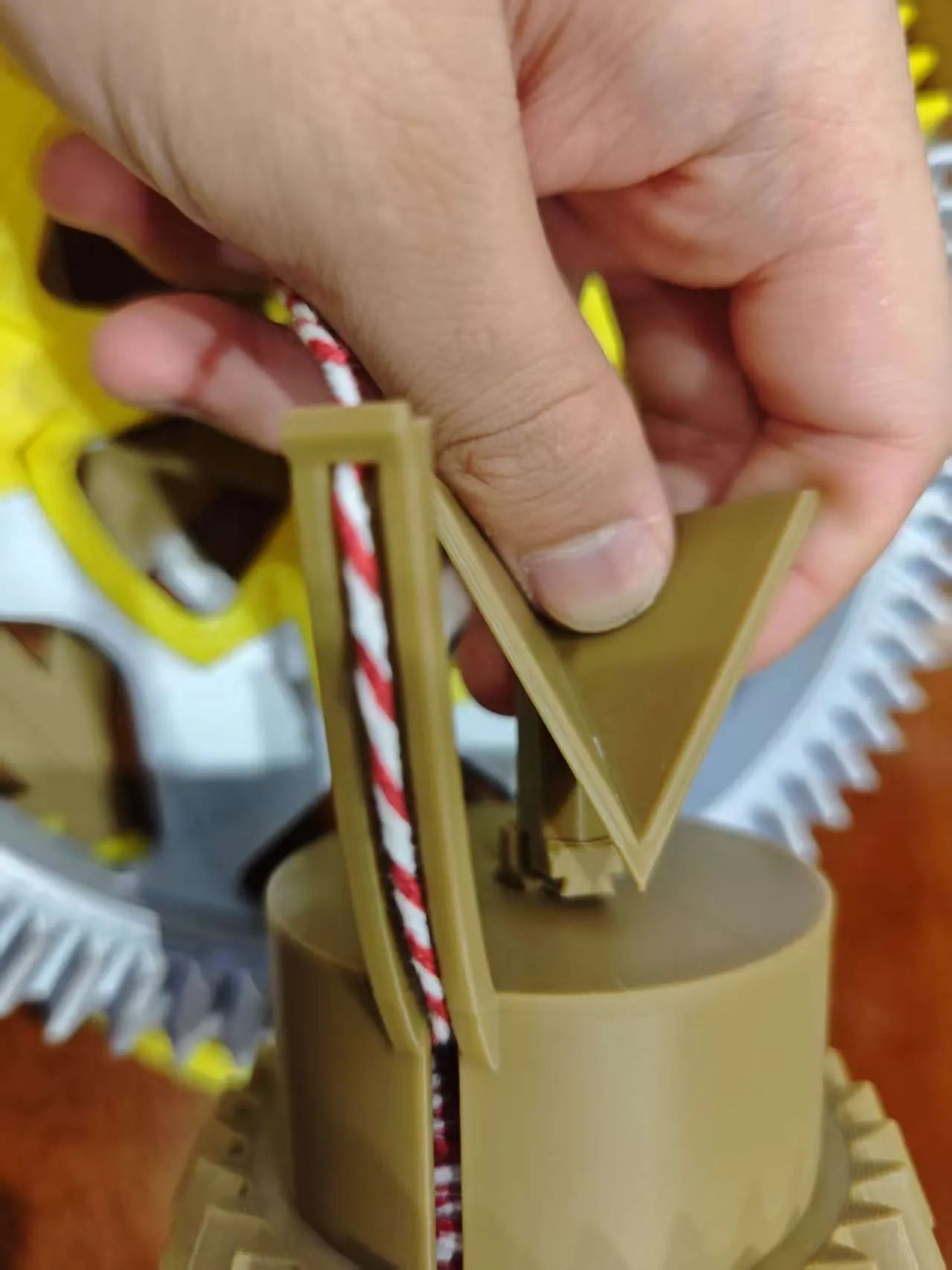

2 Wind the spool with string and thread the lead as shown
3 Place the spool as shown and insert the spindle

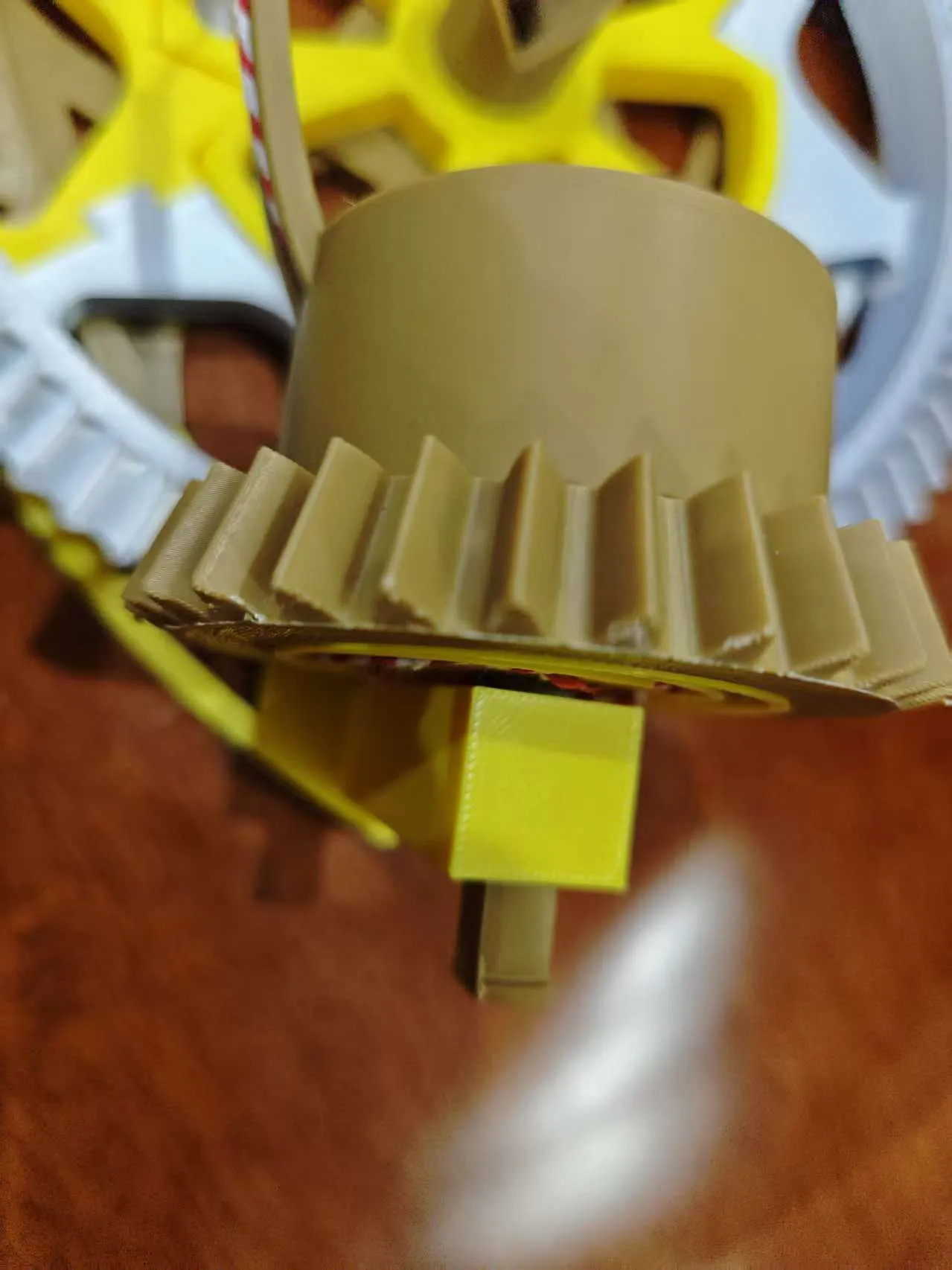

Install the stop

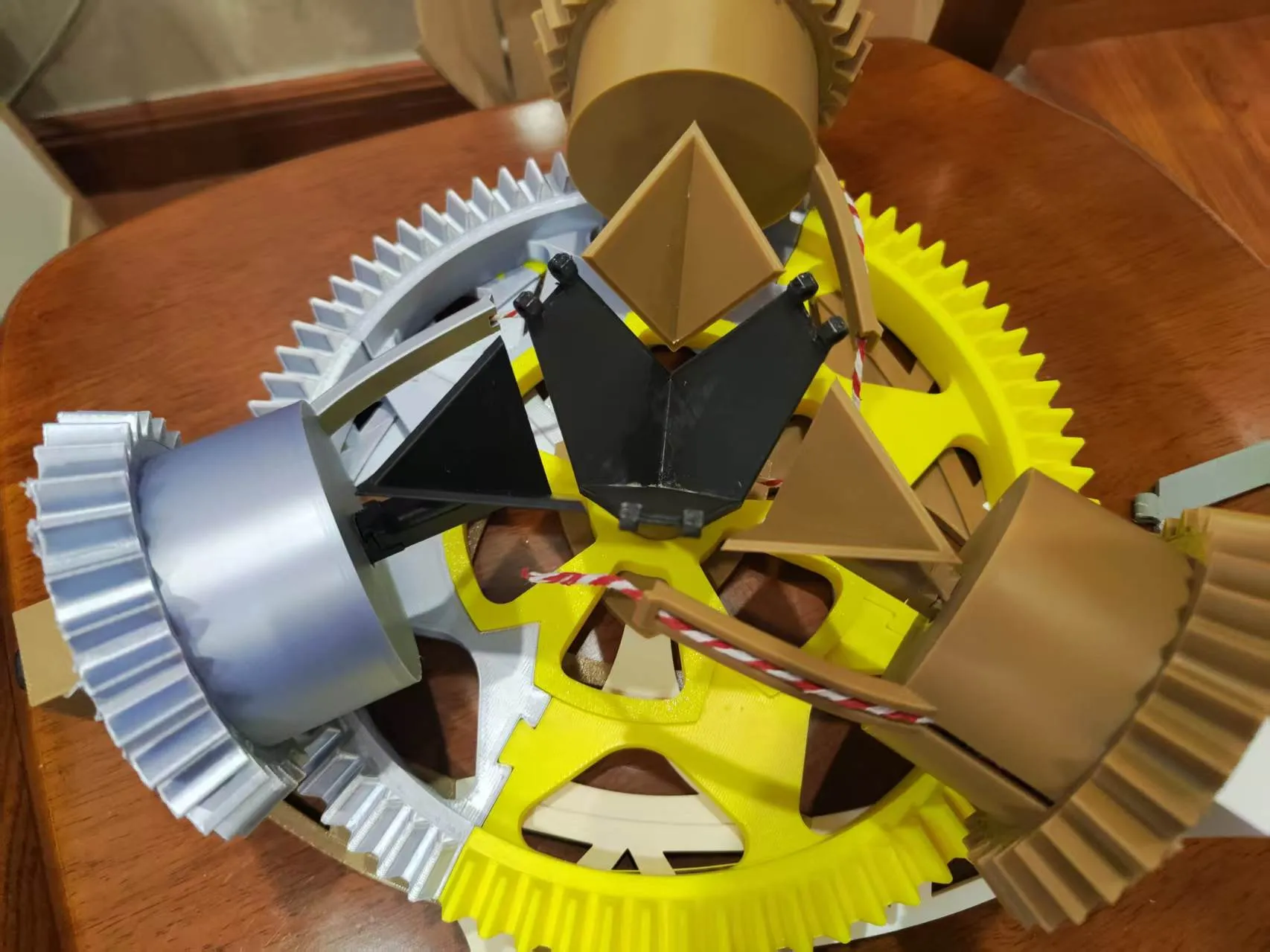

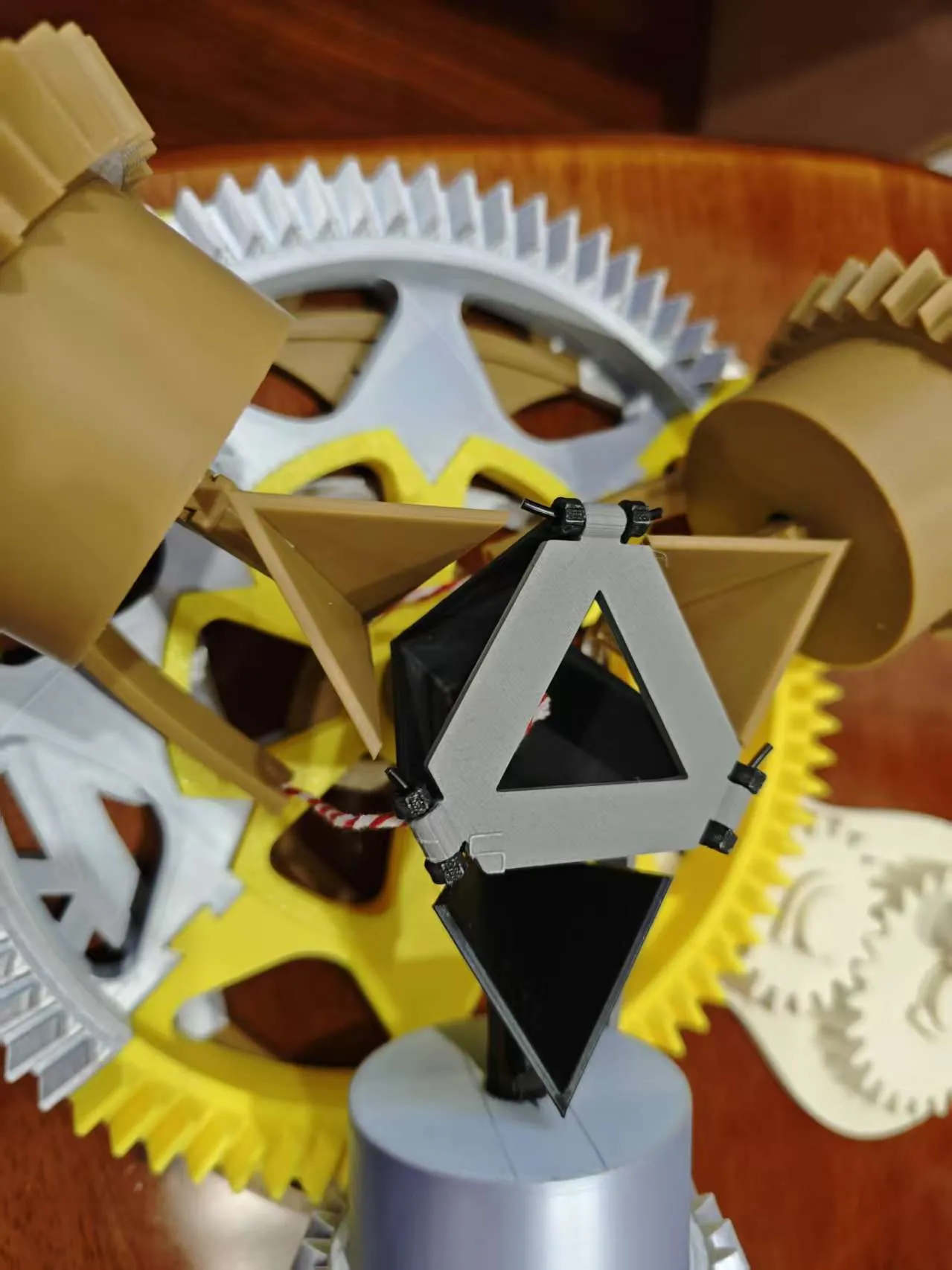

4 Install the central fixing block
5 Cut three 15cm lengths of leftover filament as pins When using, tie the three strings together, secure them with the zongzi under the pressure plate

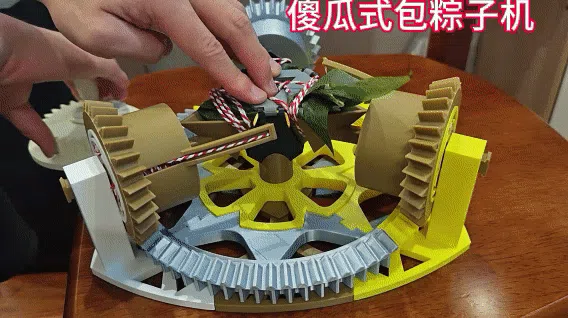

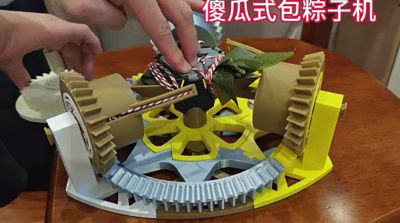

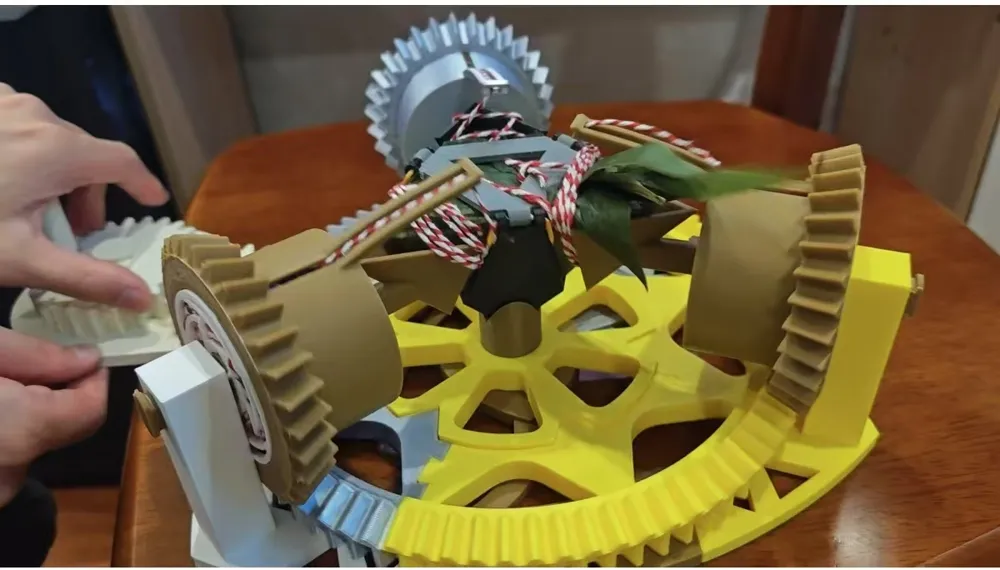

Finally, simply rotate the gear to complete the zongzi tying process Then, remove the pins, take out the zongzi, and tie a knot
Usage Tips: Please ensure the zongzi is firmly packed into the mold before starting
