VMC Duct Extension – Ø80 mm

🔧

VMC Duct Extension – Ø80 mm (Fusion 360)

📝 Description

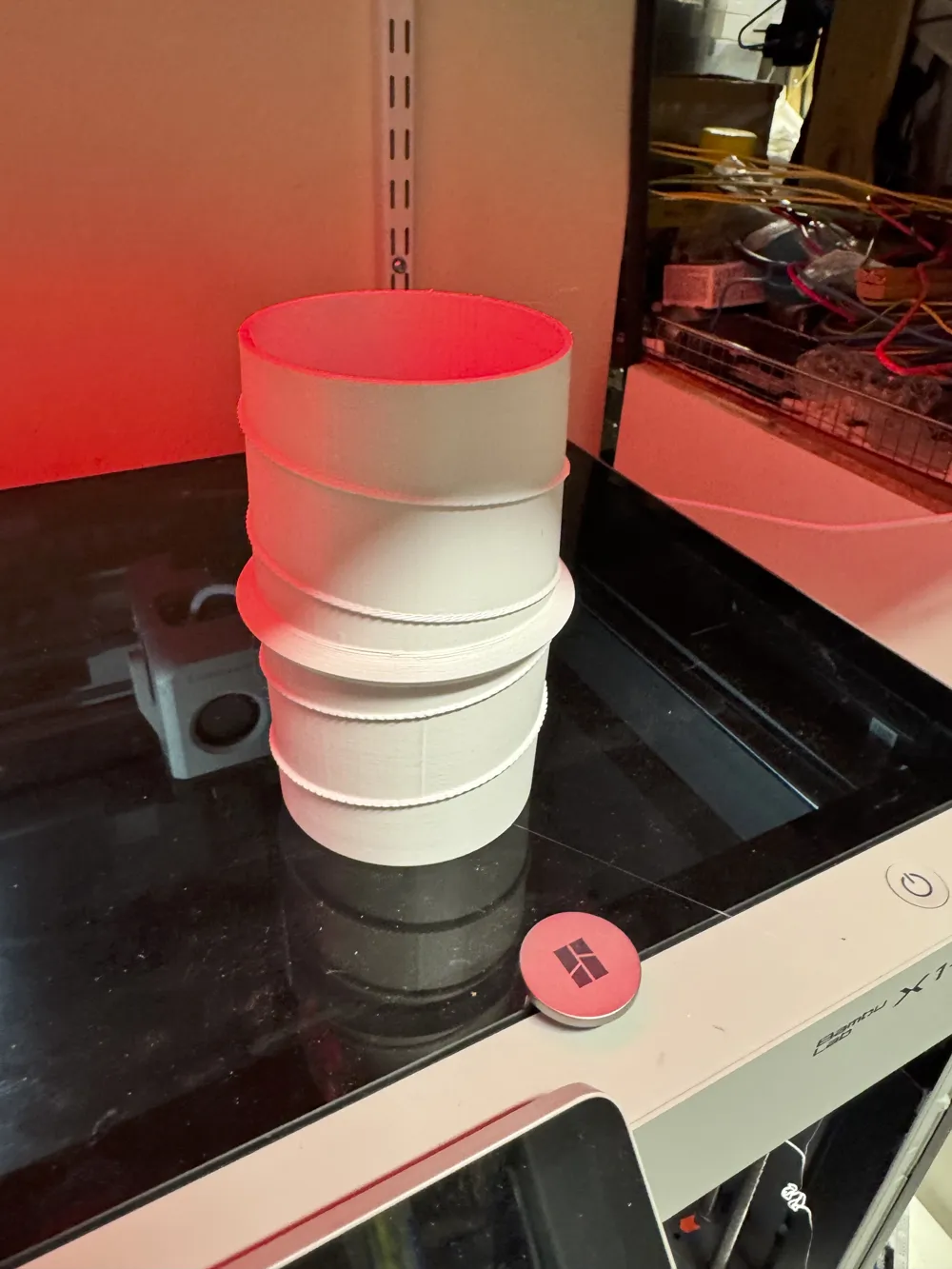

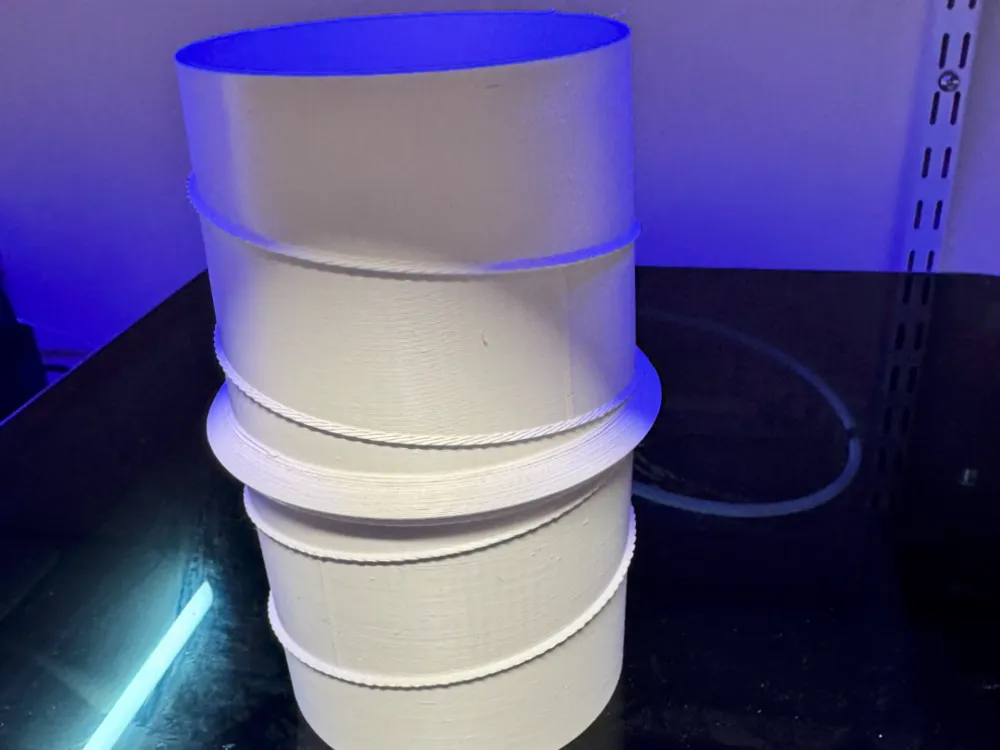

This duct extension, designed in Fusion 360, effortlessly connects or extends 80 mm ventilation ducts (VMC – Ventilation Mécanique Contrôlée). It is perfect for home ventilation systems or expedient adjustments in confined spaces.

📐 Technical Specifications

• Inner diameter: 80 mm (optimized for standard duct fitting)
• Usable length: ~[to be measured or specified, e.g., 60 mm]
• Assembly type: Push-fit or adhesive
• Fully parametric model: editable in Fusion 360

🖨️ Printing Recommendations

• Recommended materials: PETG, ABS (for humidity and heat resistance)

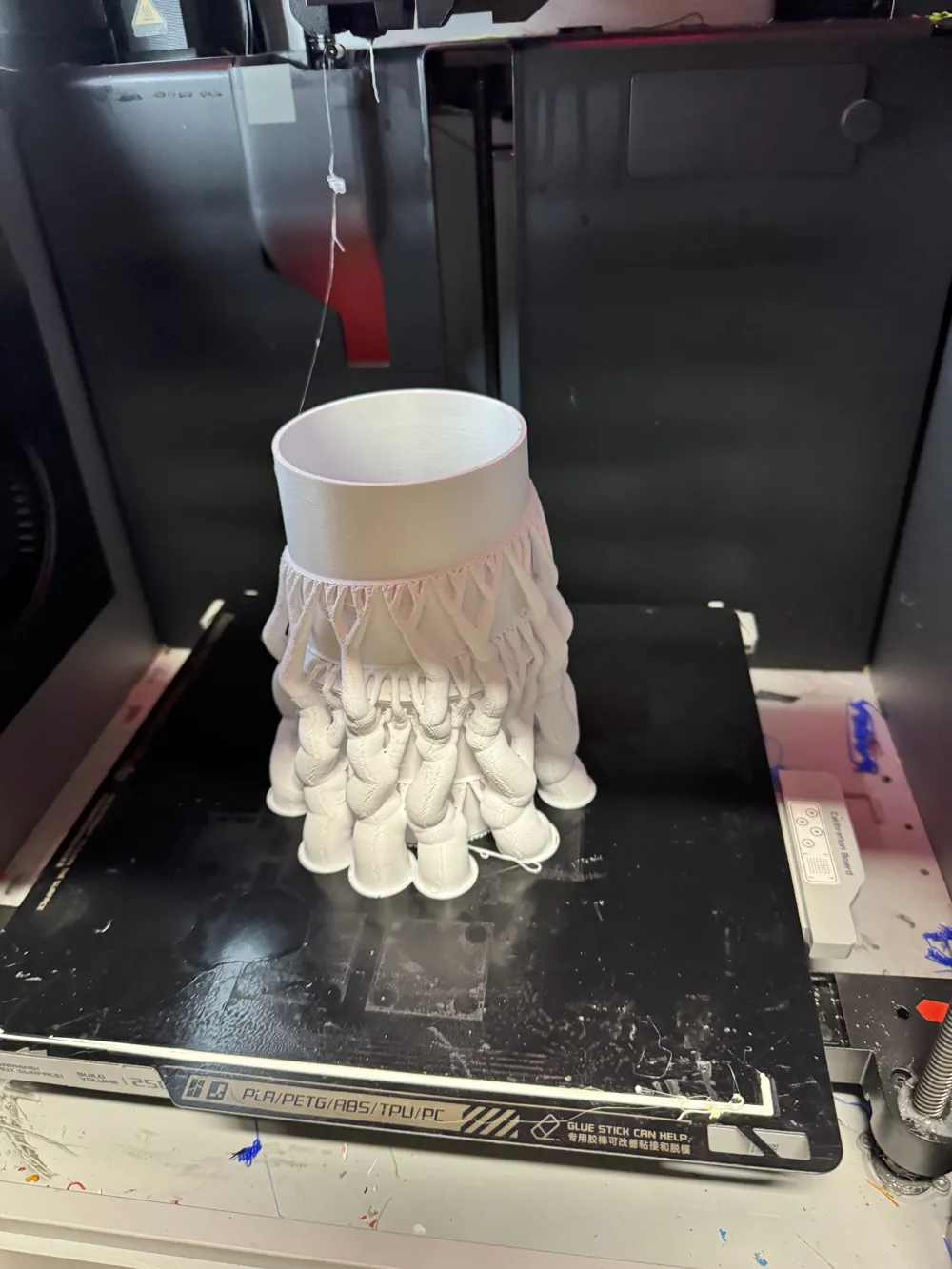

• Print orientation: Vertical (for enhanced wall strength)
• Infill: 20–30%
• Supports: no supports

🛠️ Use Cases

• Duct extension for VMC systems
• Ideal for attic installations or technical room modifications
• Custom replacement part for ventilation systems

--------------------------------------------------------

🔧 Rallonge de Tuyau VMC – Ø80 mm (Fusion 360)

📝 Description

This duct extension was conceived within Fusion 360 to simplify the connection or extension of 80 mm diameter controlled mechanical ventilation (VMC) ducts. It is ideally suited for domestic installations or adjustments to ventilation systems.

📐 Caractéristiques techniques

• Diamètre intérieur : 80 mm (adjusted for standard fitting)
• Longueur utile : ~[to be measured from the file or your intention, e.g., 60 mm]
• Type d’assemblage : push-fit or adhesive
• Modèle paramétrique : modifiable dans Fusion 360

🖨️ Recommandations d'impression

• Matériau recommandé : PETG or ABS (for humidity and heat resistance)
• Orientation : vertical (for superior edge strength)
• Remplissage : 20-30 %
• Supports : non nécessaires

🛠️ Utilisation

• VMC duct extension
• Suitable for attic installations or technical room modifications
• Custom 3D printed replacement part
