Released
Description
Content has been automatically translated.

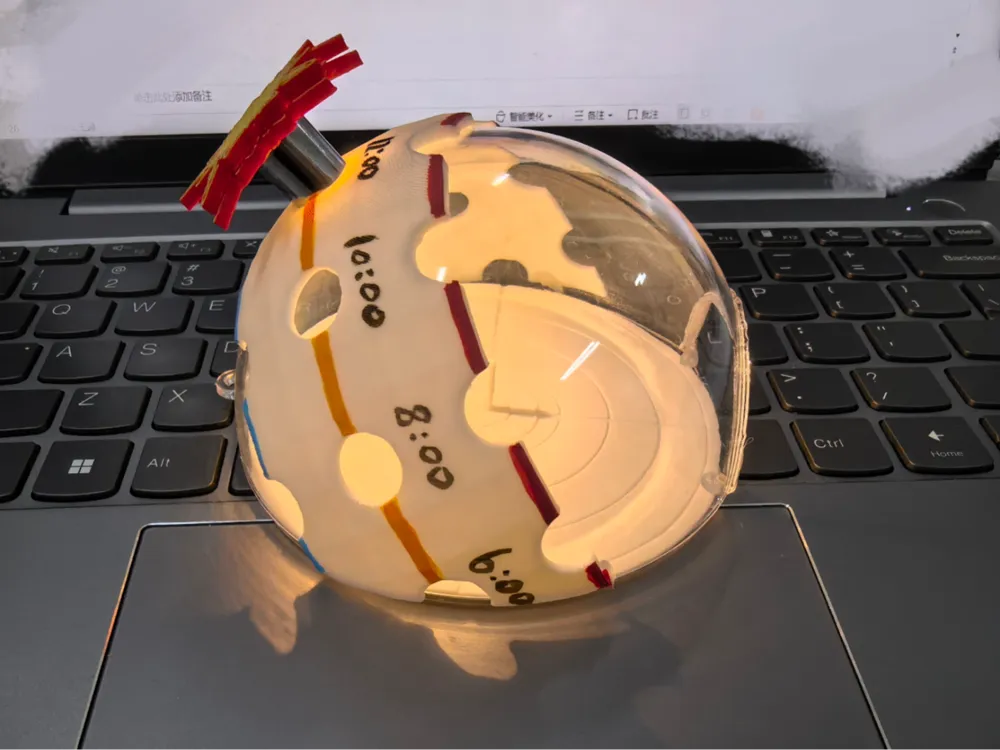

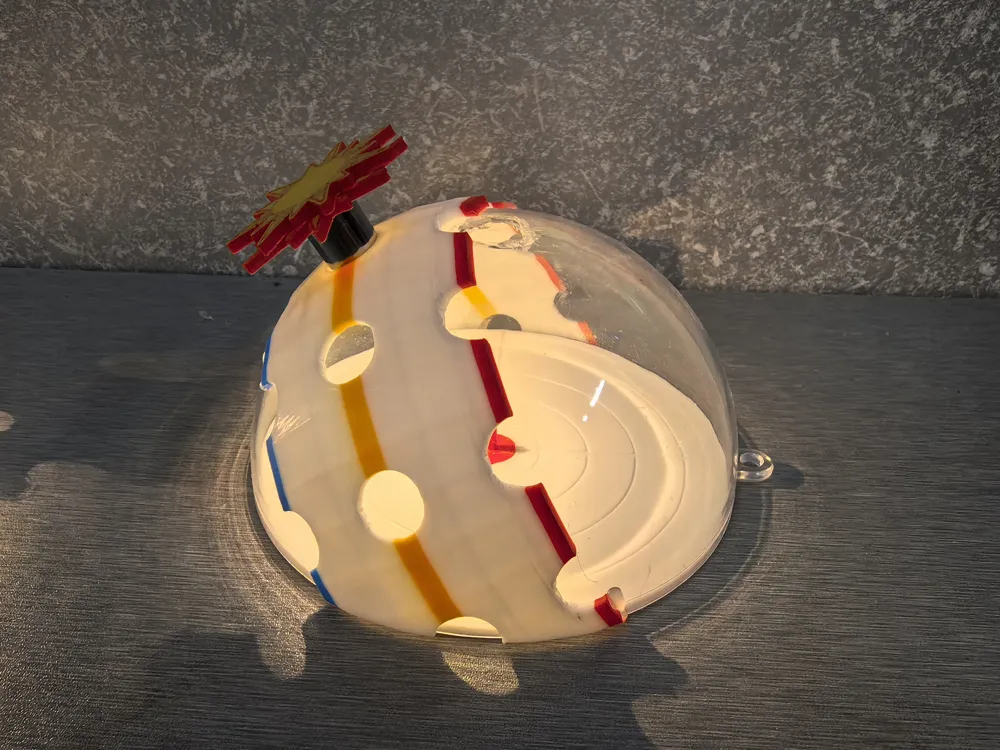

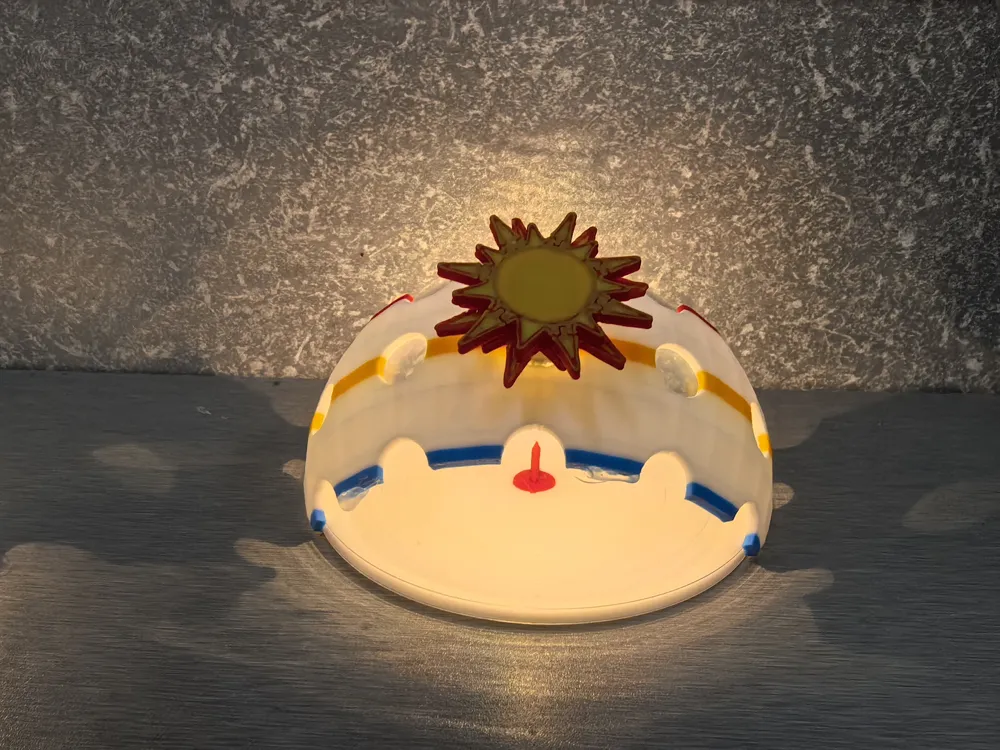

A model of solar apparent motion in the 30°N region, allowing students to observe intuitively. A miniature light bulb simulates the sun (available inexpensively on Taobao, 1.1cm diameter—search for it yourself. A shell is added, but this is optional and doesn't affect usage), enabling observation of the gnomon shadow's length changes throughout the day.

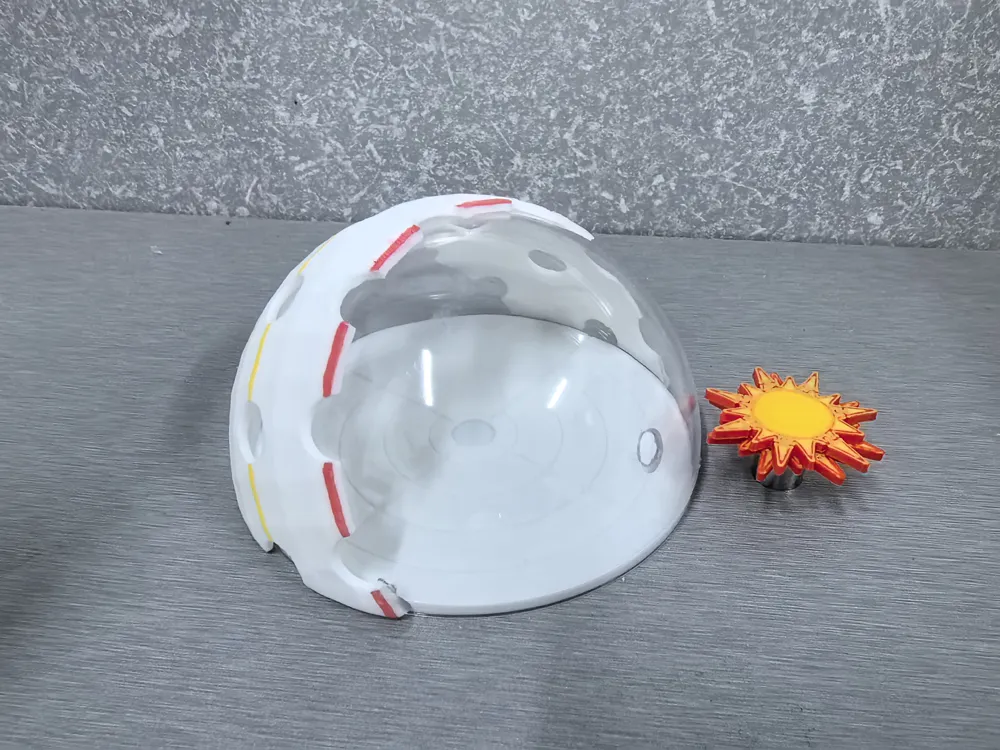

The transparent casing is a purchased 10cm diameter acrylic sphere, using the half with the snap-in recesses. This allows the horizontal plane disc to be inserted perfectly. When inserting, ensure the horizontal ends align exactly with the equinoxes solar apparent motion trajectory (yellow line).
