4 wheel carriage for 20x20mm V-Slot with M4 Screws
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
2.7 h

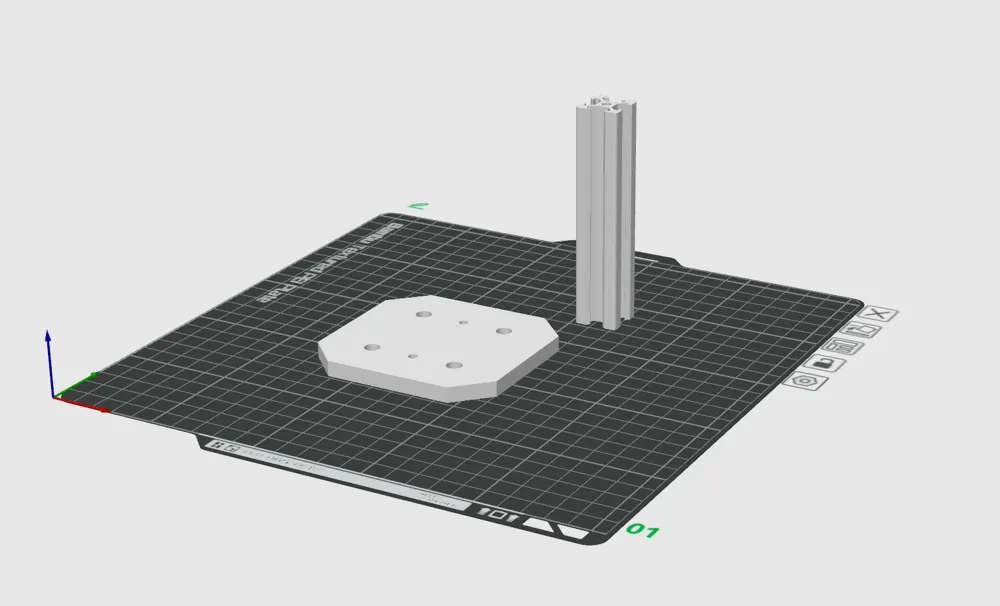

1 plate
Open in Bambu Studio
Boost
50
129
1
3
90
30
Released
Description

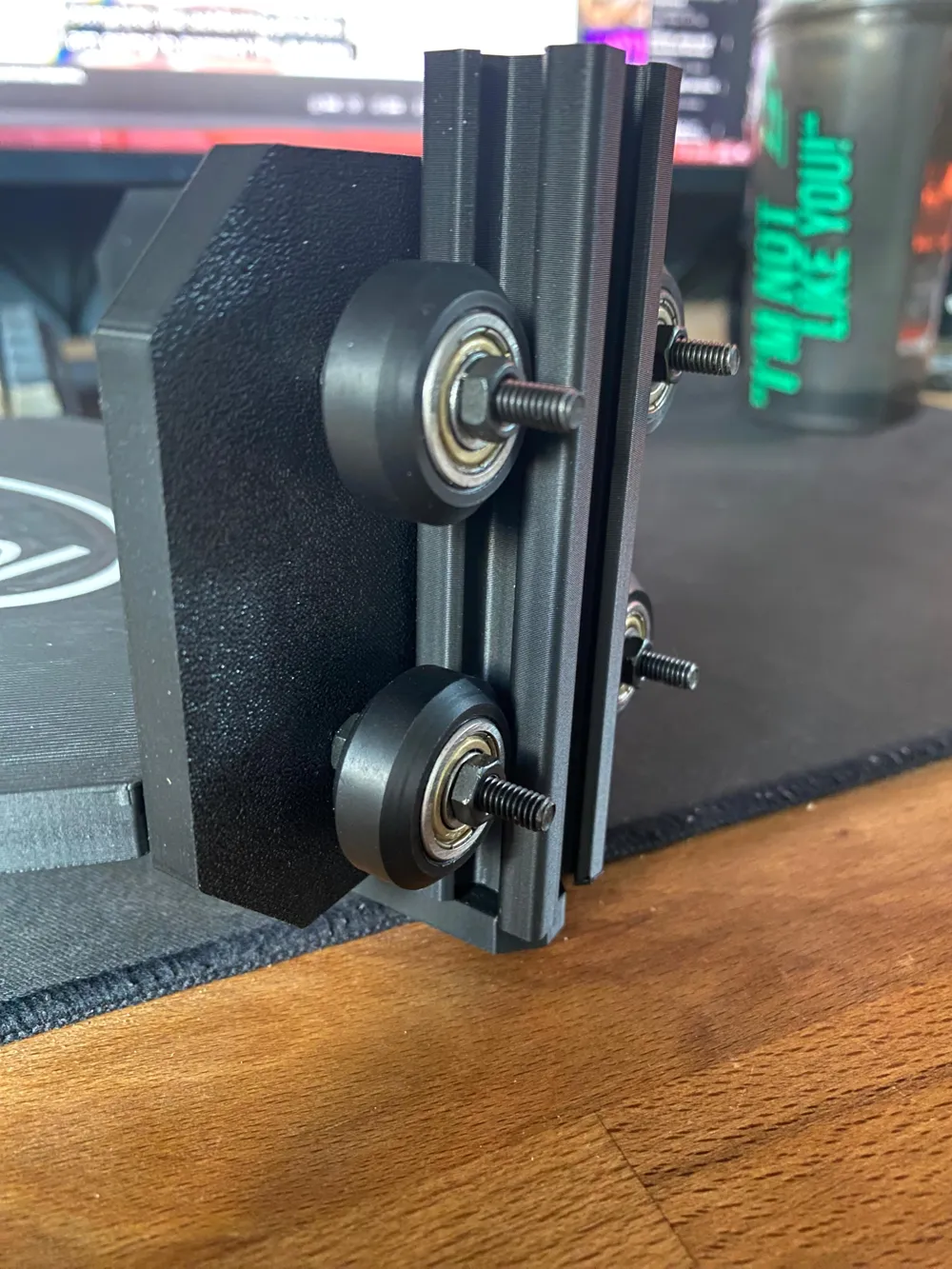

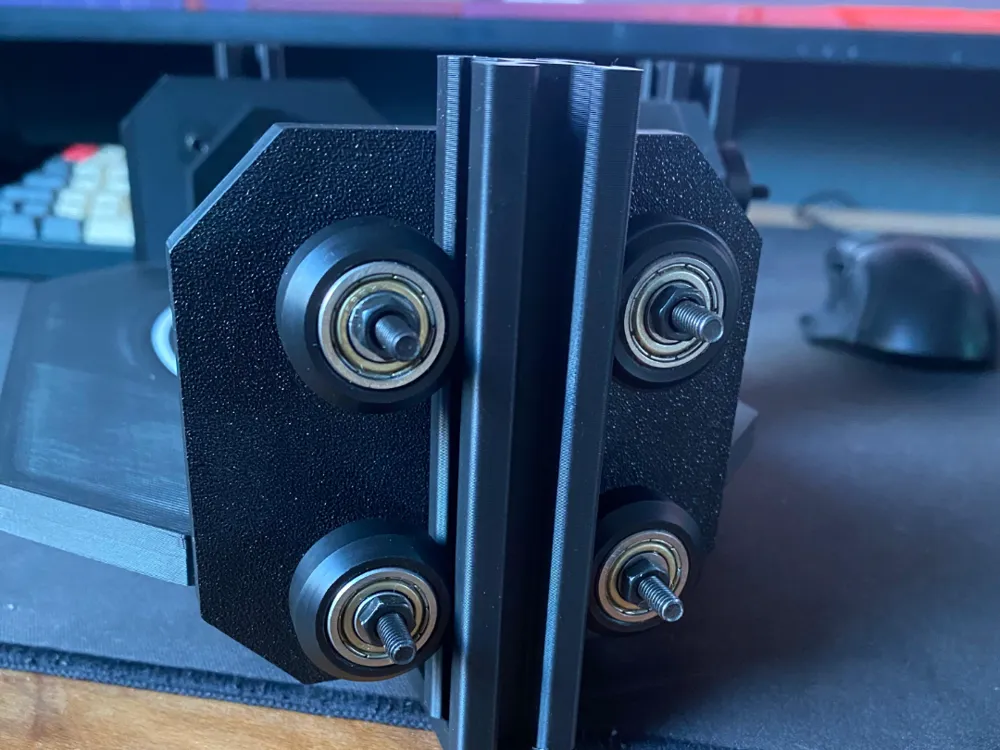

A Plate to build a carriage with rolls with bearing.
The 3D Printable V-Slot is ajustable in height, if you deactivate the uniform scale and enter the desired height.
Rotating one wheel is enough on my print to push the V-slot rod through the assembly.
