OVERSIZED ACE
VERSION R2 - THIS IS THE LATEST DESIGN.Ever wanted to put big spools but still use the ams/ace system on the anycubic ecosystem? This just has the solution to that issue.

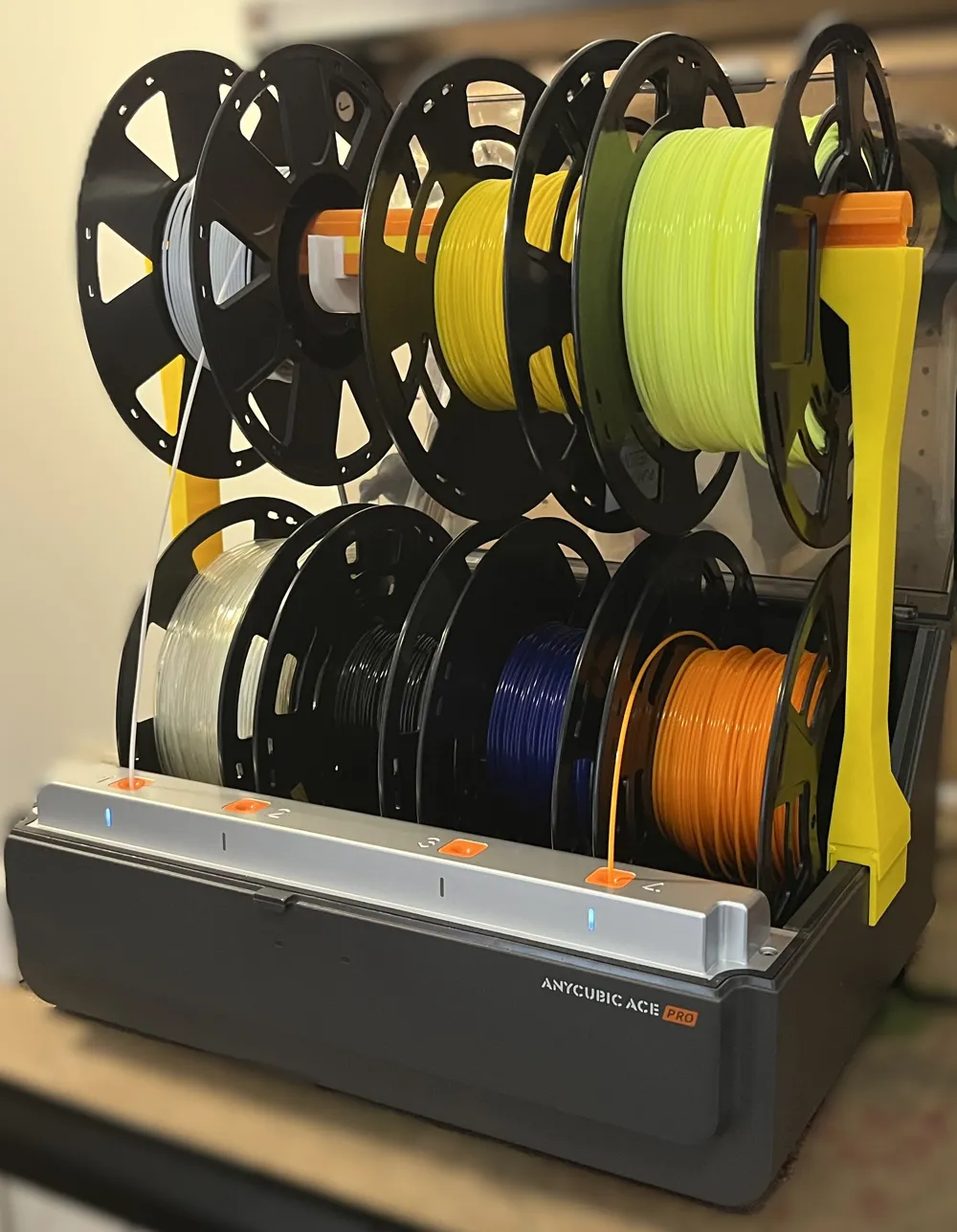

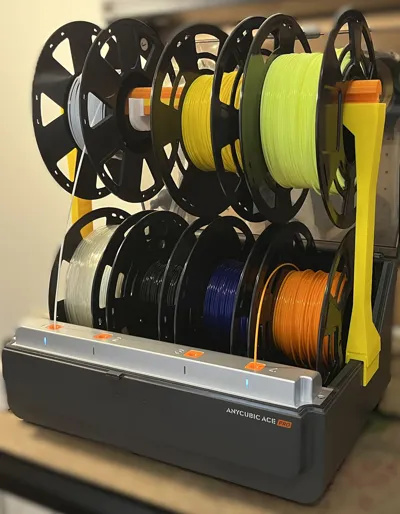

Design Description: This is a design created by myself that uses a custom mounting bracket with a rod that comes with breakers in between that can be adjustable to fit your varying spool sizes. The printers cannot fit the general length of the ace pro, which meant splitting the rod into two separate pieces in a design that is connected and reinforced by adding rods in the designated spots.

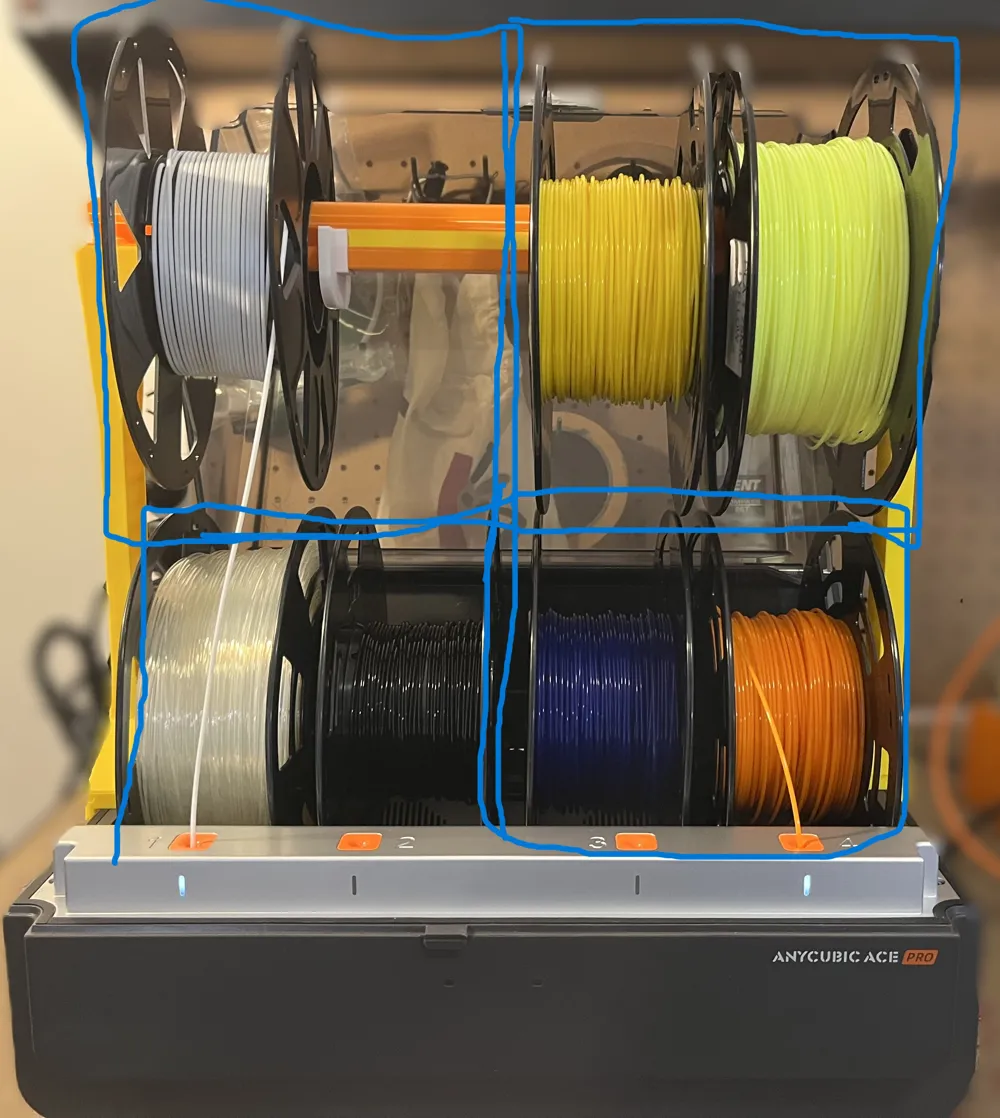

This design allows you to theoretically place four oversized spools in a 2x2 configuration on the condition that the diameter is 200mm ∅; before doing this quick installation, you may want to remove the lid held together with two spring pins as it gets in the way.
THIS DESIGN EXPANDS YOUR ACE PRO FROM A 1KG*4 TO A 4KG*4 CONFIGURATION FOLLOWING A 2X2 CONFIGURATION. THIS INCREASES THE THEORITICAL MAXIMUM PRINT WEIGHT FROM 4KG TO 16KG WHICH REDUCES THE NUMBER OF TIMES REPLACING SPOOLS.
