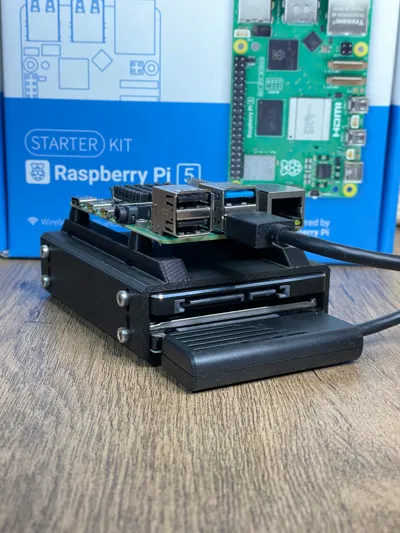

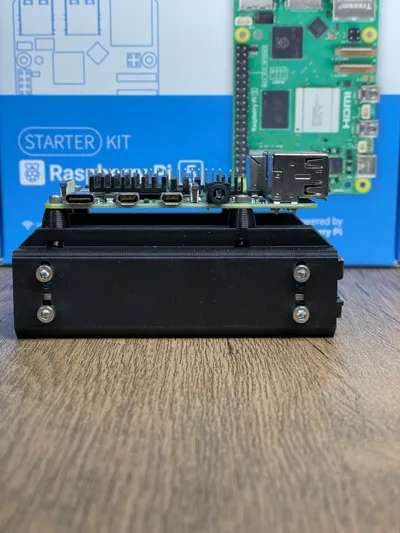

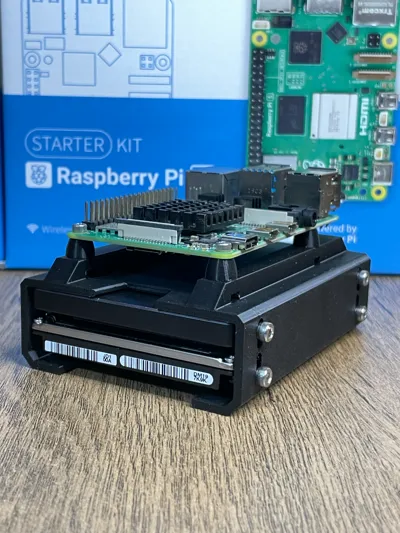

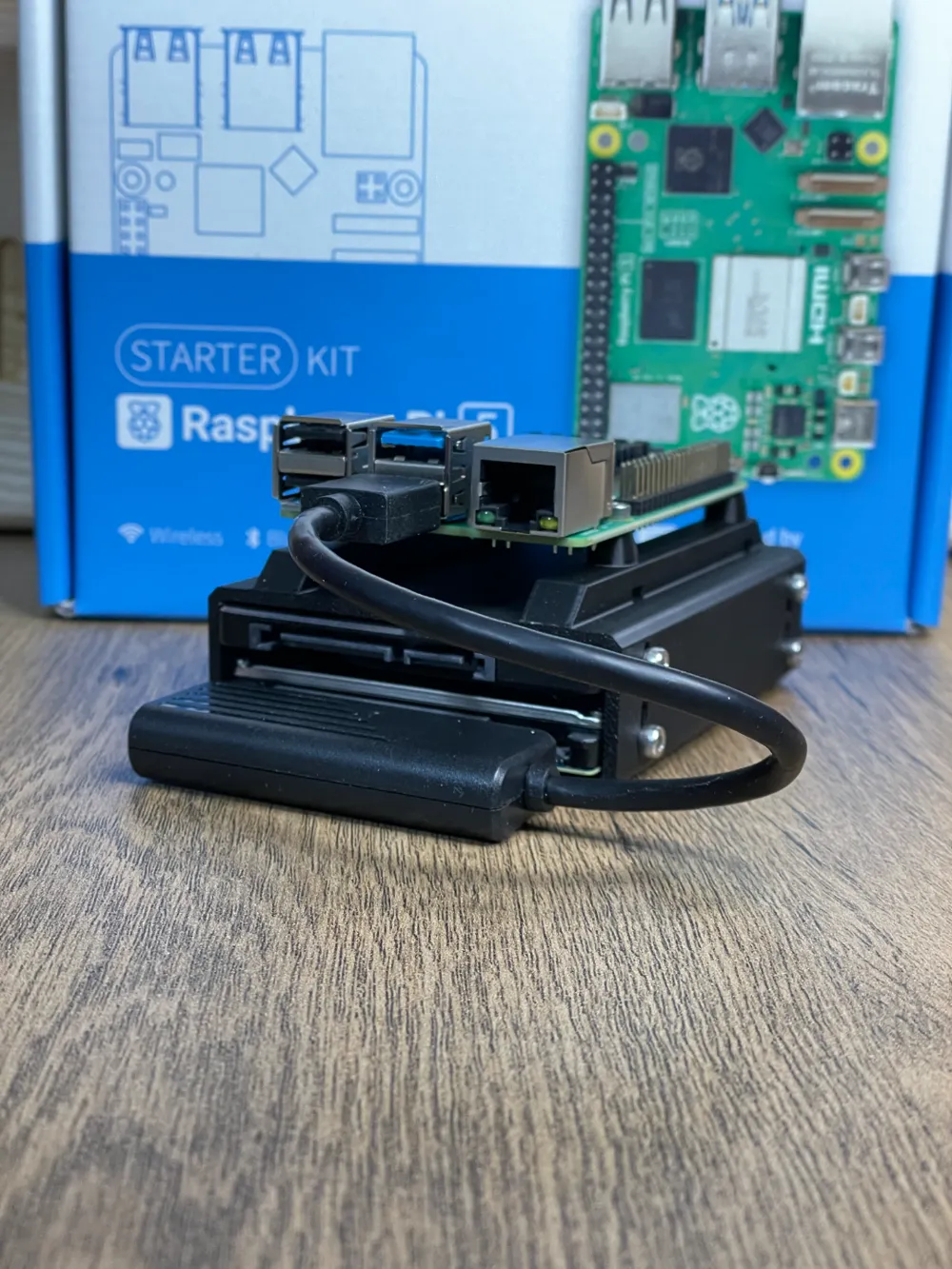

Introducing the Raspberry Pi 5 and 4 Dual SSD Mount Adapter – a sophisticated, 3D printed accessory that seamlessly connects the official Raspberry Pi case to two 2.5-inch SSDs. Designed for easy installation, this adapter maintains the compact aesthetics of your setup while securely holding both SSDs in place.

To mount it, you will need:

4 x Screws M2.5x16 (To secure the official Pi Case to the Mount Adapter)
4 x Nuts M2.5 (To secure the official Pi Case to the Mount Adapter)
8 x Screws M3x6 (For each SSDs)

Do you prefer not to use the case? The holes are suitable for installing directly on the PCB of the Raspberry Pi 5 or 4. Just print the 4 spacers, and you are all set.

Click here if you need the 1 x SSD Version.

Click here for the VESA 75 / 100 ADAPTER
