Flush-mounted socket template DIN 49 075

During new construction, renovation, or remodeling, there might not be enough power outlets

To turn one outlet into, for example, a set of three, the additional flush-mounted boxes must be perfectly aligned and drilled at the correct distance

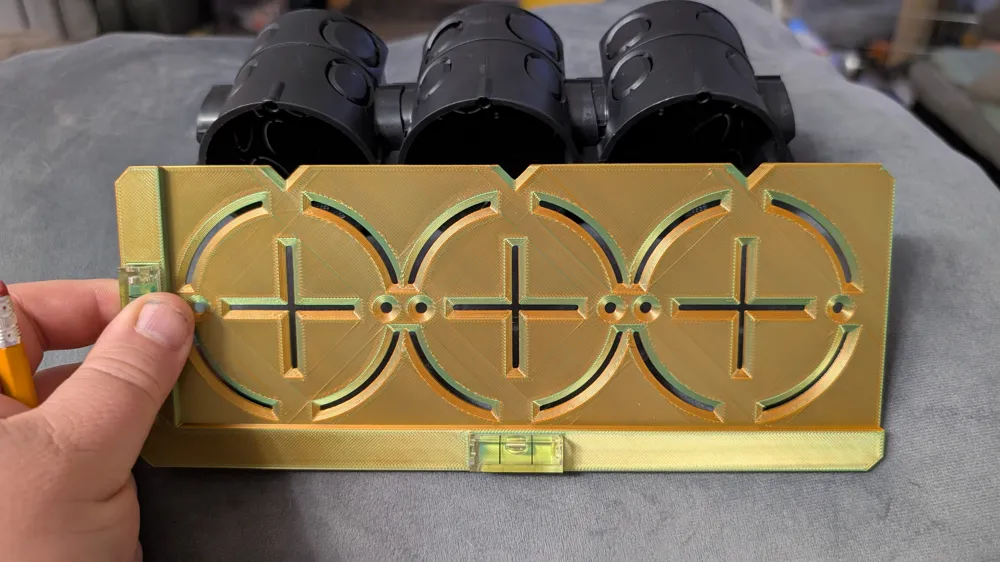

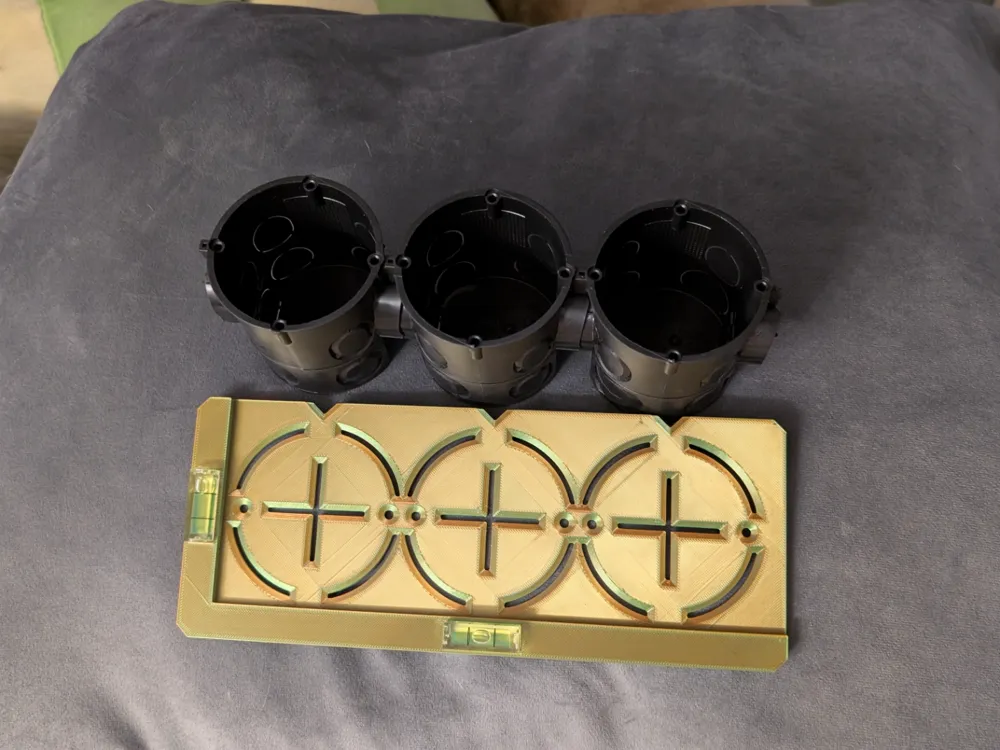

Here is a tool with an integrated spirit level

Thanks to the built-in spirit levels, it helps when marking vertical and horizontal positions for the additional flush-mounted boxes

The screw holes are also incorporated into the template, so for example, the template could be attached to the original screw holes and the additional boxes marked Or just used as a checking tool

With the incorporated notches on the top, the distance can also be checked

The template has been manufactured according to the requirements of DIN 49 075 These requirements are also reflected in DIN EN 60670-1 and could be applied throughout Europe

Search term in online retail: Spirit level (metrology) 29x10x10mm

PS: If no spirit levels are at hand or as a quick solution, the left and bottom sides were constructed more solidly to allow an additional spirit level to be placed

Version 2:

A marking option has been added here to mark the center of 2 boxes

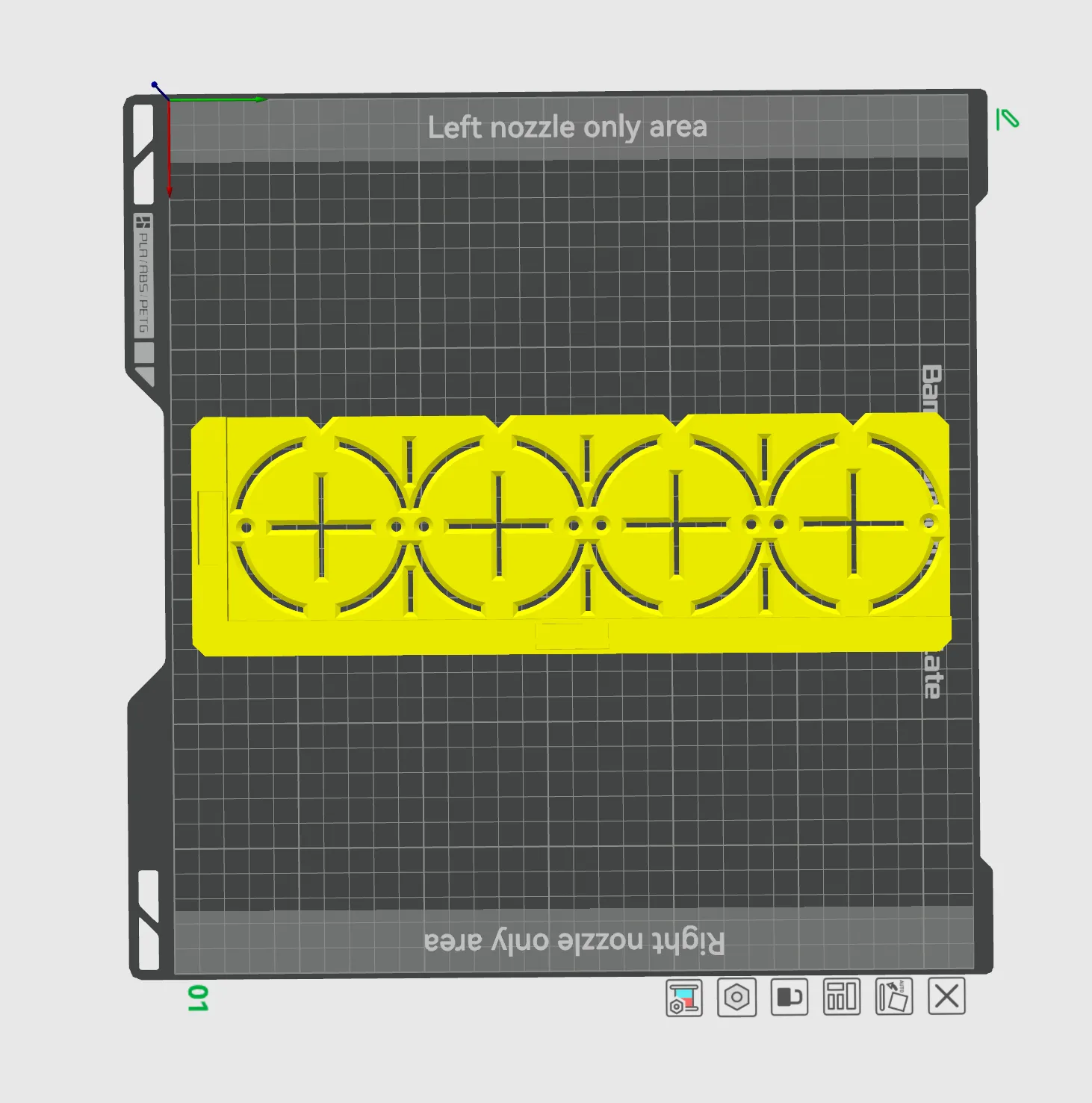

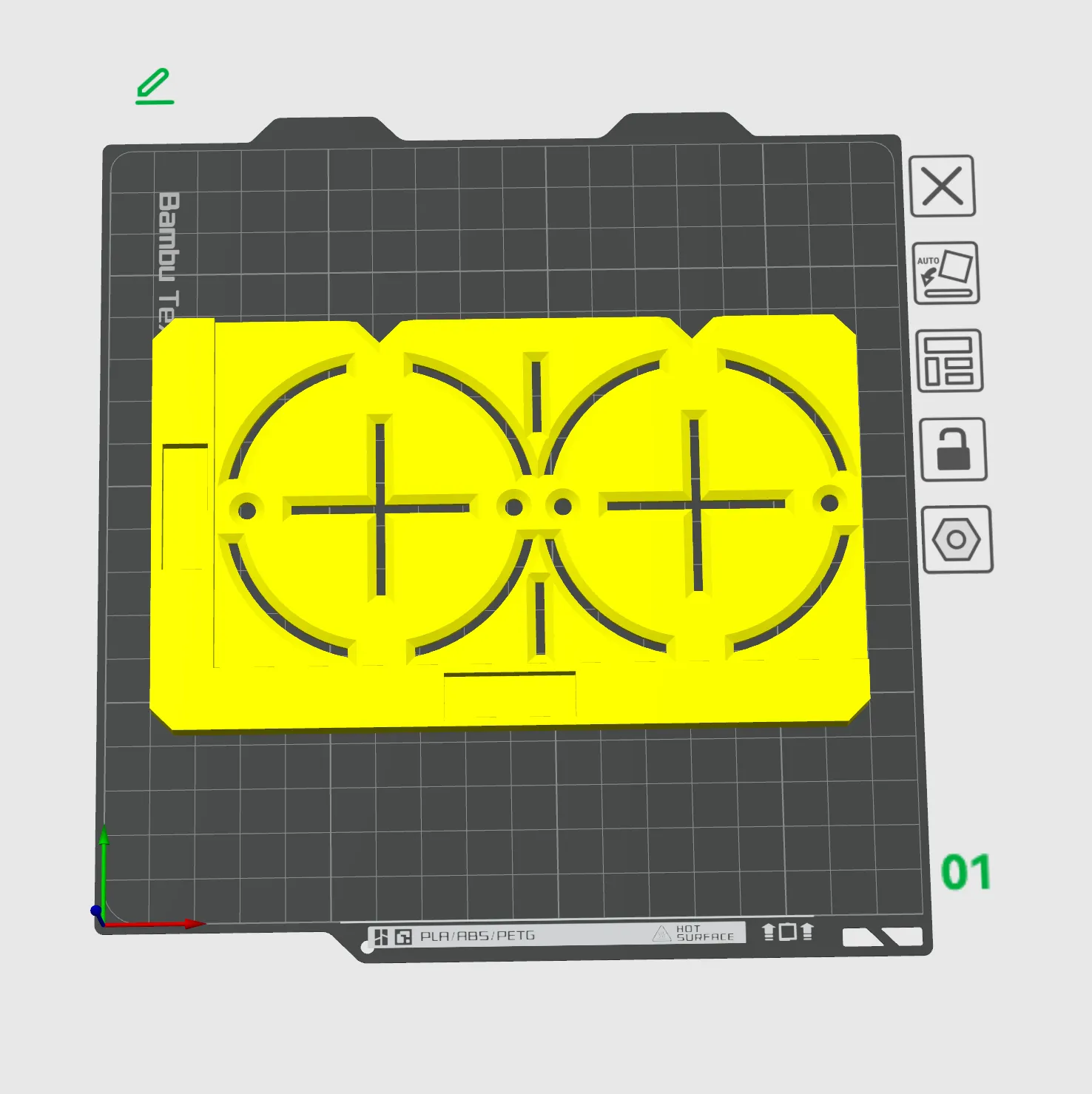

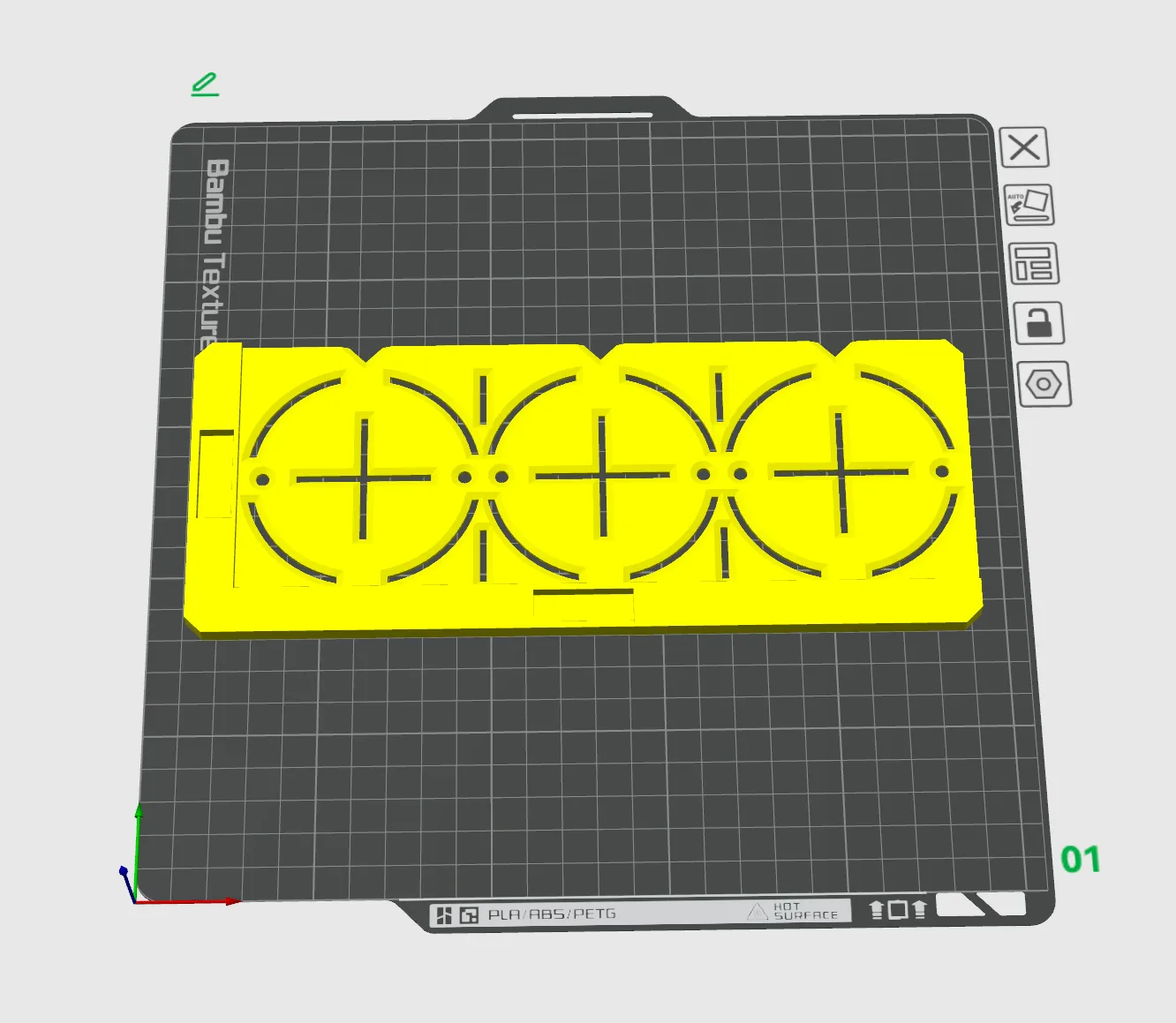

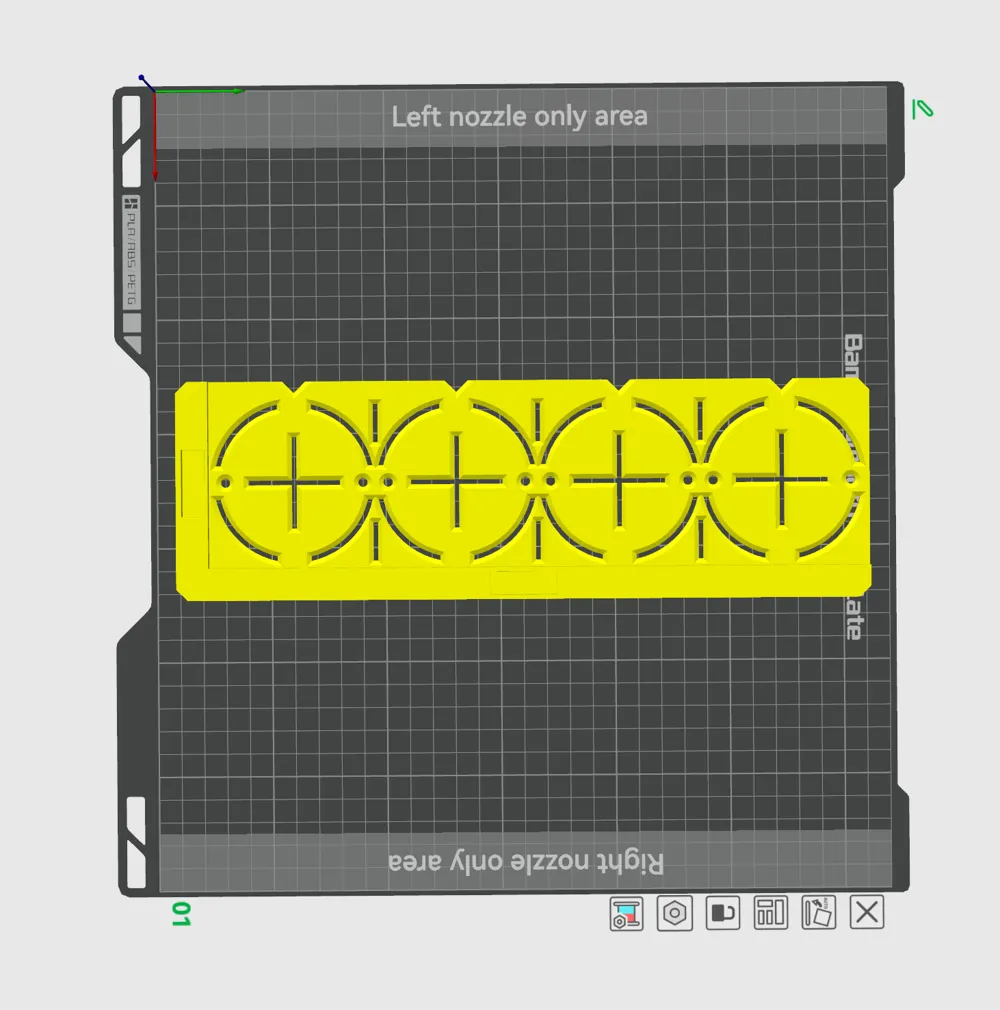

There are now also drilling templates for 2 (printable on the A1 mini), 3, and 4 (H2-Series only)
