Metal Lathe round threading die holder
Print Profile(3)
Description

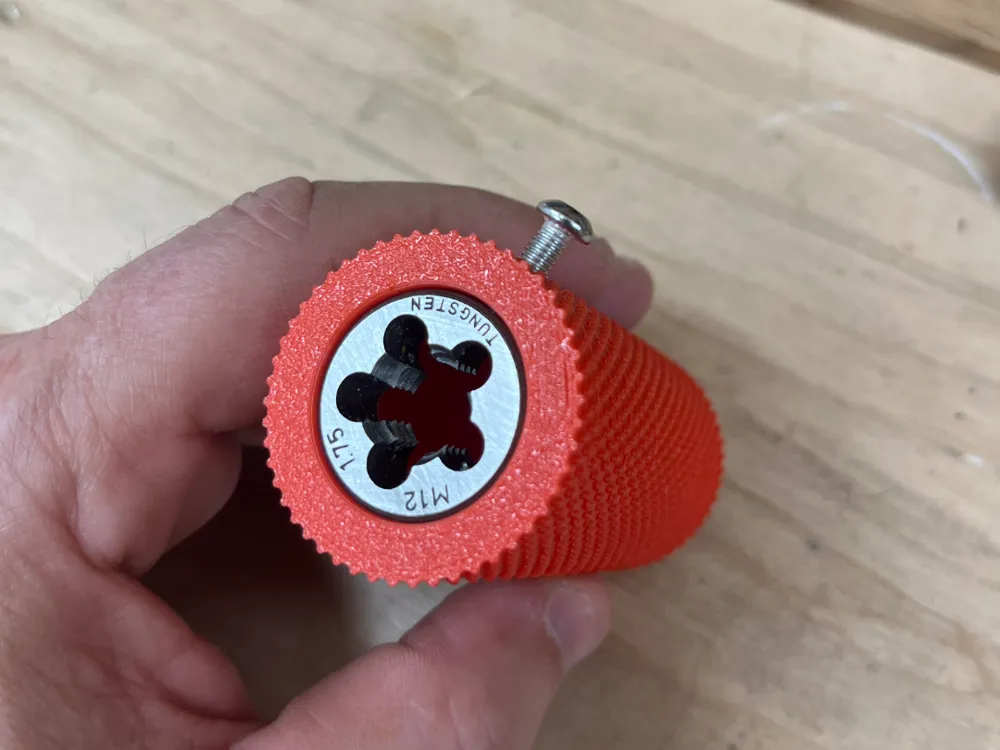

This 3D model features both MT1, MT2 and MT3 mandrels for alignment in lathe threading operations. The threading die holder is for standard round dies.

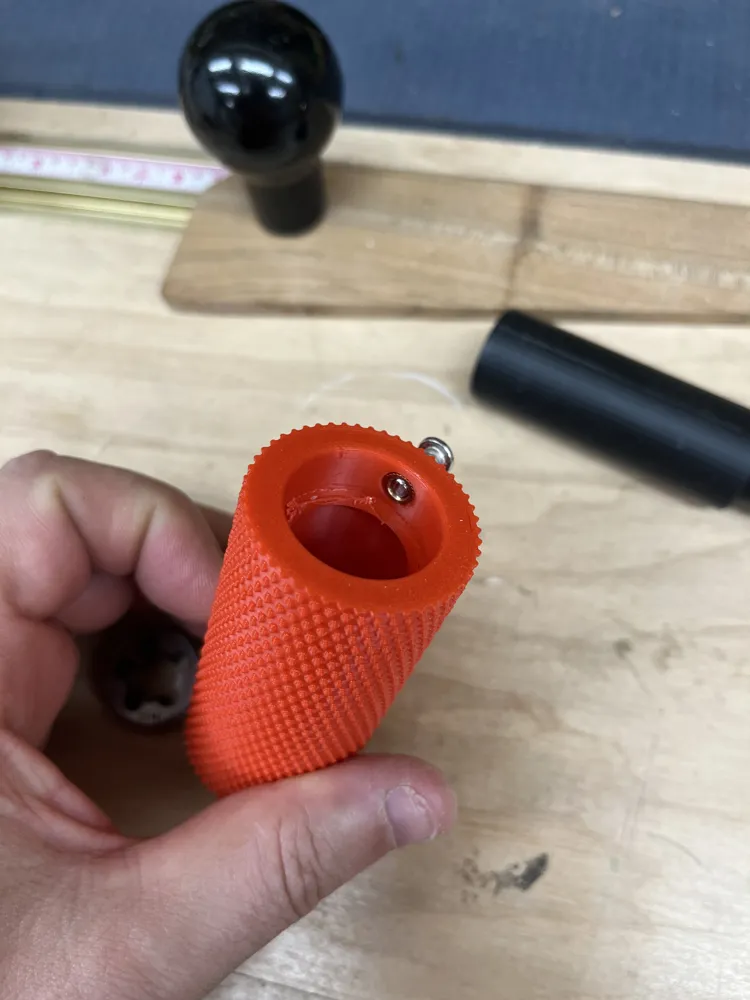

A threaded insert and holding screw provide reliable retention of the die, preventing unwanted movement or slippage during threading operations.

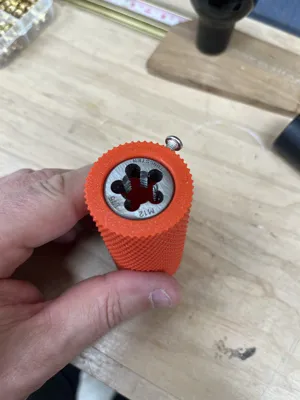

Knurling has been added to the holder's surface to improve grip and user control
The design balances durability with ergonomic convenience, making it ideal for applications requiring precision and repeatability.
If you found this model helpful, don't forget to boost and like, your support is greatly appreciated.
Hardware used
1xM4 insert press fit from the inside. (Can used pliers or a screw to pull insert into place)
1xM4x8 screw
Updates have also added a Mores taper 1 mandrel profile for smaller lathes
Updates have also added a Mores taper 3 mandrel profile for larger lathes
