Arknights Pepe Hammer Cosplay Prop (1.25m total length)

It has come to our attention that some users are selling prints of this model. Please adhere to the license agreement and do not use this model for commercial purposes.

The original model was created by the esteemed @user_3471628865 (with the original author's permission). This model is a scaled-up, multi-part adaptation, with modifications for ease of printing and assembly.

!!!Please read the following before printing!!!

1.You will need to procure an aluminum tube approximately 820mm in length and 10mm in outer diameter

2.Extensive use of super glue (like 502) will be required during assembly

3.The print files comprise 16 plates. The first 12 plates are essential for the main body (no AMS required for the main body). Plates 13-15 are for multi-color printing to reduce post-processing work, and plate 16 is a test piece; it's recommended to print it first to confirm the aluminum tube's fit.

4.Each plate's name indicates the suggested filament color. The required colors include silver, gold, copper, blue, white, and black

5.To maximize weight reduction, non-structural components have a fill rate of only 3%. Some parts may fit tightly during assembly; handle with care to avoid breakage

6.Despite weight optimization efforts, the final printed assembly will weigh close to 2KG (mine weighed 1.8KG)

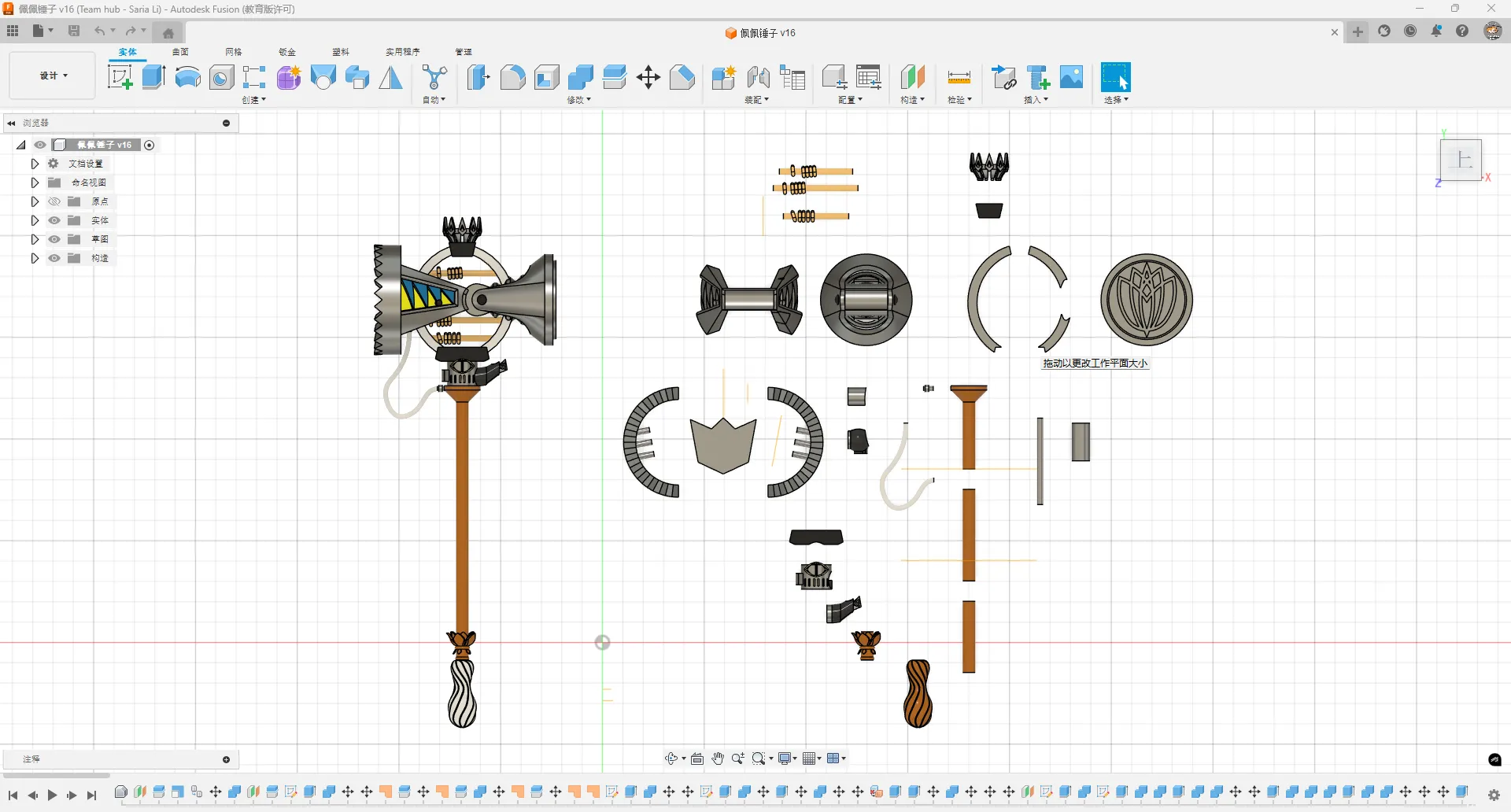

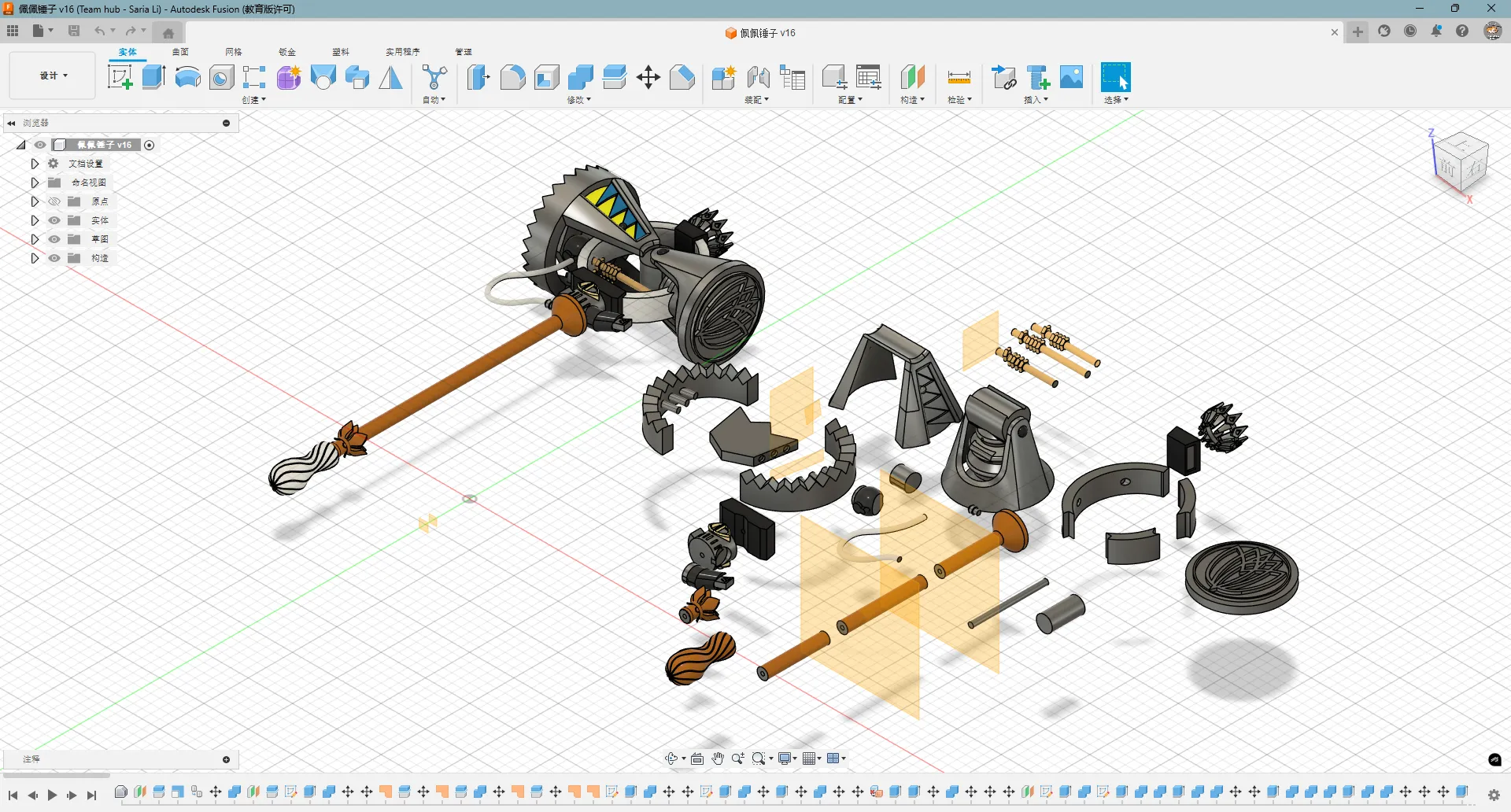

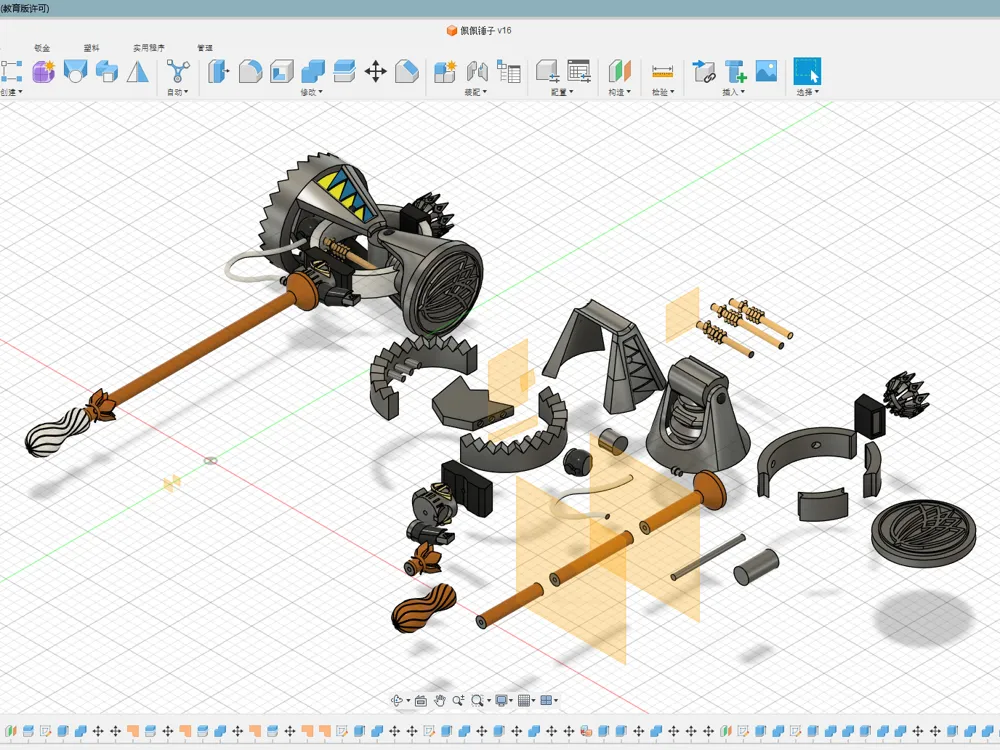

Assembly instructions are currently illustrated in the image below; a detailed guide will follow later

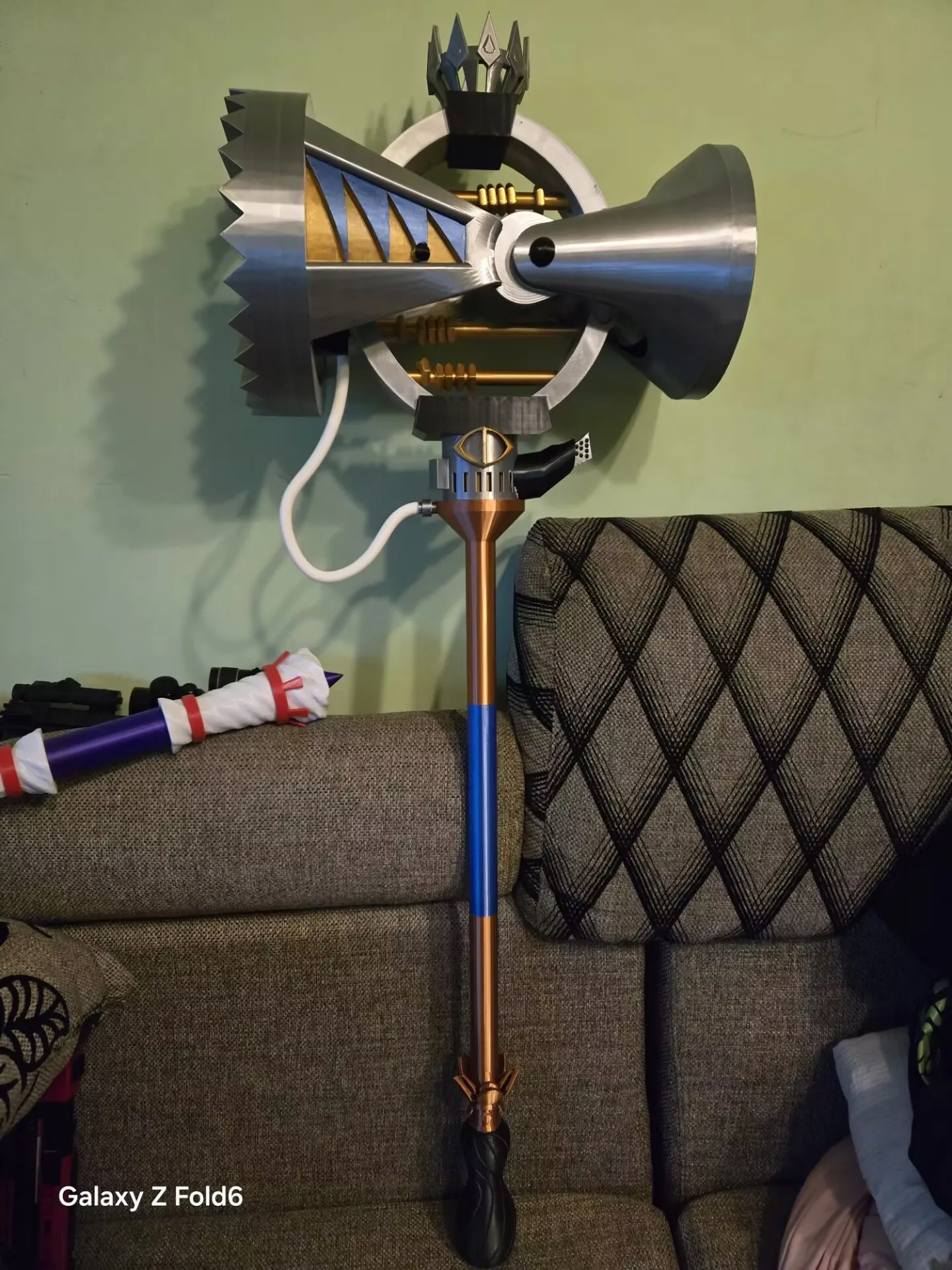

Below are photos of my print. Testing has shown that the model, when fully secured, can withstand significant swinging force from a hammer.

A friend, CD29, plans to use this in Pepe cosplay, apparently (
